CONVEYOR COMPONENTS

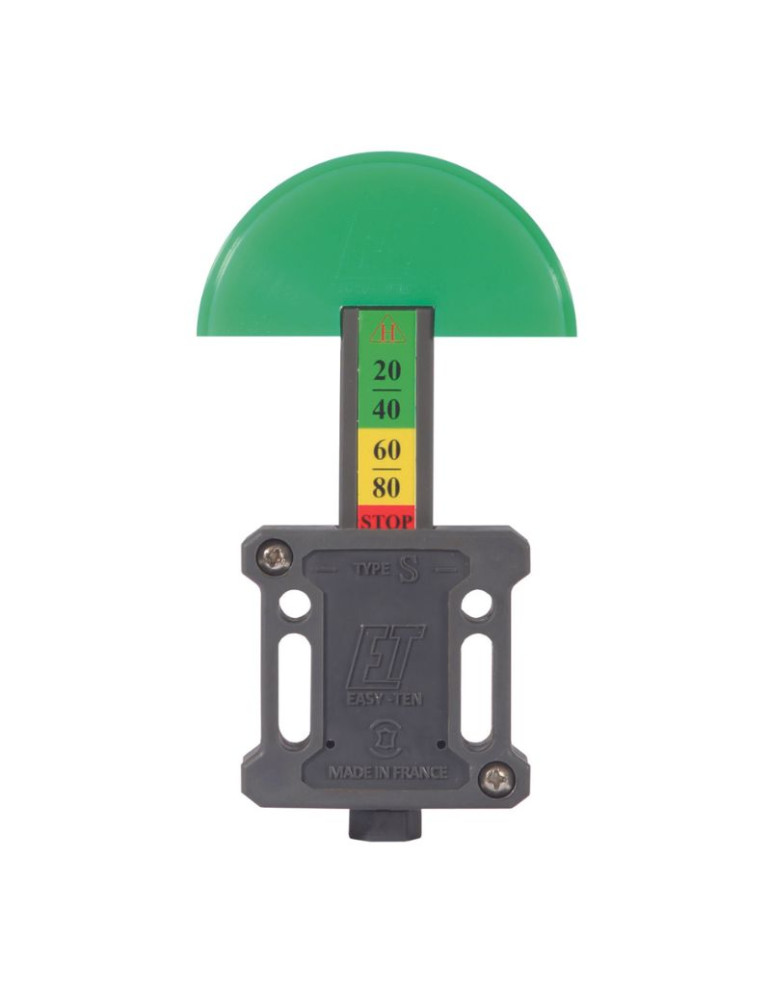

Type S chain tensioner with SC chain slider
Description
Product Details
Attachments

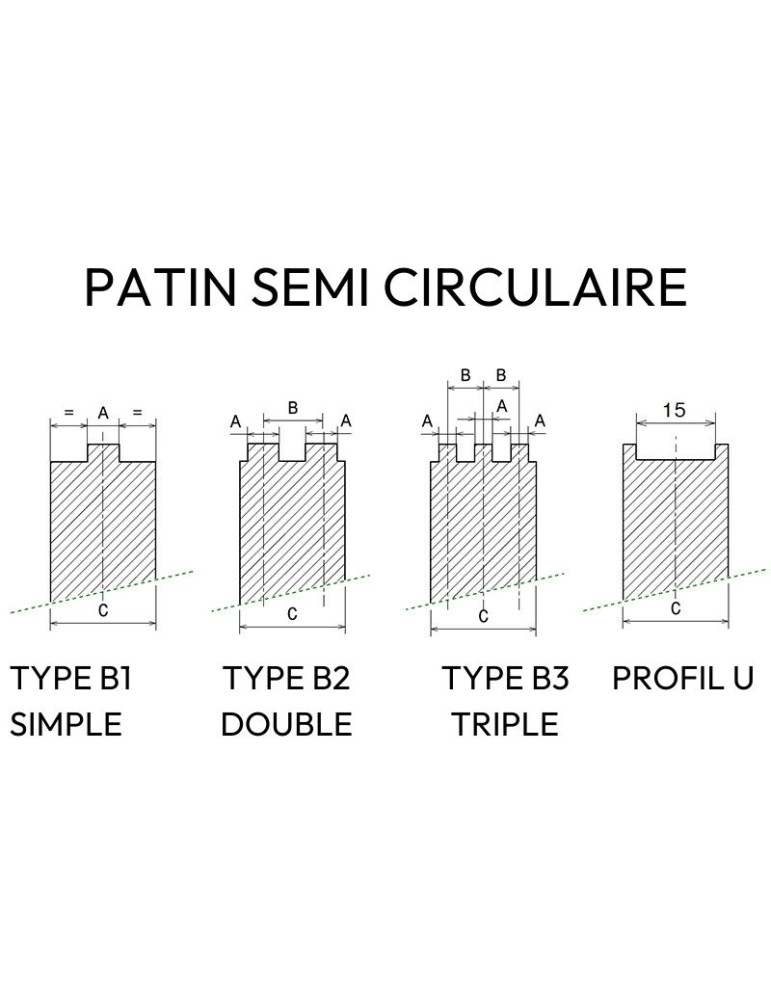

Semi circular chain rider.

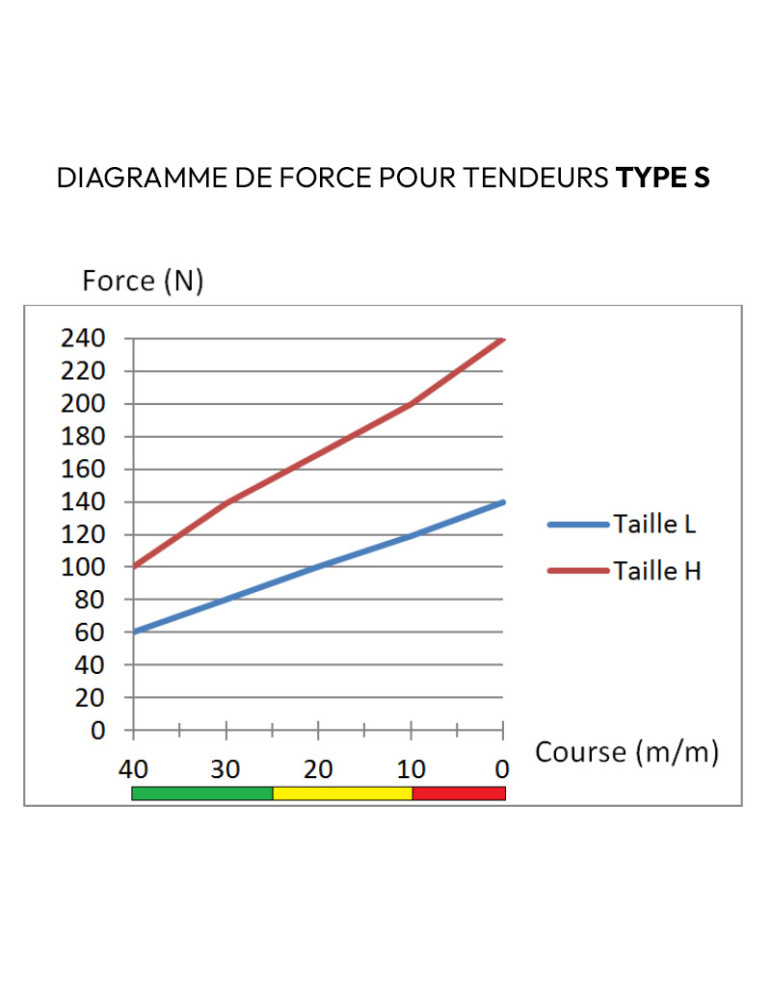

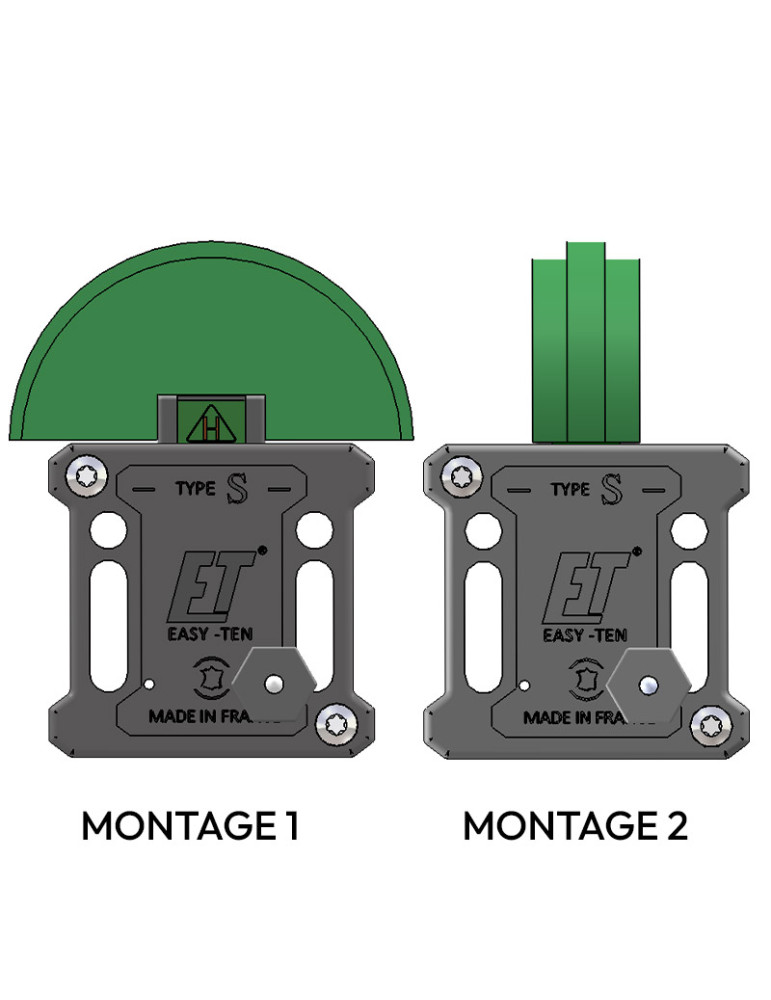

The tensioners are delivered in high tension (H) (1 spring from 100 to 240 N) and the head according to mounting number 1 (see image).
Composition: The case and column are PA6 load 30% Glass fiber. The chain slider is machined in green polyethylene HD 1000. All other components of ETS tensioners (springs and fasteners) are made of 304 L stainless steel.
Race: 40 mm.
Tenders also exist in low tension (L) (1 spring from 60 to 140 N).
To be delivered in low tension (L), put in your shopping cart the H reference and simply specify that you want to receive the product in low tension in comments in your order.
Think about filtering references by NO CHAIN to facilitate your search.
ET-S06B1H
31 Items
Specific References
- DOM-ETS
Choose product attributes:
Product is available
Product available on plateform
*Prix HT hors frais d’envoi
| Ref. | order | Version | Toothing | A (mm) | Unit price | Weight | Avail. | Buy |
|---|---|---|---|---|---|---|---|---|
| ET-S06B1UH | 1 | Profil U | 06 B1 | 15 | 0.1 kg |
|
||
| ET-S06B1H | 2 | Simple | 06 B1 | 5 | 0.1 kg |
|
||
| ET-S08B1H | 3 | Simple | 08 B1 | 7 | 0.1 kg |
|
||
| ET-S10B1H | 4 | Simple | 10 B1 | 9 | 0.1 kg |
|
||
| ET-S12B1H | 5 | Simple | 12 B1 | 11 | 0.1 kg |
|
||
| ET-S06B2H | 6 | Double | 06 B2 | 5 | 0.1 kg |
|
||
| ET-S08B2H | 7 | Double | 08 B2 | 7 | 0.1 kg |
|
||
| ET-S10B2H | 8 | Triple | 10 B2 | 9 | 0.1 kg |
|
||
| ET-S06B3H | 9 | Triple | 06 B3 | 5 | 0.1 kg |
|
||
| ET-S08B3H | 10 | Triple | 08 B3 | 7 | 0.1 kg |
|
||
|
Total:
0,0
All prices with tax excluded.
Tax rate: 20,0%. |
||||||||
