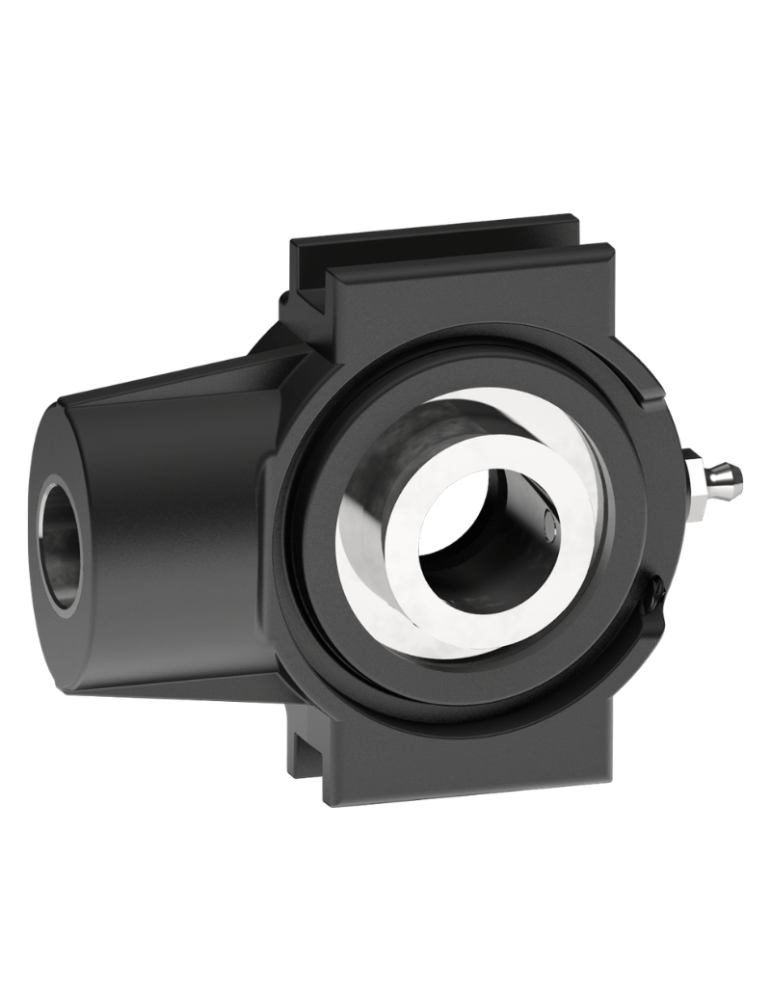

Bearing for full tensioners CX Solid
Bearing for full tensioners CX Solid

Bearing for full tensioners CX Solid

Description

Take-up bearing supports for tensioners with posterior seal but without cover. The covers can be ordered separately here.

Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.

Standard bearings or Long Life bearings: life long lubrication

MATERIALS

Housing is made out of PA + glass fiber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser and bushings made out of nickel plated brass; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour

FEATURES

The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°

ON REQUEST

Versions with body in polypropylene + glass fiber and antibacterial additive; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.

DETAILS

1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass fibers.

2) Back gasket made out of NBR rubber for turning shaft seal.

3) Chrome steel or stainless steel bearing AISI 440.

3B) Chrome steel bearing.

4) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).

5) Bushing made of nickel plated brass.

NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap. Support dimensions respect ISO 3228 set of rules.

Maximum shaft alignment error 2,5°.

For further information please contact our technical office or sales department.

Product Details
86111

Specific References

  • PAL-UCT-CX
Attachments

PALIERS UCT CX SOLID

Download (1.37MB)
15 people are viewing this right now
DOM
86111
€68.38
Tax excluded
order: 2
Series: UCT 205 CX
Bearing material: ACIER AU CHROME
Colors: noir
Bearing type: Standard
E (mm): 28
A (mm): 68,5
PAL-G (mm): 13,5
PAL-I (mm): 17
PAL-Charge roulement C (N): 14000
PAL-Charge roulement C0 (N): 7800
PAL-Charge support (N): 24000
Type of fixation: vis
PAL-F (mm): M20
PAL-B (mm): 40,5
Diam. Tree (mm): 25
PAL-C (mm): 50
PAL-M (mm): 76,2
PAL-N (mm): 92
PAL-P (mm): 25
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
BEARING SUPPORTS,  Take-up bearing supports

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order Diam. Tree (mm) Series Bearing material Bearing type Type of fixation Colors A (mm) E (mm) Unit price Weight Avail. Buy
85680 1 20 UCT 204 CX ACIER AU CHROME Standard vis noir 63,5 28 0.317 kg
86111 2 25 UCT 205 CX ACIER AU CHROME Standard vis noir 68,5 28 0.338 kg
86136 3 30 UCT 206 CX ACIER AU CHROME Standard vis noir 77 28 0.597 kg
85682 4 20 UCT 204 CX ACIER AU CHROME Standard vis blanc 63,5 28 0.317 kg
86112 5 25 UCT 205 CX ACIER AU CHROME Standard vis blanc 68,5 28 0.338 kg
86138 6 30 UCT 206 CX ACIER AU CHROME Standard vis blanc 77 28 0.597 kg
89270 7 20 UCT 204 CX ACIER AU CHROME Standard vis bleu 63,5 28 0.317 kg
89271 8 25 UCT 205 CX ACIER AU CHROME Standard vis bleu 68,5 28 0.338 kg
89272 9 30 UCT 206 CX ACIER AU CHROME Standard vis bleu 77 28 0.597 kg
90314 10 20 UCT 204 CX ACIER AU CHROME Long Life vis noir 63,5 28 0.317 kg
88136 11 25 UCT 205 CX ACIER AU CHROME Long Life vis noir 68,5 28 0.338 kg
90315 12 30 UCT 206 CX ACIER AU CHROME Long Life vis noir 77 28 0.597 kg
90316 13 20 UCT 204 CX ACIER AU CHROME Long Life vis blanc 63,5 28 0.317 kg
90317 14 25 UCT 205 CX ACIER AU CHROME Long Life vis blanc 68,5 28 0.338 kg
90318 15 30 UCT 206 CX ACIER AU CHROME Long Life vis blanc 77 28 0.597 kg
90319 16 20 UCT 204 CX ACIER AU CHROME Long Life vis bleu 63,5 28 0.317 kg
90320 17 25 UCT 205 CX ACIER AU CHROME Long Life vis bleu 68,5 28 0.338 kg
90321 18 30 UCT 206 CX ACIER AU CHROME Long Life vis bleu 77 28 0.597 kg
88615 19 20 UCT 204 CX ACIER AU CHROME Standard bague exc. noir 63,5 28 0.347 kg
88616 20 25 UCT 205 CX ACIER AU CHROME Standard bague exc. noir 68,5 28 0.368 kg
88617 21 30 UCT 206 CX ACIER AU CHROME Standard bague exc. noir 77 28 0.647 kg
88618 22 20 UCT 204 CX ACIER AU CHROME Standard bague exc. blanc 63,5 28 0.347 kg
88619 23 25 UCT 205 CX ACIER AU CHROME Standard bague exc. blanc 68,5 28 0.368 kg
88620 24 30 UCT 206 CX ACIER AU CHROME Standard bague exc. blanc 77 28 0.647 kg
89273 25 20 UCT 204 CX ACIER AU CHROME Standard bague exc. bleu 63,5 28 0.347 kg
89274 26 25 UCT 205 CX ACIER AU CHROME Standard bague exc. bleu 68,5 28 0.368 kg
89275 27 30 UCT 206 CX ACIER AU CHROME Standard bague exc. bleu 77 28 0.647 kg
90322 28 20 UCT 204 CX ACIER AU CHROME Long Life bague exc. noir 63,5 28 0.347 kg
90323 29 25 UCT 205 CX ACIER AU CHROME Long Life bague exc. noir 68,5 28 0.368 kg
90324 30 30 UCT 206 CX ACIER AU CHROME Long Life bague exc. noir 77 28 0.647 kg
90325 31 20 UCT 204 CX ACIER AU CHROME Long Life bague exc. blanc 63,5 28 0.347 kg
90326 32 25 UCT 205 CX ACIER AU CHROME Long Life bague exc. blanc 68,5 28 0.368 kg
90327 33 30 UCT 206 CX ACIER AU CHROME Long Life bague exc. blanc 77 28 0.647 kg
90328 34 20 UCT 204 CX ACIER AU CHROME Long Life bague exc. bleu 63,5 28 0.347 kg
90329 35 25 UCT 205 CX ACIER AU CHROME Long Life bague exc. bleu 68,5 28 0.368 kg
90330 36 30 UCT 206 CX ACIER AU CHROME Long Life bague exc. bleu 77 28 0.647 kg
85681 37 20 UCT 204 CX INOX 304 Standard vis noir 63,5 28 0.317 kg
86113 38 25 UCT 205 CX INOX 304 Standard vis noir 68,5 28 0.338 kg
86140 39 30 UCT 206 CX INOX 304 Standard vis noir 77 28 0.597 kg
85683 40 20 UCT 204 CX INOX 304 Standard vis blanc 63,5 28 0.317 kg
86114 41 25 UCT 205 CX INOX 304 Standard vis blanc 68,5 28 0.338 kg
86142 42 30 UCT 206 CX INOX 304 Standard vis blanc 77 28 0.597 kg
89276 43 20 UCT 204 CX INOX 304 Standard vis bleu 63,5 28 0.317 kg
89277 44 25 UCT 205 CX INOX 304 Standard vis bleu 68,5 28 0.338 kg
89278 45 30 UCT 206 CX INOX 304 Standard vis bleu 77 28 0.597 kg
90331 46 20 UCT 204 CX INOX 304 Long Life vis noir 63,5 28 0.317 kg
90332 47 25 UCT 205 CX INOX 304 Long Life vis noir 68,5 28 0.338 kg
90333 48 30 UCT 206 CX INOX 304 Long Life vis noir 77 28 0.597 kg
90334 49 20 UCT 204 CX INOX 304 Long Life vis blanc 63,5 28 0.317 kg
90335 50 25 UCT 205 CX INOX 304 Long Life vis blanc 68,5 28 0.338 kg
90336 51 30 UCT 206 CX INOX 304 Long Life vis blanc 77 28 0.597 kg
90337 52 20 UCT 204 CX INOX 304 Long Life vis bleu 63,5 28 0.317 kg
90338 53 25 UCT 205 CX INOX 304 Long Life vis bleu 68,5 28 0.338 kg
90339 54 30 UCT 206 CX INOX 304 Long Life vis bleu 77 28 0.597 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
