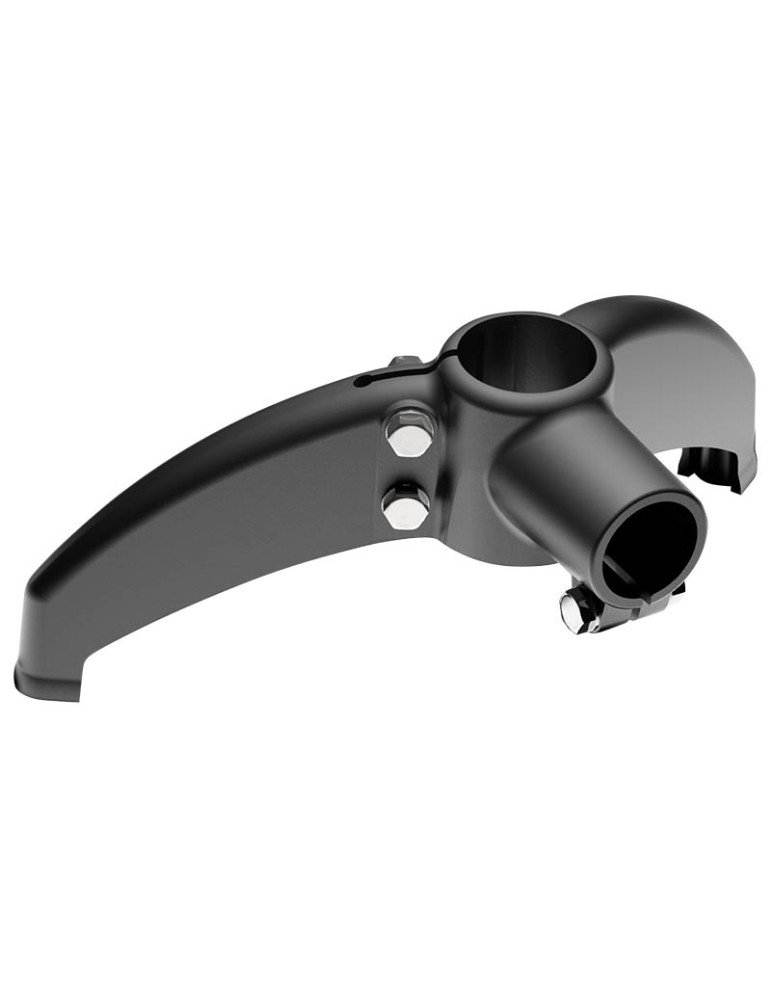

Support base bipod at 120° reinforced polyamide
Support base bipod at 120° reinforced polyamide

Support base bipod at 120° reinforced polyamide

Description

Base made of reinforced polyamide black colour; threaded bushing made of nickel plated brass; fixing bolts and nuts made of stainless steel AISI 304 or zinc plated steel.

FEATURES :

Max tightening torque 3,6 Kg?m.

ON REQUEST

Bases: In reinforced polypropylene, other colours

Assembling of: Bolts and nuts.

Product Details
201/80612

Specific References

  • CC-base201
Attachments

CC REF 200 201

Download (417.35KB)
20 people are viewing this right now
DOM
201/80612
€33.63
Tax excluded
order: 1
Material: Boulons en acier zingué
Df. Tube (mm): 60,3
Df. Tube (inches): 2” GAS
Extraction tube (N): 9600
Static load max. applicable (N): 15800
Df1 Tube bore (mm): 48,3
Df1 Tube damage (inches): 1”1/2 GAS
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
CONVEYOR COMPONENTS,  Support bases

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order Material Df. Tube (mm) Df. Tube (inches) Df1 Tube bore (mm) Df1 Tube damage (inches) Static load max. applicable (N) Extraction tube (N) Unit price Weight Avail. Buy
201/80612 1 Boulons en acier zingué 60,3 2” GAS 48,3 1”1/2 GAS 15800 9600 0.925 kg
201/80614 2 Boulons en acier zingué 60,3 2” GAS 42,4 1”1/4 GAS 15800 9600 0.925 kg
201/83200 3 Boulons en acier zingué 50,8 2” IMPERIAL 48,3 1”1/2 GAS 15800 9600 0.925 kg
201/83202 4 Boulons en acier zingué 50,8 2” IMPERIAL 42,4 1”1/4 GAS 15800 9600 0.925 kg
201/80616 5 Boulons en acier zingué 48,3 1”1/2 GAS 48,3 1”1/2 GAS 15800 9600 0.925 kg
201/80618 6 Boulons en acier zingué 48,3 1”1/2 GAS 42,4 1”1/4 GAS 15800 9600 0.925 kg
201/80620 7 Boulons en acier zingué 42,4 1”1/4 GAS 42,4 1”1/4 GAS 15800 9600 0.925 kg
201/80613 8 Boulons en inox 304 60,3 2” GAS 48,3 1”1/2 GAS 15800 9600 0.925 kg
201/80615 9 Boulons en inox 304 60,3 2” GAS 42,4 1”1/4 GAS 15800 9600 0.925 kg
201/83201 10 Boulons en inox 304 50,8 2” IMPERIAL 48,3 1”1/2 GAS 15800 9600 0.925 kg
201/83203 11 Boulons en inox 304 50,8 2” IMPERIAL 42,4 1”1/4 GAS 15800 9600 0.925 kg
201/80617 12 Boulons en inox 304 48,3 1”1/2 GAS 48,3 1”1/2 GAS 15800 9600 0.925 kg
201/80619 13 Boulons en inox 304 48,3 1”1/2 GAS 42,4 1”1/4 GAS 15800 9600 0.925 kg
201/80621 14 Boulons en inox 304 42,4 1”1/4 GAS 42,4 1”1/4 GAS 15800 9600 0.925 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
