47AT10 Timing Pulley

Description

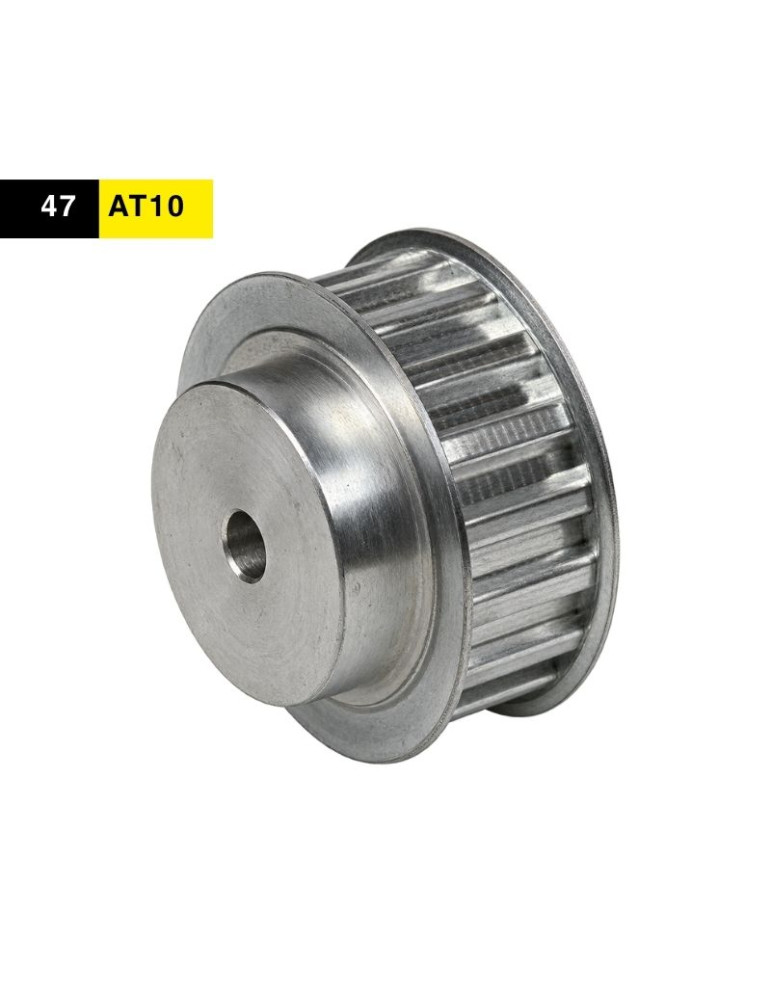

The 47AT10 timing pulley for 32 mm wide belts is designed for synchronous drives using AT10-profile timing belts. Its 10 mm pitch must match the pitch of the mating belt.

Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 18 to 60 teeth across the part numbers listed in the catalogue. The tooth count determines the transmission ratio together with the other pulley in the drive.

Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number. Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: AT10 profile; 10 mm pitch; 32 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 44, 48, 60 teeth.

Product Details
47AT10-20F
6 Items

Specific References

  • 8054652102119
  • poulie-47at10
15 people are viewing this right now
DOM
47AT10-20F
6 Items
€12.96
Tax excluded
order: 862
Material: aluminium
CHI-Pièce: Poulie
CHI-type1: AT
CHI-type3: AT10
Type: 47 CT10 20
Teeth: 20

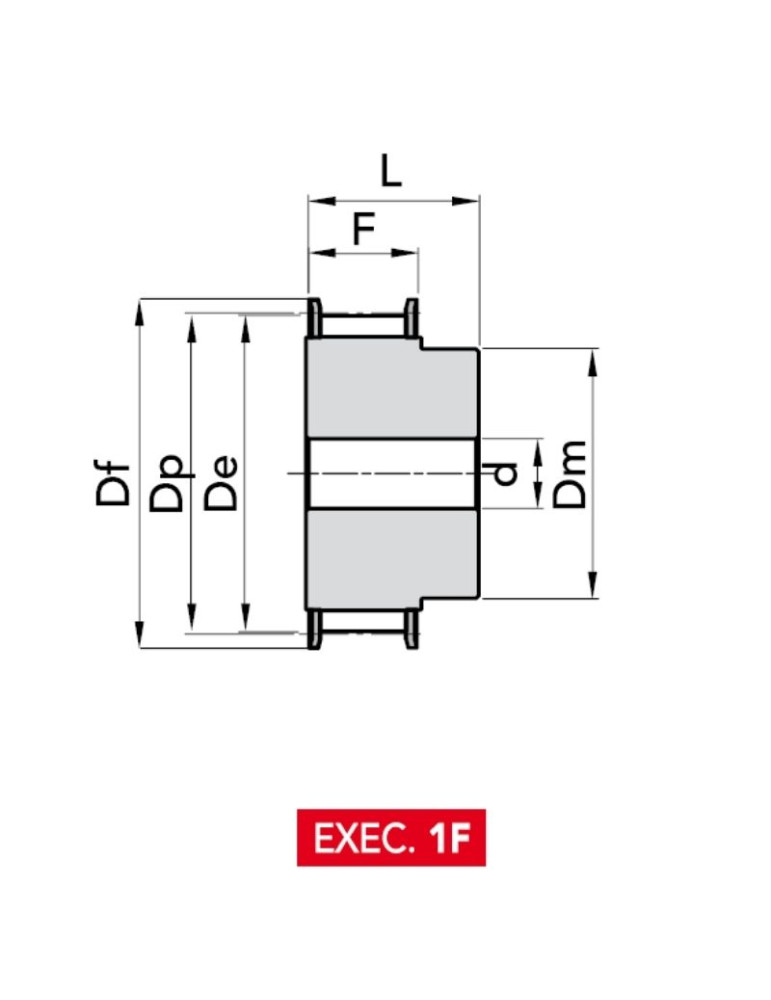

Execution: 1F
Dp: 63,66
De: 61,8
Df flange: 66,5
Dm: 46
CHI-Di: -
CHI-F: 37
CHI-L: 47
d: 12
N° flange: 24
CHI-Flasque: oui
Belt width (mm): 32
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 6 item(s) left in Stock!
PULLEYS,  Metric timing pulleys,  Metric AT-pulley,  AT10 Metric Pulleys

Choose product attributes:

 Immediate stock
 Weekly stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
47AT10-18F 860 18 47 CT10 18 1F 57,29 55,45 60 40 10 aluminium 21
€11.06
0.25 kg
47AT10-19F 861 19 47 CT10 19 1F 60,48 58,6 66,5 44 10 aluminium 24
€12.08
0.288 kg
47AT10-20F 862 20 47 CT10 20 1F 63,66 61,8 66,5 46 12 aluminium 24
€12.96
0.312 kg
47AT10-22F 863 22 47 CT10 22 1F 70,03 68,15 75 52 12 aluminium 27
€16.36
0.391 kg
47AT10-24F 864 24 47 CT10 24 1F 76,39 74,55 83 58 12 aluminium 29
€18.46
0.478 kg
47AT10-25F 865 25 47 CT10 25 1F 79,58 77,7 83 60 12 aluminium 29
€18.64
0.519 kg
47AT10-26F 866 26 47 CT10 26 1F 82,76 80,9 87 60 12 aluminium 31
€20.75
0.555 kg
47AT10-27F 867 27 47 CT10 27 1F 85,95 84,1 91 60 12 aluminium 32
€22.76
0.6 kg
47AT10-28F 868 28 47 CT10 28 1F 89,12 87,25 93 60 12 aluminium 33
€22.91
0.637 kg
47AT10-30F 869 30 47 CT10 30 1F 95,49 93,65 97 60 12 aluminium 35
€27.42
0.722 kg
47AT10-32F 870 32 47 CT10 32 1F 101,86 100 106 65 12 aluminium 38
€30.11
0.838 kg
47AT10-36F 871 36 47 CT10 36 1F 114,59 112,75 119 70 16 aluminium 43
€35.67
1.05 kg
47AT10-40F 872 40 47 CT10 40 1F 127,32 125,45 131 80 16 aluminium 47
€44.62
1.318 kg

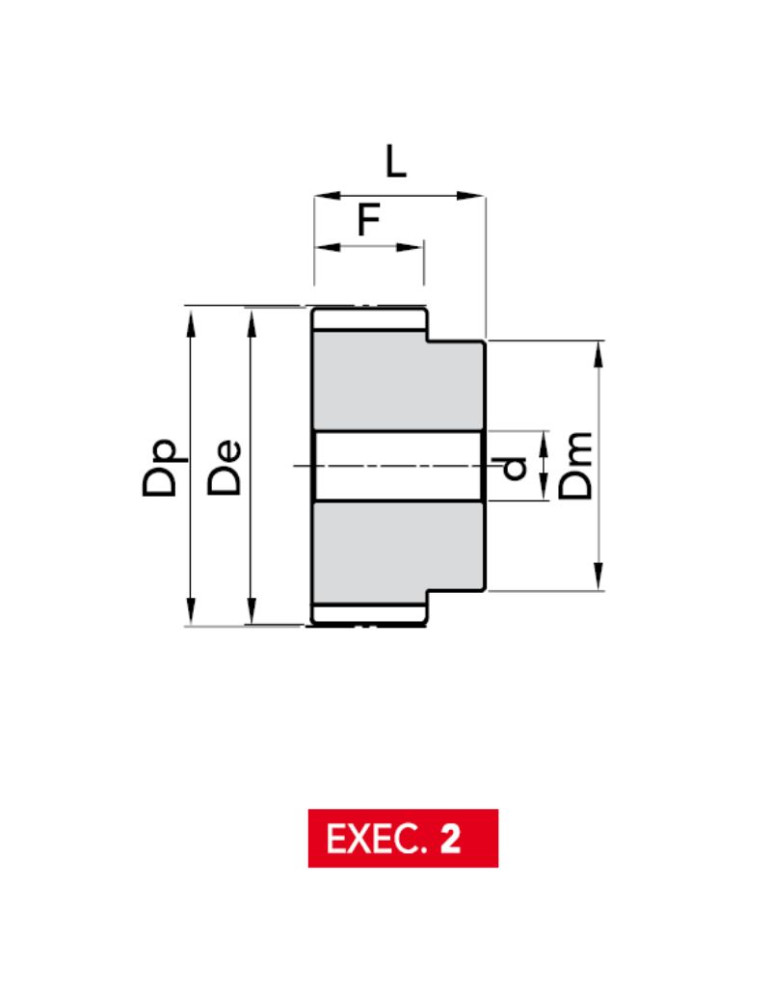

47AT10-44 873 44 47 CT10 44 2 140,05 138,2 - 88 16 aluminium -
€56.18
1.574 kg
47AT10-48 874 48 47 CT10 48 2 152,78 150,95 - 95 16 aluminium -
€62.47
1.888 kg
47AT10-60 875 60 47 CT10 60 2 190,98 189,1 - 110 16 aluminium -
€99.54
2.949 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
