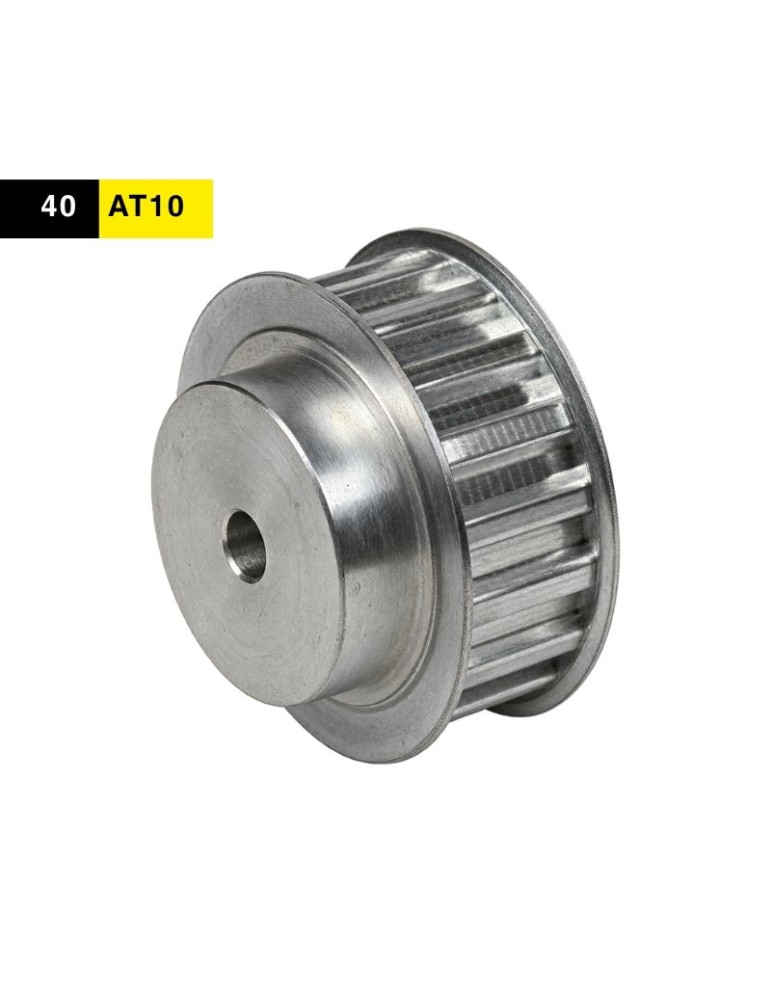

40AT10 Timing Pulley

Description

The 40AT10 timing pulley for 25 mm wide belts is designed for synchronous drives using AT10-profile timing belts.

Its 10 mm pitch must match the pitch of the mating belt. Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 15 to 60 teeth across the part numbers listed in the catalogue. The tooth count determines the transmission ratio together with the other pulley in the drive.

Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number. Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: AT10 profile; 10 mm pitch; 25 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 44, 48, 60 teeth.

Product Details

Reference 40AT10-15F

In stock 4 Items

Specific References

ean13 8054652101914
MPN poulie-40at10

17 people are viewing this right now

€7.78

Tax excluded

order: 842

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: AT

CHI-type3: AT10

Type: 40 CT10 15

Teeth: 15

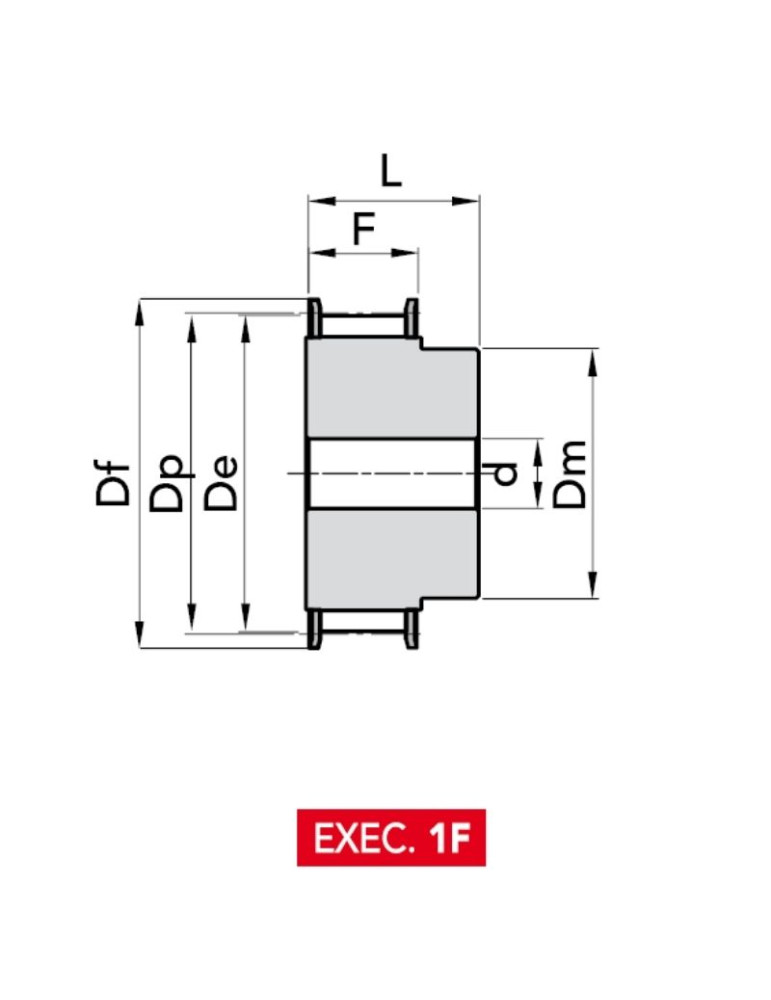

Execution: 1F

Dp: 47,75

De: 45,9

Df flange: 51

Dm: 32

CHI-Di: -

CHI-F: 30

CHI-L: 40

d: 8

N° flange: 16

CHI-Flasque: oui

Belt width (mm): 25

Quantity

Add to Wishlist

Add to Compare

Last items in stock

Hurry up! Only 4 item(s) left in Stock!

Categories: PULLEYS, Metric timing pulleys, Metric AT-pulley, AT10 Metric Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
40AT10-15F	842	15	40 CT10 15	1F	47,75	45,9	51	32	8	aluminium	16	€7.78	0.142 kg	Sum.: Sum.:
40AT10-16F	843	16	40 CT10 16	1F	50,93	49,05	54	35	8	aluminium	18	€8.57	0.163 kg	Sum.: Sum.:
40AT10-18F	844	18	40 CT10 18	1F	57,29	55,45	60	40	8	aluminium	21	€9.95	0.213 kg	Sum.: Sum.:
40AT10-19F	845	19	40 CT10 19	1F	60,48	58,6	66,5	44	8	aluminium	24	€10.80	0.245 kg	Sum.: Sum.:
40AT10-20F	846	20	40 CT10 20	1F	63,66	61,8	66,5	46	8	aluminium	24	€11.56	0.271 kg	Sum.: Sum.:
40AT10-22F	847	22	40 CT10 22	1F	70,03	68,15	75	52	8	aluminium	27	€14.45	0.337 kg	Sum.: Sum.:
40AT10-24F	848	24	40 CT10 24	1F	76,39	74,55	83	58	8	aluminium	29	€16.41	0.412 kg	Sum.: Sum.:
40AT10-25F	849	25	40 CT10 25	1F	79,58	77,7	83	60	8	aluminium	29	€16.53	0.442 kg	Sum.: Sum.:
40AT10-26F	850	26	40 CT10 26	1F	82,76	80,9	87	60	8	aluminium	31	€18.26	0.474 kg	Sum.: Sum.:
40AT10-27F	851	27	40 CT10 27	1F	85,95	84,1	91	60	8	aluminium	32	€20.13	0.508 kg	Sum.: Sum.:
40AT10-28F	852	28	40 CT10 28	1F	89,12	87,25	93	60	8	aluminium	33	€20.25	0.541 kg	Sum.: Sum.:
40AT10-30F	853	30	40 CT10 30	1F	95,49	93,65	97	60	8	aluminium	35	€24.14	0.611 kg	Sum.: Sum.:
40AT10-32F	854	32	40 CT10 32	1F	101,86	100	106	65	10	aluminium	38	€26.36	0.702 kg	Sum.: Sum.:
40AT10-36F	855	36	40 CT10 36	1F	114,59	112,75	119	70	10	aluminium	43	€31.22	0.894 kg	Sum.: Sum.:
40AT10-40F	856	40	40 CT10 40	1F	127,32	125,45	131	80	10	aluminium	47	€38.89	1.113 kg	Sum.: Sum.:

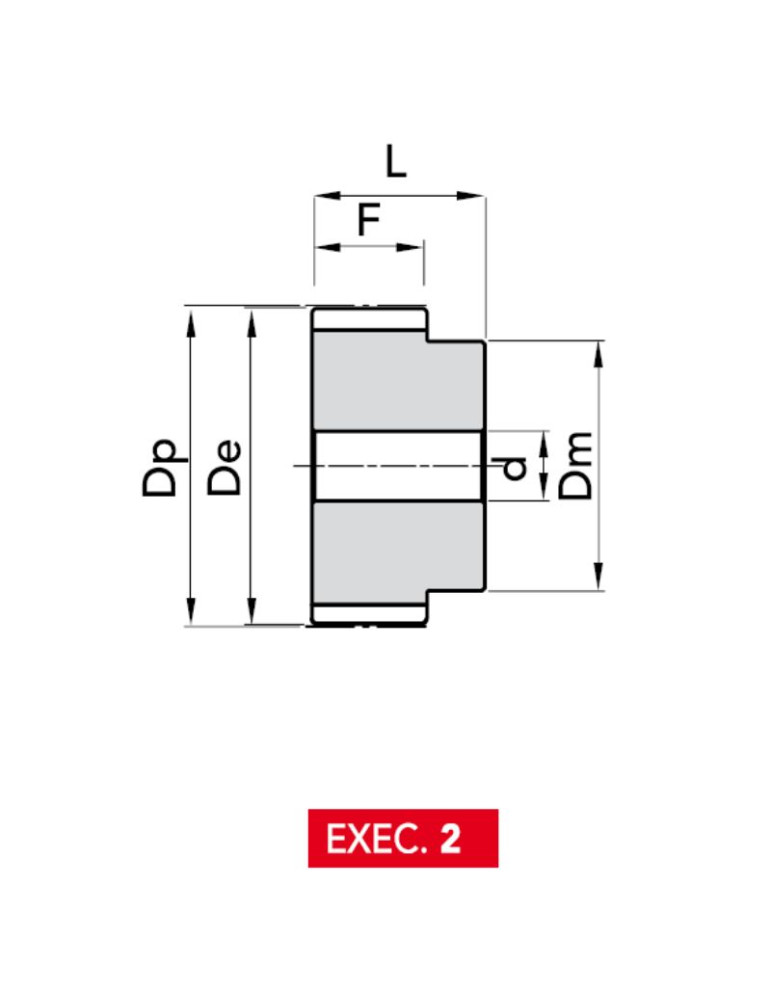

40AT10-44	857	44	40 CT10 44	2	140,05	138,2	-	88	10	aluminium	-	€48.81	1.326 kg	Sum.: Sum.:
40AT10-48	858	48	40 CT10 48	2	152,78	150,95	-	95	16	aluminium	-	€54.31	1.564 kg	Sum.: Sum.:
40AT10-60	859	60	40 CT10 60	2	190,98	189,1	-	110	16	aluminium	-	€86.35	2.44 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
