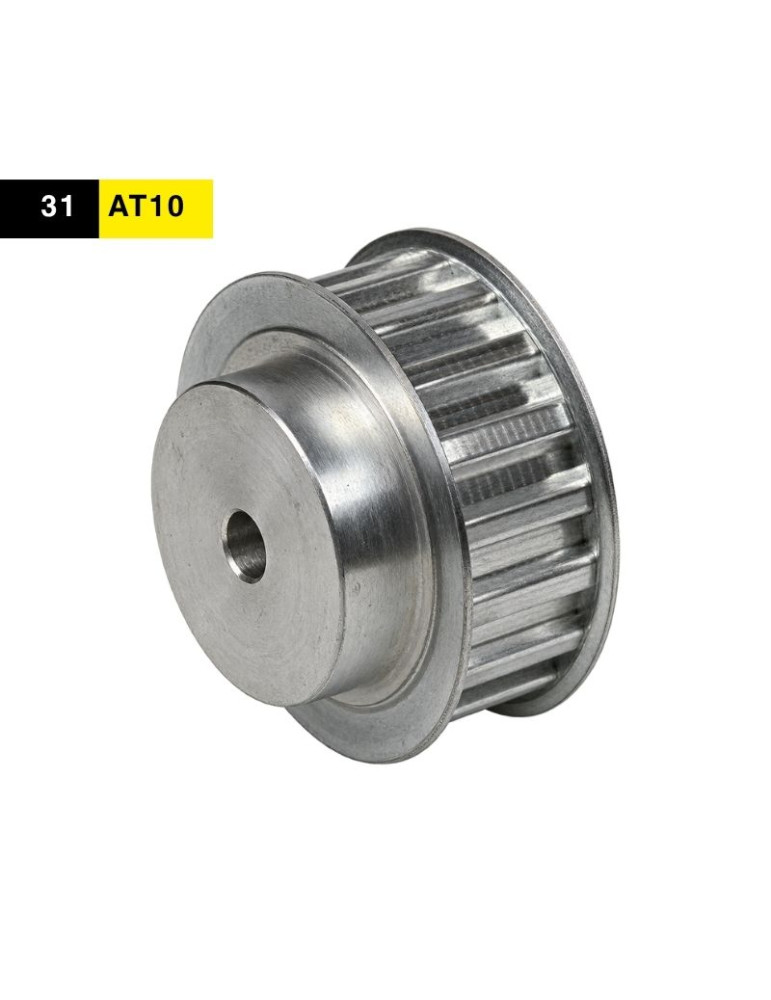

31AT10 Timing Pulley

Description

The 31AT10 timing pulley for 16 mm wide belts is designed for synchronous drives using AT10-profile timing belts.

Its 10 mm pitch must match the pitch of the mating belt. Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 15 to 60 teeth across the part numbers listed in the catalogue. The tooth count determines the transmission ratio together with the other pulley in the drive.

Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number. Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: AT10 profile; 10 mm pitch; 16 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 44, 48, 60 teeth.

Product Details

Reference 31AT10-16F

In stock 6 Items

Specific References

ean13 8054652101747
MPN poulie-31at10

22 people are viewing this right now

€7.23

Tax excluded

order: 825

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: AT

CHI-type3: AT10

Type: 31 CT10 16

Teeth: 16

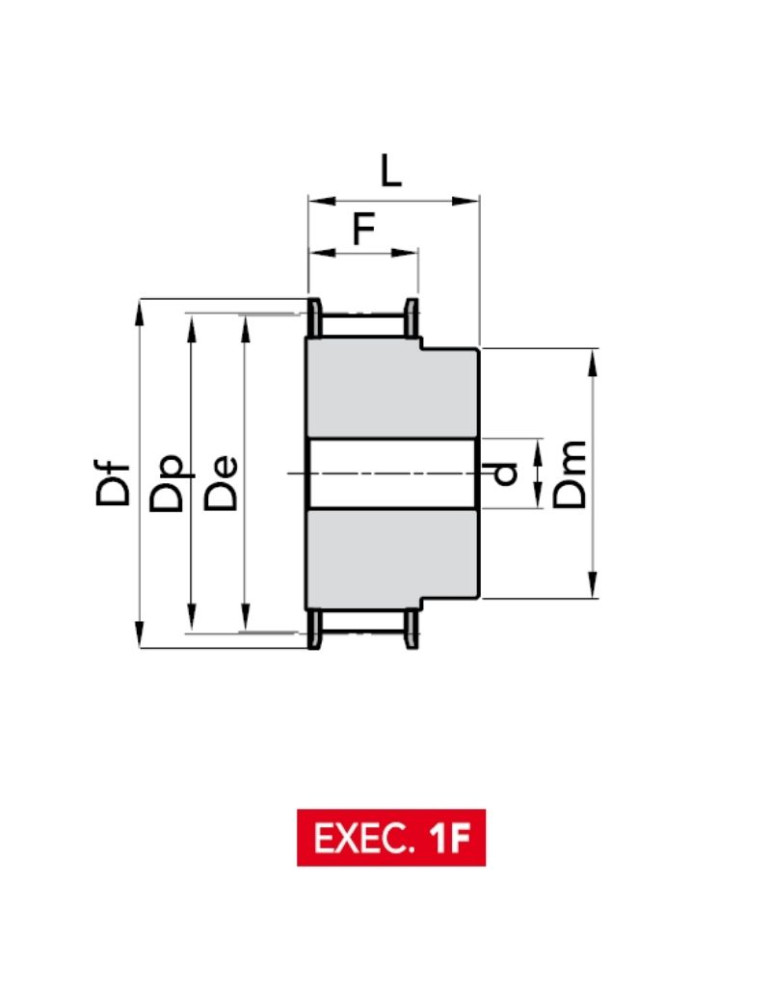

Execution: 1F

Dp: 50,93

De: 49,05

Df flange: 54

Dm: 35

CHI-Di: -

CHI-F: 21

CHI-L: 31

d: 8

N° flange: 18

CHI-Flasque: oui

Belt width (mm): 16

Quantity

Add to Wishlist

Add to Compare

Last items in stock

Hurry up! Only 6 item(s) left in Stock!

Categories: PULLEYS, Metric timing pulleys, Metric AT-pulley, AT10 Metric Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
31AT10-15F	824	15	31 CT10 15	1F	47,75	45,9	51	32	8	aluminium	16	€6.61	0.11 kg	Sum.: Sum.:
31AT10-16F	825	16	31 CT10 16	1F	50,93	49,05	54	35	8	aluminium	18	€7.23	0.124 kg	Sum.: Sum.:
31AT10-18F	826	18	31 CT10 18	1F	57,29	55,45	60	40	8	aluminium	21	€8.34	0.164 kg	Sum.: Sum.:
31AT10-19F	827	19	31 CT10 19	1F	60,48	58,6	66,5	44	8	aluminium	24	€9.01	0.188 kg	Sum.: Sum.:
31AT10-20F	828	20	31 CT10 20	1F	63,66	61,8	66,5	46	8	aluminium	24	€9.63	0.21 kg	Sum.: Sum.:
31AT10-22F	829	22	31 CT10 22	1F	70,03	68,15	75	52	8	aluminium	27	€11.97	0.258 kg	Sum.: Sum.:
31AT10-24F	830	24	31 CT10 24	1F	76,39	74,55	83	58	8	aluminium	29	€13.52	0.318 kg	Sum.: Sum.:
31AT10-25F	831	25	31 CT10 25	1F	79,58	77,7	83	60	8	aluminium	29	€13.64	0.337 kg	Sum.: Sum.:
31AT10-26F	832	26	31 CT10 26	1F	82,76	80,9	87	60	8	aluminium	31	€15.07	0.362 kg	Sum.: Sum.:
31AT10-27F	833	27	31 CT10 27	1F	85,95	84,1	91	60	8	aluminium	32	€16.53	0.392 kg	Sum.: Sum.:
31AT10-28F	834	28	31 CT10 28	1F	89,12	87,25	93	60	8	aluminium	33	€16.65	0.406 kg	Sum.: Sum.:
31AT10-30F	835	30	31 CT10 30	1F	95,49	93,65	97	60	8	aluminium	35	€19.69	0.454 kg	Sum.: Sum.:
31AT10-32F	836	32	31 CT10 32	1F	101,86	100	106	65	10	aluminium	38	€21.54	0.523 kg	Sum.: Sum.:
31AT10-36F	837	36	31 CT10 36	1F	114,59	112,75	119	70	10	aluminium	43	€25.43	0.661 kg	Sum.: Sum.:
31AT10-40F	838	40	31 CT10 40	1F	127,32	125,45	131	80	10	aluminium	47	€31.66	0.854 kg	Sum.: Sum.:

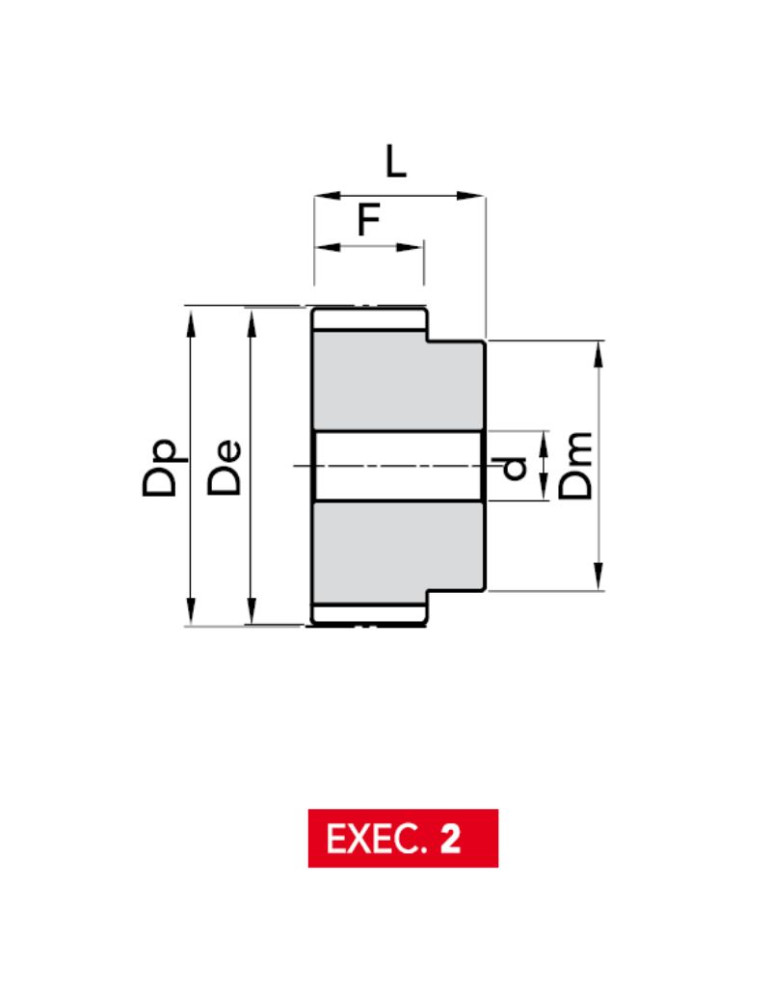

31AT10-44	839	44	31 CT10 44	2	140,05	138,2	-	88	10	aluminium	-	€39.21	0.974 kg	Sum.: Sum.:
31AT10-48	840	48	31 CT10 48	2	152,78	150,95	-	95	16	aluminium	-	€43.77	1.174 kg	Sum.: Sum.:
31AT10-60	841	60	31 CT10 60	2	190,98	189,1	-	110	16	aluminium	-	€69.32	1.785 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
