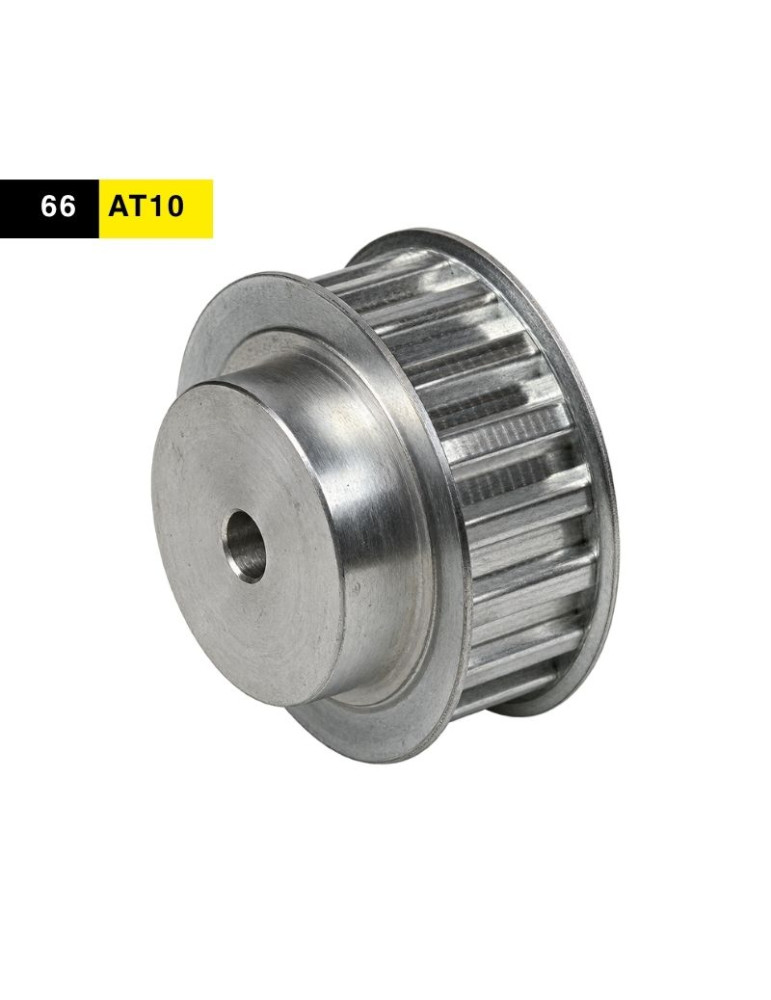

66AT10 Timing Pulley

Description

The 66AT10 timing pulley for 50 mm wide belts is designed for synchronous drives using AT10-profile timing belts.

Its 10 mm pitch must match the pitch of the mating belt. Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 18 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive. Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number. Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: AT10 profile; 10 mm pitch; 50 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 44, 48, 60 teeth.

Product Details

Reference 66AT10-19F

In stock 2 Items

Specific References

ean13 8054652102263
MPN poulie-66at10

20 people are viewing this right now

€15.57

Tax excluded

order: 877

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: AT

CHI-type3: AT10

Type: 66 CT10 19

Teeth: 19

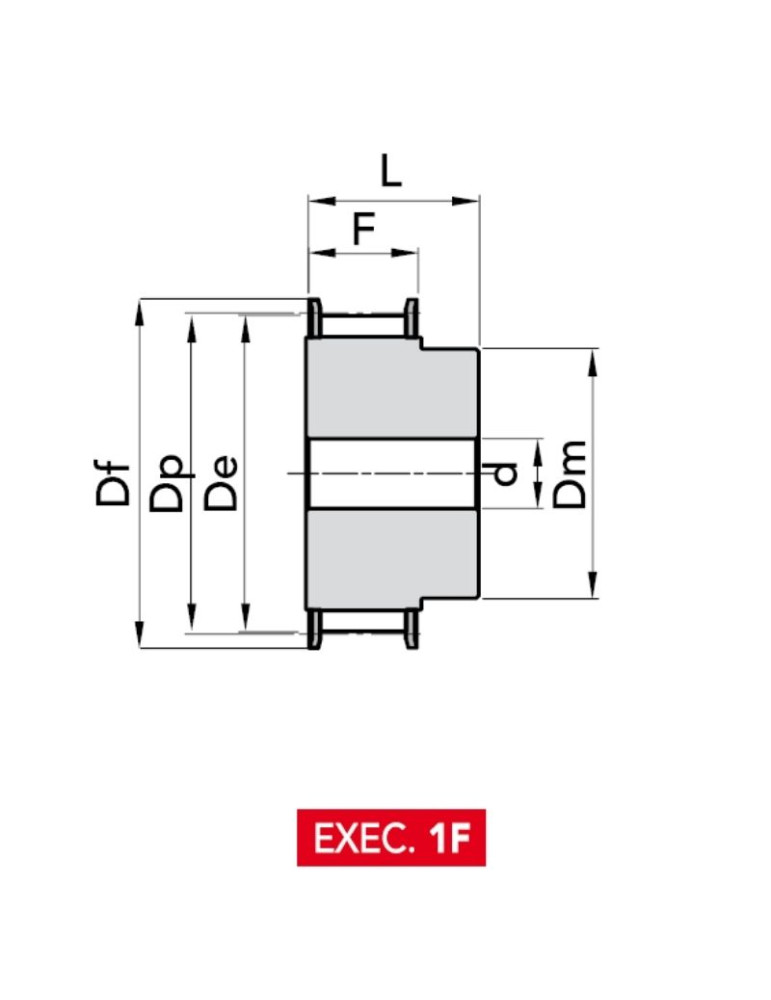

Execution: 1F

Dp: 60,48

De: 58,6

Df flange: 66,5

Dm: 44

CHI-Di: -

CHI-F: 56

CHI-L: 66

d: 10

N° flange: 24

CHI-Flasque: oui

Belt width (mm): 50

Quantity

Add to Wishlist

Add to Compare

Last items in stock

Hurry up! Only 2 item(s) left in Stock!

Categories: PULLEYS, Metric timing pulleys, Metric AT-pulley, AT10 Metric Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
66AT10-18F	876	18	66 CT10 18	1F	57,29	55,45	60	40	10	aluminium	21	€14.13	0.354 kg	Sum.: Sum.:
66AT10-19F	877	19	66 CT10 19	1F	60,48	58,6	66,5	44	10	aluminium	24	€15.57	0.408 kg	Sum.: Sum.:
66AT10-20F	878	20	66 CT10 20	1F	63,66	61,8	66,5	46	12	aluminium	24	€17.15	0.445 kg	Sum.: Sum.:
66AT10-22F	879	22	66 CT10 22	1F	70,03	68,15	75	52	12	aluminium	27	€21.65	0.554 kg	Sum.: Sum.:
66AT10-24F	880	24	66 CT10 24	1F	76,39	74,55	83	58	12	aluminium	29	€24.58	0.677 kg	Sum.: Sum.:
66AT10-25F	881	25	66 CT10 25	1F	79,58	77,7	83	60	12	aluminium	29	€24.81	0.733 kg	Sum.: Sum.:
66AT10-26F	882	26	66 CT10 26	1F	82,76	80,9	87	60	12	aluminium	31	€27.59	0.792 kg	Sum.: Sum.:
66AT10-27F	883	27	66 CT10 27	1F	85,95	84,1	91	60	12	aluminium	32	€30.43	0.86 kg	Sum.: Sum.:
66AT10-28F	884	28	66 CT10 28	1F	89,12	87,25	93	60	12	aluminium	33	€30.66	0.918 kg	Sum.: Sum.:
66AT10-30F	885	30	66 CT10 30	1F	95,49	93,65	97	60	12	aluminium	35	€36.66	1.045 kg	Sum.: Sum.:
66AT10-32F	886	32	66 CT10 32	1F	101,86	100	106	65	12	aluminium	38	€40.44	1.208 kg	Sum.: Sum.:
66AT10-36F	887	36	66 CT10 36	1F	114,59	112,75	119	70	16	aluminium	43	€47.96	1.525 kg	Sum.: Sum.:
66AT10-40F	888	40	66 CT10 40	1F	127,32	125,45	131	80	16	aluminium	47	€59.98	1.9 kg	Sum.: Sum.:

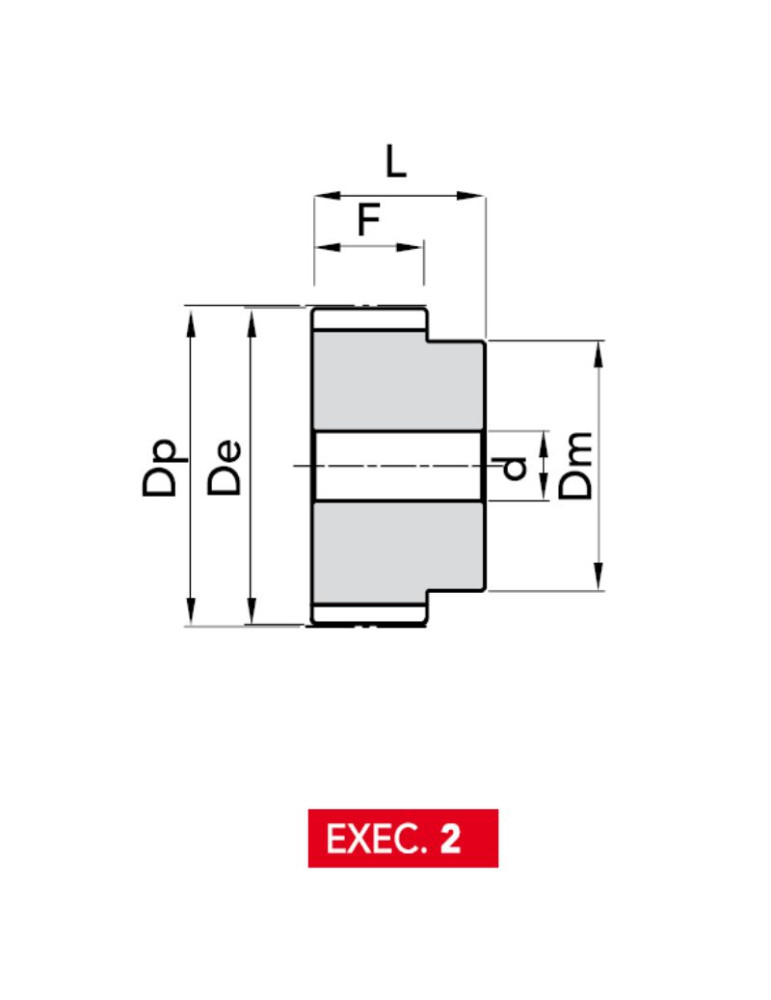

66AT10-44	889	44	66 CT10 44	2	140,05	138,2	-	88	16	aluminium	-	€76.40	2.3 kg	Sum.: Sum.:
66AT10-48	890	48	66 CT10 48	2	152,78	150,95	-	95	16	aluminium	-	€84.68	2.75 kg	Sum.: Sum.:
66AT10-60	891	60	66 CT10 60	2	190,98	189,1	-	110	16	aluminium	-	€135.65	4.336 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
