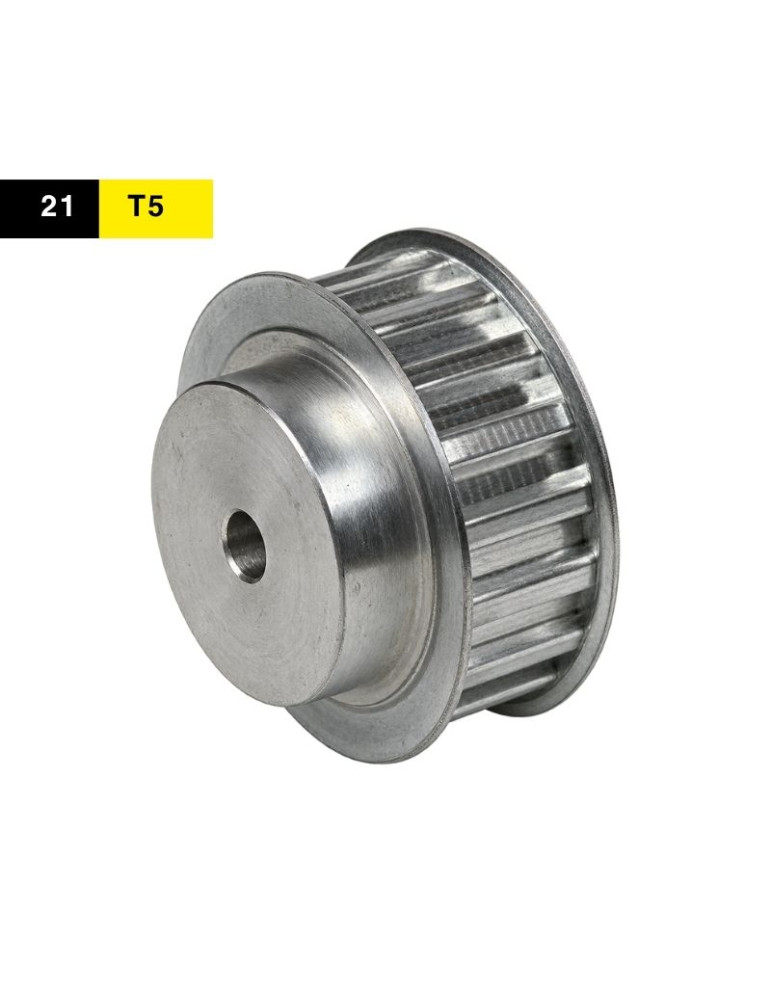

21T5 Timing Pulley

Description

The 21T5 timing pulley for 10 mm wide belts is designed for synchronous drives using T5-profile timing belts. Its 5 mm pitch must match the pitch of the mating belt.

Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 10 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive. Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number.

Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: T5 profile; 5 mm pitch; 10 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 10, 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 42, 44, 48, 60 teeth.

Product Details

Reference 21T5-10F

Specific References

ean13 8054652098894
MPN poulie-21t5

21 people are viewing this right now

€2.40

Tax excluded

order: 623

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: T

CHI-type3: T5

Type: 21 T5 10

Teeth: 10

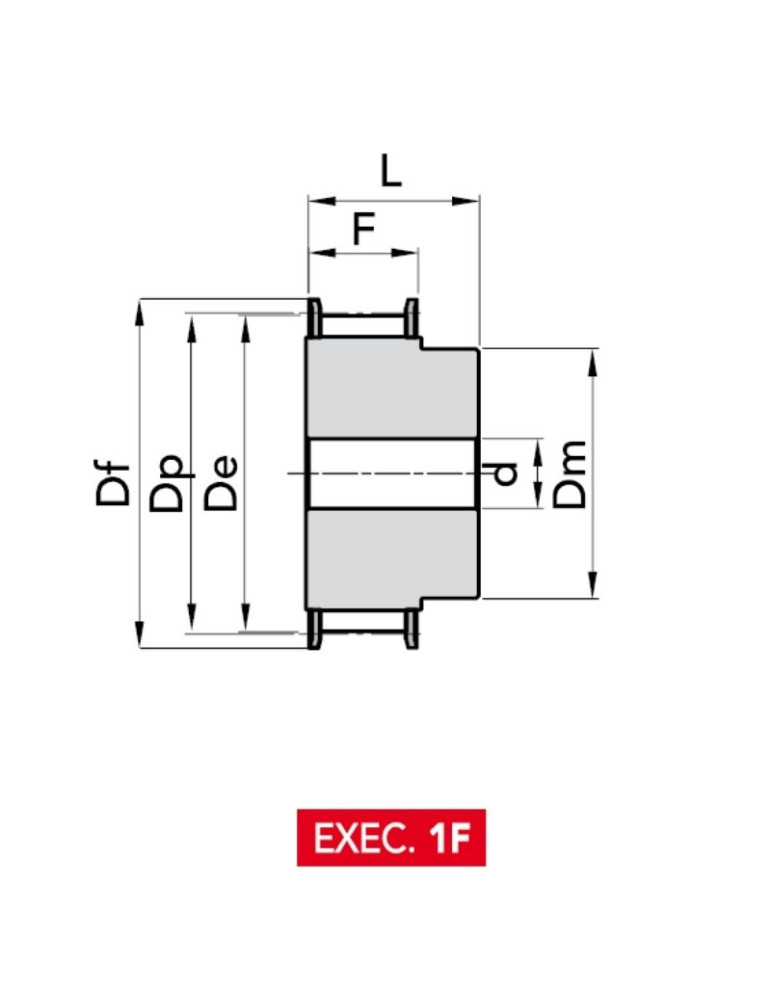

Execution: 1F

Dp: 15,92

De: 15,05

Df flange: 19,5

Dm: 8

CHI-Di: -

CHI-F: 15

CHI-L: 21

d: -

N° flange: 3

CHI-Flasque: oui

Belt width (mm): 10

Quantity

Add to Wishlist

Add to Compare

Sorry, no items left.

Categories: PULLEYS, Metric timing pulleys, T 5 Timing Pulleys, Metric T-pulley

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
21T5-10F	623	10	21 T5 10	1F	15,92	15,05	19,5	8	-	aluminium	3	€2.40	0.009 kg	Sum.: Sum.:
21T5-12F	624	12	21 T5 12	1F	19,1	18,25	23	11	-	aluminium	1	€2.66	0.014 kg	Sum.: Sum.:
21T5-14F	625	14	21 T5 14	1F	22,29	21,45	25	13	-	aluminium	2	€2.84	0.017 kg	Sum.: Sum.:
21T5-15F	626	15	21 T5 15	1F	23,88	23,05	28	16	6	aluminium	4	€3.07	0.022 kg	Sum.: Sum.:
21T5-16F	627	16	21 T5 16	1F	25,47	24,6	32	18	6	aluminium	5	€3.22	0.027 kg	Sum.: Sum.:
21T5-18F	628	18	21 T5 18	1F	28,65	27,8	32	20	6	aluminium	6	€3.34	0.031 kg	Sum.: Sum.:
21T5-19F	629	19	21 T5 19	1F	30,25	29,4	36	22	6	aluminium	8	€3.51	0.037 kg	Sum.: Sum.:
21T5-20F	630	20	21 T5 20	1F	31,83	31	36	23	6	aluminium	8	€3.66	0.04 kg	Sum.: Sum.:
21T5-22F	631	22	21 T5 22	1F	35,02	34,15	38	24	6	aluminium	9	€3.95	0.045 kg	Sum.: Sum.:
21T5-24F	632	24	21 T5 24	1F	38,21	37,4	42	26	6	aluminium	13	€4.13	0.054 kg	Sum.: Sum.:
21T5-25F	633	25	21 T5 25	1F	29,8	29,8	44	26	6	aluminium	12	€4.56	0.058 kg	Sum.: Sum.:
21T5-26F	634	26	21 T5 26	1F	41,39	40,6	44	26	6	aluminium	12	€4.74	0.062 kg	Sum.: Sum.:
21T5-27F	635	27	21 T5 27	1F	42,98	42,2	48	30	8	aluminium	11	€4.68	0.068 kg	Sum.: Sum.:
21T5-28F	636	28	21 T5 28	1F	44,58	43,75	48	32	8	aluminium	11	€5.06	0.073 kg	Sum.: Sum.:
21T5-30F	637	30	21 T5 30	1F	47,76	46,95	51	34	8	aluminium	16	€5.33	0.084 kg	Sum.: Sum.:
21T5-32F	638	32	21 T5 32	1F	50,94	50,1	54	38	8	aluminium	18	€6.12	0.097 kg	Sum.: Sum.:
21T5-36F	639	36	21 T5 36	1F	57,31	56,45	64	38	8	aluminium	23	€7.02	0.124 kg	Sum.: Sum.:
21T5-40F	640	40	21 T5 40	1F	63,66	62,85	66,5	40	8	aluminium	24	€7.96	0.147 kg	Sum.: Sum.:
21T5-42F	641	42	21 T5 42	1F	66,86	66	70	40	8	aluminium	26	€8.57	0.161 kg	Sum.: Sum.:

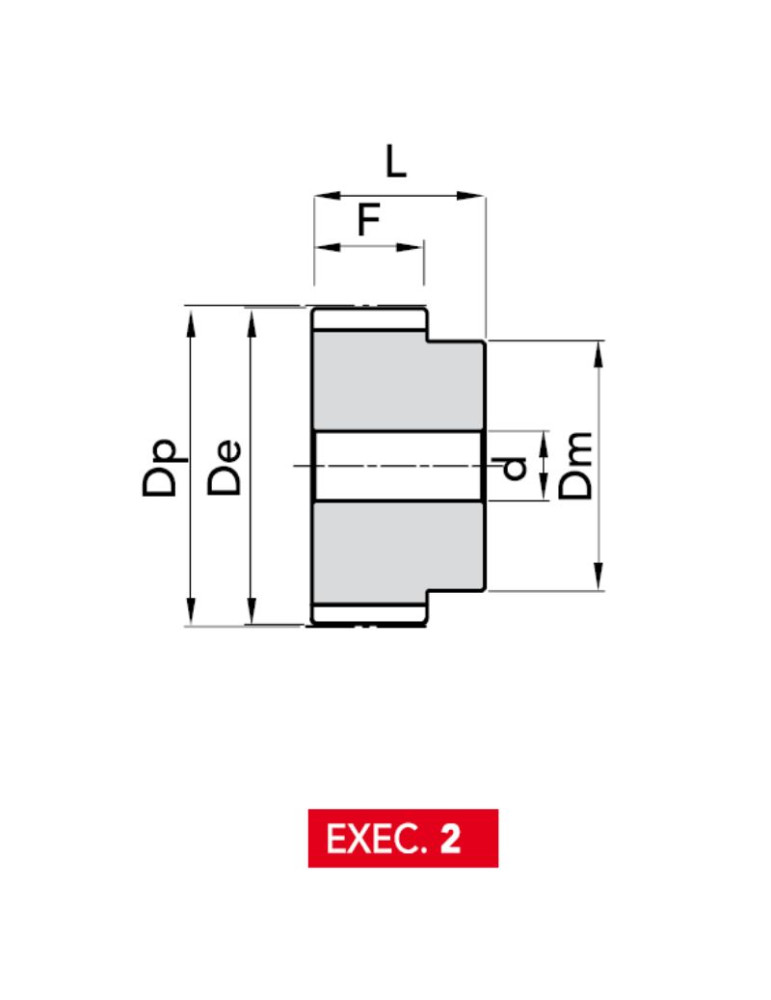

21T5-44	642	44	21 T5 44	2	70,05	69,2	-	45	8	aluminium	-	€8.46	0.168 kg	Sum.: Sum.:
21T5-48	643	48	21 T5 48	2	76,42	75,55	-	50	8	aluminium	-	€9.63	0.2 kg	Sum.: Sum.:
21T5-60	644	60	21 T5 60	2	95,52	94,65	-	65	8	aluminium	-	€14.45	0.325 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
