Description

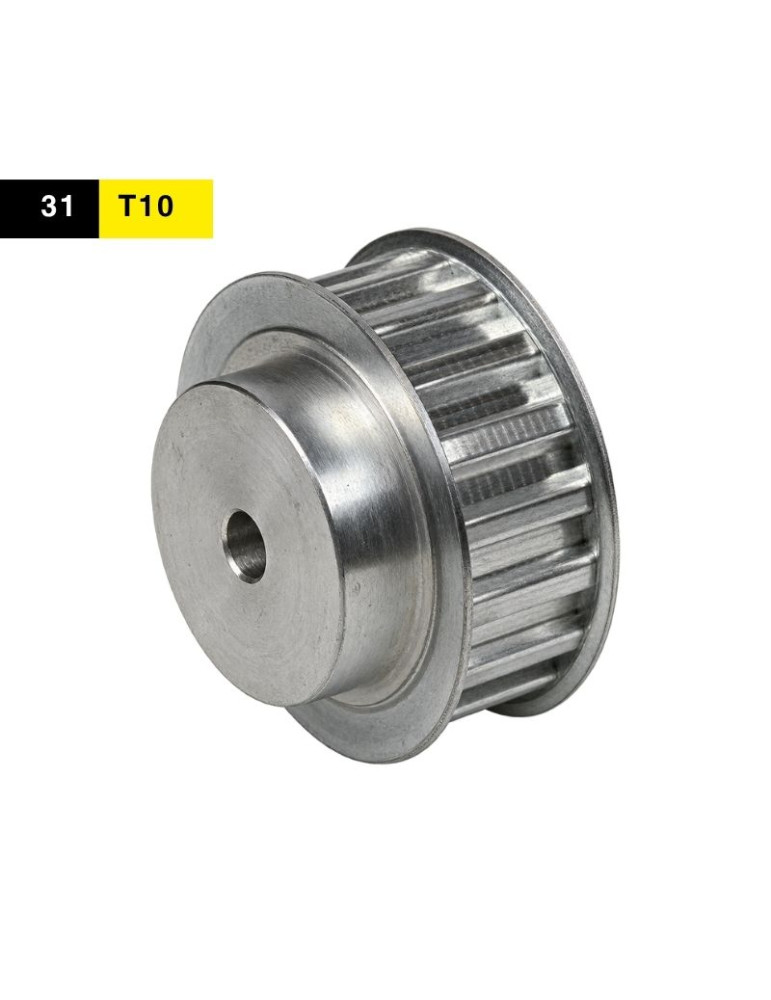

The 31T10 timing pulley for 16 mm wide belts is designed for synchronous drives using T10-profile timing belts. Its 10 mm pitch must match the pitch of the mating belt.

Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 12 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive. Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number.

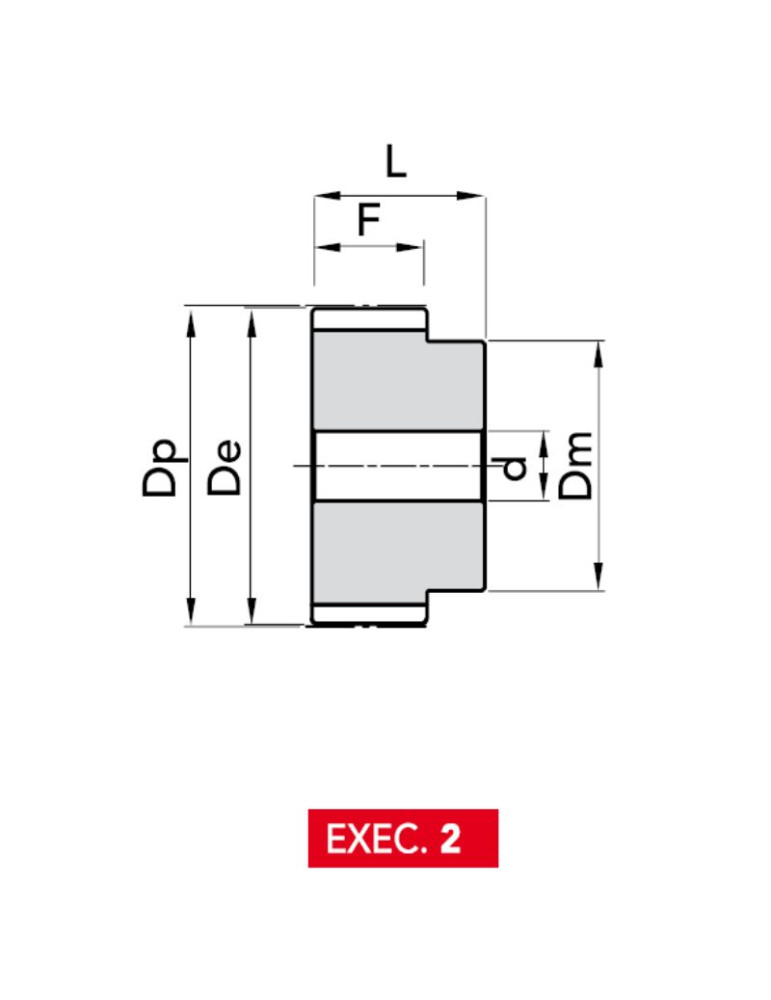

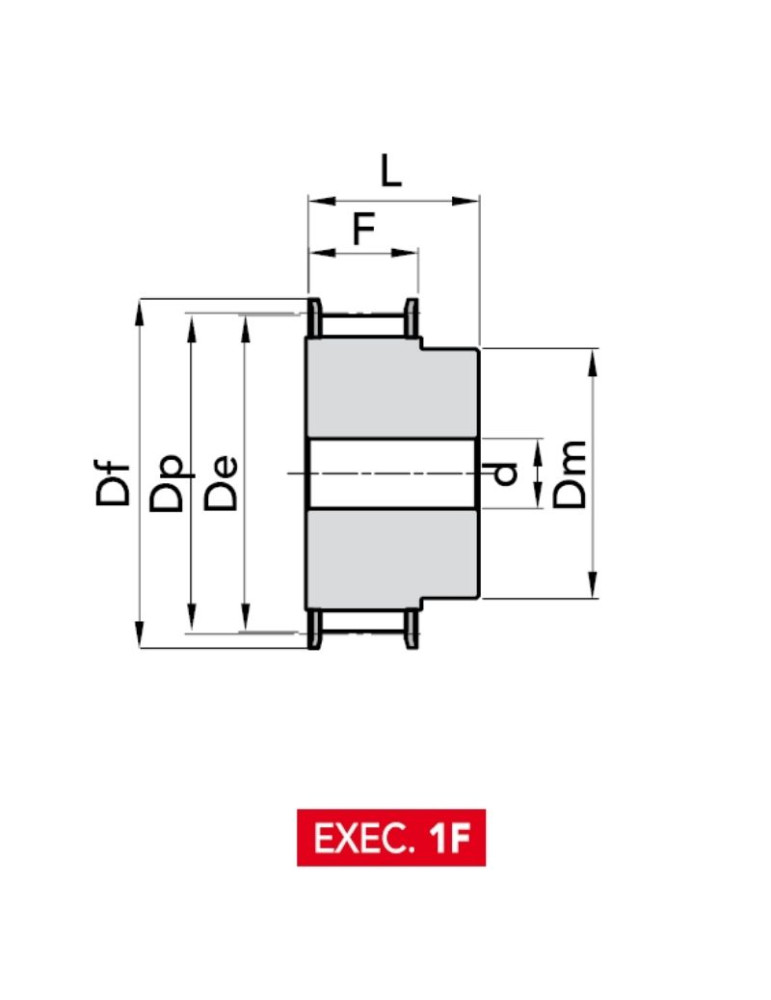

Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: T10 profile; 10 mm pitch; 16 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 44, 48, 60 teeth.

Product Details

Reference 31T10-14F

In stock 2 Items

Specific References

ean13 8054652099846
MPN poulie-31t10

15 people are viewing this right now

€6.23

Tax excluded

order: 690

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: T

CHI-type3: T10

Type: 31 T10 14

Teeth: 14

Execution: 1F

Dp: 44,56

De: 42,7

Df flange: 48

Dm: 32

CHI-Di: -

CHI-F: 21

CHI-L: 31

d: 8

N° flange: 11

CHI-Flasque: oui

Belt width (mm): 16

Quantity

Add to Wishlist

Add to Compare

Last items in stock

Hurry up! Only 2 item(s) left in Stock!

Categories: PULLEYS, Metric timing pulleys, T10 Timing Pulleys, Metric T-pulley

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
31T10-12F	689	12	31 T10 12	1F	38,2	36,35	42	28	6	aluminium	13	€5.44	0.073 kg	Sum.: Sum.:
31T10-14F	690	14	31 T10 14	1F	44,56	42,7	48	32	8	aluminium	11	€6.23	0.096 kg	Sum.: Sum.:
31T10-15F	691	15	31 T10 15	1F	47,75	45,9	51	32	8	aluminium	16	€6.67	0.11 kg	Sum.: Sum.:
31T10-16F	692	16	31 T10 16	1F	50,93	49,1	54	35	8	aluminium	18	€7.29	0.127 kg	Sum.: Sum.:
31T10-18F	693	18	31 T10 18	1F	57,29	55,45	60	40	8	aluminium	21	€8.40	0.165 kg	Sum.: Sum.:
31T10-19F	694	19	31 T10 19	1F	60,48	58,65	66	44	8	aluminium	24	€9.13	0.192 kg	Sum.: Sum.:
31T10-20F	695	20	31 T10 20	1F	63,66	61,8	66	46	8	aluminium	24	€9.69	0.21 kg	Sum.: Sum.:
31T10-22F	696	22	31 T10 22	1F	70,03	68,2	75	52	8	aluminium	27	€11.97	0.256 kg	Sum.: Sum.:
31T10-24F	697	24	31 T10 24	1F	76,39	74,55	83	58	8	aluminium	29	€13.52	0.314 kg	Sum.: Sum.:
31T10-25F	698	25	31 T10 25	1F	79,58	77,75	83	60	8	aluminium	29	€13.64	0.33 kg	Sum.: Sum.:
31T10-26F	699	26	31 T10 26	1F	82,76	80,9	87	60	8	aluminium	31	€15.07	0.358 kg	Sum.: Sum.:
31T10-27F	700	27	31 T10 27	1F	85,95	84,1	91	60	8	aluminium	32	€16.53	0.385 kg	Sum.: Sum.:
31T10-28F	701	28	31 T10 28	1F	89,12	87,25	93	60	8	aluminium	33	€16.65	0.405 kg	Sum.: Sum.:
31T10-30F	702	30	31 T10 30	1F	95,49	93,65	97	60	8	aluminium	35	€19.69	0.45 kg	Sum.: Sum.:
31T10-32F	703	32	31 T10 32	1F	101,86	100	106	65	10	aluminium	38	€21.54	0.527 kg	Sum.: Sum.:
31T10-36F	704	36	31 T10 36	1F	114,59	112,75	119	70	10	aluminium	43	€25.43	0.66 kg	Sum.: Sum.:
31T10-40F	705	40	31 T10 40	1F	127,32	125,45	131	80	10	aluminium	47	€31.66	0.823 kg	Sum.: Sum.:
31T10-44	706	44	31 T10 44	2	140,05	138,2	-	88	10	aluminium	-	€39.21	0.968 kg	Sum.: Sum.:
31T10-48	707	48	31 T10 48	2	152,78	150,95	-	95	16	aluminium	-	€43.77	1.15 kg	Sum.: Sum.:
31T10-60	708	60	31 T10 60	2	190,98	189,1	-	110	16	aluminium	-	€69.32	1.78 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
