40T10 Timing Pulley

Description

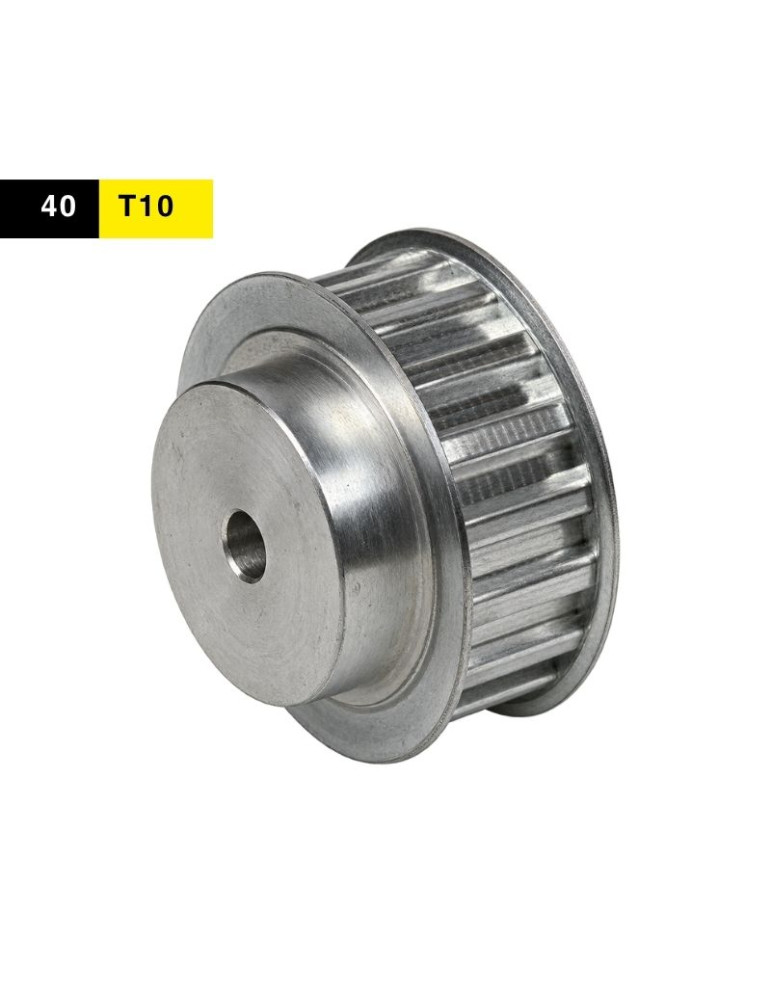

The 40T10 timing pulley for 25 mm wide belts is designed for synchronous drives using T10-profile timing belts.

Its 10 mm pitch must match the pitch of the mating belt. Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 12 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive. Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number.

Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: T10 profile; 10 mm pitch; 25 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 44, 48, 60 teeth.

Product Details

Reference 40T10-14F

In stock 10 Items

Specific References

ean13 8054652100047
MPN poulie-40T10

23 people are viewing this right now

€7.29

Tax excluded

order: 710

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: T

CHI-type3: T10

Type: 40 T10 14

Teeth: 14

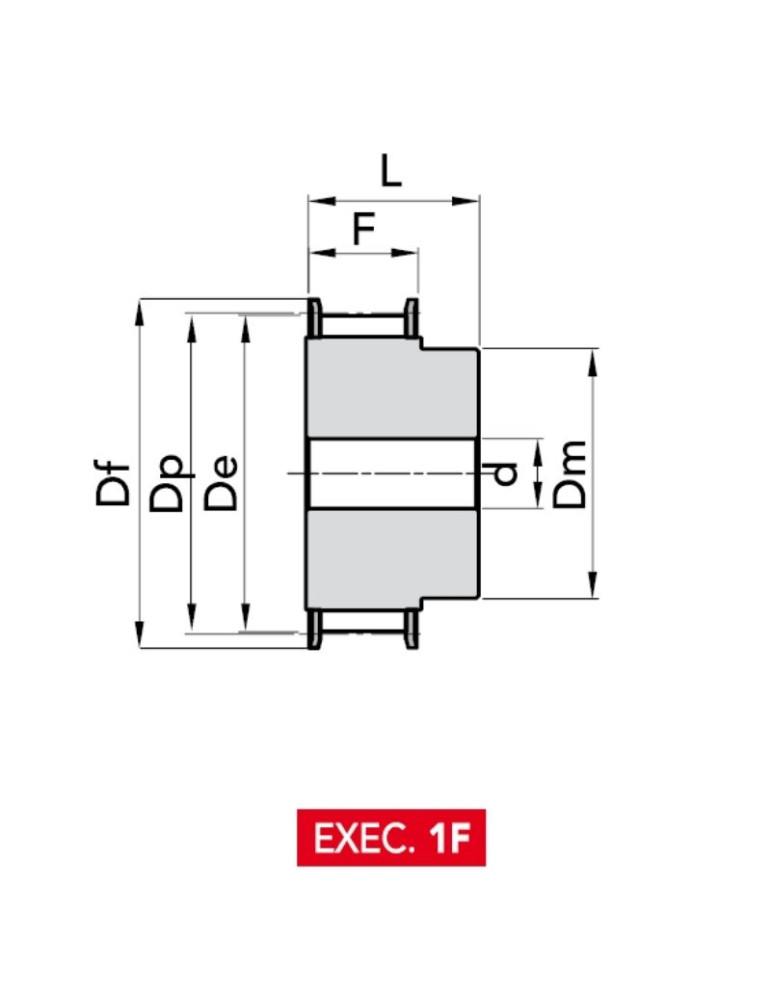

Execution: 1F

Dp: 44,56

De: 42,7

Df flange: 48

Dm: 32

CHI-Di: -

CHI-F: 30

CHI-L: 40

d: 8

N° flange: 11

CHI-Flasque: oui

Belt width (mm): 25

Quantity

Add to Wishlist

Add to Compare

Hurry up! Only 10 item(s) left in Stock!

Categories: PULLEYS, Metric timing pulleys, T10 Timing Pulleys, Metric T-pulley

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
40T10-12F	709	12	40 T10 12	1F	38,2	36,35	42	28	6	aluminium	13	€6.35	0.095 kg	Sum.: Sum.:
40T10-14F	710	14	40 T10 14	1F	44,56	42,7	48	32	8	aluminium	11	€7.29	0.125 kg	Sum.: Sum.:
40T10-15F	711	15	40 T10 15	1F	47,75	45,9	51	32	8	aluminium	16	€7.78	0.033 kg	Sum.: Sum.:
40T10-16F	712	16	40 T10 16	1F	50,93	49,1	54	35	8	aluminium	18	€8.57	0.166 kg	Sum.: Sum.:
40T10-18F	713	18	40 T10 18	1F	57,29	55,45	60	40	8	aluminium	21	€9.95	0.215 kg	Sum.: Sum.:
40T10-19F	714	19	40 T10 19	1F	60,48	58,65	66	44	8	aluminium	24	€10.80	0.25 kg	Sum.: Sum.:
40T10-20F	715	20	40 T10 20	1F	63,66	61,8	66	46	8	aluminium	24	€11.56	0.273 kg	Sum.: Sum.:
40T10-22F	716	22	40 T10 22	1F	70,03	68,2	75	52	8	aluminium	27	€14.51	0.335 kg	Sum.: Sum.:
40T10-24F	717	24	40 T10 24	1F	76,39	74,55	83	58	8	aluminium	29	€16.41	0.407 kg	Sum.: Sum.:
40T10-25F	718	25	40 T10 25	1F	79,58	77,75	83	60	8	aluminium	29	€16.53	0.44 kg	Sum.: Sum.:
40T10-26F	719	26	40 T10 26	1F	82,76	80,9	87	60	8	aluminium	31	€18.26	0.47 kg	Sum.: Sum.:
40T10-27F	720	27	40 T10 27	1F	85,95	84,1	91	60	8	aluminium	32	€20.13	0.505 kg	Sum.: Sum.:
40T10-28F	721	28	40 T10 28	1F	89,12	87,25	93	60	8	aluminium	33	€20.25	0.538 kg	Sum.: Sum.:
40T10-30F	722	30	40 T10 30	1F	95,49	93,65	97	60	8	aluminium	35	€24.14	0.607 kg	Sum.: Sum.:
40T10-32F	723	32	40 T10 32	1F	101,86	100	106	65	10	aluminium	38	€26.36	0.698 kg	Sum.: Sum.:
40T10-36F	724	36	40 T10 36	1F	114,59	112,75	119	70	10	aluminium	43	€31.22	0.885 kg	Sum.: Sum.:
40T10-40F	725	40	40 T10 40	1F	127,32	125,45	131	80	10	aluminium	47	€38.89	1.11 kg	Sum.: Sum.:

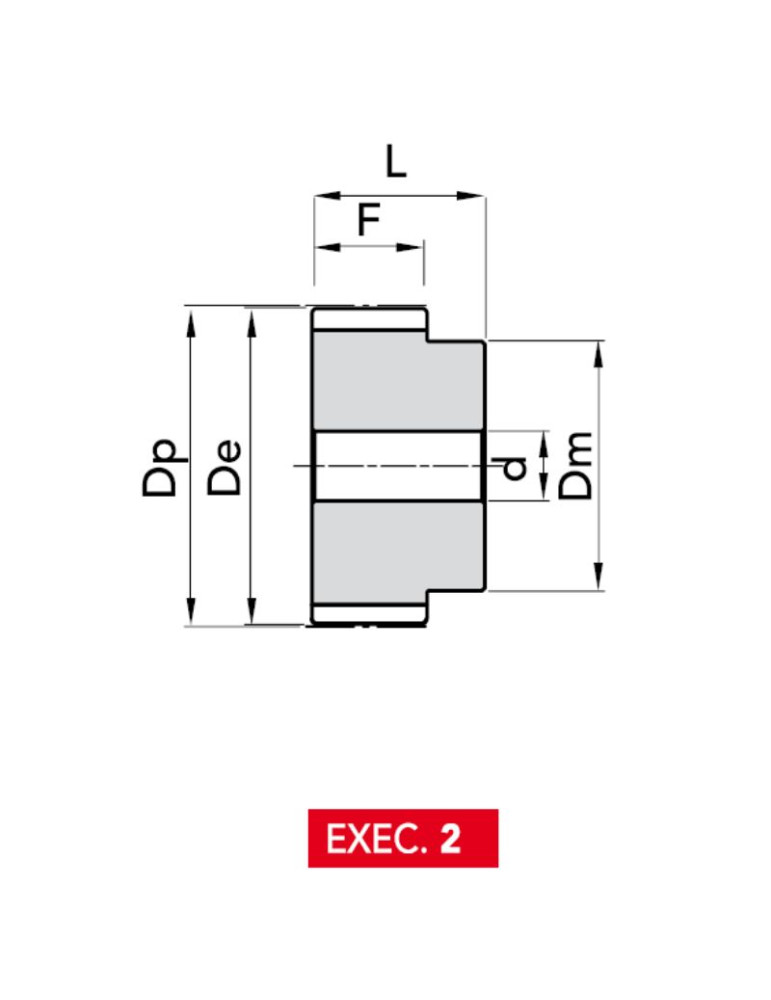

40T10-44	726	44	40 T10 44	2	140,05	138,2	-	88	10	aluminium	-	€48.81	1.32 kg	Sum.: Sum.:
40T10-48	727	48	40 T10 48	2	152,78	150,95	-	95	16	aluminium	-	€54.31	1.555 kg	Sum.: Sum.:
40T10-60	728	60	40 T10 60	2	190,98	189,15	-	110	16	aluminium	-	€86.35	2.44 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
