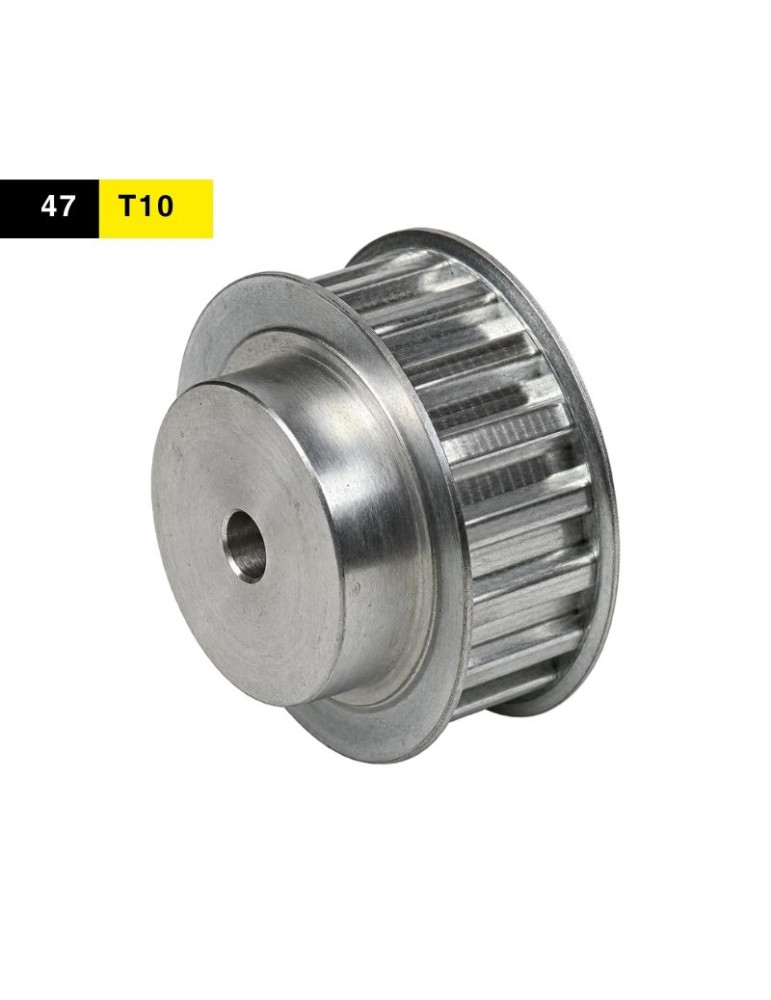

47T10 Timing Pulley
  • New
47T10 Timing Pulley

47T10 Timing Pulley

Description

The 47T10 timing pulley for 32 mm wide belts is designed for synchronous drives using T10-profile timing belts. Its 10 mm pitch must match the pitch of the mating belt.

Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 18 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive. Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number.

Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: T10 profile; 10 mm pitch; 32 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 44, 48, 60 teeth.

Product Details
47T10-22F
25 Items

Specific References

  • 8054652100269
  • poulie-47t10
19 people are viewing this right now
DOM
47T10-22F
25 Items
€16.36
Tax excluded
order: 732
Material: aluminium
CHI-Pièce: Poulie
CHI-type1: T
CHI-type3: T10
Type: 47 T10 22
Teeth: 22

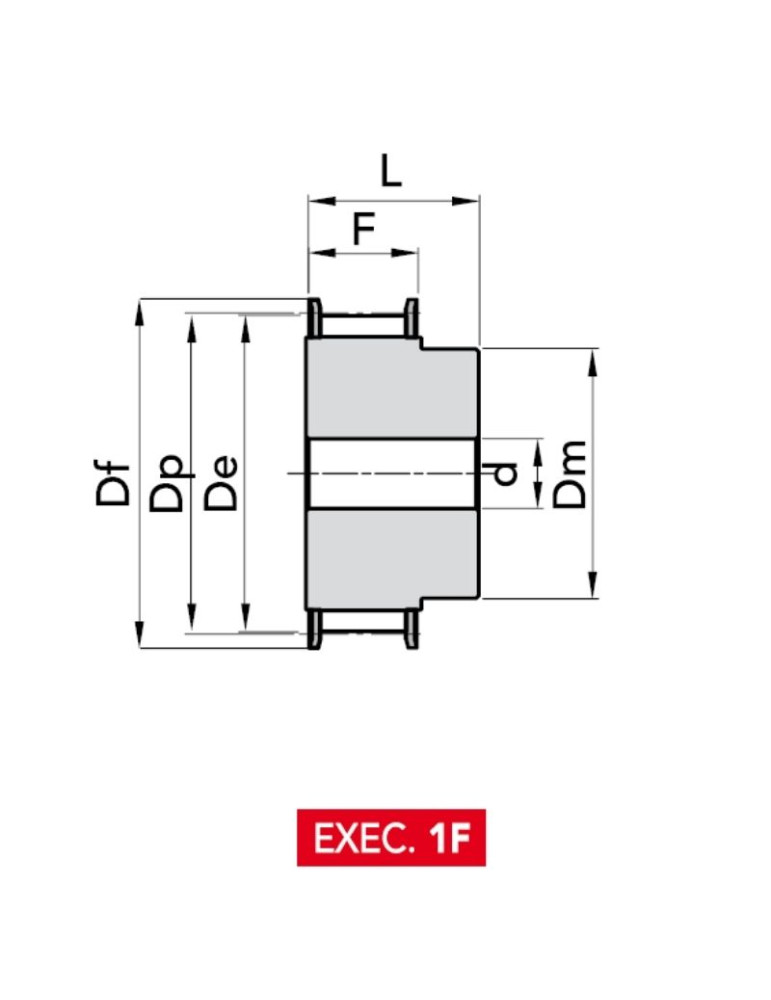

Execution: 1F
Dp: 70,03
De: 68,2
Df flange: 75
Dm: 52
CHI-Di: -
CHI-F: 37
CHI-L: 47
d: 12
N° flange: 27
CHI-Flasque: oui
Belt width (mm): 32
Quantity
Add to Wishlist
Add to Compare

Hurry up! Only 25 item(s) left in Stock!
PULLEYS,  Metric timing pulleys,  T10 Timing Pulleys,  Metric T-pulley

Choose product attributes:

 Immediate stock
 Weekly stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
47T10-18F 729 18 47 T10 18 1F 57,29 55,45 60 40 10 aluminium 21
€11.06
0.255 kg
47T10-19F 730 19 47 T10 19 1F 60,48 58,6 66 44 10 aluminium 24
€12.08
0.294 kg
47T10-20F 731 20 47 T10 20 1F 63,66 61,8 66 46 12 aluminium 24
€12.96
0.318 kg
47T10-22F 732 22 47 T10 22 1F 70,03 68,2 75 52 12 aluminium 27
€16.36
0.387 kg
47T10-24F 733 24 47 T10 24 1F 76,39 74,55 83 58 12 aluminium 29
€18.46
0.475 kg
47T10-25F 734 25 47 T10 25 1F 79,58 77,75 83 60 12 aluminium 29
€18.64
0.512 kg
47T10-26F 735 26 47 T10 26 1F 82,76 80,9 87 60 12 aluminium 31
€20.75
0.55 kg
47T10-27F 736 27 47 T10 27 1F 85,95 84,1 91 60 12 aluminium 32
€22.76
0.593 kg
47T10-28F 737 28 47 T10 28 1F 89,12 87,25 93 60 12 aluminium 33
€22.91
0.63 kg
47T10-30F 738 30 47 T10 30 1F 95,49 93,65 97 60 12 aluminium 35
€27.42
0.718 kg
47T10-32F 739 32 47 T10 32 1F 101,86 100 106 65 12 aluminium 38
€30.11
0.83 kg
47T10-36F 740 36 47 T10 36 1F 114,59 112,75 119 70 16 aluminium 43
€35.67
1.056 kg
47T10-40F 741 40 47 T10 40 1F 127,32 125,45 131 80 16 aluminium 47
€44.62
1.307 kg

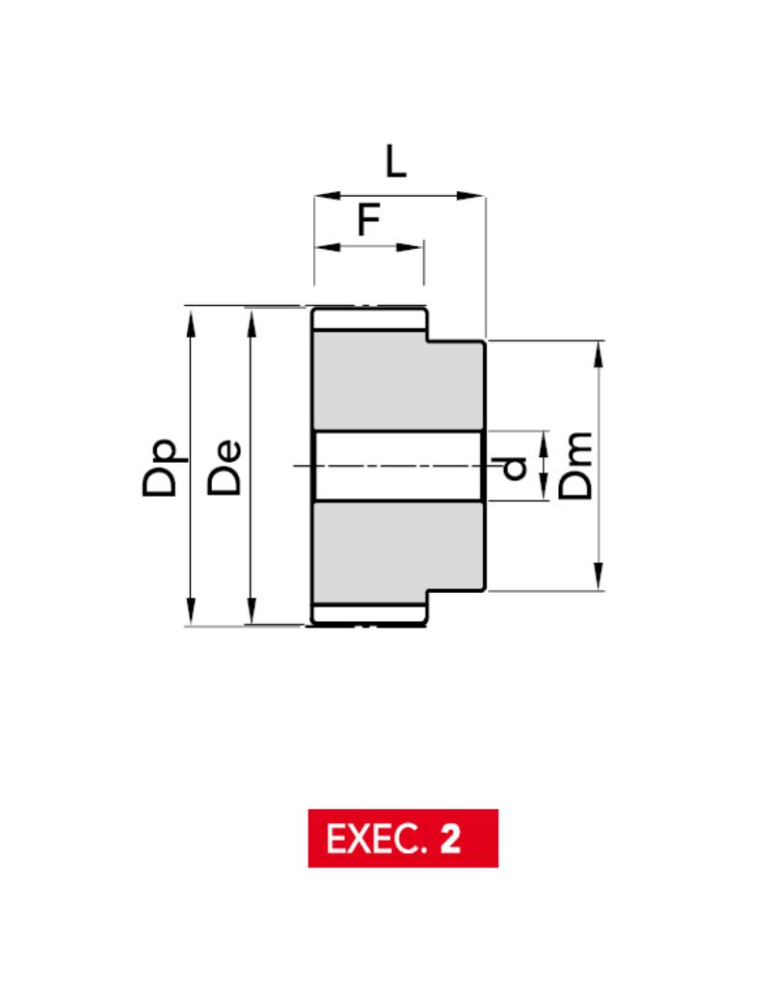

47T10-44 742 44 47 T10 44 2 140,05 138,2 - 88 16 aluminium -
€56.24
1.57 kg
47T10-48 743 48 47 T10 48 2 152,78 150,95 - 95 16 aluminium -
€62.47
1.874 kg
47T10-60 744 60 47 T10 60 2 190,98 189,1 - 110 16 aluminium -
€99.54
2.948 kg
