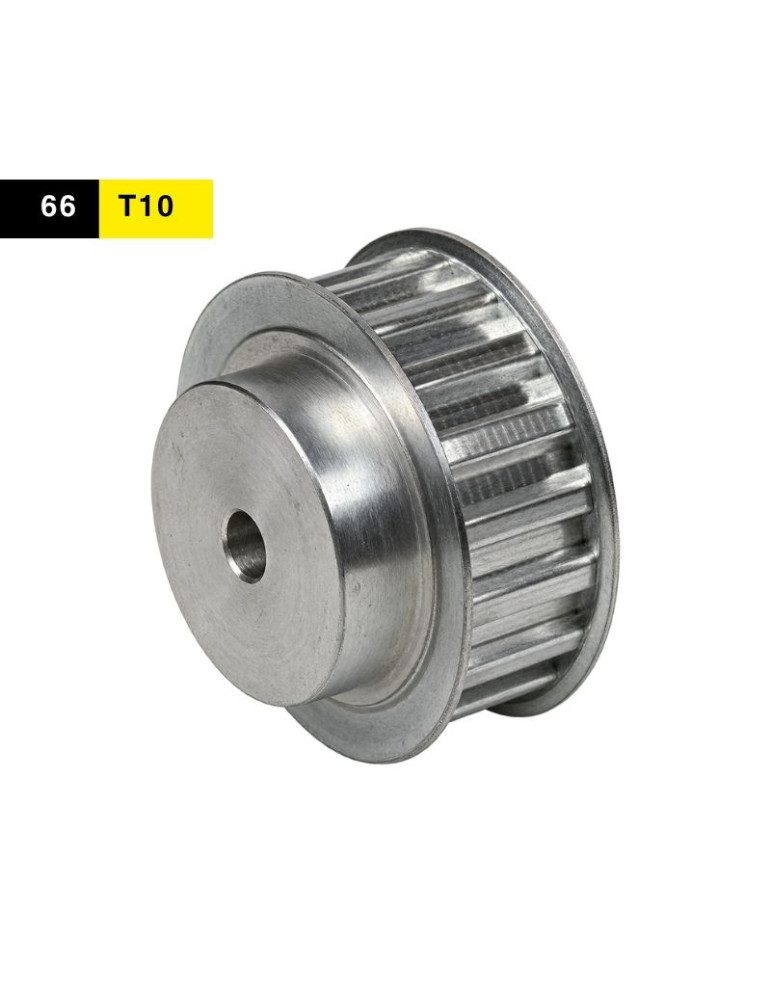

66T10 Timing Pulley
  • New
66T10 Timing Pulley

66T10 Timing Pulley

Description

The 66T10 timing pulley for 50 mm wide belts is designed for synchronous drives using T10-profile timing belts. Its 10 mm pitch must match the pitch of the mating belt.

Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 18 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive. Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number.

Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: T10 profile; 10 mm pitch; 50 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 44, 48, 60 teeth.

Product Details
66T10-44
1 Item

Specific References

  • 8054652100528
  • poulie-66t10
22 people are viewing this right now
DOM
66T10-44
1 Item
€76.40
Tax excluded
order: 758
Material: aluminium
CHI-Pièce: Poulie
CHI-type1: T
CHI-type3: T10
Type: 66 T10 44
Teeth: 44

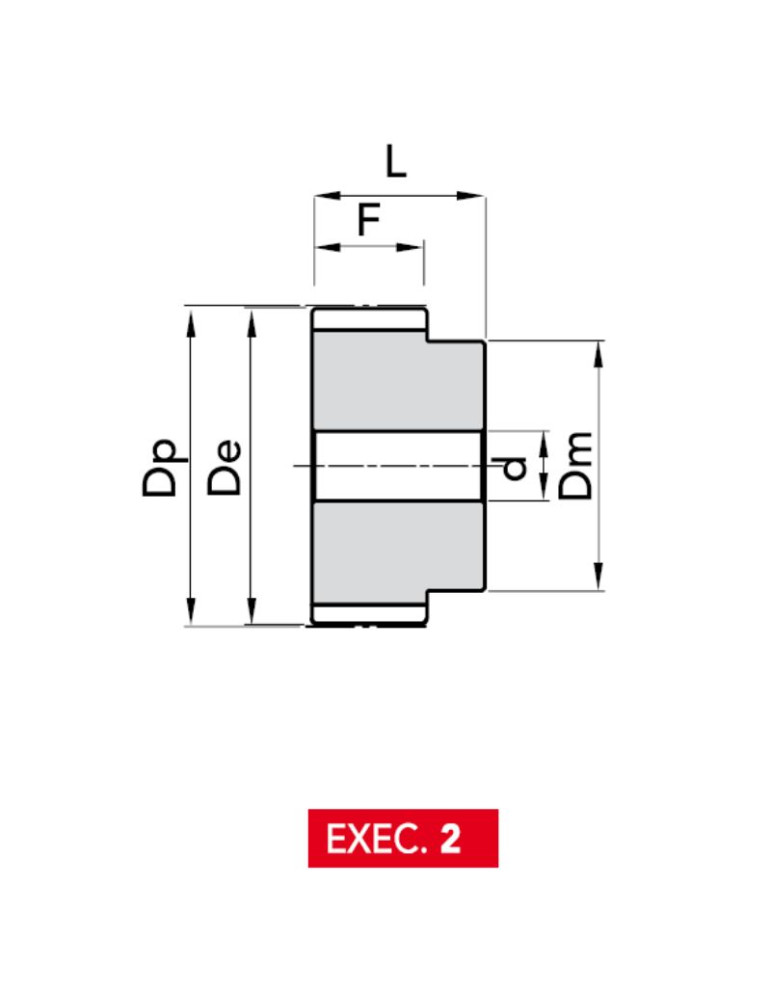

Execution: 2
Dp: 140,05
De: 138,2
Df flange: -
Dm: 88
CHI-Di: -
CHI-F: 56
CHI-L: 66
d: 16
N° flange: -
CHI-Flasque: non
Belt width (mm): 50
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 1 item(s) left in Stock!
PULLEYS,  Metric timing pulleys,  T10 Timing Pulleys,  Metric T-pulley

Choose product attributes:

 Immediate stock
 Weekly stock
 Platform stock

*Prix HT hors frais d’envoi

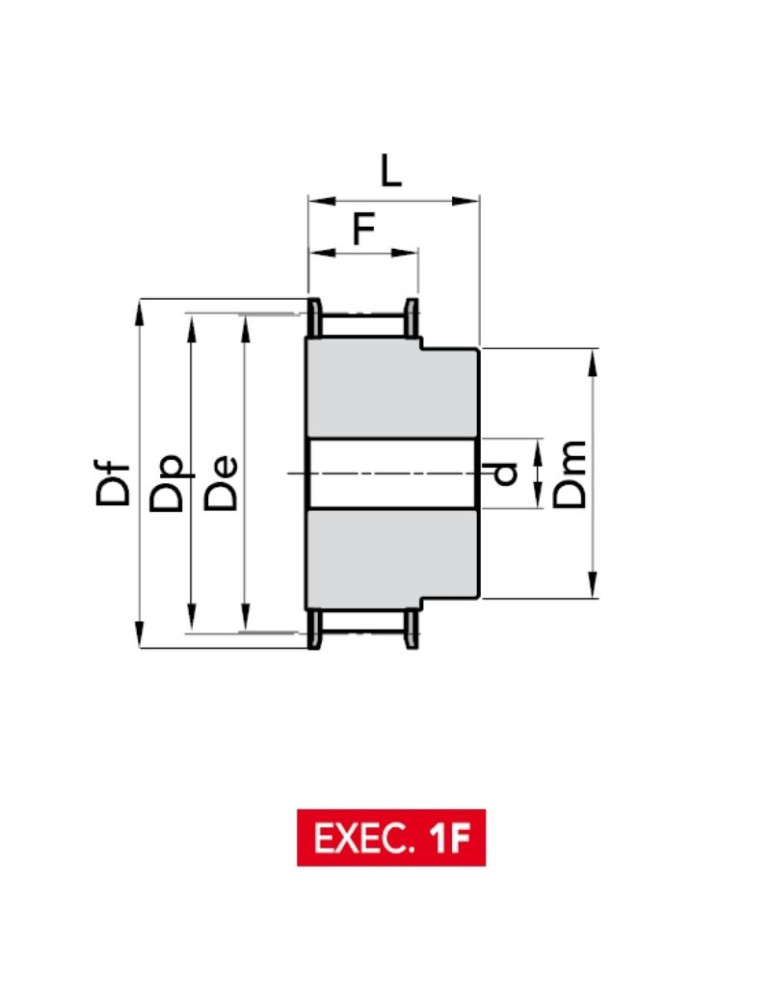

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
66T10-18F 745 18 66 T10 18 1F 57,29 55,45 60 40 10 aluminium 21
€14.31
0.36 kg
66T10-19F 746 19 66 T10 19 1F 60,48 58,65 66 44 10 aluminium 24
€15.74
0.416 kg
66T10-20F 747 20 66 T10 20 1F 63,66 61,8 66 46 12 aluminium 24
€17.15
0.45 kg
66T10-22F 748 22 66 T10 22 1F 70,03 68,2 75 52 12 aluminium 27
€21.65
0.548 kg
66T10-24F 749 24 66 T10 24 1F 76,39 74,55 83 58 12 aluminium 29
€24.58
0.666 kg
66T10-25F 750 25 66 T10 25 1F 79,58 77,7 83 60 12 aluminium 29
€24.81
0.732 kg
66T10-26F 751 26 66 T10 26 1F 82,76 80,9 87 60 12 aluminium 31
€27.59
0.784 kg
66T10-27F 752 27 66 T10 27 1F 85,95 84,1 91 60 12 aluminium 32
€30.43
0.847 kg
66T10-28F 753 28 66 T10 28 1F 89,12 87,25 93 60 12 aluminium 33
€30.66
0.908 kg
66T10-30F 754 30 66 T10 30 1F 95,49 93,65 97 60 12 aluminium 35
€36.66
1.035 kg
66T10-32F 755 32 66 T10 32 1F 101,86 100 106 65 12 aluminium 38
€40.44
1.2 kg
66T10-36F 756 36 66 T10 36 1F 114,59 112,75 119 70 16 aluminium 43
€47.96
1.513 kg
66T10-40F 757 40 66 T10 40 1F 127,32 125,45 131 80 16 aluminium 47
€59.98
1.897 kg
66T10-44 758 44 66 T10 44 2 140,05 138,2 - 88 16 aluminium -
€76.40
2.285 kg
66T10-48 759 48 66 T10 48 2 152,78 150,95 - 95 16 aluminium -
€84.68
2.735 kg
66T10-60 760 60 66 T10 60 2 190,98 189,1 - 110 16 aluminium -
€135.65
4.326 kg
