27T5 Timing Pulley

Description

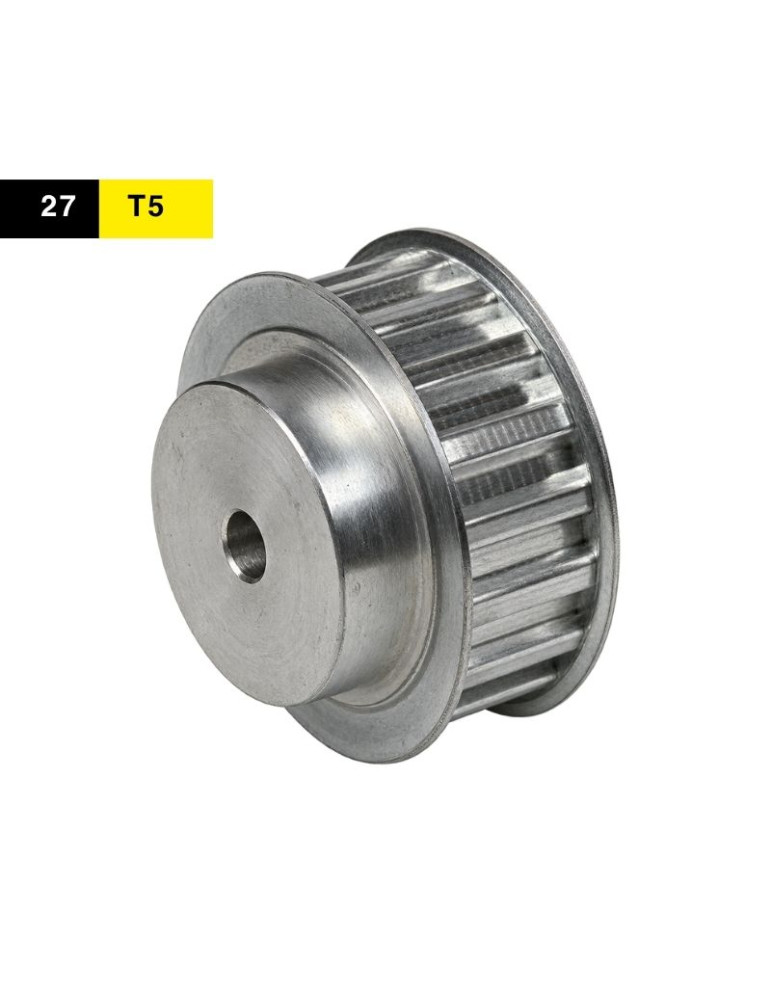

The 27T5 timing pulley for 16 mm wide belts is designed for synchronous drives using T5-profile timing belts.

Its 5 mm pitch must match the pitch of the mating belt. Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 10 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive.

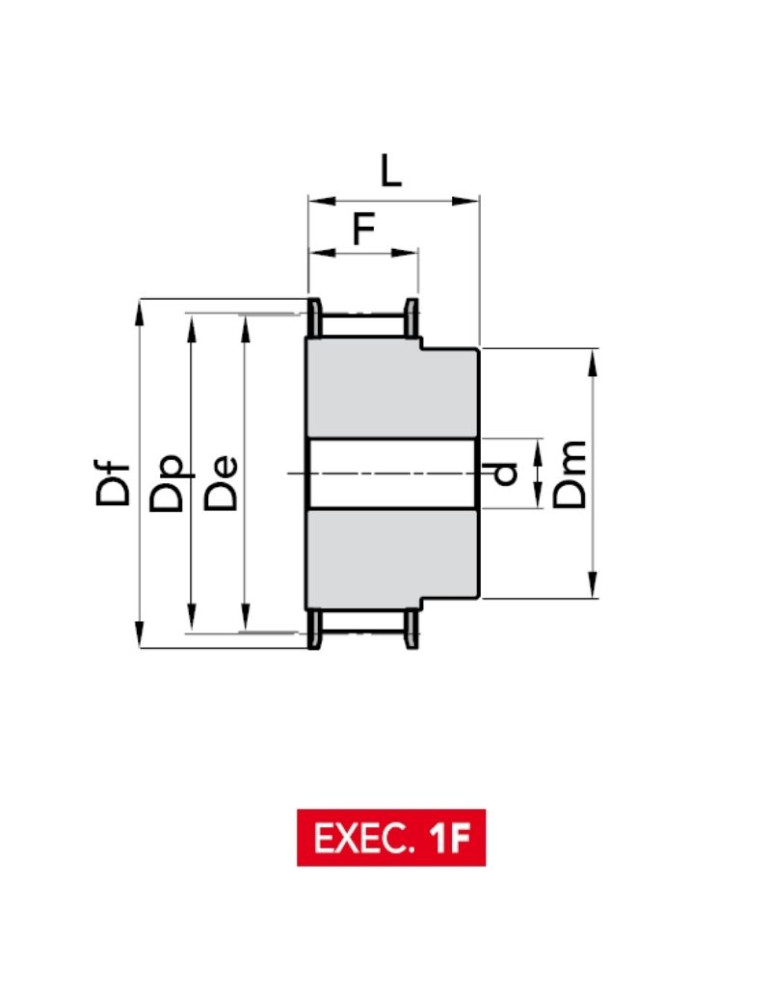

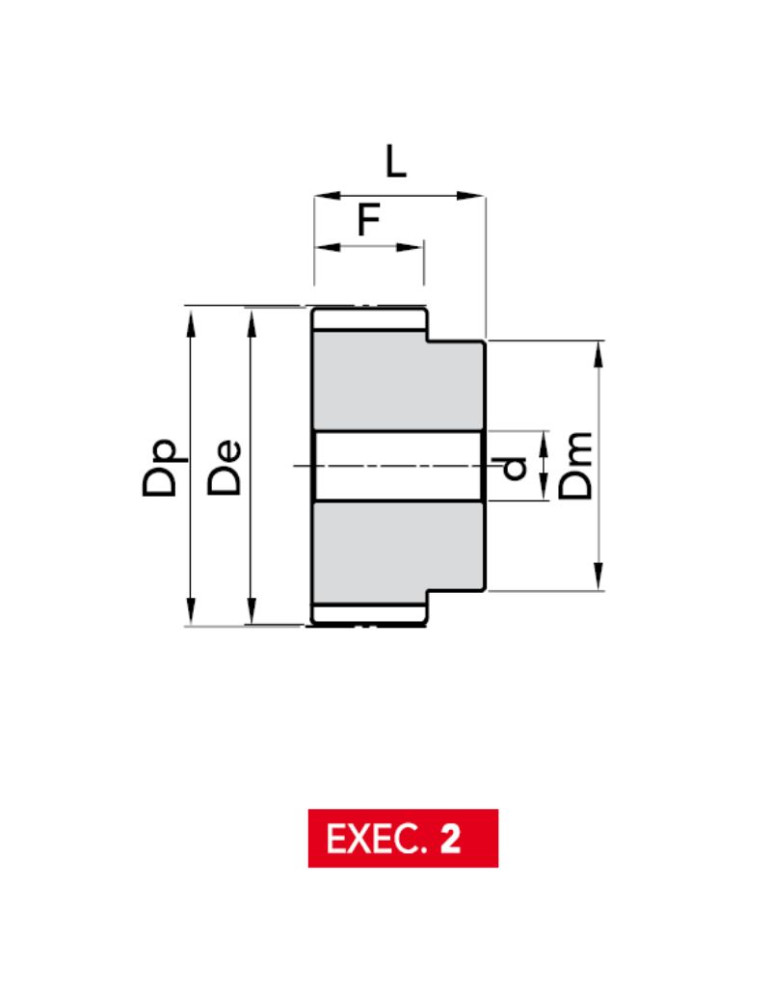

Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number. Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: T5 profile; 5 mm pitch; 16 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 10, 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 42, 44, 48, 60 teeth.

Product Details

Reference 27T5-44

In stock 7 Items

Specific References

ean13 8054652099310
MPN poulie-27t5

23 people are viewing this right now

€10.36

Tax excluded

order: 664

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: T

CHI-type3: T5

Type: 27 T5 44

Teeth: 44

Execution: 2

Dp: 70,05

De: 69,2

Df flange: -

Dm: 45

CHI-Di: -

CHI-F: 21

CHI-L: 27

d: 8

N° flange: -

CHI-Flasque: non

Belt width (mm): 16

Quantity

Add to Wishlist

Add to Compare

Last items in stock

Hurry up! Only 7 item(s) left in Stock!

Categories: PULLEYS, Metric timing pulleys, T 5 Timing Pulleys, Metric T-pulley

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
27T5-10F	645	10	27 T5 10	1F	15,92	15,05	19,5	8	-	aluminium	3	€2.66	0.011 kg	Sum.: Sum.:
27T5-12F	646	12	27 T5 12	1F	19,1	18,25	23	11	-	aluminium	1	€3.01	0.017 kg	Sum.: Sum.:
27T5-14F	647	14	27 T5 14	1F	22,29	21,45	25	13	-	aluminium	2	€3.22	0.023 kg	Sum.: Sum.:
27T5-15F	648	15	27 T5 15	1F	23,88	23,05	28	16	6	aluminium	4	€3.45	0.028 kg	Sum.: Sum.:
27T5-16F	649	16	27 T5 16	1F	25,47	24,6	32	18	6	aluminium	5	€3.66	0.033 kg	Sum.: Sum.:
27T5-18F	650	18	27 T5 18	1F	28,65	27,8	32	20	6	aluminium	6	€3.77	0.04 kg	Sum.: Sum.:
27T5-19F	651	19	27 T5 19	1F	30,25	29,4	36	22	6	aluminium	8	€4.01	0.045 kg	Sum.: Sum.:
27T5-20F	652	20	27 T5 20	1F	31,83	31	36	23	6	aluminium	8	€4.18	0.05 kg	Sum.: Sum.:
27T5-22F	653	22	27 T5 22	1F	35,02	34,15	38	24	6	aluminium	9	€4.56	0.058 kg	Sum.: Sum.:
27T5-24F	654	24	27 T5 24	1F	38,21	37,4	42	26	6	aluminium	13	€4.74	0.07 kg	Sum.: Sum.:
27T5-25F	655	25	27 T5 25	1F	39,8	38,95	44	26	6	aluminium	12	€5.12	0.076 kg	Sum.: Sum.:
27T5-26F	656	26	27 T5 26	1F	41,39	40,6	44	26	6	aluminium	12	€5.50	0.081 kg	Sum.: Sum.:
27T5-27F	657	27	27 T5 27	1F	42,98	42,2	48	30	8	aluminium	11	€5.50	0.087 kg	Sum.: Sum.:
27T5-28F	658	28	27 T5 28	1F	44,58	43,75	48	32	8	aluminium	11	€5.91	0.095 kg	Sum.: Sum.:
27T5-30F	659	30	27 T5 30	1F	47,76	46,95	51	34	8	aluminium	16	€6.29	0.108 kg	Sum.: Sum.:
27T5-32F	660	32	27 T5 32	1F	50,94	50,1	54	38	8	aluminium	18	€7.17	0.126 kg	Sum.: Sum.:
27T5-36F	661	36	27 T5 36	1F	57,31	56,45	64	38	8	aluminium	23	€8.34	0.16 kg	Sum.: Sum.:
27T5-40F	662	40	27 T5 40	1F	63,66	62,85	66,5	40	8	aluminium	24	€9.39	0.193 kg	Sum.: Sum.:
27T5-42F	663	42	27 T5 42	1F	66,86	66	70	40	8	aluminium	26	€10.18	0.22 kg	Sum.: Sum.:
27T5-44	664	44	27 T5 44	2	70,05	69,2	-	45	8	aluminium	-	€10.36	0.225 kg	Sum.: Sum.:
27T5-48	665	48	27 T5 48	2	76,42	75,55	-	50	8	aluminium	-	€11.73	0.321 kg	Sum.: Sum.:
27T5-60	666	60	27 T5 60	2	95,52	94,65	-	65	8	aluminium	-	€17.59	0.434 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
