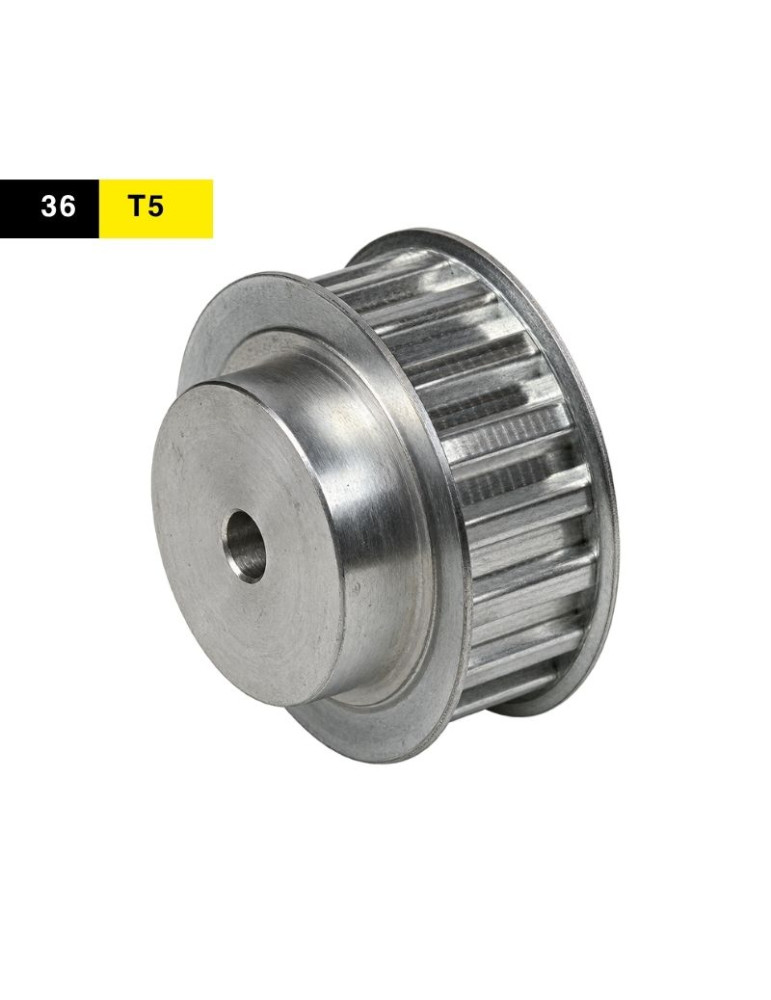

36T5 Timing Pulley

Description

The 36T5 timing pulley for 25 mm wide belts is designed for synchronous drives using T5-profile timing belts. Its 5 mm pitch must match the pitch of the mating belt.

Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 10 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive.

Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number.

Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: T5 profile; 5 mm pitch; 25 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 10, 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 42, 44, 48, 60 teeth.

Product Details

Reference 36T5-20F

In stock 4 Items

Specific References

ean13 8054652099419
MPN Poulie-36T5

21 people are viewing this right now

€4.83

Tax excluded

order: 674

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: T

CHI-type3: T5

Type: 36 T5 20

Teeth: 20

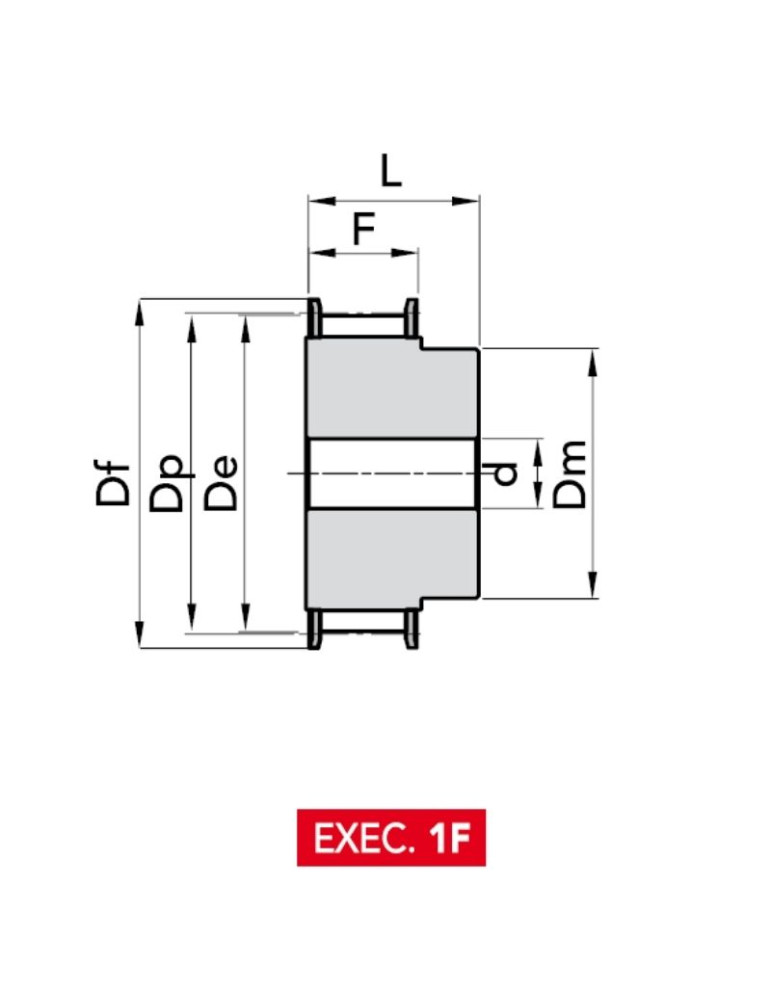

Execution: 1F

Dp: 31,83

De: 31

Df flange: 36

Dm: 23

CHI-Di: -

CHI-F: 30

CHI-L: 36

d: 6

N° flange: 8

CHI-Flasque: oui

Belt width (mm): 25

Quantity

Add to Wishlist

Add to Compare

Last items in stock

Hurry up! Only 4 item(s) left in Stock!

Categories: PULLEYS, Metric timing pulleys, T 5 Timing Pulleys, Metric T-pulley

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
36T5-10F	667	10	36 T5 10	1F	15,92	15,05	19,5	8	-	aluminium	3	€3.07	0.015 kg	Sum.: Sum.:
36T5-12F	668	12	36 T5 12	1F	19,1	18,25	23	11	-	aluminium	1	€3.51	0.023 kg	Sum.: Sum.:
36T5-14F	669	14	36 T5 14	1F	22,29	21,45	25	13	-	aluminium	2	€3.77	0.032 kg	Sum.: Sum.:
36T5-15F	670	15	36 T5 15	1F	23,88	23,05	28	16	6	aluminium	4	€4.07	0.038 kg	Sum.: Sum.:
36T5-16F	671	16	36 T5 16	1F	25,47	24,6	32	18	6	aluminium	5	€4.24	0.044 kg	Sum.: Sum.:
36T5-18F	672	18	36 T5 18	1F	28,65	27,8	32	20	6	aluminium	6	€4.45	0.053 kg	Sum.: Sum.:
36T5-19F	673	19	36 T5 19	1F	30,25	29,4	36	22	6	aluminium	8	€4.68	0.062 kg	Sum.: Sum.:
36T5-20F	674	20	36 T5 20	1F	31,83	31	36	23	6	aluminium	8	€4.83	0.069 kg	Sum.: Sum.:
36T5-22F	675	22	36 T5 22	1F	35,02	34,15	38	24	6	aluminium	9	€5.38	0.08 kg	Sum.: Sum.:
36T5-24F	676	24	36 T5 24	1F	38,21	37,4	42	26	8	aluminium	13	€5.79	0.089 kg	Sum.: Sum.:
36T5-25F	677	25	36 T5 25	1F	39,8	38,95	44	26	8	aluminium	12	€6.17	0.098 kg	Sum.: Sum.:
36T5-26F	678	26	36 T5 26	1F	41,39	40,6	44	26	8	aluminium	12	€6.73	0.105 kg	Sum.: Sum.:
36T5-27F	679	27	36 T5 27	1F	42,98	42,2	48	30	8	aluminium	11	€6.85	0.117 kg	Sum.: Sum.:
36T5-28F	680	28	36 T5 28	1F	44,58	43,75	48	32	8	aluminium	11	€7.40	0.126 kg	Sum.: Sum.:
36T5-30F	681	30	36 T5 30	1F	47,76	46,95	51	34	8	aluminium	16	€7.90	0.147 kg	Sum.: Sum.:
36T5-32F	682	32	36 T5 32	1F	50,94	50,1	54	38	8	aluminium	18	€8.95	0.169 kg	Sum.: Sum.:
36T5-36F	683	36	36 T5 36	1F	57,31	56,45	64	38	8	aluminium	23	€10.36	0.217 kg	Sum.: Sum.:
36T5-40F	684	40	36 T5 40	1F	63,66	62,85	66,5	40	8	aluminium	24	€11.85	0.262 kg	Sum.: Sum.:
36T5-42F	685	42	36 T5 42	1F	66,86	66	70	40	8	aluminium	26	€12.85	0.29 kg	Sum.: Sum.:

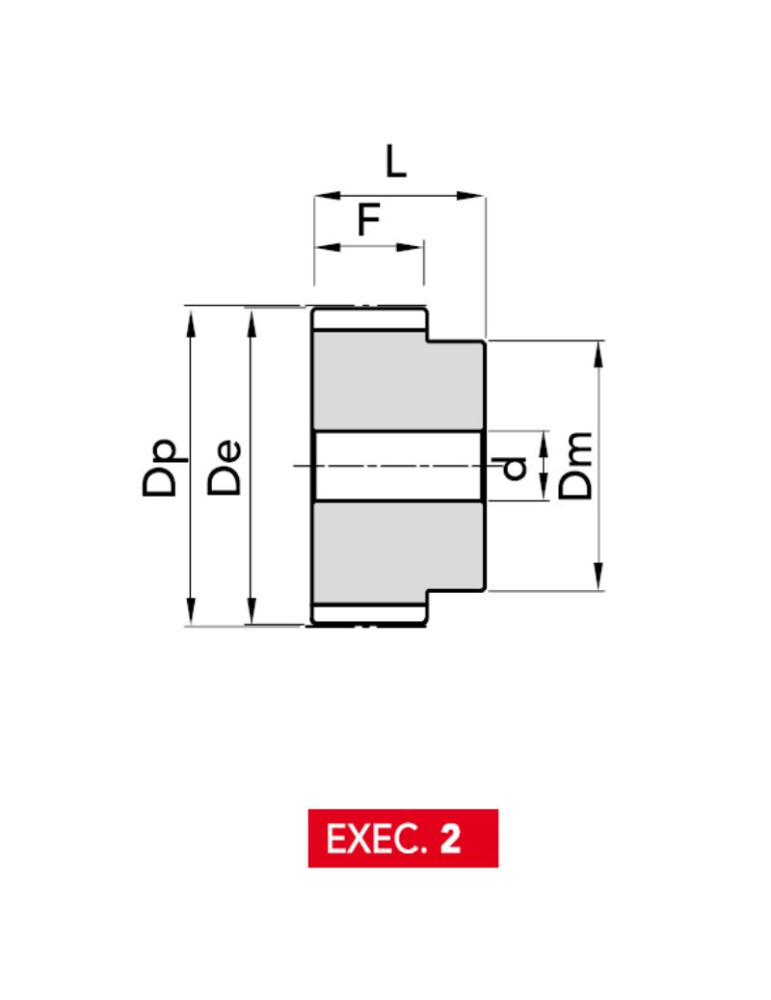

36T5-44	686	44	36 T5 44	2	70,05	69,2	-	45	8	aluminium	-	€13.25	0.31 kg	Sum.: Sum.:
36T5-48	687	48	36 T5 48	2	76,42	75,55	-	50	8	aluminium	-	€15.07	0.37 kg	Sum.: Sum.:
36T5-60	688	60	36 T5 60	2	95,52	94,65	-	65	8	aluminium	-	€22.53	0.597 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
