L075 timing pulley

Description

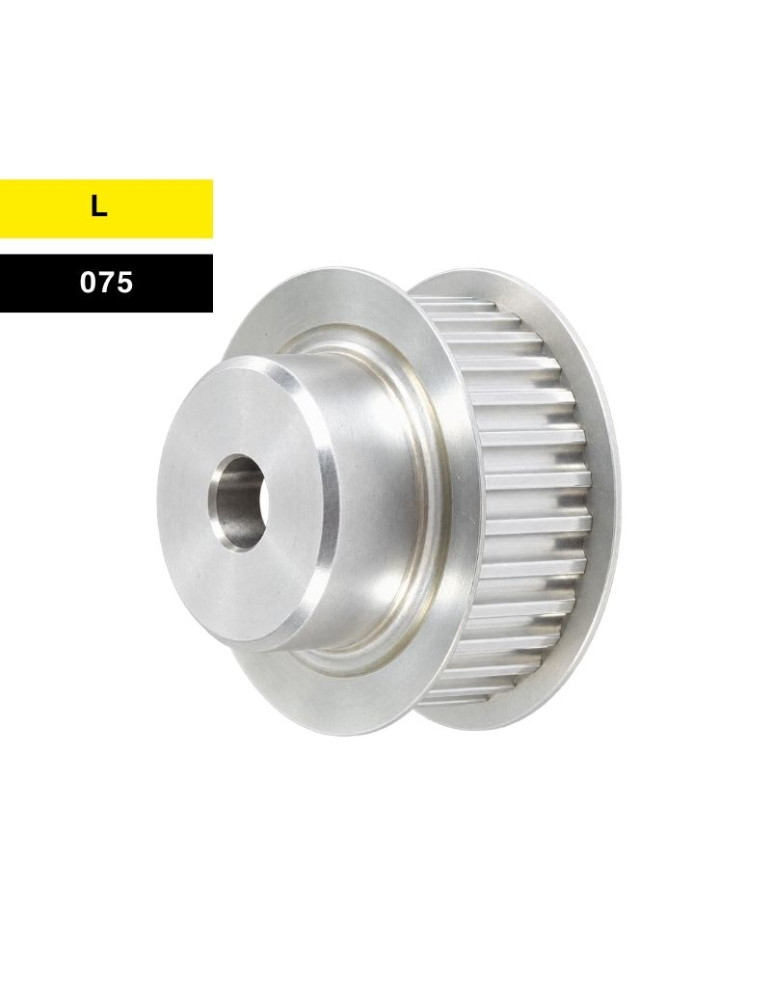

The L075 timing pulley is designed for a L-profile synchronous belt with 0.75 in nominal width and 9.52 mm pitch.

Comes in 10 to 96 tooth versions.

Select the tooth count for the required drive ratio, then confirm diameter, finished bore and available shaft space.

Product Details
15L075F
20 Items

Specific References

  • 8054652092335
  • DOM-poulie-L075
16 people are viewing this right now
DOM
15L075F
20 Items
€2.41
Tax excluded
order: 303
Material: Acier
CHI-Pièce: Poulie
CHI-type1: 5L075
CHI-type3: -
Type: 15L075
Teeth: 15

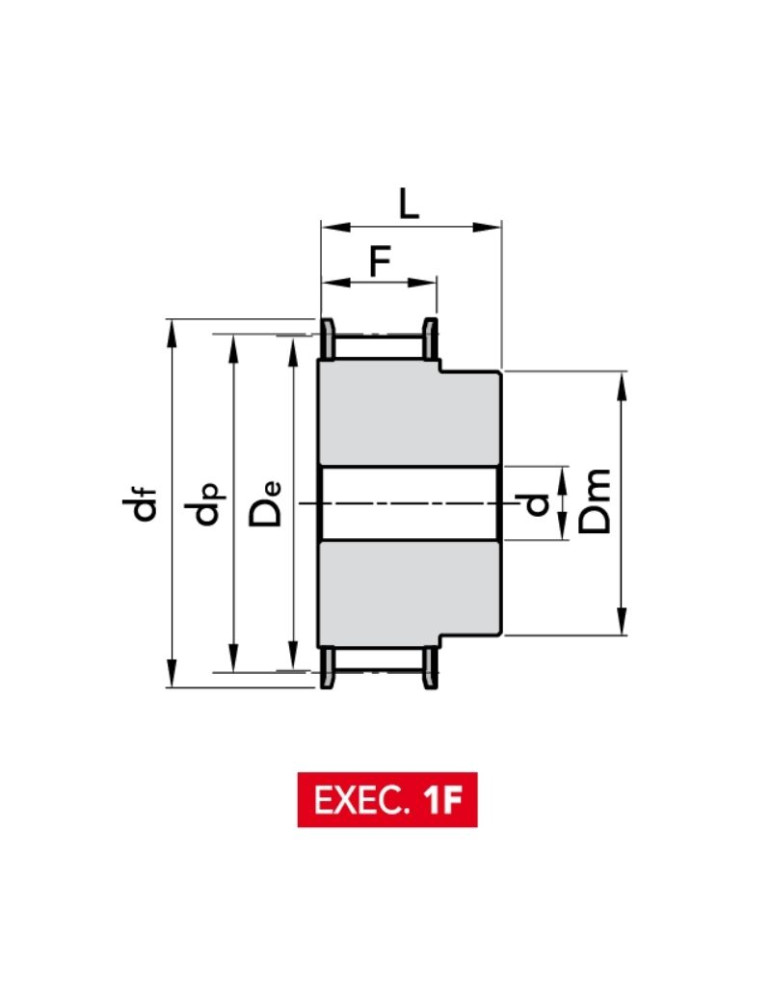

Execution: 1F
Dp: 45,48
De: 44,72
Df flange: 51
Dm: 34
CHI-Di: -
CHI-F: 25,4
CHI-L: 38
d: 11
N° flange: 55
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare

Hurry up! Only 20 item(s) left in Stock!
PULLEYS,  Timing pulleys with pilot bore,  L-Type Pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
10L075F 298 10 10L075 1F 30,33 29,56 37 20 8 Acier 50
€0.00
0.14 kg
11L075F 299 11 11L075 1F 33,35 32,59 37 22 8 Acier 50
€0.00
0.171 kg
12L075F 300 12 12L075 1F 36,37 35,62 43 24 8 Acier 52
€2.14
0.211 kg
13L075F 301 13 13L075 1F 39,41 38,65 44 28 8 Acier 83
€2.30
0.258 kg
14L075F 302 14 14L075 1F 42,44 41,68 48 28 11 Acier 54
€2.41
0.285 kg
15L075F 303 15 15L075 1F 45,48 44,72 51 34 11 Acier 55
€2.41
0.35 kg
16L075F 304 16 16L075 1F 48,51 47,75 54 36 11 Acier 56
€4.52
0.407 kg
17L075F 305 17 17L075 1F 51,54 50,78 57 36 11 Acier 57
€5.07
0.452 kg
18L075F 306 18 18L075 1F 54,59 53,81 60 40 11 Acier 58
€10.78
0.523 kg
19L075F 307 19 19L075 1F 57,61 56,84 64 40 11 Acier 59
€0.00
0.572 kg
20L075F 308 20 20L075 1F 60,63 59,88 66,5 40 11 Acier 60
€12.31
0.627 kg
21L075F 309 21 21L075 1F 63,68 62,91 70 45 11 Acier 61
€0.00
0.712 kg
22L075F 310 22 22L075 1F 66,7 65,94 75 45 11 Acier 62
€7.29
0.776 kg
23L075F 311 23 23L075 1F 69,73 68,97 79 55 11 Acier 63
€0.00
0.922 kg
24L075F 312 24 24L075 1F 72,77 72 79 55 11 Acier 63
€0.00
0.975 kg
25L075F 313 25 25L075 1F 75,8 75,04 82,5 58 11 Acier 64
€2.14
1.066 kg
26L075F 314 26 26L075 1F 78,84 78,07 86 58 11 Acier 65
€0.00
1.145 kg
27L075F 315 27 27L075 1F 81,86 81,1 86 58 11 Acier 65
€0.00
1.199 kg
28L075F 316 28 28L075 1F 84,89 84,13 91 58 11 Acier 66
€3.39
1.287 kg
30L075F 317 30 30L075 1F 90,96 90,2 97 70 11 Acier 68
€12.00
1.562 kg
32L075F 318 32 32L075 1F 97,03 96,26 102 70 11 Acier 70
€13.46
1.738 kg
33L075F 319 33 33L075 1F 100,05 99,29 106 70 11 Acier 71
€0.00
1.823 kg
34L075F 320 34 34L075 1F 103,08 102,32 112 70 11 Acier 72
€0.00
1.93 kg
35L075F 321 35 35L075 1F 106,12 105,35 112 70 11 Acier 72
€0.00
2.015 kg
36L075F 322 36 36L075 1F 109,14 108,39 115 70 11 Acier 74
€17.27
2.12 kg
40L075F 323 40 40L075 1F 121,29 120,51 128 70 11 Acier 78
€0.00
2.546 kg
42L075F 324 42 42L075 1F 127,34 126,57 135 70 11 Acier 80
€0.00
2.822 kg
44L075F 325 44 44L075 1F 133,4 132,64 142 70 11 Acier 81
€0.00
3.038 kg
45L075F 326 45 45L075 1F 136,44 135,67 142 70 11 Acier 81
€2.41
3.118 kg
48L075F 327 48 48L075 1F 145,54 144,77 150 70 11 Acier 85
€15.50
3.53 kg

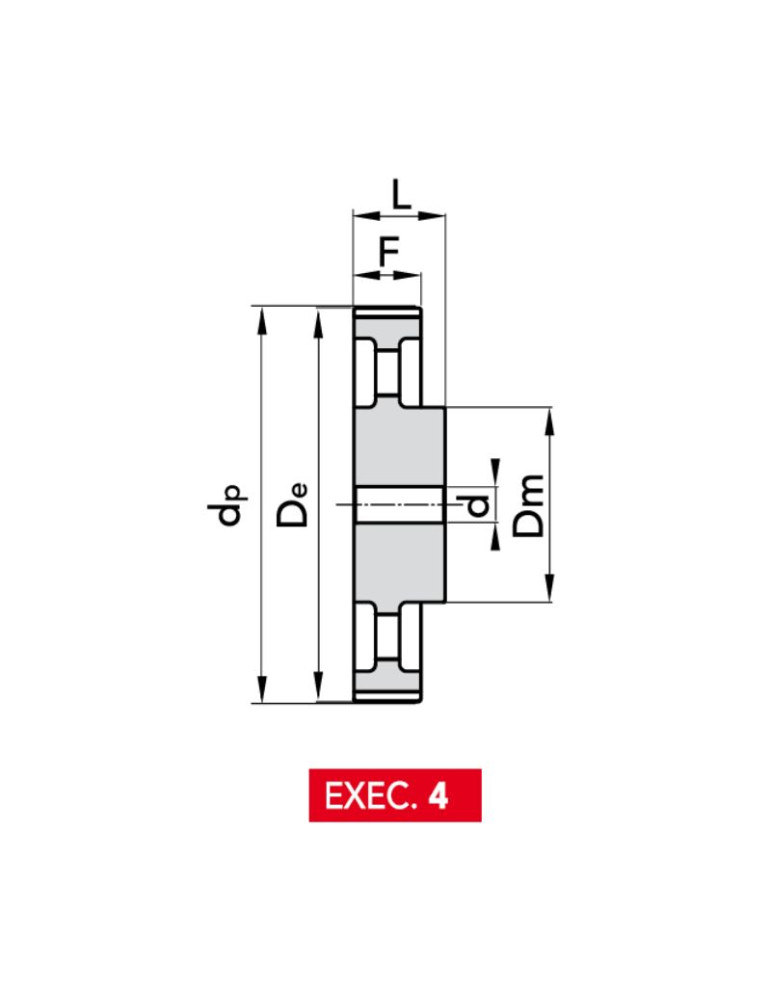

50L075 328 50 50L075 4 151,6 150,83 - 70 14 fonte -
€0.00
1.84 kg
52L075 329 52 52L075 4 157,66 156,9 - 70 14 fonte -
€0.00
2.203 kg
56L075 330 56 56L075 4 169,79 169,02 - 70 14 fonte -
€0.00
2.275 kg
57L075 331 57 57L075 4 172,82 172,06 - 70 14 fonte -
€0.00
2.365 kg
60L075 332 60 60L075 4 181,92 181,15 - 75 14 fonte -
€0.00
2.75 kg
72L075 333 72 72L075 4 218,29 217,53 - 75 14 fonte -
€18.19
3.445 kg
84L075 334 84 84L075 4 254,69 253,92 - 75 14 fonte -
€0.00
3.681 kg
96L075 335 96 96L075 4 291,06 290,3 - 75 14 fonte -
€0.00
4.623 kg
