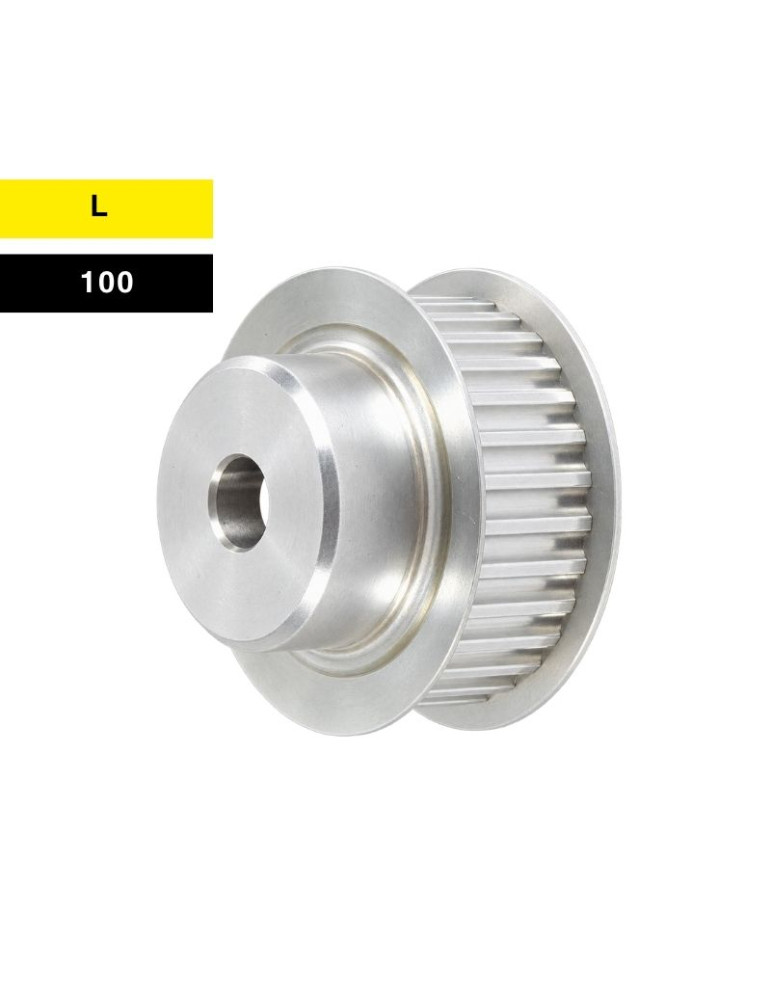

L100 timing pulley
  • New
L100 timing pulley

L100 timing pulley

Description

The L100 timing pulley is designed for a L-profile synchronous belt with 1 in nominal width and 9.52 mm pitch.

Comes in 10 to 96 tooth versions.

Before ordering, match the selected teeth to your belt and check pitch diameter, final bore machining and mounting dimensions.

Product Details
14L100F
1 Items

Specific References

  • 8054652093165
  • DOM-poulie-L100
24 people are viewing this right now
DOM
14L100F
1 Items
€2.41
Tax excluded
order: 340
Material: Acier
CHI-Pièce: Poulie
CHI-type1: 4L100
CHI-type3: -
Type: 14L100
Teeth: 14

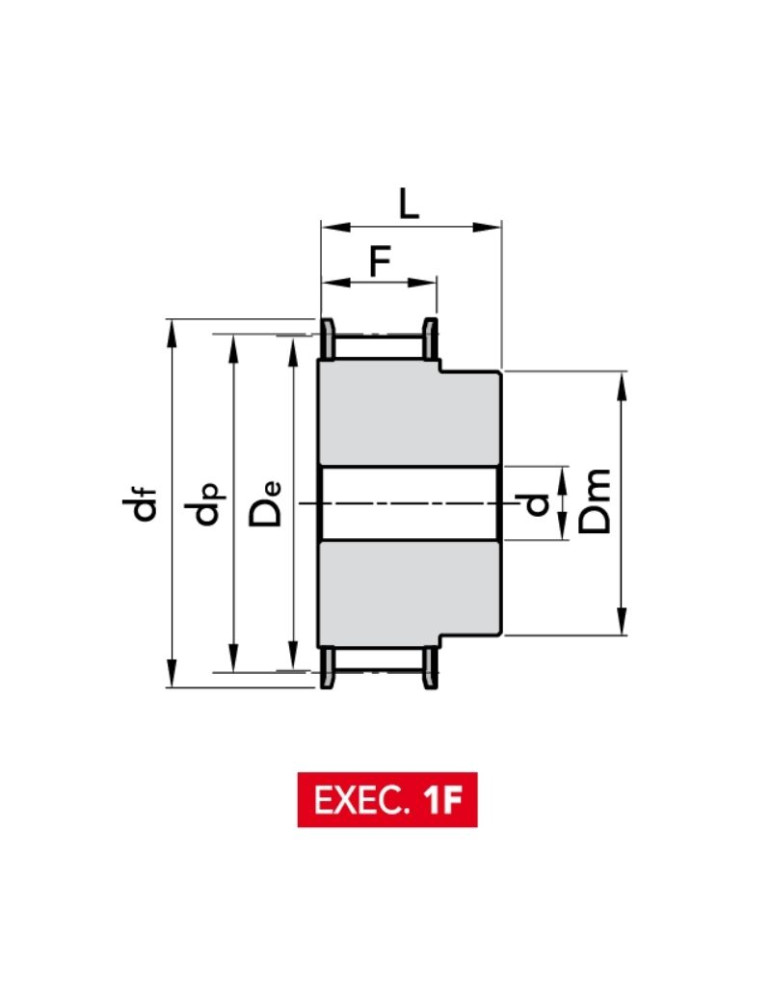

Execution: 1F
Dp: 42,44
De: 41,68
Df flange: 48
Dm: 28
CHI-Di: -
CHI-F: 31,8
CHI-L: 45
d: 11
N° flange: 54
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 1 item(s) left in Stock!
PULLEYS,  Timing pulleys with pilot bore,  L-Type Pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
10L100F 336 10 10L100 1F 30,33 29,56 37 20 8 Acier 50
€1.90
0.168 kg
11L100F 337 11 11L100 1F 33,35 32,59 37 22 8 Acier 50
€0.00
0.205 kg
12L100F 338 12 12L100 1F 36,37 35,62 43 24 8 Acier 52
€4.62
0.257 kg
13L100F 339 13 13L100 1F 39,41 38,65 44 28 8 Acier 83
€0.00
0.309 kg
14L100F 340 14 14L100 1F 42,44 41,68 48 28 11 Acier 54
€2.41
0.341 kg
15L100F 341 15 15L100 1F 45,48 44,72 51 34 11 Acier 55
€5.68
0.424 kg
16L100F 342 16 16L100 1F 48,51 47,75 54 36 11 Acier 56
€3.50
0.488 kg
17L100F 343 17 17L100 1F 51,54 50,78 57 36 11 Acier 57
€0.00
0.542 kg
18L100F 344 18 18L100 1F 54,59 53,81 60 40 11 Acier 58
€4.22
0.626 kg
19L100F 345 19 19L100 1F 57,61 56,84 64 40 11 Acier 59
€0.00
0.688 kg
20L100F 346 20 20L100 1F 60,63 59,88 66 40 11 Acier 60
€6.98
0.757 kg
21L100F 347 21 21L100 1F 63,68 62,91 70 45 11 Acier 61
€4.66
0.86 kg
22L100F 348 22 22L100 1F 66,7 65,94 75 45 11 Acier 62
€11.12
0.938 kg
23L100F 349 23 23L100 1F 69,73 68,97 79 55 11 Acier 63
€0.00
1.102 kg
24L100F 350 24 24L100 1F 72,77 72 79 55 11 Acier 63
€5.88
1.17 kg
25L100F 351 25 25L100 1F 75,8 75,04 82 58 11 Acier 64
€0.00
1.29 kg
26L100F 352 26 26L100 1F 78,84 78,07 86 58 11 Acier 65
€11.53
1.38 kg
27L100F 353 27 27L100 1F 81,86 81,1 86 58 11 Acier 65
€0.00
1.473 kg
28L100F 354 28 28L100 1F 84,89 84,13 91 58 11 Acier 66
€16.97
1.564 kg
30L100F 355 30 30L100 1F 90,96 90,2 97 70 11 Acier 68
€8.69
1.888 kg
32L100F 356 32 32L100 1F 97,03 96,26 102 70 11 Acier 70
€0.00
2.09 kg
33L100F 357 33 33L100 1F 100,05 99,29 106 70 11 Acier 71
€0.00
2.215 kg
34L100F 358 34 34L100 1F 103,08 102,32 112 70 11 Acier 72
€0.00
2.355 kg
35L100F 359 35 35L100 1F 106,12 105,35 112 70 11 Acier 72
€0.00
2.436 kg
36L100F 360 36 36L100 1F 109,14 108,39 115 70 11 Acier 74
€18.98
2.572 kg
40L100F 361 40 40L100 1F 121,29 120,51 128 70 11 Acier 78
€0.00
3.112 kg
42L100F 362 42 42L100 1F 127,34 126,57 135 70 11 Acier 80
€0.00
3.418 kg
44L100F 363 44 44L100 1F 133,4 132,64 142 70 11 Acier 81
€0.00
3.747 kg
45L100F 364 45 45L100 1F 136,44 135,67 142 70 11 Acier 81
€0.00
3.864 kg
48L100F 365 48 48L100 1F 145,54 144,77 150 70 11 Acier 85
€0.00
4.349 kg

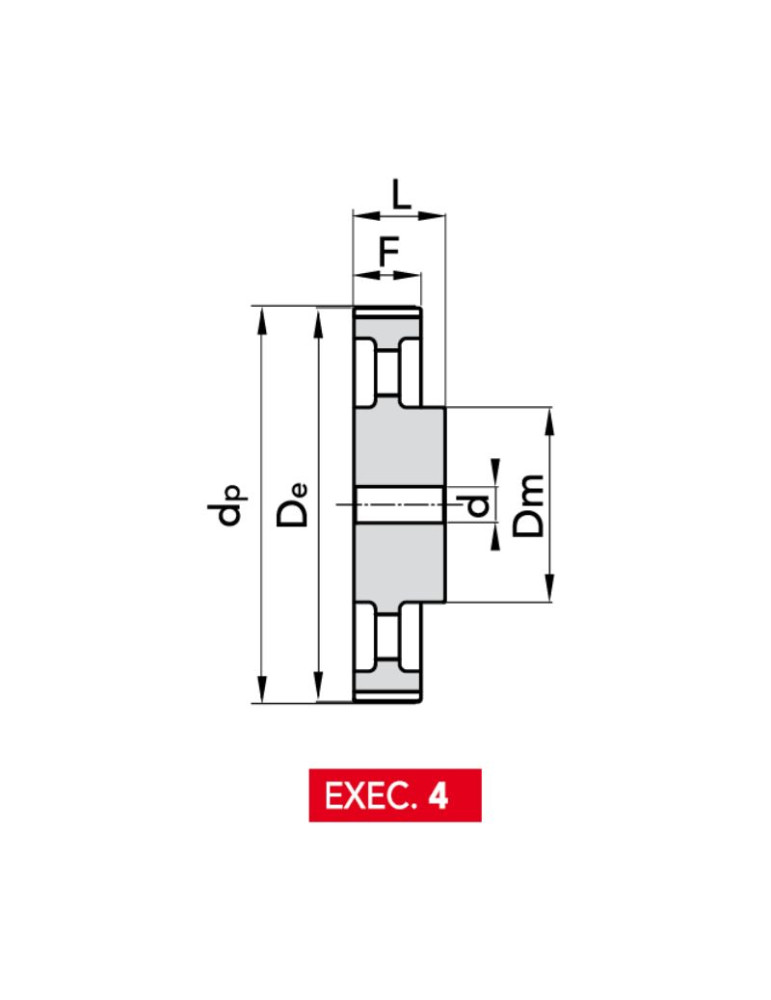

50L100 366 50 50L100 4 151,6 150,83 - 70 14 fonte -
€0.00
2.483 kg
52L100 367 52 52L100 4 157,66 156,9 - 70 14 fonte -
€0.00
2.62 kg
56L100 368 56 56L100 4 169,79 169,02 - 70 14 fonte -
€0.00
2.447 kg
57L100 369 57 57L100 4 172,82 172,06 - 70 14 fonte -
€0.00
2.745 kg
60L100 370 60 60L100 4 181,92 181,15 - 75 14 fonte -
€0.00
2.97 kg
72L100 371 72 72L100 4 218,29 217,53 - 75 14 fonte -
€0.00
3.37 kg
84L100 372 84 84L100 4 254,69 253,92 - 75 14 fonte -
€0.00
3.666 kg
96L100 373 96 96L100 4 291,06 290,3 - 75 14 fonte -
€0.00
5.265 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
