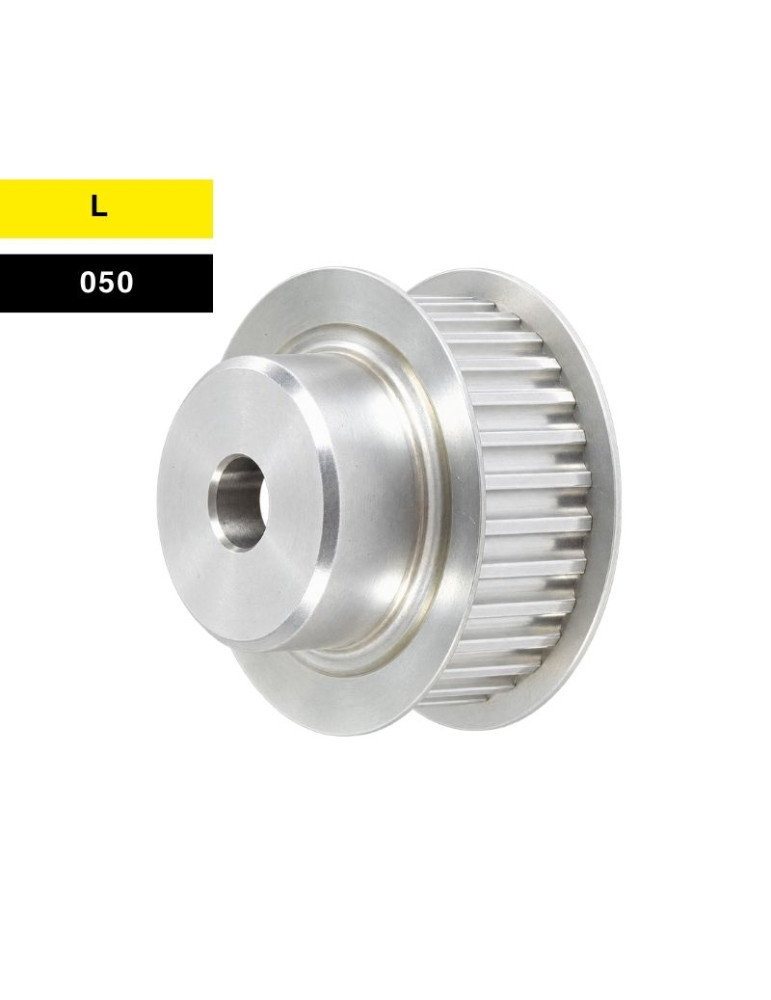

L050 timing pulley
  • New
L050 timing pulley

L050 timing pulley

Description

The L050 timing pulley is designed for a L-profile synchronous belt with 0.5 in nominal width and 9.52 mm pitch.

Comes in 10 to 96 tooth versions.

Before ordering, match the selected teeth to your belt and check pitch diameter, final bore machining and mounting dimensions.

Product Details
15L050F
2 Items

Specific References

  • 8054652091499
  • DOM-poulie-L050
23 people are viewing this right now
DOM
15L050F
2 Items
€2.45
Tax excluded
order: 265
Material: Acier
CHI-Pièce: Poulie
CHI-type1: 5L050
CHI-type3: -
Type: 15L050
Teeth: 15

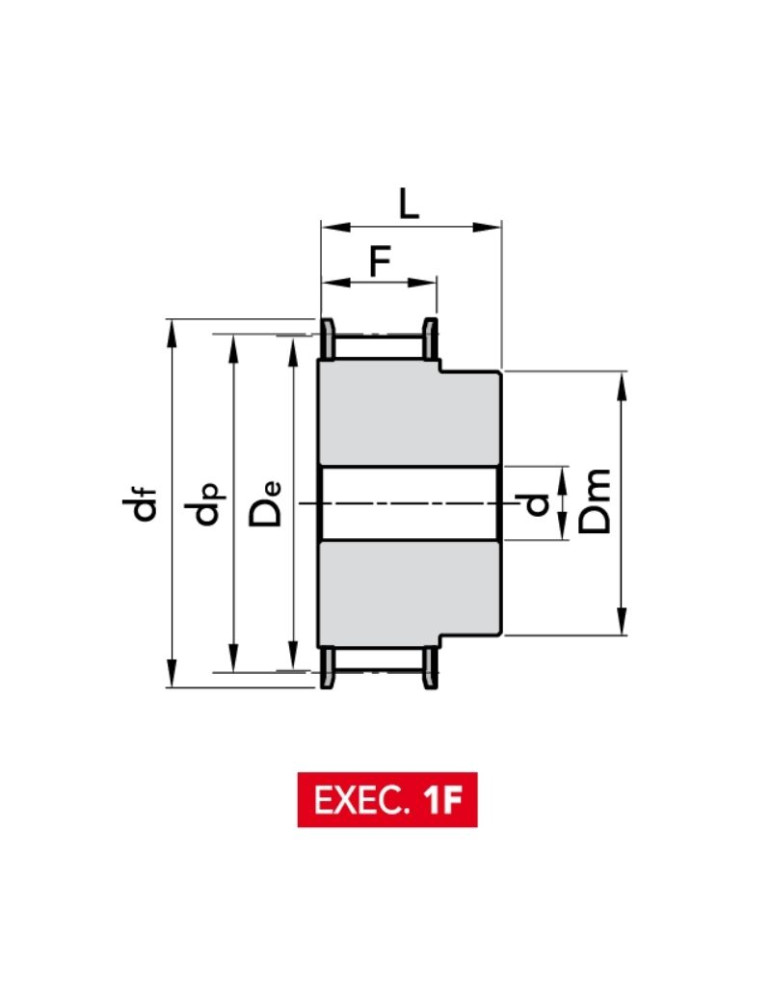

Execution: 1F
Dp: 45,48
De: 44,72
Df flange: 51
Dm: 34
CHI-Di: -
CHI-F: 19
CHI-L: 30
d: 8
N° flange: 55
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 2 item(s) left in Stock!
PULLEYS,  Timing pulleys with pilot bore,  L-Type Pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
10L050F 260 10 10L050 1F 30,33 29,56 37 20 8 Acier 50
€1.44
0.106 kg
11L050F 261 11 11L050 1F 33,35 32,59 37 22 8 Acier 50
€0.00
0.132 kg
12L050F 262 12 12L050 1F 36,37 35,62 43 24 8 Acier 52
€2.92
0.165 kg
13L050F 263 13 13L050 1F 39,41 38,65 44 28 8 Acier 83
€2.41
0.202 kg
14L050F 264 14 14L050 1F 42,44 41,68 48 28 8 Acier 54
€2.41
0.232 kg
15L050F 265 15 15L050 1F 45,48 44,72 51 34 8 Acier 55
€2.45
0.285 kg
16L050F 266 16 16L050 1F 48,51 47,75 54 36 8 Acier 56
€2.82
0.342 kg
17L050F 267 17 17L050 1F 51,54 50,78 57 36 10 Acier 57
€0.00
0.369 kg
18L050F 268 18 18L050 1F 54,59 53,81 60 40 10 Acier 58
€6.43
0.428 kg
19L050F 269 19 19L050 1F 57,61 56,84 64 40 10 Acier 59
€2.82
0.464 kg
20L050F 270 20 20L050 1F 60,63 59,88 66,5 40 10 Acier 60
€6.87
0.505 kg
21L050F 271 21 21L050 1F 63,68 62,91 70 45 10 Acier 61
€0.00
0.578 kg
22L050F 272 22 22L050 1F 66,7 65,94 75 45 10 Acier 62
€0.00
0.63 kg
23L050F 273 23 23L050 1F 69,73 68,97 79 55 10 Acier 63
€0.00
0.762 kg
24L050F 274 24 24L050 1F 72,77 72 79 55 10 Acier 63
€0.00
0.798 kg
25L050F 275 25 25L050 1F 75,8 75,04 82,5 58 10 Acier 64
€0.00
0.872 kg
26L050F 276 26 26L050 1F 78,84 78,07 86 58 11 Acier 65
€0.00
0.93 kg
27L050F 277 27 27L050 1F 81,86 81,1 86 58 11 Acier 65
€0.00
0.976 kg
28L050F 278 28 28L050 1F 84,89 84,13 91 58 11 Acier 66
€9.59
1.041 kg
30L050F 279 30 30L050 1F 90,96 90,2 97 70 11 Acier 68
€10.57
1.277 kg
32L050F 280 32 32L050 1F 97,03 96,26 102 70 11 Acier 70
€7.21
1.402 kg
33L050F 281 33 33L050 1F 100,05 99,29 106 70 11 Acier 71
€7.21
1.477 kg
34L050F 282 34 34L050 1F 103,08 102,32 112 70 11 Acier 72
€0.00
1.56 kg
35L050F 283 35 35L050 1F 106,12 105,35 112 70 11 Acier 72
€0.00
1.623 kg
36L050F 284 36 36L050 1F 109,14 108,39 115 70 11 Acier 74
€0.00
1.685 kg
40L050F 285 40 40L050 1F 121,29 120,51 128 70 11 Acier 78
€10.57
2.018 kg
42L050F 286 42 42L050 1F 127,34 126,57 135 70 11 Acier 80
€0.00
2.199 kg
44L050F 287 44 44L050 1F 133,4 132,64 142 70 11 Acier 81
€0.00
2.398 kg
45L050F 288 45 45L050 1F 136,44 135,67 142 70 11 Acier 81
€0.00
2.456 kg
48L050F 289 48 48L050 1F 145,54 144,77 150 70 11 Acier 85
€21.83
2.738 kg

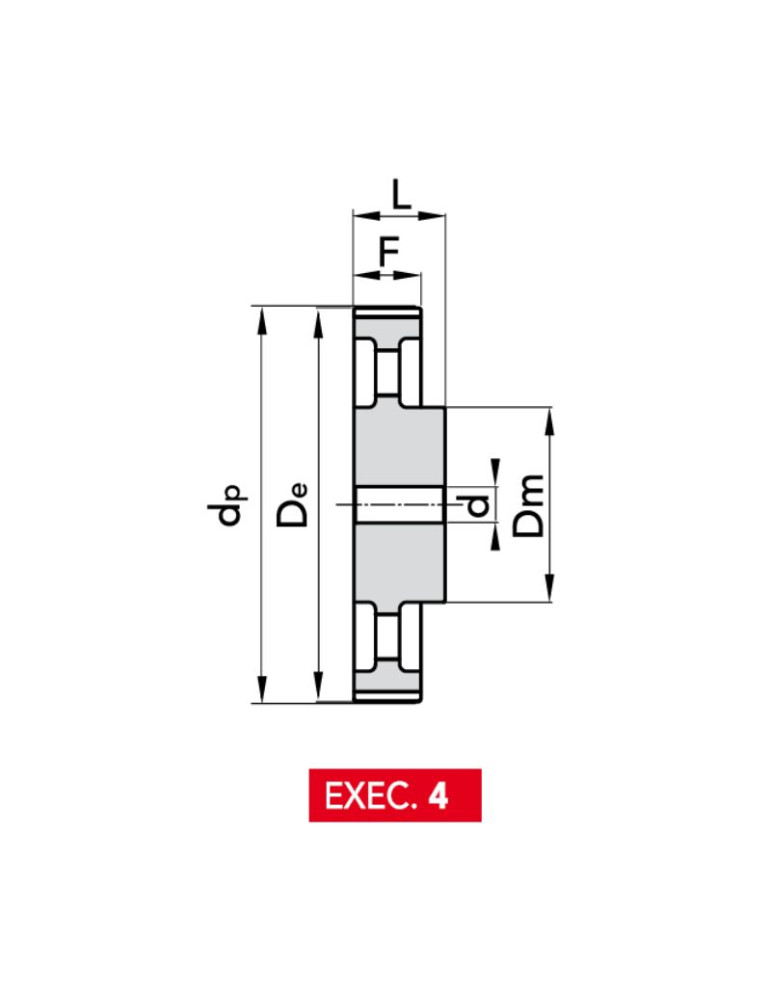

50L050 290 50 50L050 4 151,6 150,83 - 70 14 fonte -
€0.00
1.927 kg
52L050 291 52 52L050 4 157,66 156,9 - 70 14 fonte -
€0.00
1.892 kg
56L050 292 56 56L050 4 169,79 169,02 - 70 14 fonte -
€0.00
1.988 kg
57L050 293 57 57L050 4 172,82 172,06 - 70 14 fonte -
€0.00
2.037 kg
60L050 294 60 60L050 4 181,92 181,15 - 75 14 fonte -
€0.00
2.527 kg
72L050 295 72 72L050 4 218,29 217,53 - 75 14 fonte -
€0.00
2.924 kg
84L050 296 84 84L050 4 254,69 253,92 - 75 14 fonte -
€0.00
2.941 kg
96L050 297 96 96L050 4 291,06 290,3 - 75 14 fonte -
€0.00
4.045 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
