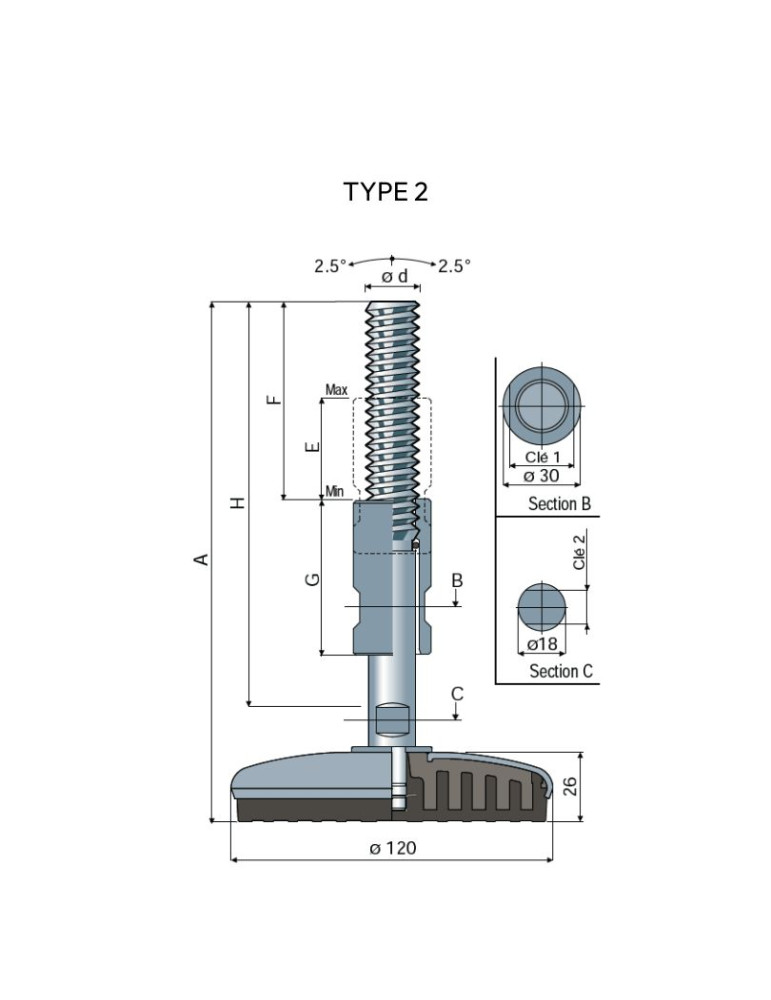

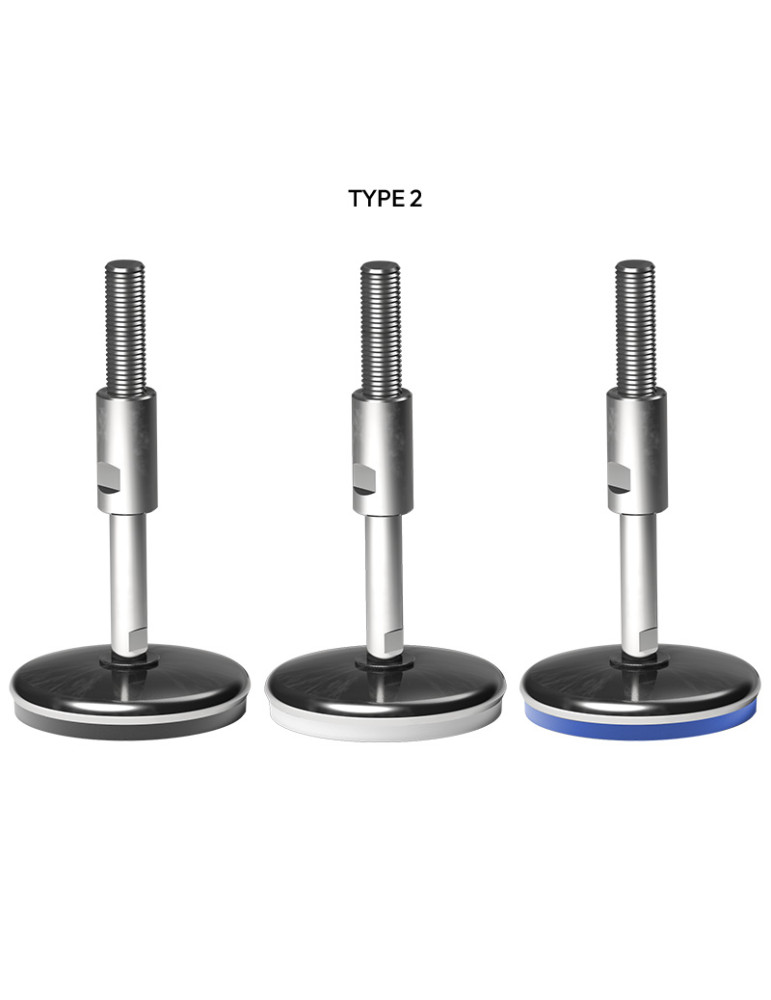

Stainless steel foot Ø 120 angle +/- 2.5°
Stainless steel foot Ø 120 angle +/- 2.5°

Stainless steel foot Ø 120 angle +/- 2.5°

Description

Adjustable footing feet for use in agri-food, medical, pharmaceutical industries ...

AISI 304 stainless steel stalk

Diameter 120 mm

Type 2 = +/- 2.5 ° angle

Feet for the support of conveyors and machines

Basic material: Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti slippery PVC 68 shore black, white or blue color 5005.

Features

The moldering anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is a guarantee of high foot disinfection. The adjusting threaded insert guarantees the thread protection.

The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers

Feet of machines and components made in Italy.

Product Details
110/88048

Specific References

  • PIED-110T2
Attachments

PIEDS 110

Download (820.06KB)
20 people are viewing this right now
DOM
110/88048
€96.87
Tax excluded
order: 1
ød: M16x2
A (mm): 200
H (mm): 159
Static load max/unit (kg): 3000
Colors: black
SOUT-F: 73
SOUT-E: 39
SOUT-G: 60
SOUT-Clé 1: 22
SOUT-Clé 2: 12
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order SOUT-Clé 1 SOUT-Clé 2 ød A (mm) H (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
110/88048 1 22 12 M16x2 200 159 black 3000 0.774 kg
110/88049 2 22 12 M16x2 260 220 black 3000 0.999 kg
110/84136 3 25 13 M20x2,5 200 159 black 3000 0.86 kg
110/84195 4 25 13 M20x2,5 260 220 black 3000 1.11 kg
110/88052 5 30 17 M24x3 200 159 black 3000 0.946 kg
110/88053 6 30 17 M24x3 260 220 black 3000 1.221 kg
110/88050 7 22 12 M16x2 200 159 blanc 3000 0.774 kg
110/88051 8 22 12 M16x2 260 220 blanc 3000 0.999 kg
110/85967 9 25 13 M20x2,5 200 159 blanc 3000 0.86 kg
110/85968 10 25 13 M20x2,5 260 220 blanc 3000 1.11 kg
110/88054 11 30 17 M24x3 200 159 blanc 3000 0.946 kg
110/88055 12 30 17 M24x3 260 220 blanc 3000 1.221 kg
110/88279 13 22 12 M16x2 200 159 bleu 3000 0.774 kg
110/88280 14 22 12 M16x2 260 220 bleu 3000 0.999 kg
110/88281 15 25 13 M20x2,5 200 159 bleu 3000 0.86 kg
110/88282 16 25 13 M20x2,5 260 220 bleu 3000 1.11 kg
110/88283 17 30 17 M24x3 200 159 bleu 3000 0.946 kg
110/88284 18 30 17 M24x3 260 220 bleu 3000 1.221 kg
