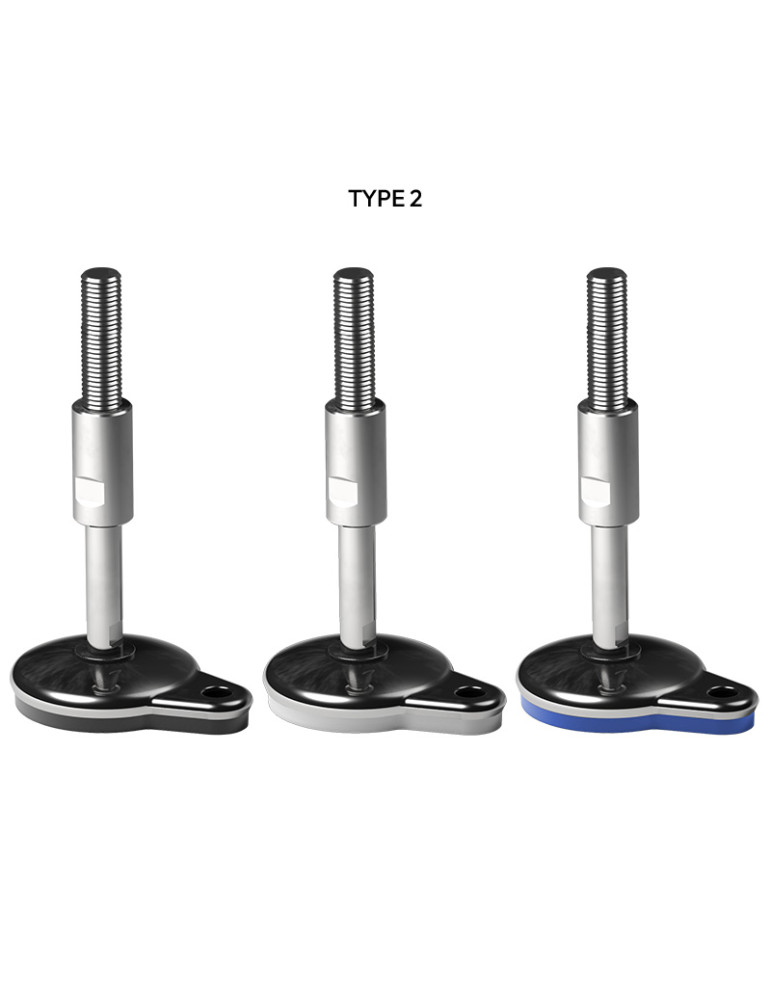

Stainless steel foot 95x130 angle +/- 2.5°
Stainless steel foot 95x130 angle +/- 2.5°

Stainless steel foot 95x130 angle +/- 2.5°

Description

Adjustable footing feet for use in agri-food, medical, pharmaceutical industries ...

With lateral fixation

AISI 304 stainless steel stalk

Dimensions: 95x130 mm

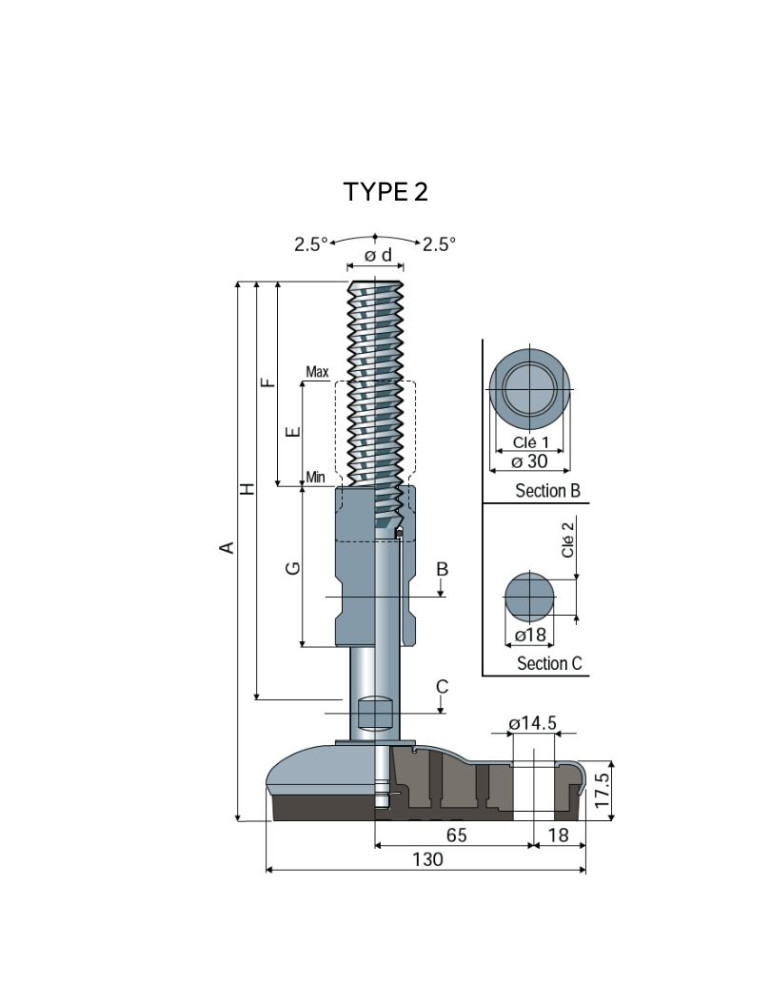

Type 2 = +/- 2.5 ° angle

Feet for the support of conveyors and machines

Basic material: Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti slippery PVC 68 shore black, white or blue color 5005.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection.

The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers

Feet of machines and components made in Italy.

Product Details
112/88040

Specific References

  • PIED-112T2
Attachments

PIEDS 112

Download (660.48KB)
24 people are viewing this right now
DOM
112/88040
€99.91
Tax excluded
order: 1
ød: M16x2
A (mm): 200
H (mm): 159
Static load max/unit (kg): 2700
Colors: black
SOUT-F: 73
SOUT-E: 39
SOUT-G: 60
SOUT-Clé 1: 22
SOUT-Clé 2: 12
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order SOUT-Clé 1 SOUT-Clé 2 ød A (mm) H (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
112/88040 1 22 12 M16x2 200 159 black 2700 0.722 kg
112/88041 2 22 12 M16x2 260 220 black 2700 0.949 kg
112/84135 3 25 13 M20x2,5 200 159 black 2700 0.802 kg
112/84193 4 25 13 M20x2,5 260 220 black 2700 1.055 kg
112/88044 5 30 17 M24x3 200 159 black 2700 0.882 kg
112/88045 6 30 17 M24x3 260 220 black 2700 1.16 kg
112/88042 7 22 12 M16x2 200 159 blanc 2700 0.722 kg
112/88043 8 22 12 M16x2 260 220 blanc 2700 0.949 kg
112/85944 9 25 13 M20x2,5 200 159 blanc 2700 0.802 kg
112/85945 10 25 13 M20x2,5 260 220 blanc 2700 1.055 kg
112/88046 11 30 17 M24x3 200 159 blanc 2700 0.882 kg
112/88047 12 30 17 M24x3 260 220 blanc 2700 1.16 kg
112/88254 13 22 12 M16x2 200 159 bleu 2700 0.722 kg
112/88255 14 22 12 M16x2 260 220 bleu 2700 0.949 kg
112/88256 15 25 13 M20x2,5 200 159 bleu 2700 0.802 kg
112/88257 16 25 13 M20x2,5 260 220 bleu 2700 1.055 kg
112/88258 17 30 17 M24x3 200 159 bleu 2700 0.882 kg
112/88259 18 30 17 M24x3 260 220 bleu 2700 1.16 kg
