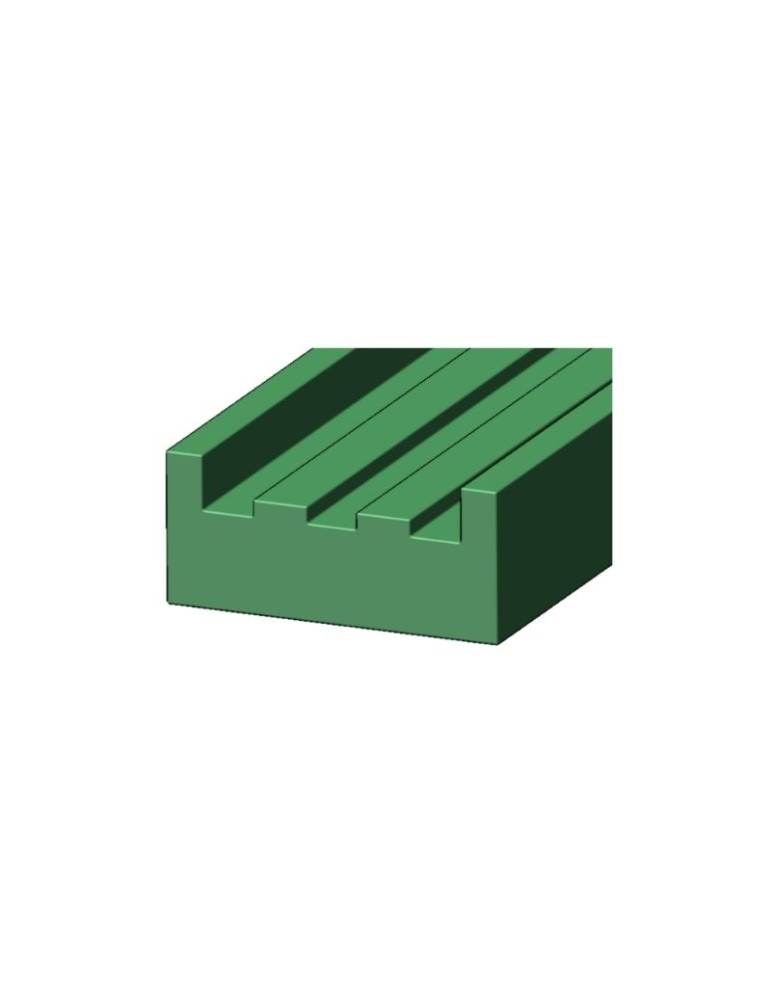

E1 and E2 Chain Guide

Description

Polyetyhlene chain guide

Standard length: 2 meters
Colour: green
Material: PE-UHMW High molecular density polyethylene (HD1000).
Dynamic friction coefficient: 0.2 (P = 0.05 N / mm2 - V = 0.6 m / s - T = 40 ° C)
Operating temperature: -70° C ÷ 65°C.
Linear thermal dilation: 2 mm every 10 °C from room temperature of 20 ° C

Sold in 2-meter lengths (for example: for 10 meters, enter a quantity of “5”)

Manufacture on plan possible via our study office and workshop, send your plans on the page ON MEASUREMENT.

Attention, extra delivery on this product range due to off-standard dimensions.

Reference E1-05

In stock 1 Items

Specific References

Attachments

19 people are viewing this right now

€33.21

Tax excluded

order: 27

A (mm): 7.4

B (mm): 20

C (mm): 30

E (mm): 2.2

H (mm): 15

Not (inches): 1/2’’ x 5/16’’

Not (ISO): 08B-1

h (mm): 7.2

Bar: 2 M

Quantity

Last items in stock

Hurry up! Only 1 item(s) left in Stock!

Categories: GUIDES FOR CHAIN, Standard chain guides

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Bar	H (mm)	Not (inches)	Not (ISO)	A (mm)	B (mm)	C (mm)	E (mm)	F (mm)	h (mm)	Unit price	Weight	Buy
E1-01	26	2 M	10	3/8 ‘’ x 7/32’’	06B-1	5.4	15	25	1.5	—	4.4	€22.56	0.322 kg	Sum.: Sum.:
E1-05	27	2 M	15	1/2’’ x 5/16’’	08B-1	7.4	20	30	2.2	—	7.2	€33.21	0.52 kg	Sum.: Sum.:
E1-06	28	2 M	20	5/8’’ x 3/8’’	10B-1	9.2	23	33	2.6	—	9.5	€38.68	0.775 kg	Sum.: Sum.:
E1-07	29	2 M	20	3/4‘’ x 7/16‘’	12B-1	11.3	28	38	2.4	—	11.1	€43.68	0.8 kg	Sum.: Sum.:
E1-10	30	2 M	25	1 ‘’ x 17 mm	16B-1	16.5	41	51	3.5	—	16.5	€69.30	0.972 kg	Sum.: Sum.:
E2-01	36	2 M	15	3/8 ‘’ x 7/32’’	06B-2	5.4	26	36	1.5	15.8	4.4	€49.45	0.77 kg	Sum.: Sum.:
E2-05	37	m	20	1/2’’ x 5/16’’	08B-2	7.4	35	45	2.2	21.4	7.2	€49.78	1.131 kg	Sum.: Sum.:
E2-06	38	2 M	25	5/8’’ x 3/8’’	10B-2	9.2	40	50	2.6	25.8	9.5	€67.28	1.569 kg	Sum.: Sum.:
E2-07	39	2 M	25	3/4‘’ x 7/16‘’	12B-2	11.3	46	56	2.4	30.8	11.1	€74.55	1.598 kg	Sum.: Sum.:
E2-10	40	2 M	30	1 ‘’ x 17 mm	16B-2	16.5	75	85	3.5	48.8	16.5	€130.41	2.243 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
