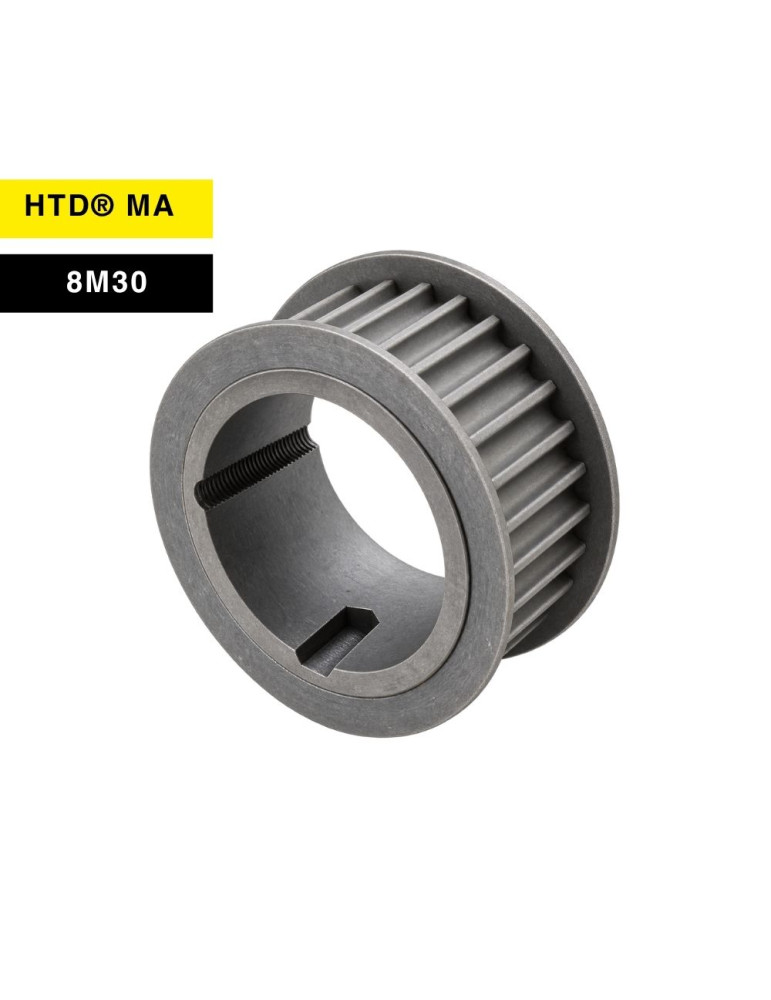

HTD® 8M30 pilote-bore pulley
  • New
HTD® 8M30 pilote-bore pulley

HTD® 8M30 pilote-bore pulley

Description

The HTD® 8M30 timing pulley matches a 8M-profile synchronous belt with a nominal width of 30 mm and a 8 mm pitch.

Comes in 22 to 192 tooth versions.

Check tooth count, matching bush reference and bush bore before specifying the shaft mounting.

Product Details
22-8M30MA
5 Items

Specific References

  • 8054652087812
  • DOM-pouliehtdMA-8m30
23 people are viewing this right now
DOM
22-8M30MA
5 Items
€6.09
Tax excluded
order: 926
Material: Acier
CHI-Pièce: Poulie
CHI-Version poulie: 8M-30
CHI-type3: 22-8M30
Teeth: 22

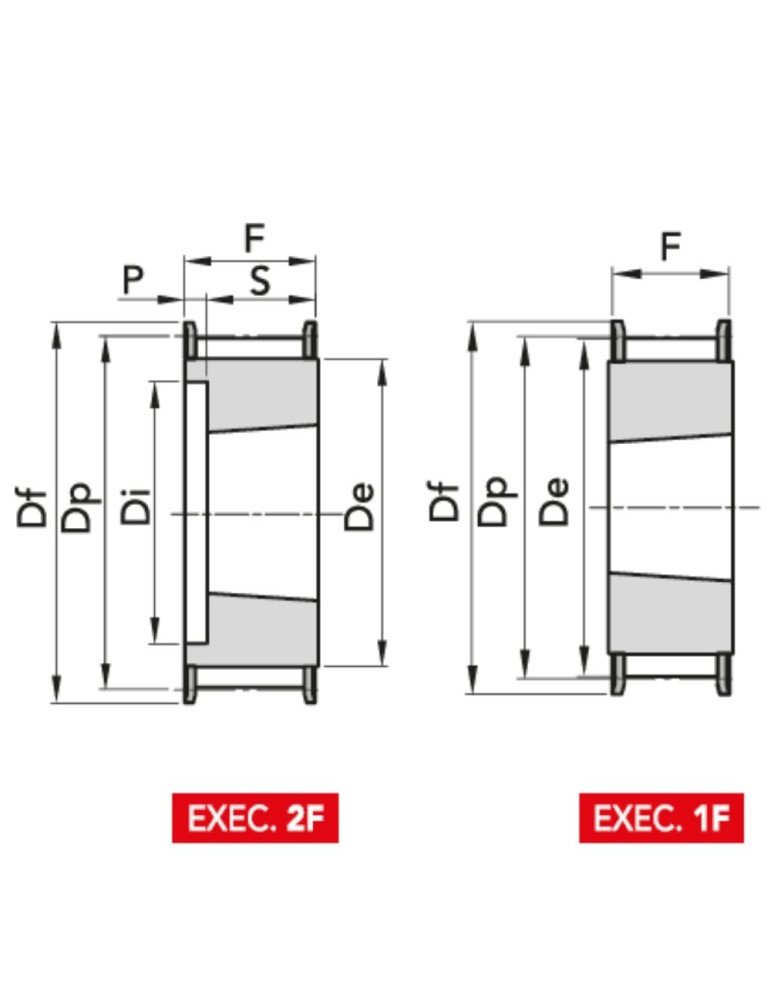

Execution: 2F
Dp: 56,02
De: 54,65
Df flange: 60
Dm: -
CHI-Di: 37
CHI-F: 38
N° flange: 53
CHI-Flasque: oui
CHI-M: 5
CHI-Moyeu amovible: MA
CHI-S: 22
CHI-FORO MAX: 25
CHI-BUSS.: 1008
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 5 item(s) left in Stock!
PULLEYS,  HTD® Pulleys with Removable Hub,  HTD® 8M Timing Pulleys with pilot-bore

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Execution Dp De Df flange Dm Material N° flange Unit price Weight Avail. Buy
22-8M30MA 926 22 2F 56,02 54,65 60 - Acier 53
€6.09
0.287 kg
24-8M30MA 927 24 2F 61,12 59,75 66 - Acier 69
€8.47
0.384 kg
26-8M30MA 928 26 2F 66,21 64,85 70 - Acier 61
€3.77
0.481 kg
28-8M30MA 929 28 2F 71,3 70,08 75 - Acier 79
€0.00
0.481 kg
30-8M30MA 930 30 1F 76,39 75,13 82,5 - Acier 73
€10.78
0.479 kg
32-8M30MA 931 32 1F 81,49 80,16 87 - Acier 76
€6.75
0.65 kg
34-8M30MA 932 34 1F 86,58 85,22 91 - Acier 66
€11.36
0.827 kg
36-8M30MA 933 36 1F 91,57 90,3 97 - Acier 68
€6.75
1.028 kg
38-8M30MA 934 38 1F 96,77 95,39 102 - Acier 70
€0.00
1.236 kg
40-8M30MA 935 40 1F 101,86 100,49 106 - Acier 77
€17.10
1.468 kg
44-8M30MA 936 44 2F 112,05 110,67 120 - Acier 75
€22.89
1.49 kg
48-8M30MA 937 48 2F 122,23 120,86 128 - Acier 78
€24.21
1.975 kg
56-8M30MA 938 56 2F 142,6 141,23 150 - Acier 85
€33.25
3.057 kg

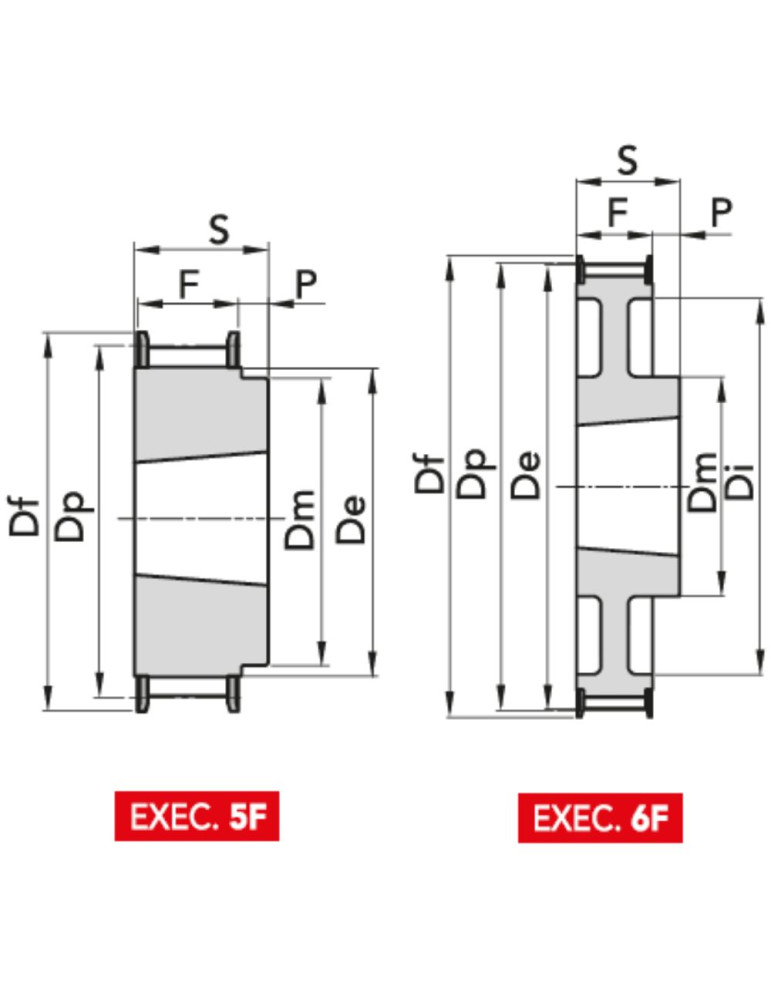

64-8M30MA 939 64 5F 162,97 161,6 168 125 Acier 90
€22.89
4.537 kg
72-8M30MA 940 72 6F 183,35 181,97 192 125 Acier 97
€42.90
4.718 kg
80-8M30MA 941 80 7 203,72 202,35 - 125 fonte -
€58.79
4.868 kg
90-8M30MA 942 90 7 229,18 227,81 - 125 fonte -
€106.59
5.263 kg
112-8M30MA 943 112 7 285,21 283,83 - 125 fonte -
€90.68
8.54 kg
144-8M30MA 944 144 8 366,69 365,32 - 125 fonte -
€131.51
9.978 kg
168-8M30MA 945 168 8 427,81 426,44 - 125 fonte -
€0.00
12 kg
192-8M30MA 946 192 13 488,92 487,55 - 198 fonte -
€0.00
14.8 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
