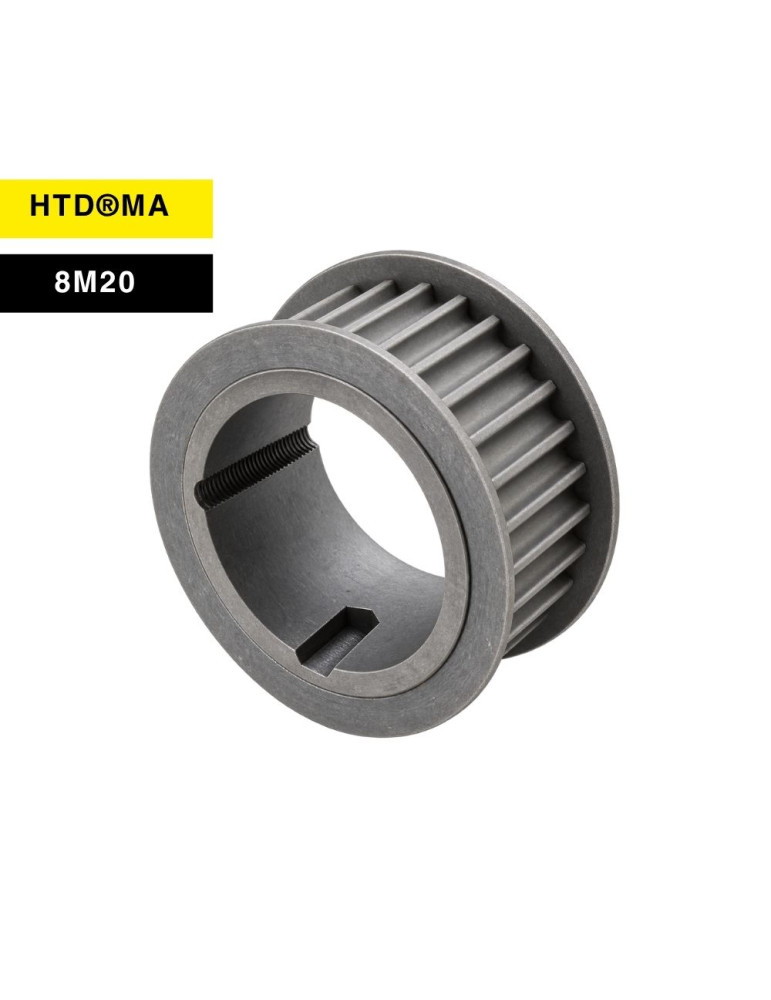

HTD® 8M20 pilot-bore pulley
  • New
HTD® 8M20 pilot-bore pulley

HTD® 8M20 pilot-bore pulley

Description

The HTD® 8M20 timing pulley matches a 8M-profile synchronous belt with a nominal width of 20 mm and a 8 mm pitch.

Comes in 22 to 144 tooth versions.

Final selection depends on tooth count, matching bush and the available drive envelope.

Product Details
26-8M20MA
3 Items

Specific References

  • 8054652087645
  • DOM-poulie-HTD-ma-8m20
15 people are viewing this right now
DOM
26-8M20MA
3 Items
€3.77
Tax excluded
order: 909
Material: Acier
CHI-Pièce: Poulie
CHI-Version poulie: 8M-20
CHI-type3: 26-8M20
Teeth: 26

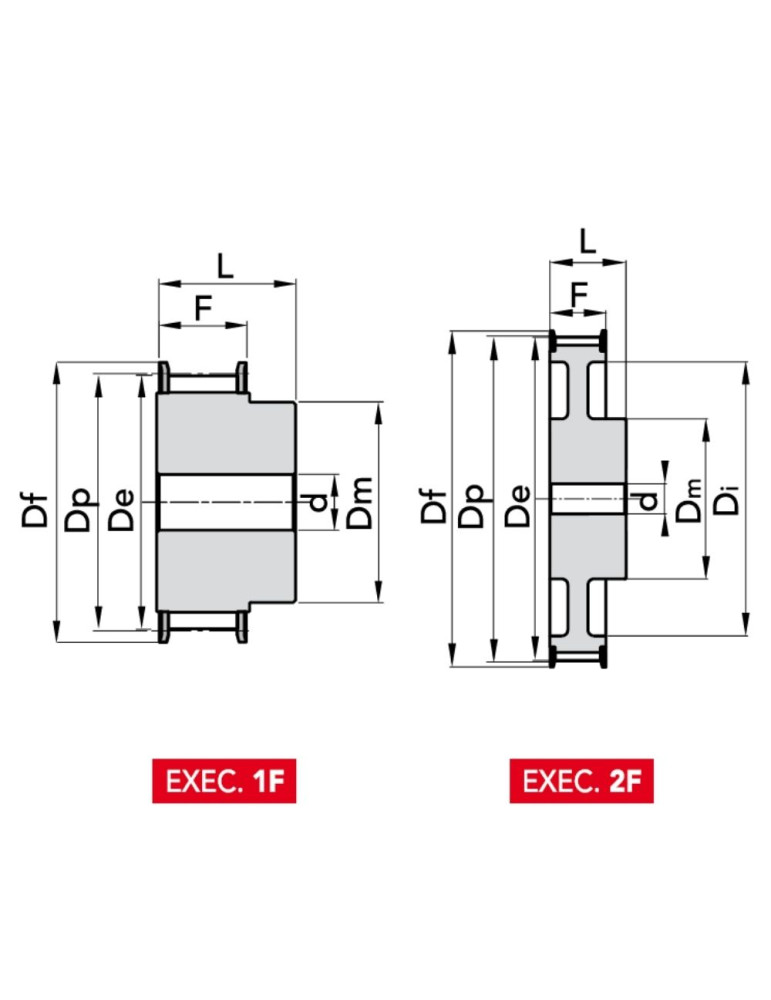

Execution: 2F
Dp: 66,21
De: 64,85
Df flange: 70
Dm: -
CHI-Di: 45
CHI-F: 28
N° flange: 61
CHI-Flasque: oui
CHI-M: 5
CHI-Moyeu amovible: MA
CHI-S: 22
CHI-FORO MAX: 28
CHI-BUSS.: 1108
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 3 item(s) left in Stock!
PULLEYS,  HTD® Pulleys with Removable Hub,  HTD® 8M Timing Pulleys with pilot-bore

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

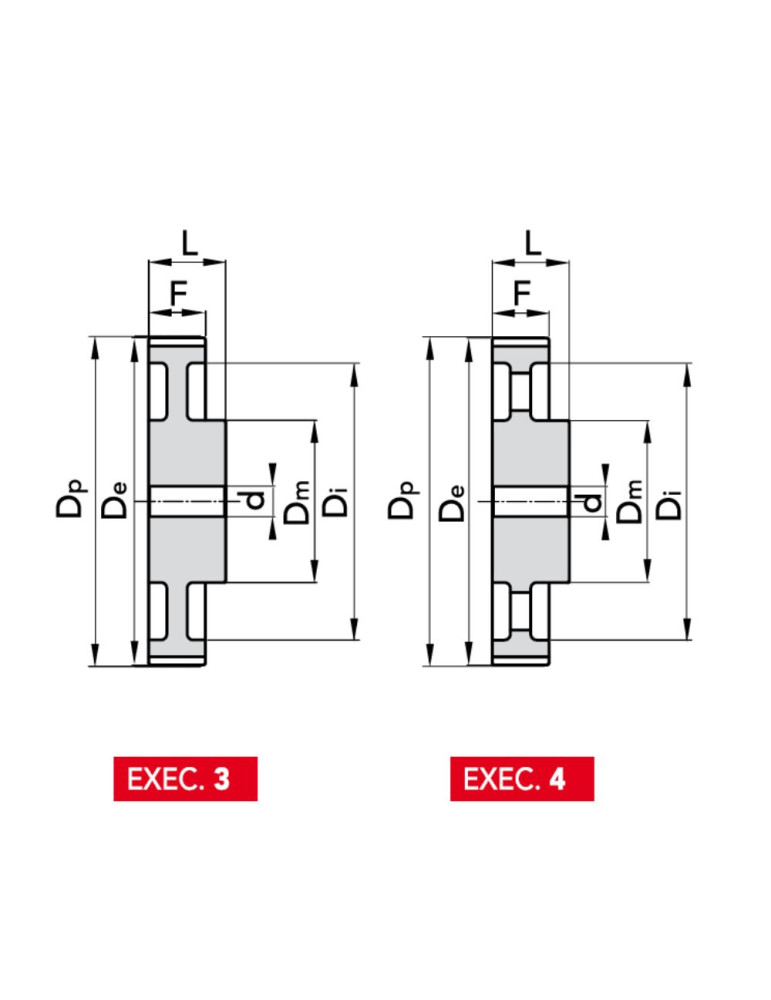

Ref. order Teeth Execution Dp De Df flange Dm Material N° flange Unit price Weight Avail. Buy
22-8M20MA 907 22 2F 56,02 54,65 60 - Acier 53
€6.09
0.233 kg
24-8M20MA 908 24 2F 61,12 59,75 66 - Acier 69
€3.10
0.29 kg
26-8M20MA 909 26 2F 66,21 64,85 70 - Acier 61
€3.77
0.38 kg
28-8M20MA 910 28 2F 71,3 70,08 75 - Acier 79
€6.09
0.47 kg
30-8M20MA 911 30 2F 76,39 75,13 82,5 - Acier 73
€8.74
0.577 kg
32-8M20MA 912 32 2F 81,49 80,16 87 - Acier 76
€4.45
0.45 kg
34-8M20MA 913 34 2F 86,58 85,22 91 - Acier 66
€11.36
0.582 kg
36-8M20MA 914 36 2F 91,67 90,3 97 - Acier 68
€13.80
0.72 kg
38-8M20MA 915 38 2F 96,77 95,39 102 - Acier 70
€26.04
0.865 kg
40-8M20MA 916 40 2F 101,86 100,49 106 - Acier 77
€13.40
1.025 kg
44-8M20MA 917 44 5F 112,05 110,67 120 92 Acier 75
€22.89
1.265 kg
48-8M20MA 918 48 5F 122,23 120,86 128 96 Acier 78
€0.00
1.666 kg
56-8M20MA 919 56 5F 142,6 141,23 150 110 Acier 85
€28.63
2.636 kg
64-8M20MA 920 64 6F 162,97 161,6 168 110 Acier 90
€42.67
2.928 kg
72-8M20MA 921 72 6F 183,35 181,97 192 110 Acier 97
€0.00
3.498 kg
80-8M20MA 922 80 7 203,72 202,35 - 110 fonte -
€42.67
3.635 kg
90-8M20MA 923 90 7 229,18 227,81 - 110 fonte -
€0.00
4.632 kg
112-8M20MA 924 112 7 285,21 283,83 - 125 fonte -
€0.00
5.743 kg
144-8M20MA 925 144 13 366,69 365,32 - 125 fonte -
€131.51
8.747 kg
