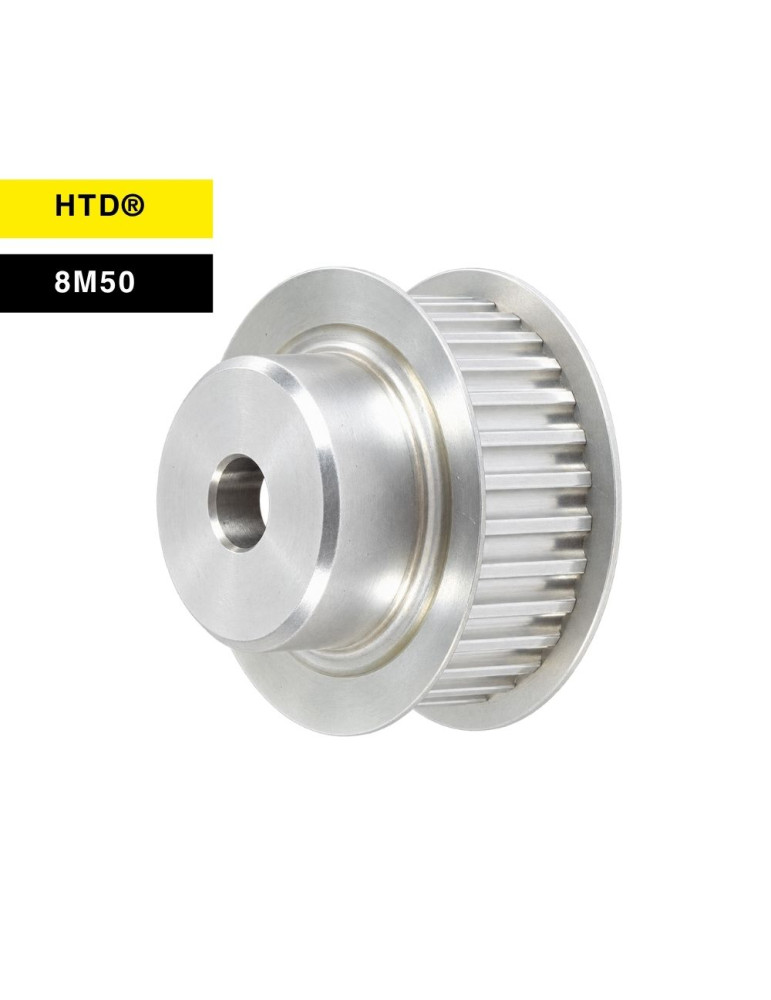

HTD® 8M50 pilot-bore pulley
  • New
HTD® 8M50 pilot-bore pulley

HTD® 8M50 pilot-bore pulley

Description

The HTD® 8M50 timing pulley matches a 8M-profile synchronous belt with a nominal width of 50 mm and a 8 mm pitch.

Comes in 22 to 192 tooth versions.

Match this width to the intended belt, then check tooth count, diameter and final bore.

Product Details
34-8M50F
1 Items

Specific References

  • 8054652086266
  • DOM-poulie-htd-8m50
24 people are viewing this right now
DOM
34-8M50F
1 Items
€26.15
Tax excluded
order: 143
Material: Acier
CHI-Pièce: Poulie
CHI-Version poulie: HTD
CHI-type1: 8M-50F
CHI-type3: 8M
Type: 34-8M50F
Teeth: 34

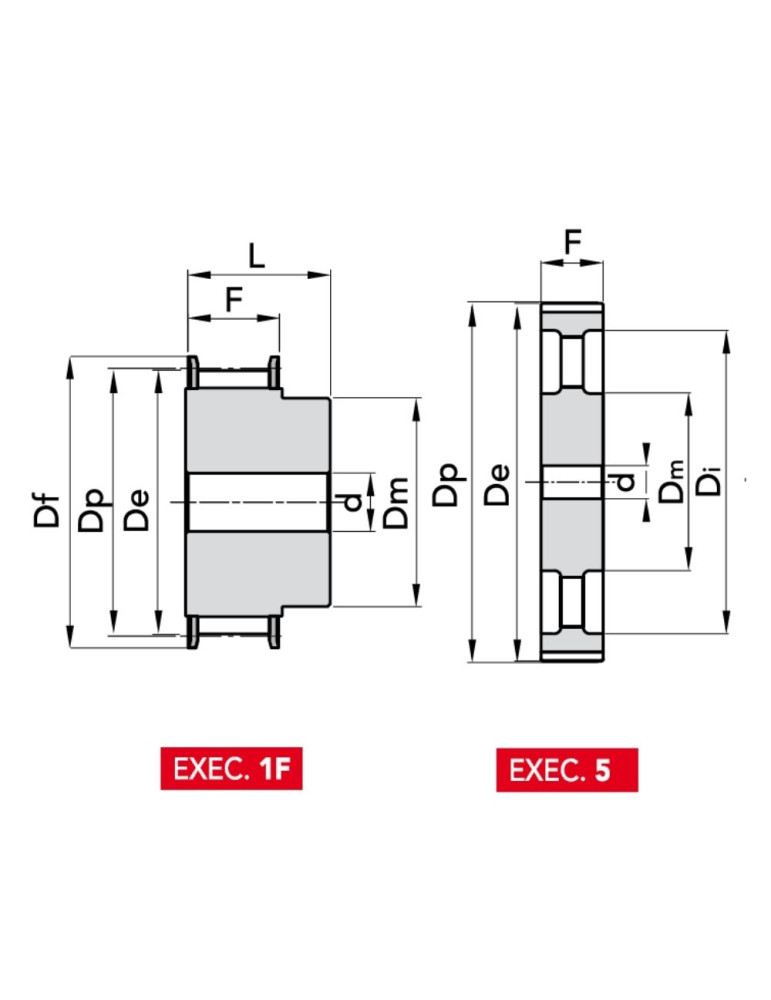

Execution: 1F
Dp: 86,58
De: 85,22
Df flange: 91
Dm: 66
CHI-Di: -
CHI-F: 60
CHI-L: 70
d: -
N° flange: 66
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 1 item(s) left in Stock!
PULLEYS,  HTD® timing pulleys with pilot bore,  HTD® 8M Pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

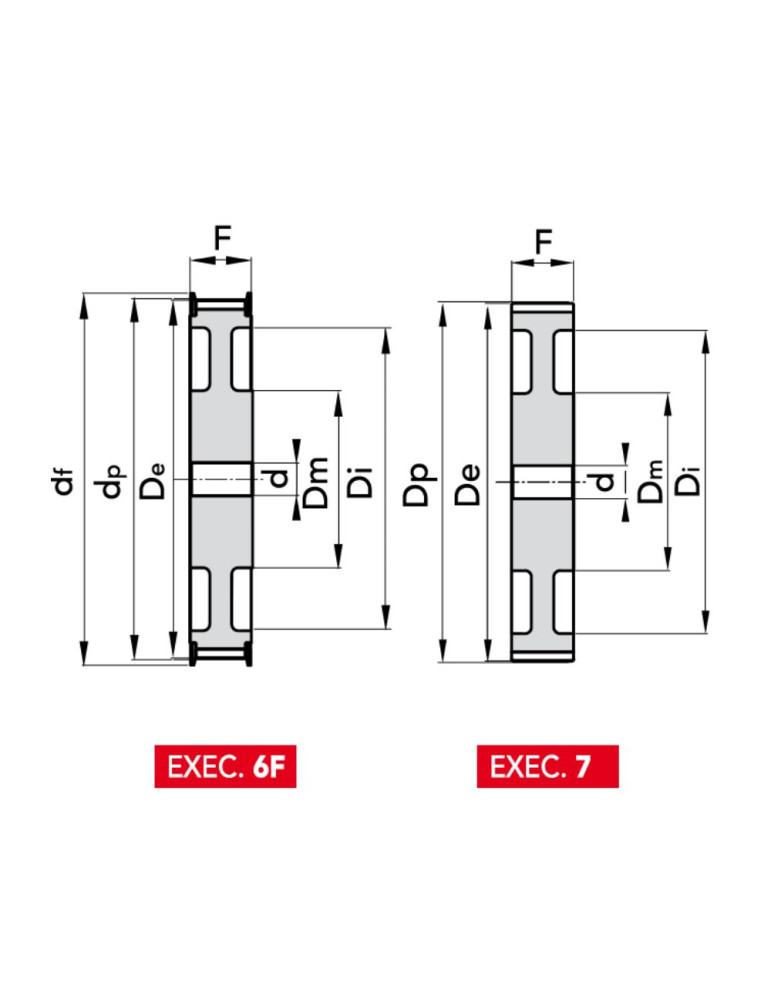

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
22-8M50F 137 22 22-8M50F 1F 56,02 54,65 60 43 - Acier 53
€0.00
1.075 kg
24-8M50F 138 24 24-8M50F 1F 61,12 59,75 66 45 - Acier 69
€0.00
1.283 kg
26-8M50F 139 26 26-8M50F 1F 66,21 64,85 70 48 - Acier 61
€0.00
1.52 kg
28-8M50F 140 28 28-8M50F 1F 71,3 70,08 75 50 - Acier 79
€15.27
1.752 kg
30-8M50F 141 30 30-8M50F 1F 76,39 75,13 82,5 55 - Acier 73
€0.00
2.05 kg
32-8M50F 142 32 32-8M50F 1F 81,49 80,16 87 60 - Acier 76
€525.00
2.355 kg
34-8M50F 143 34 34-8M50F 1F 86,58 85,22 91 66 - Acier 66
€26.15
2.695 kg
36-8M50F 144 36 36-8M50F 1F 91,67 90,3 97 70 - Acier 68
€24.55
3.061 kg
38-8M50F 145 38 38-8M50F 1F 96,77 95,39 102 75 - Acier 70
€28.76
3.434 kg
40-8M50F 146 40 40-8M50F 1F 101,86 100,49 106 75 - Acier 77
€29.17
3.782 kg
44-8M50F 147 44 44-8M50F 1F 112,05 110,67 120 75 - Acier 75
€141.34
4.55 kg
48-8M50F 148 48 48-8M50F 1F 122,23 120,86 128 80 - Acier 78
€39.95
5.428 kg
56-8M50F 149 56 56-8M50F 6F 142,6 141,23 150 90 18 Acier 85
€45.76
5.537 kg
64-8M50F 150 64 64-8M50F 6F 162,97 161,6 168 100 18 Acier 90
€26.15
6.902 kg
72-8M50F 151 72 72-8M50F 6F 183,35 181,97 192 100 18 Acier 97
€45.76
7.959 kg
80-8M50 152 80 80-8M50 7 203,72 202,35 - 110 18 fonte -
€0.00
8.837 kg
90-8M50 153 90 90-8M50 5 229,18 227,81 - 110 18 fonte -
€0.00
10.515 kg
112-8M50 154 112 112-8M50 5 285,21 283,83 - 110 18 fonte -
€162.21
12.408 kg
144-8M50 155 144 144-8M50 5 366.69 365,32 - 110 20 fonte -
€141.34
15.665 kg
168-8M50 156 168 168-8M50 5 427,81 426,44 - 120 20 fonte -
€207.71
17.61 kg
192-8M50 157 192 192-8M50 5 488,92 487,55 - 130 20 fonte -
€0.00
22.179 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
