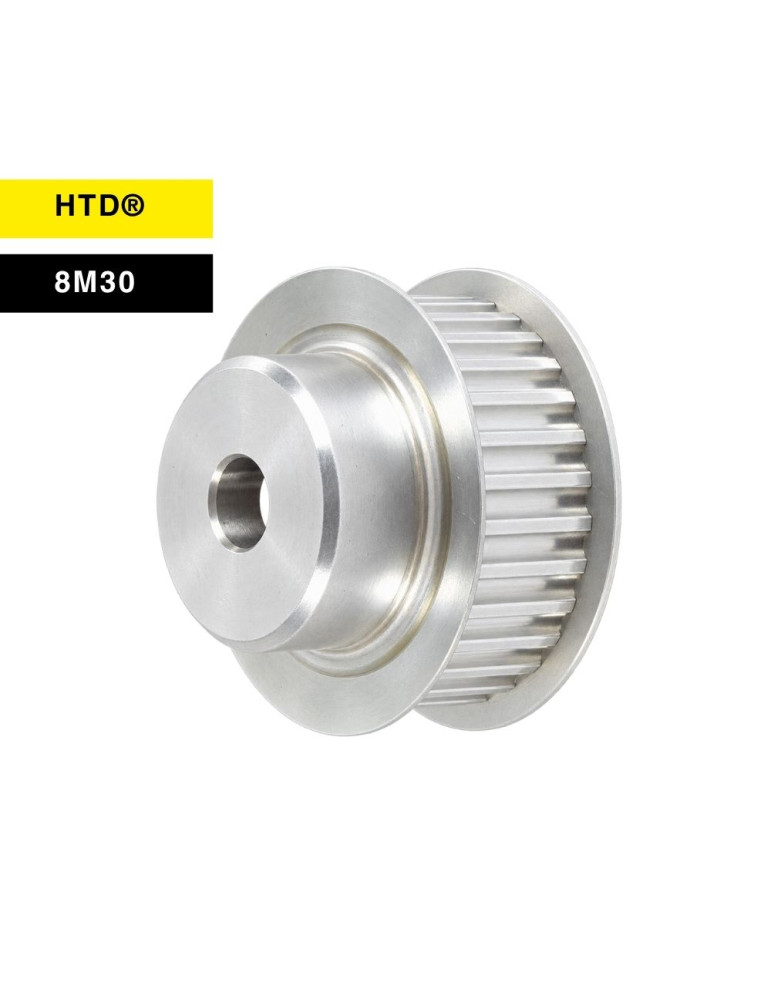

HTD® 8M30 pilot-bore pulley
  • New
HTD® 8M30 pilot-bore pulley

HTD® 8M30 pilot-bore pulley

Description

The HTD® 8M30 timing pulley matches a 8M-profile synchronous belt with a nominal width of 30 mm and a 8 mm pitch.

Comes in 22 to 192 tooth versions.

Confirm tooth count, flanged or unflanged execution and installation dimensions before finishing the bore.

Product Details
22-8M30F
7 Items

Specific References

  • 8054652085993
  • DOM-poulie-htd-8m-30
20 people are viewing this right now
DOM
22-8M30F
7 Items
€7.55
Tax excluded
order: 116
Material: Acier
CHI-Pièce: Poulie
CHI-Version poulie: HTD
CHI-type1: 8M-30F
CHI-type3: 8M
Type: 22-8M30F
Teeth: 22

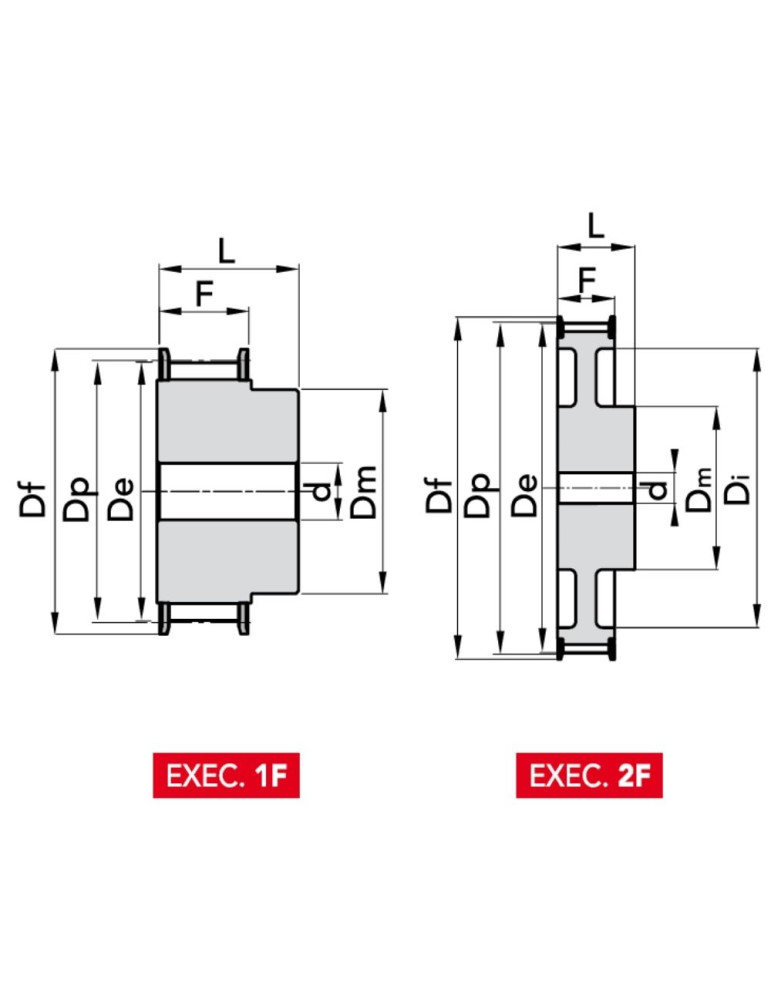

Execution: 1F
Dp: 56,02
De: 54,65
Df flange: 60
Dm: 43
CHI-Di: -
CHI-F: 38
CHI-L: 48
d: 12
N° flange: 53
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 7 item(s) left in Stock!
PULLEYS,  HTD® timing pulleys with pilot bore,  HTD® 8M Pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
22-8M30F 116 22 22-8M30F 1F 56,02 54,65 60 43 12 Acier 53
€7.55
0.685 kg
24-8M30F 117 24 24-8M30F 1F 61,12 59,75 66 45 12 Acier 69
€15.27
0.822 kg
26-8M30F 118 26 26-8M30F 1F 66,21 64,85 70 48 12 Acier 61
€9.72
0.965 kg
28-8M30F 119 28 28-8M30F 1F 71,3 70,08 75 50 15 Acier 79
€15.27
1.105 kg
30-8M30F 120 30 30-8M30F 1F 76,39 75,13 82,5 55 15 Acier 73
€15.03
1.3 kg
32-8M30F 121 32 32-8M30F 1F 81,49 80,16 87 60 15 Acier 76
€16.42
1.52 kg
34-8M30F 122 34 34-8M30F 1F 86,58 85,22 91 66 15 Acier 66
€0.00
1.742 kg
36-8M30F 123 36 36-8M30F 1F 91,67 90,3 97 70 15 Acier 68
€17.34
1.973 kg
38-8M30F 124 38 38-8M30F 1F 96,77 95,39 102 75 15 Acier 70
€17.07
2.235 kg
40-8M30F 125 40 40-8M30F 1F 101,86 100,49 106 75 15 Acier 77
€19.38
2.454 kg
44-8M30F 126 44 44-8M30F 1F 112,05 110,67 120 75 15 Acier 75
€141.34
2.958 kg
48-8M30F 127 48 48-8M30F 1F 122,23 120,86 128 75 15 Acier 78
€0.00
3.47 kg
56-8M30F 128 56 56-8M30F 2F 142,6 141,23 150 90 15 Acier 85
€38.01
4.05 kg
64-8M30F 129 64 64-8M30F 2F 162,97 161,6 168 90 15 Acier 90
€0.00
4.562 kg
72-8M30F 130 72 72-8M30F 2F 183,35 181,97 192 95 15 Acier 97
€0.00
5.37 kg

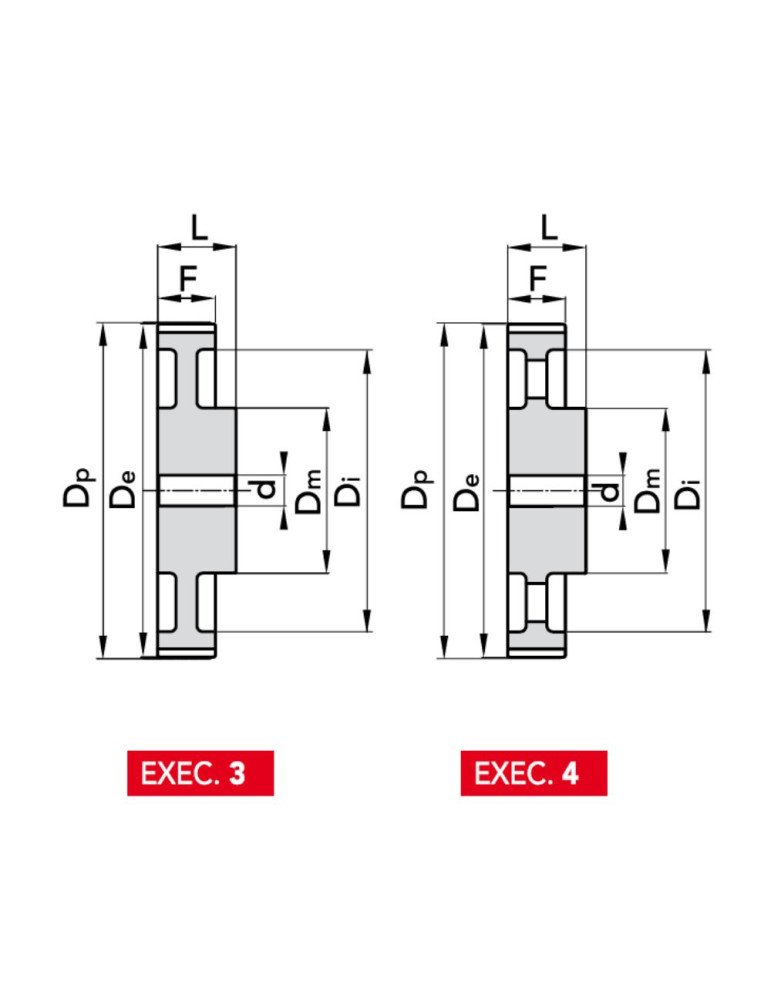

80-8M30 131 80 80-8M30 3 203,72 202,35 - 100 15 fonte -
€0.00
5.724 kg
90-8M30 132 90 90-8M30 3 229,18 227,81 - 100 15 fonte -
€0.00
6.605 kg
112-8M30 133 112 112-8M30 4 285,21 283,83 - 100 18 fonte -
€84.76
8.062 kg
144-8M30 134 144 144-8M30 4 366.69 365,32 - 100 20 fonte -
€0.00
10.19 kg
168-8M30 135 168 168-8M30 4 427,81 426,44 - 100 20 fonte -
€0.00
13.15 kg
192-8M30 136 192 192-8M30 4 488,92 487,55 - 100 20 fonte -
€0.00
19.193 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
