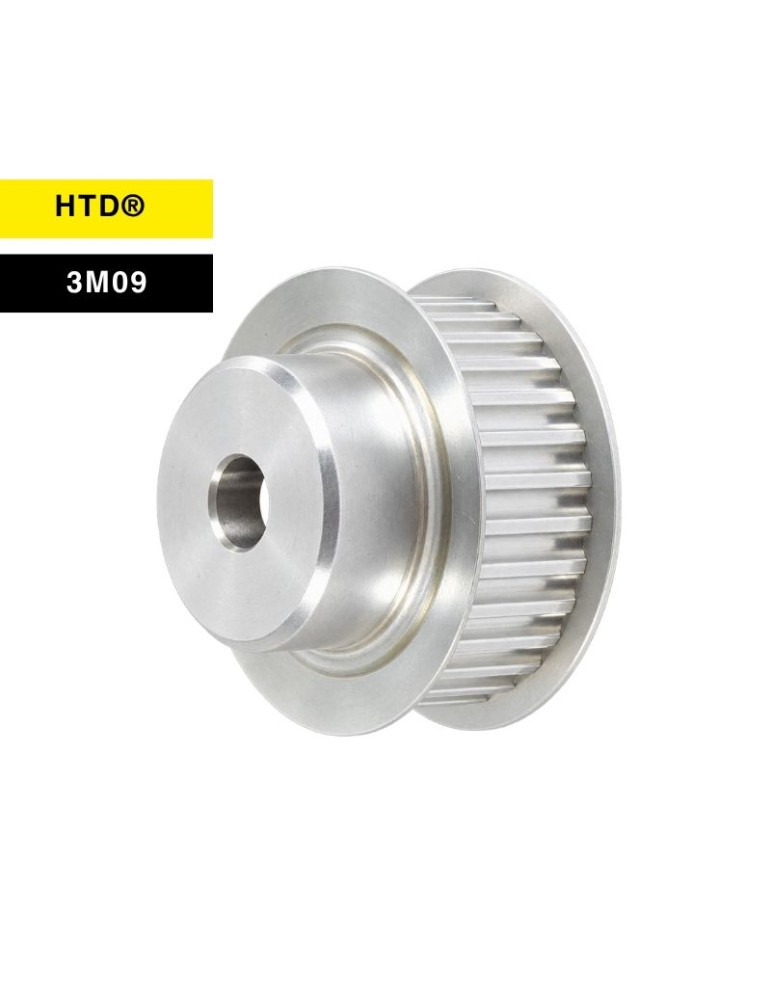

HTD 3M09 pilot-bore pulley
  • New
HTD 3M09 pilot-bore pulley

HTD 3M09 pilot-bore pulley

Description

The HTD® 3M09 timing pulley matches a 3M-profile synchronous belt with a nominal width of 9 mm and a 3 mm pitch.

Comes in 10 to 72 tooth versions.

Choose the tooth count and check the bore to be machined along with your mounting dimensions.

Product Details
10-3M09F

Specific References

  • 8054652084354
  • DOM-PoulieHTD3M09
18 people are viewing this right now
DOM
10-3M09F
€17.34
Tax excluded
order: 1
Material: aluminium
CHI-Pièce: Poulie
CHI-Version poulie: HTD
CHI-type1: 3M-09F
CHI-type3: 3M
Type: 10-3M09F
Teeth: 10

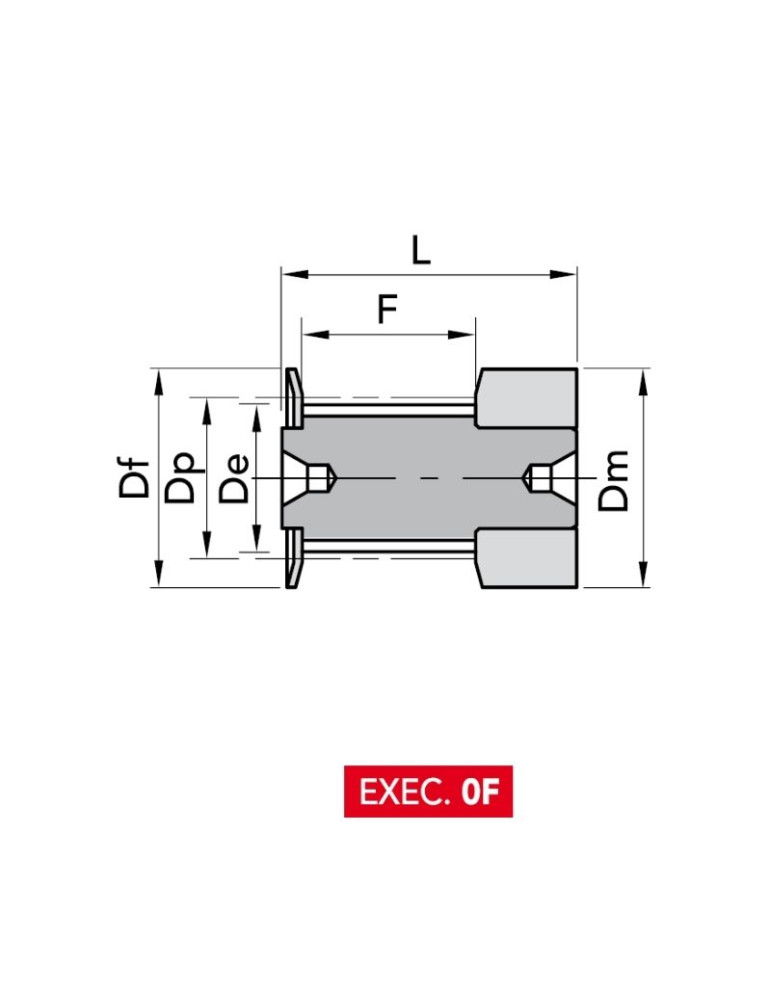

Execution: 0F
Dp: 9,55
De: 8,79
Df flange: 13
Dm: 13
CHI-Di: -
CHI-F: 10,2
CHI-L: 17,5
d: -
N° flange: 501
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
PULLEYS,  HTD® timing pulleys with pilot bore,  HTD® 3M pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
10-3M09F 1 10 10-3M09F 0F 9,55 8,79 13 13 - aluminium 501
€17.34
0.004 kg
12-3M09F 2 12 12-3M09F 0F 11,46 10,7 15 15 - aluminium 502
€17.34
0.005 kg
14-3M09F 3 14 14-3M09F 0F 13,37 12,61 16 16 - aluminium 503
€0.00
0.006 kg
15-3M09F 4 15 15-3M09F 0F 14,32 13,56 17,5 17,5 - aluminium 516
€0.00
0.008 kg

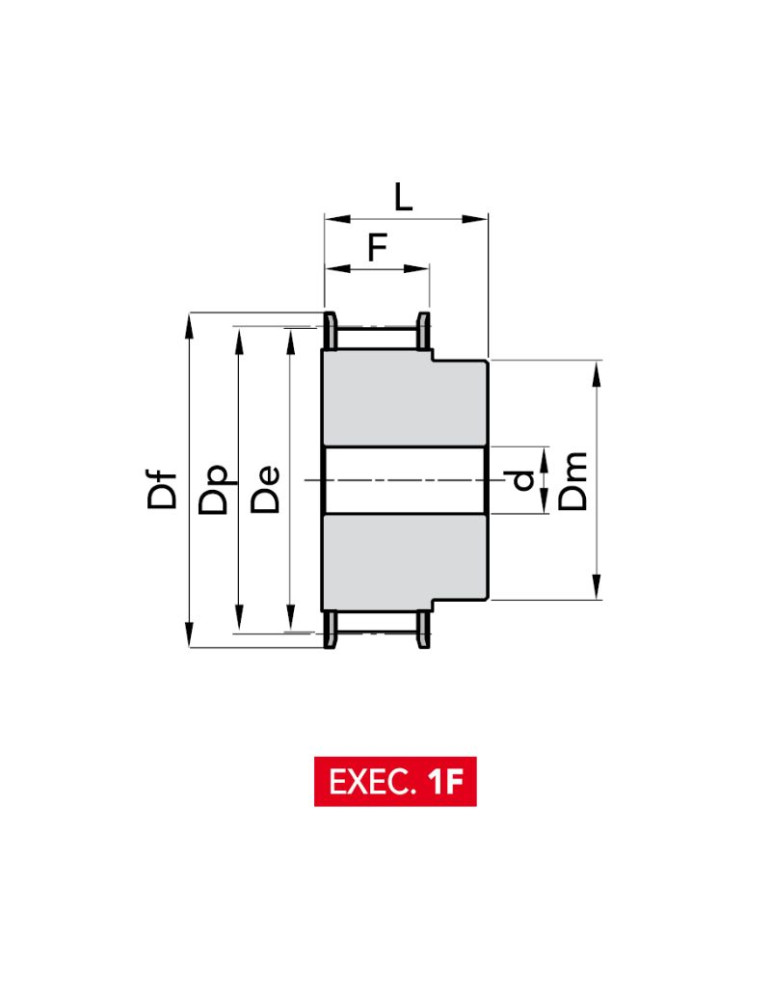

16-3M09F 5 16 16-3M09F 1F 15,28 14,52 17,5 10 4 aluminium 504
€17.34
0.007 kg
18-3M09F 6 18 18-3M09F 1F 17,19 16,43 20 11 6 aluminium 505
€0.00
0.009 kg
20-3M09F 7 20 20-3M09F 1F 19,1 18,34 23 12 6 aluminium 517
€17.34
0.011 kg
21-3M09F 8 21 21-3M09F 1F 20,05 19,29 25 13 6 aluminium 518
€0.00
0.013 kg
22-3M09F 9 22 22-3M09F 1F 21,01 20,25 25 13 6 aluminium 518
€0.00
0.013 kg
24-3M09F 10 24 24-3M09F 1F 22,92 22,16 25 13 6 aluminium 518
€0.00
0.016 kg
26-3M09F 11 26 26-3M09F 1F 24,83 24,07 28 16 6 aluminium 508
€17.34
0.018 kg
28-3M09F 12 28 28-3M09F 1F 26,74 25,98 32 18 6 aluminium 509
€0.00
0.024 kg
30-3M09F 13 30 30-3M09F 1F 28,65 27,89 32 20 6 aluminium 509
€17.34
0.027 kg
32-3M09F 14 32 32-3M09F 1F 30,56 29,8 36 22 6 aluminium 510
€0.00
0.032 kg
36-3M09F 15 36 36-3M09F 1F 34,38 33,62 39 26 6 aluminium 519
€0.00
0.045 kg
40-3M09F 16 40 40-3M09F 1F 38,2 37,44 42 28 6 aluminium 513
€0.00
0.054 kg
44-3M09F 17 44 44-3M09F 1F 42,02 41,26 48 33 6 aluminium 520
€17.34
0.069 kg

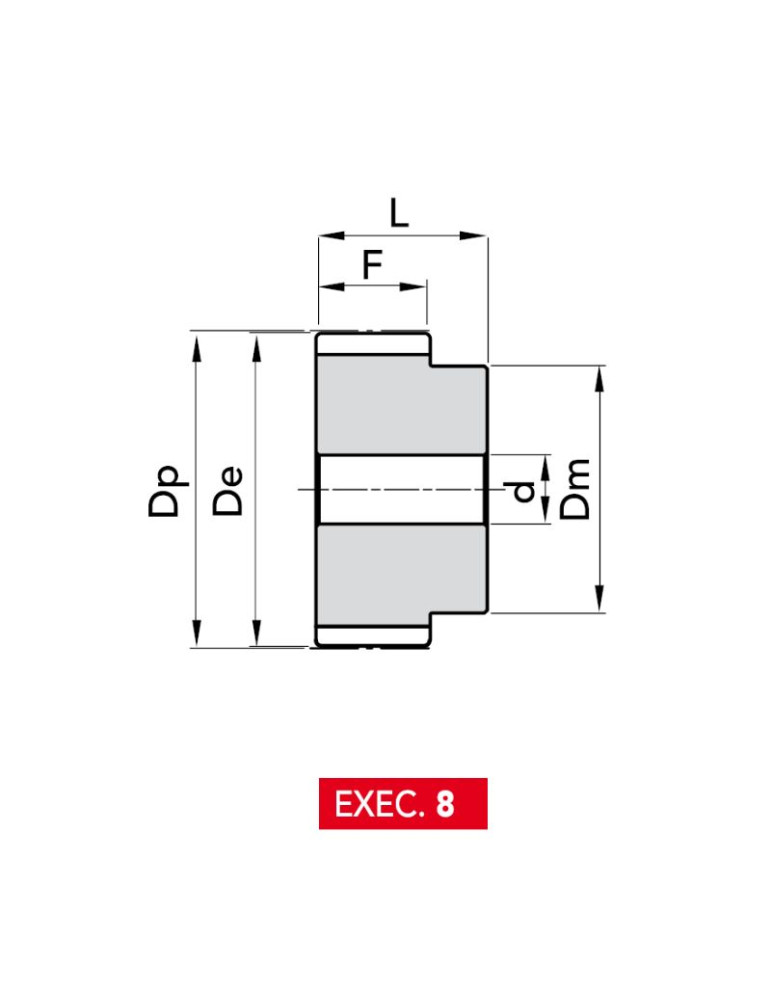

48-3M09 18 48 48-3M09 8 45,84 45,08 - 33 8 aluminium -
€17.34
0.071 kg
60-3M09 19 60 60-3M09 8 57,3 56,54 - 33 8 aluminium -
€5.92
0.103 kg
72-3M09 20 72 72-3M09 8 68,75 67,99 - 33 8 aluminium -
€0.00
0.143 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
