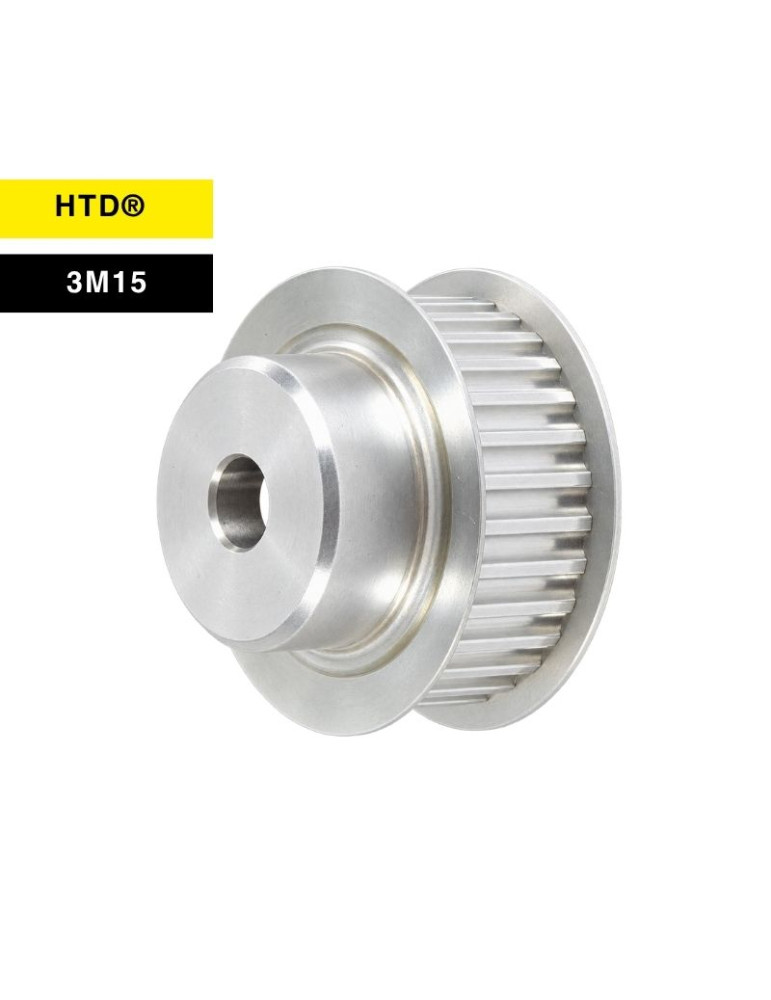

HTD 3M15 pilot-bore pulley
  • New
HTD 3M15 pilot-bore pulley

HTD 3M15 pilot-bore pulley

Description

The HTD® 3M15 timing pulley matches a 3M-profile synchronous belt with a nominal width of 15 mm and a 3 mm pitch.

Comes in 10 to 72 tooth versions.

Match this width to the intended belt, then check tooth count, diameter and final bore.

Product Details
10-3M15F

Specific References

  • 8054652084552
  • DOM-poulie3m-15
19 people are viewing this right now
DOM
10-3M15F
€0.00
Tax excluded
order: 21
Material: aluminium
CHI-Pièce: Poulie
CHI-Version poulie: HTD
CHI-type1: 3M-15F
CHI-type3: 3M
Type: 10-3M15F
Teeth: 10

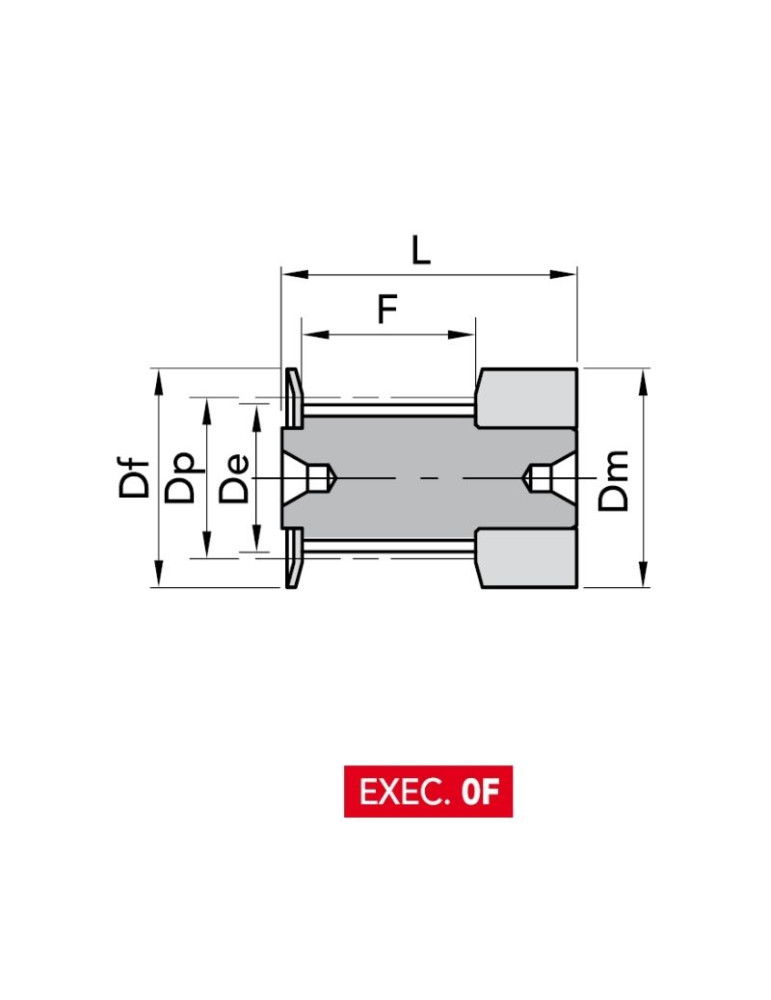

Execution: 0F
Dp: 9,55
De: 8,79
Df flange: 13
Dm: 13
CHI-Di: -
CHI-F: 17
CHI-L: 26
d: -
N° flange: 501
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
PULLEYS,  HTD® timing pulleys with pilot bore,  HTD® 3M pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

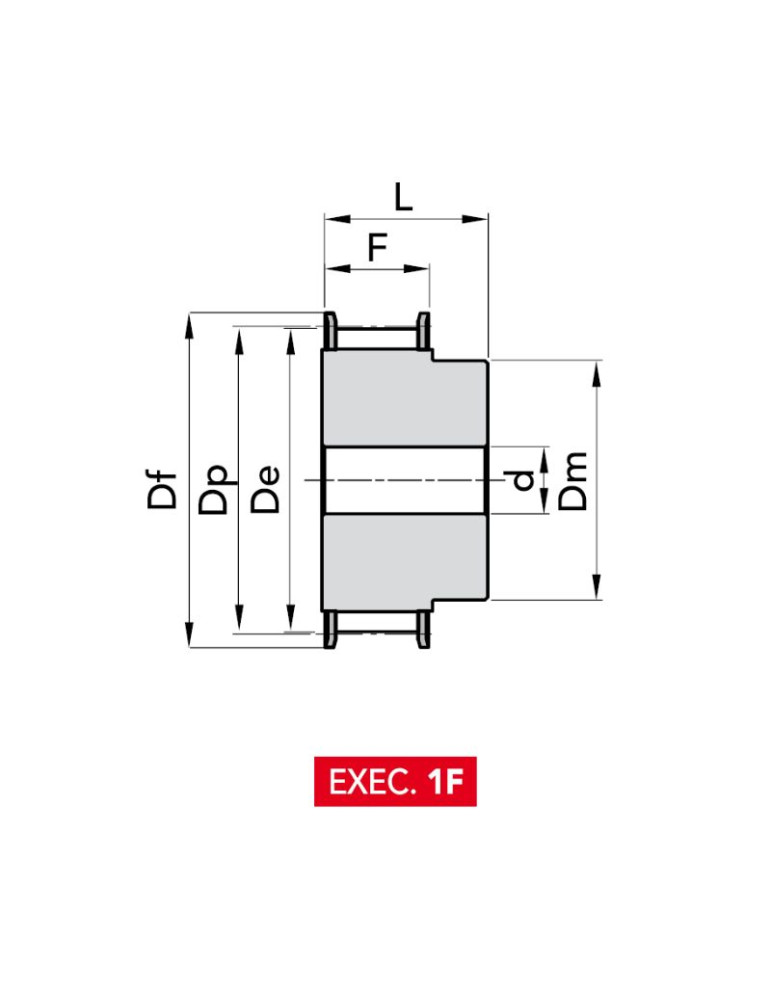

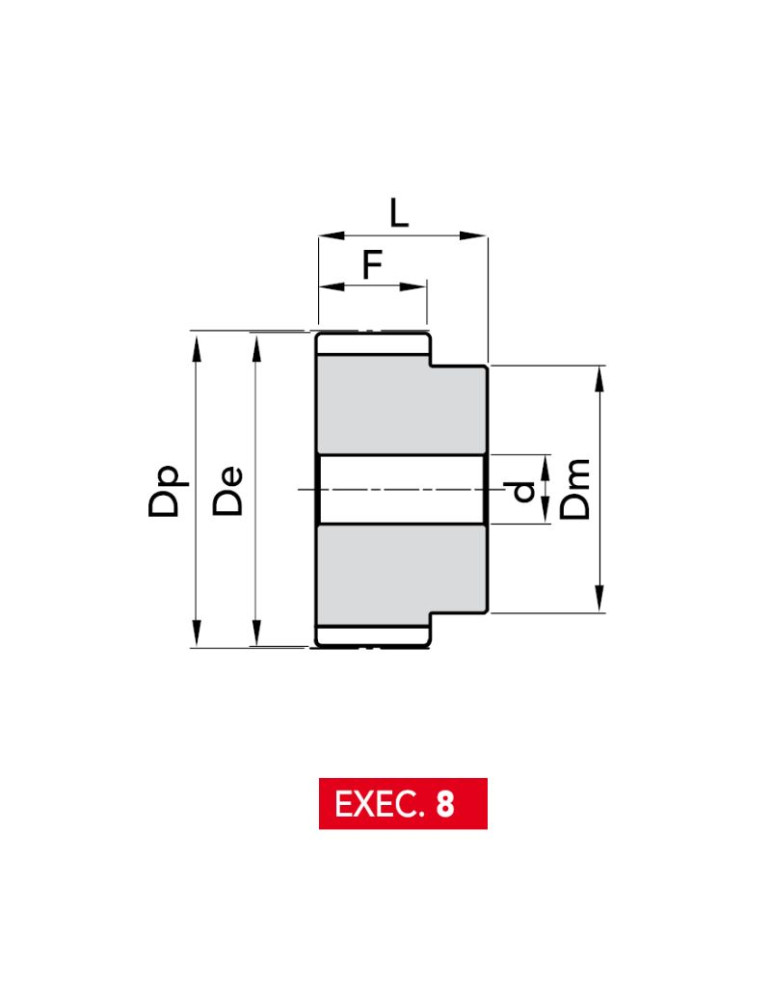

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
10-3M15F 21 10 10-3M15F 0F 9,55 8,79 13 13 - aluminium 501
€0.00
0.005 kg
12-3M15F 22 12 12-3M15F 0F 11,46 10,7 15 15 - aluminium 502
€0.00
0.007 kg
14-3M15F 23 14 14-3M15F 0F 13,37 12,61 16 16 - aluminium 503
€0.00
0.009 kg
15-3M15F 24 15 15-3M15F 0F 14,32 13,56 17,5 17,5 - aluminium 516
€0.00
0.011 kg
16-3M15F 25 16 16-3M15F 1F 15,28 14,52 17,5 10 4 aluminium 504
€0.00
0.011 kg
18-3M15F 26 18 18-3M15F 1F 17,19 16,43 20 11 6 aluminium 505
€0.00
0.011 kg
20-3M15F 27 20 20-3M15F 1F 19,1 18,34 23 13 6 aluminium 517
€0.00
0.015 kg
21-3M15F 28 21 21-3M15F 1F 20,05 19,29 25 13 6 aluminium 518
€0.00
0.017 kg
22-3M15F 29 22 22-3M15F 1F 21,01 20,25 25 13 6 aluminium 518
€0.00
0.017 kg
24-3M15F 30 24 24-3M15F 1F 22,92 22,16 25 13 6 aluminium 518
€0.00
0.021 kg
26-3M15F 31 26 26-3M15F 1F 24,83 24,07 28 16 6 aluminium 508
€0.00
0.026 kg
28-3M15F 32 28 28-3M15F 1F 26,74 25,98 32 18 6 aluminium 509
€0.00
0.03 kg
30-3M15F 33 30 30-3M15F 1F 28,65 27,89 32 20 6 aluminium 509
€0.00
0.036 kg
32-3M15F 34 32 32-3M15F 1F 30,56 29,8 36 22 6 aluminium 510
€0.00
0.042 kg
36-3M15F 35 36 36-3M15F 1F 34,38 33,62 39 26 6 aluminium 519
€0.00
0.06 kg
40-3M15F 36 40 40-3M15F 1F 38,2 37,44 42 28 6 aluminium 513
€0.00
0.075 kg
44-3M15 37 44 44-3M15 1F 42,02 41,26 48 33 6 Acier 520
€0.00
0.094 kg
48-3M15 38 48 48-3M15 8 45,84 45,08 - 33 8 Acier -
€0.00
0.099 kg
60-3M15 39 60 60-3M15 8 57,3 56,54 - 33 8 Acier -
€0.00
0.148 kg
72-3M15 40 72 72-3M15 8 68,75 67,99 - 33 8 Acier -
€0.00
0.206 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
