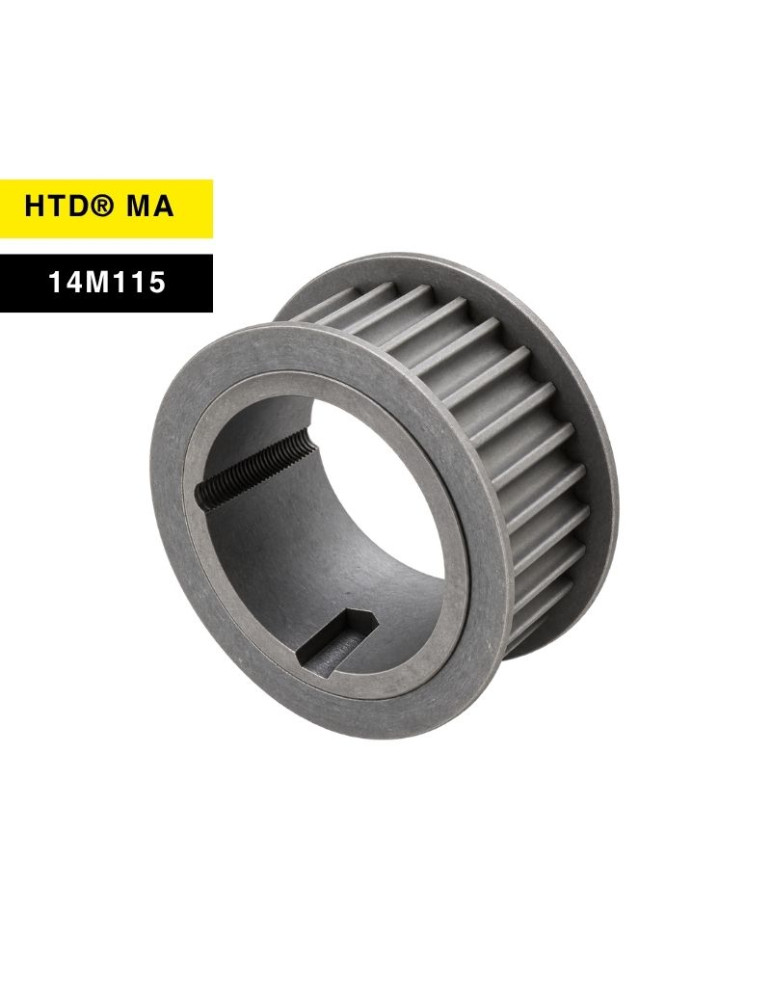

HTD® 14M115 pilot-bore pulley
  • New
HTD® 14M115 pilot-bore pulley

HTD® 14M115 pilot-bore pulley

Description

The HTD® 14M115 timing pulley matches a 14M-profile synchronous belt with a nominal width of 115 mm and a 14 mm pitch.

Comes in 28 to 264 tooth versions, some made to order.

Check tooth count, matching bush reference and bush bore before specifying the shaft mounting.

Product Details
36-14M115MA
2 Items

Specific References

  • 8054652088970
  • DOM-poulie-MA-14m115
21 people are viewing this right now
DOM
36-14M115MA
2 Items
€146.87
Tax excluded
order: 1049
Material: Acier
CHI-Pièce: Poulie
CHI-Version poulie: 14M-115
CHI-type3: 36-14M115
Teeth: 36

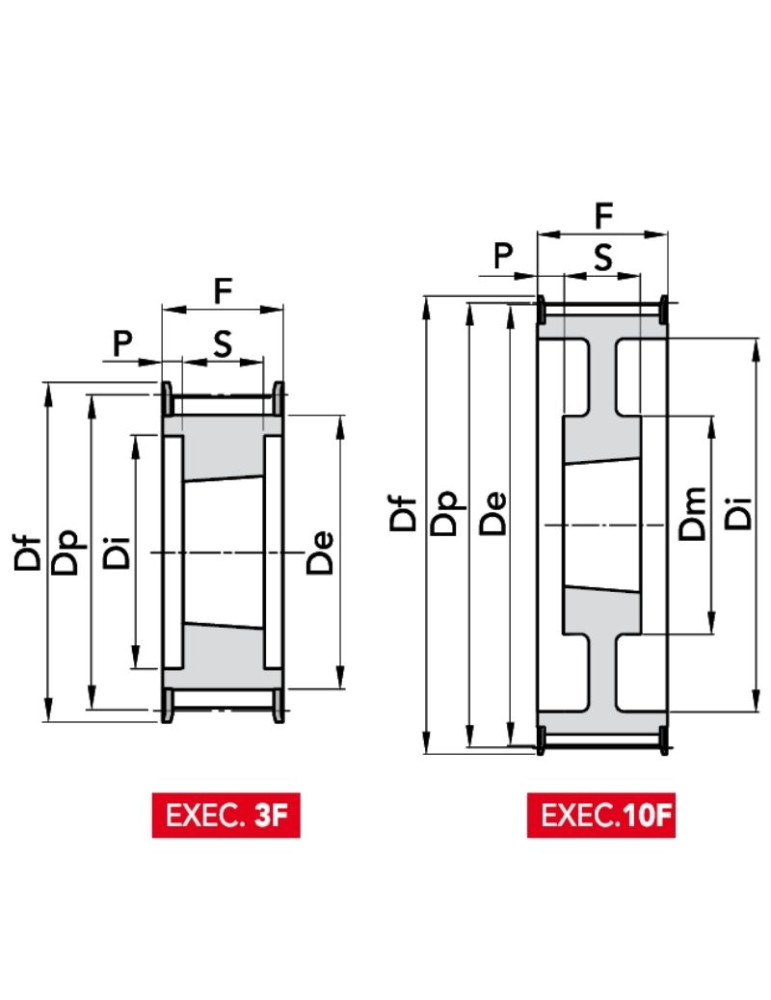

Execution: 3F
Dp: 160,43
De: 157,68
Df flange: 168
Dm: -
CHI-Di: 125
CHI-F: 133
N° flange: 168
CHI-Flasque: oui
CHI-M: 6
CHI-Moyeu amovible: MA
CHI-S: 51
CHI-FORO MAX: 75
CHI-BUSS.: 3020
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 2 item(s) left in Stock!
PULLEYS,  HTD® Pulleys with Removable Hub,  HTD® 14M Timing Pulleys with pilot-bore

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

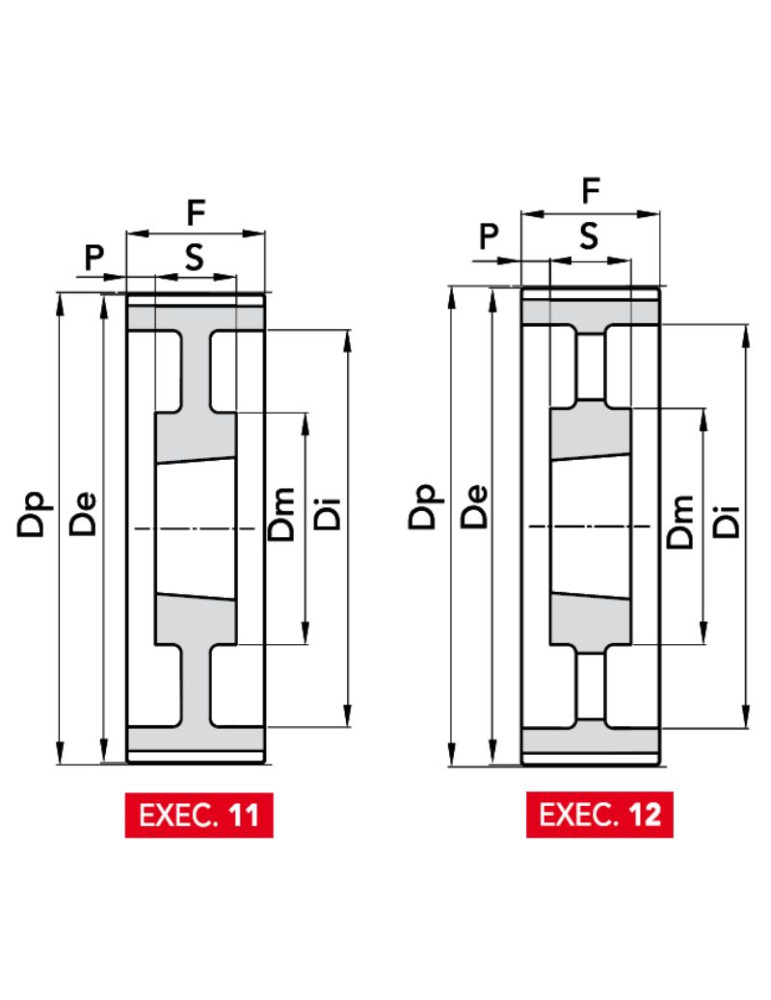

Ref. order Teeth Execution Dp De Df flange Dm Material N° flange Unit price Weight Avail. Buy
28-14M115MA 1044 28 3F 124,78 122,12 128 - Acier 153
€0.00
3.679 kg
30-14M115MA 1046 30 3F 133,69 130,99 138 - Acier 154
€0.00
5.188 kg
32-14M115MA 1047 32 3F 142,6 139,88 154 - Acier 160
€0.00
6.198 kg
34-14M115MA 1048 34 3F 151,52 148,79 160 - Acier 166
€0.00
7.93 kg
36-14M115MA 1049 36 3F 160,43 157,68 168 - Acier 168
€146.87
7.161 kg
38-14M115MA 1050 38 3F 169,34 166,6 183 - Acier 172
€0.00
8.868 kg
40-14M115MA 1051 40 3F 178,25 175,49 188 - Acier 162
€0.00
10.106 kg
44-14M115MA 1052 44 3F 196,08 193,28 211 - Acier 175
€0.00
14.97 kg
48-14M115MA 1053 48 3F 213,9 211,11 226 - Acier 180
€0.00
19.063 kg
56-14M115MA 1054 56 3F 249,55 246,76 256 - Acier 182
€0.00
26.919 kg
64-14M115MA 1055 64 10F 285,21 282,41 296 190 fonte 184
€145.62
32.5 kg
72-14M115MA 1056 72 11 320,86 318,06 - 190 fonte -
€302.33
33 kg
80-14M115MA 1057 80 12 356,51 353,71 - 190 fonte -
€350.64
33.5 kg
90-14M115MA 1058 90 12 401,07 398,28 - 190 fonte -
€0.00
36.5 kg
112-14M115MA 1059 112 12 499,11 496,32 - 190 fonte -
€417.76
47.5 kg
144-14M115MA 1060 144 12 641,71 638,92 - 230 fonte -
€594.22
63.5 kg
168-14M115MA 1061 168 12 748,66 745,87 - 230 fonte -
€0.00
78 kg
192-14M115MA 1062 192 12 855,62 852,82 - 230 fonte -
€0.00
95 kg
264-14M115MA 1064 264 12 1176,47 1173,66 - — 270 fonte -
€0.00
163 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
