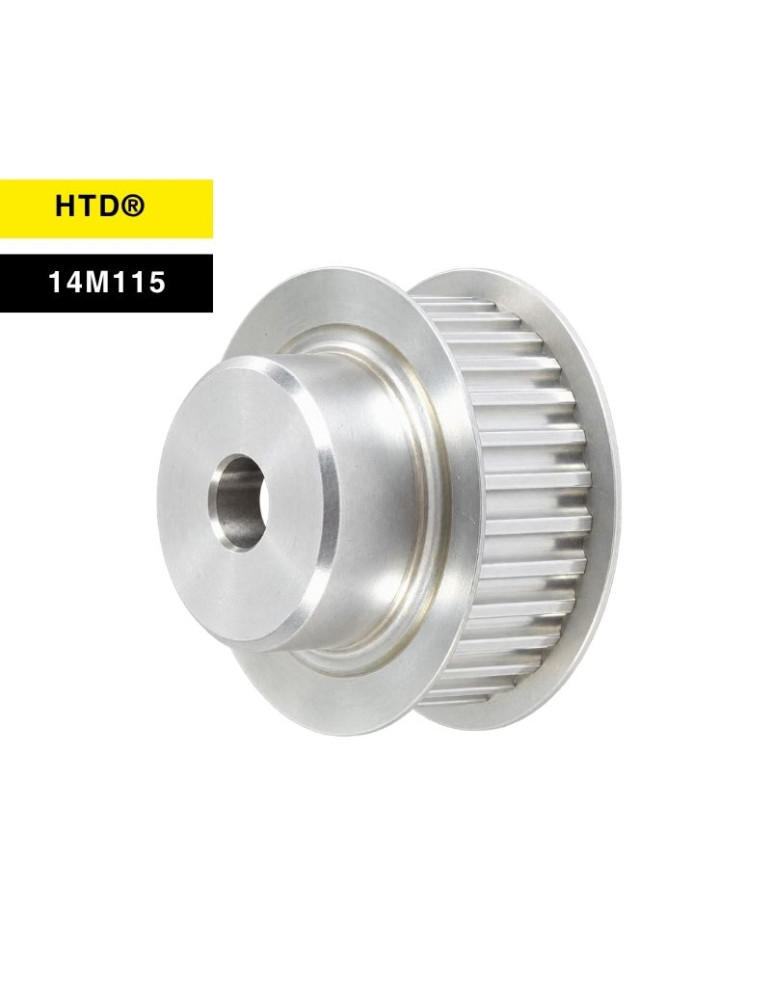

HTD® 14M115 pilot-bore pulley

Description

The HTD® 14M115 timing pulley matches a 14M-profile synchronous belt with a nominal width of 115 mm and a 14 mm pitch.

Comes in 28 to 264 tooth versions, some made to order.

Check tooth count, matching bush reference and bush bore before specifying the shaft mounting.

Product Details
64-14M115F
2 Items

Specific References

  • 8054652087263
  • DOM-poulie-htd-14M115
22 people are viewing this right now
DOM
64-14M115F
2 Items
€234.40
Tax excluded
order: 240
Material: fonte
CHI-Pièce: Poulie
CHI-Version poulie: HTD
CHI-type1: 14M-115F
CHI-type3: 14M
Type: 64-14M115F
Teeth: 64

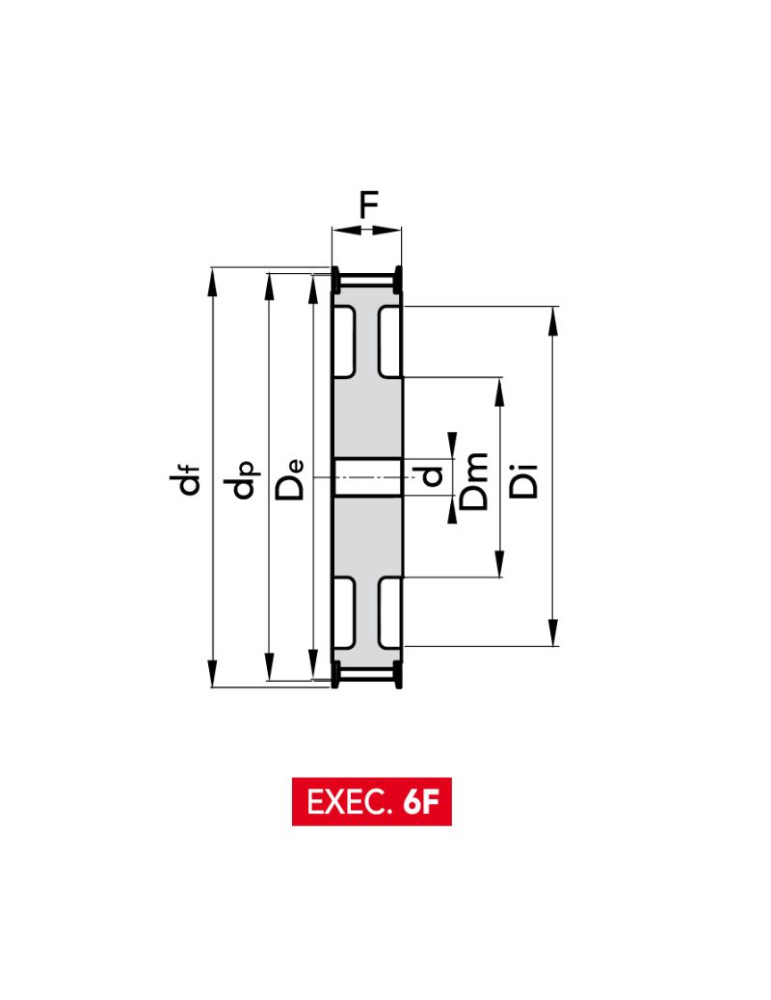

Execution: 6F
Dp: 285,21
De: 282,41
Df flange: 296
Dm: 150
CHI-Di: 240
CHI-F: 133
CHI-L: 133
d: 32
N° flange: 184
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 2 item(s) left in Stock!
PULLEYS,  HTD® timing pulleys with pilot bore,  HTD® 14M Pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy

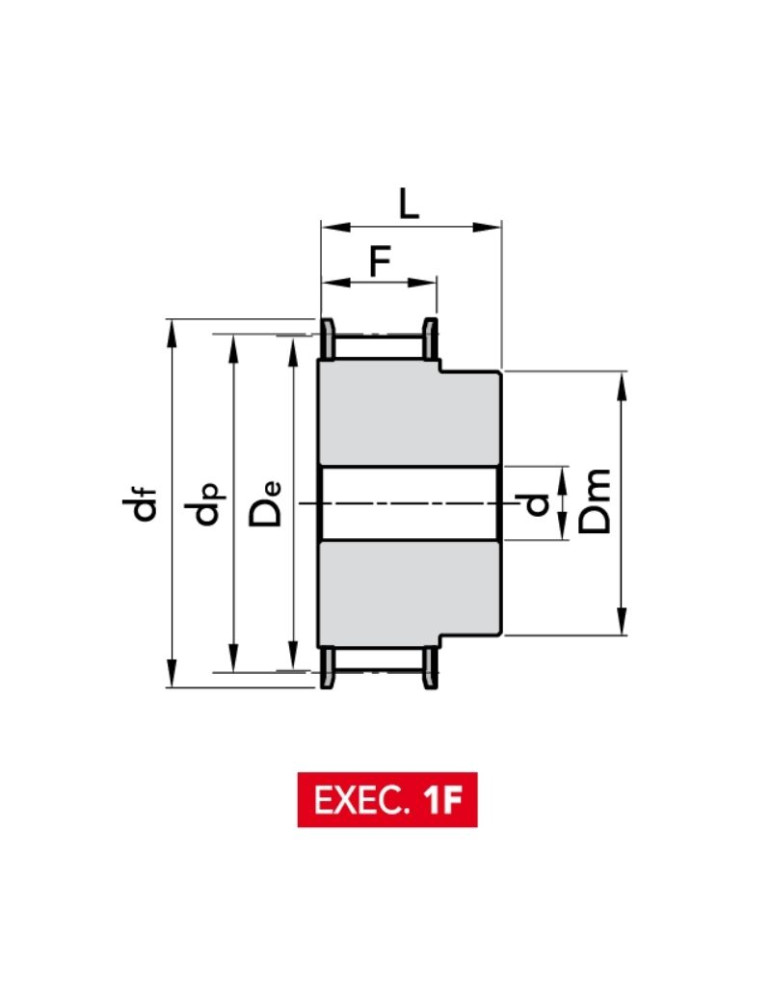

28-14M115F 230 28 28-14M115F 1F 124,78 122,12 128 100 - Acier 153
€0.00
11.673 kg
30-14M115F 231 30 30-14M115F 1F 133,69 130,99 138 100 - Acier 154
€0.00
13.43 kg
32-14M115F 232 32 32-14M115F 1F 142,6 139,88 154 100 - Acier 160
€0.00
15.335 kg
34-14M115F 233 34 34-14M115F 1F 151,52 148,79 160 100 - Acier 166
€0.00
17.358 kg
36-14M115F 234 36 36-14M115F 1F 160,43 157,68 168 120 - Acier 168
€0.00
19.85 kg
38-14M115F 235 38 38-14M115F 1F 169,34 166,6 183 120 - Acier 172
€0.00
22.212 kg
40-14M115F 236 40 40-14M115F 1F 178,25 175,49 188 135 - Acier 162
€0.00
24.932 kg
44-14M115F 237 44 44-14M115F 1F 196,08 193,28 211 140 - Acier 175
€234.40
30.5 kg
48-14M115F 238 48 48-14M115F 1F 213,9 211,11 226 150 - fonte 180
€0.00
35 kg
56-14M115F 239 56 56-14M115F 1F 249,55 246,76 256 150 32 fonte 182
€0.00
33 kg
64-14M115F 240 64 64-14M115F 6F 285,21 282,41 296 150 32 fonte 184
€234.40
36 kg

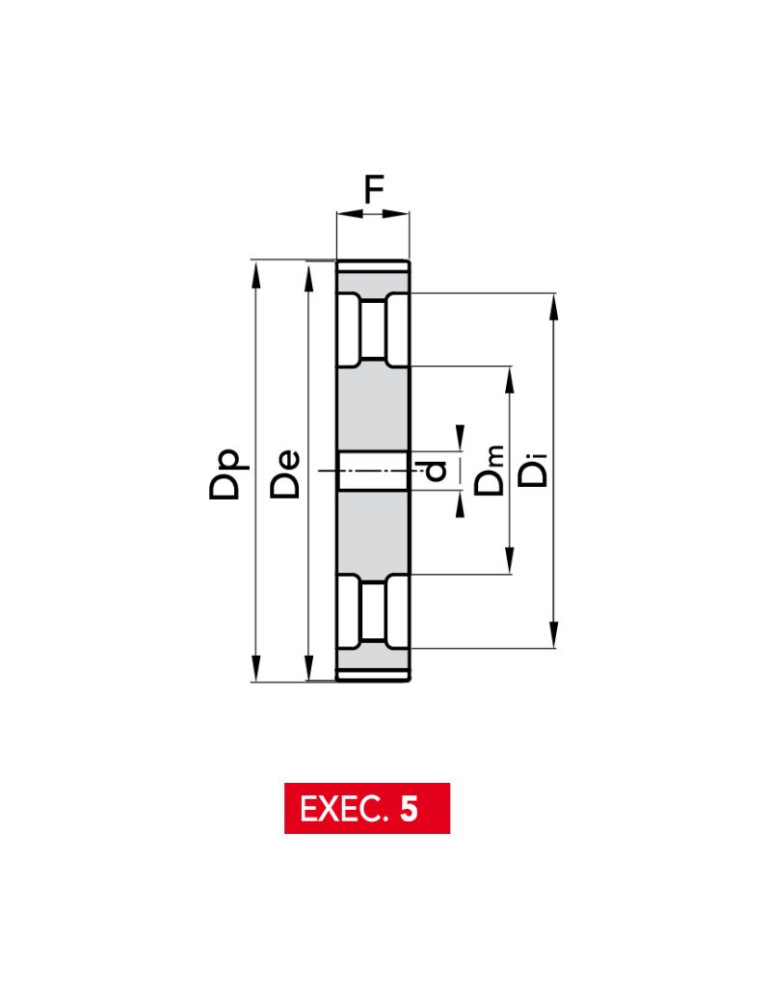

72-14M115 241 72 72-14M115 5 320,86 318,06 - 150 32 fonte -
€302.33
37.5 kg
80-14M115 242 80 80-14M115 5 356,51 353,71 - 150 32 fonte -
€234.40
41 kg
90-14M115 243 90 90-14M115 5 401,07 398,28 - 150 32 fonte -
€0.00
45.5 kg
112-14M115 244 112 112-14M115 5 499,11 496,32 - 150 32 fonte -
€0.00
55.5 kg
144-14M115 245 144 144-14M115 5 641,71 638,92 - 165 32 fonte -
€0.00
71 kg
168-14M115 246 168 168-14M115 5 748,66 745,87 - 165 32 fonte -
€0.00
83 kg
192-14M115 247 192 192-14M115 5 855,62 852,82 - 165 32 fonte -
€0.00
96 kg
