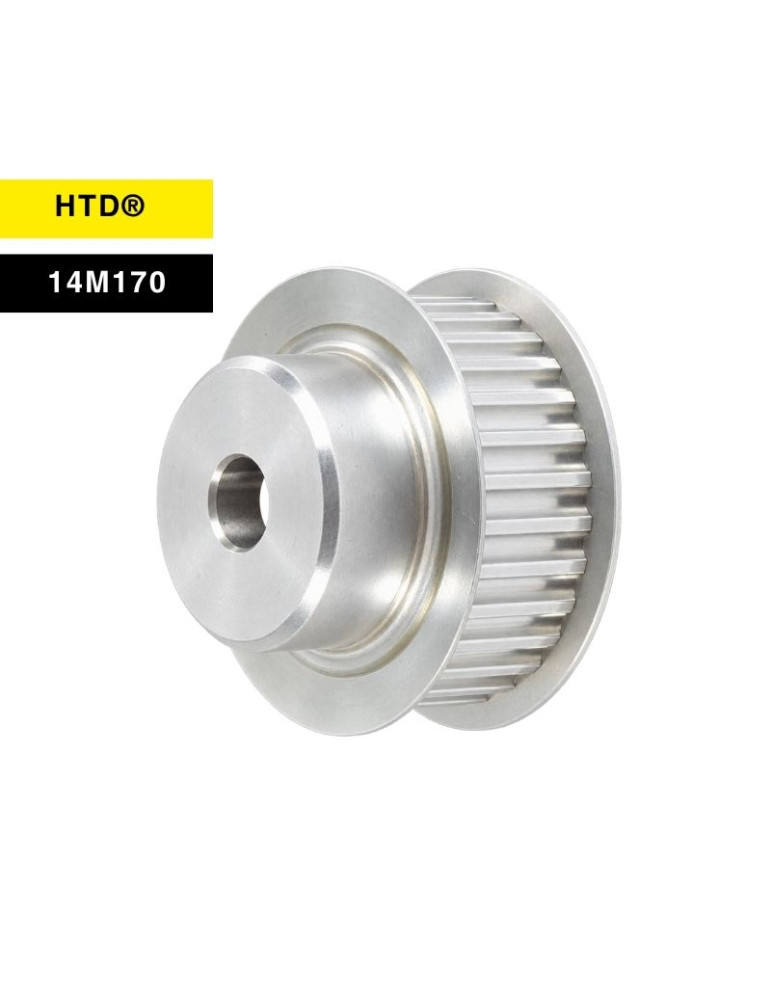

The HTD® 14M170 timing pulley matches a 14M-profile synchronous belt with a nominal width of 170 mm and a 14 mm pitch.
Comes in 28 to 216 tooth versions, some made to order.
Match this width to the intended belt, then check tooth count, diameter and final bore.
Specific References
Immediate stock
Platform stock *Prix HT hors frais d’envoi
| Ref. | order | Teeth | Type | Execution | Dp | De | Df flange | Dm | d | Material | N° flange | Unit price | Weight | Avail. | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

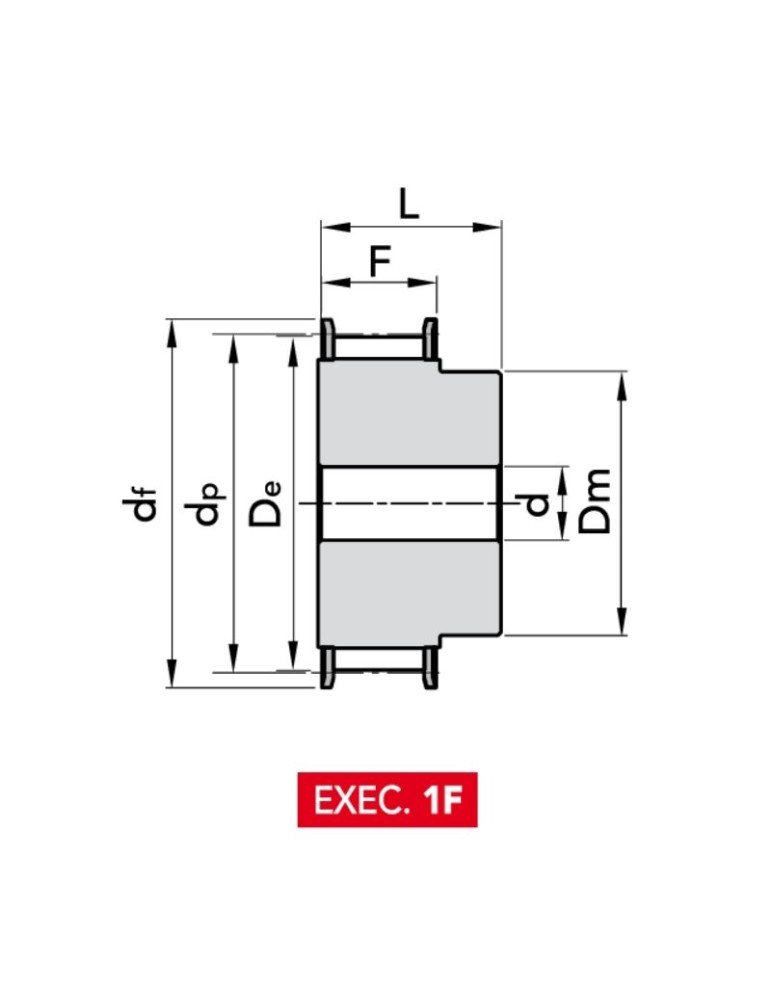

| 28-14M170F | 248 | 28 | 28-14M170F | 1F | 124,78 | 122,12 | 128 | 100 | - | Acier | 153 |
€0.00
|
16.066 kg |
|
|
| 30-14M170F | 249 | 30 | 30-14M170F | 1F | 133,69 | 130,99 | 138 | 100 | - | Acier | 154 |
€0.00
|
18.504 kg |
|
|
| 32-14M170F | 250 | 32 | 32-14M170F | 1F | 142,6 | 139,88 | 154 | 100 | - | Acier | 160 |
€0.00
|
21.175 kg |
|
|
| 34-14M170F | 251 | 34 | 34-14M170F | 1F | 151,52 | 148,79 | 160 | 100 | - | Acier | 166 |
€36.14
|
24.015 kg |
|
|
| 36-14M170F | 252 | 36 | 36-14M170F | 1F | 160,43 | 157,68 | 168 | 120 | - | Acier | 168 |
€0.00
|
27.29 kg |
|
|
| 38-14M170F | 253 | 38 | 38-14M170F | 1F | 169,34 | 166,6 | 183 | 135 | - | Acier | 172 |
€36.14
|
30.494 kg |
|
|
| 40-14M170F | 254 | 40 | 40-14M170F | 1F | 178,25 | 175,49 | 188 | 140 | - | Acier | 162 |
€0.00
|
33.759 kg |
|
|

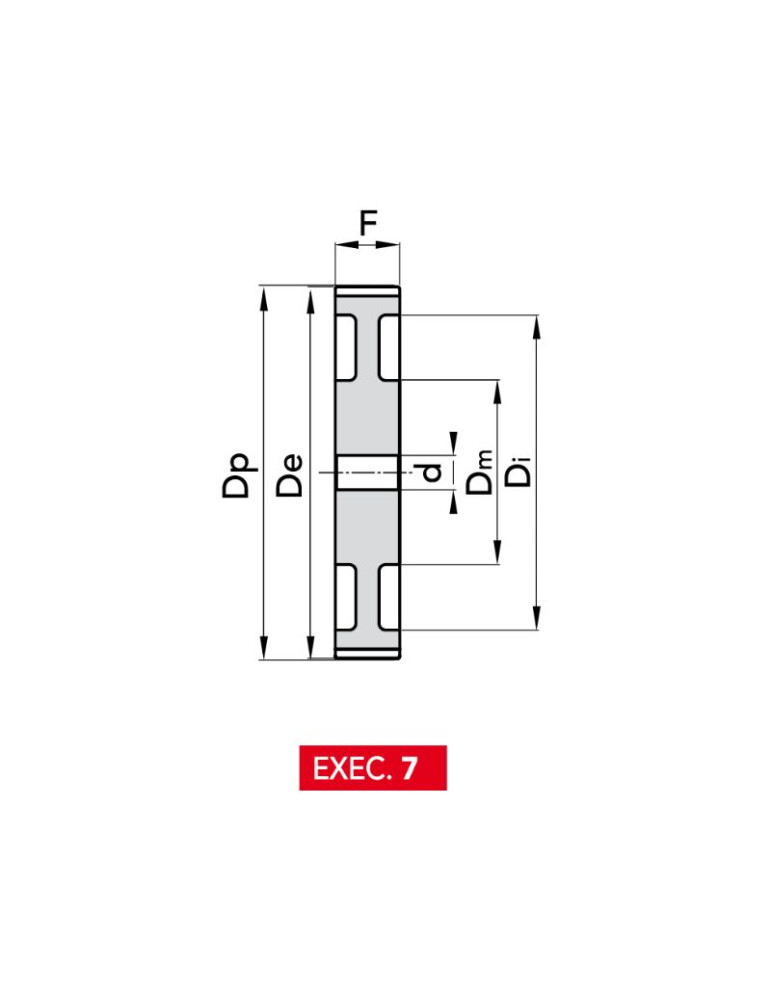

| 80-14M170 | 255 | 80 | 80-14M170 | 7 | 356,51 | 353,71 | - | 180 | 32 | fonte | - |
€0.00
|
73.5 kg |
|
|

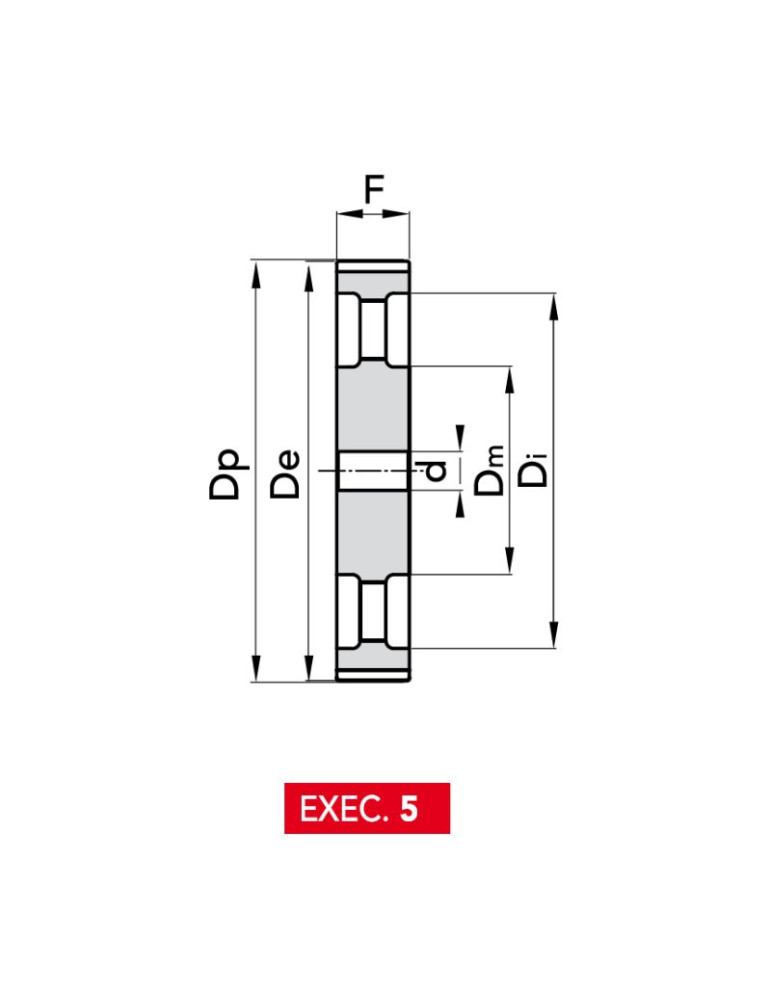

| 90-14M170 | 256 | 90 | 90-14M170 | 5 | 401,07 | 398,28 | - | 180 | 38 | fonte | - |
€0.00
|
75.5 kg |
|
|
| 112-14M170 | 257 | 112 | 112-14M170 | 5 | 499,11 | 496,32 | - | 200 | 38 | fonte | - |
€0.00
|
95 kg |
|
|
| 144-14M170 | 258 | 144 | 144-14M170 | 5 | 641,71 | 638,92 | - | 220 | 38 | fonte | - |
€0.00
|
114 kg |
|
|
| 168-14M170 | 259 | 168 | 168-14M170 | 5 | 748,66 | 745,87 | - | 220 | 38 | fonte | - |
€0.00
|
142 kg |
|
|
|
Total:
0,0
All prices with tax excluded.
Tax rate: 20,0%. |
|||||||||||||||
