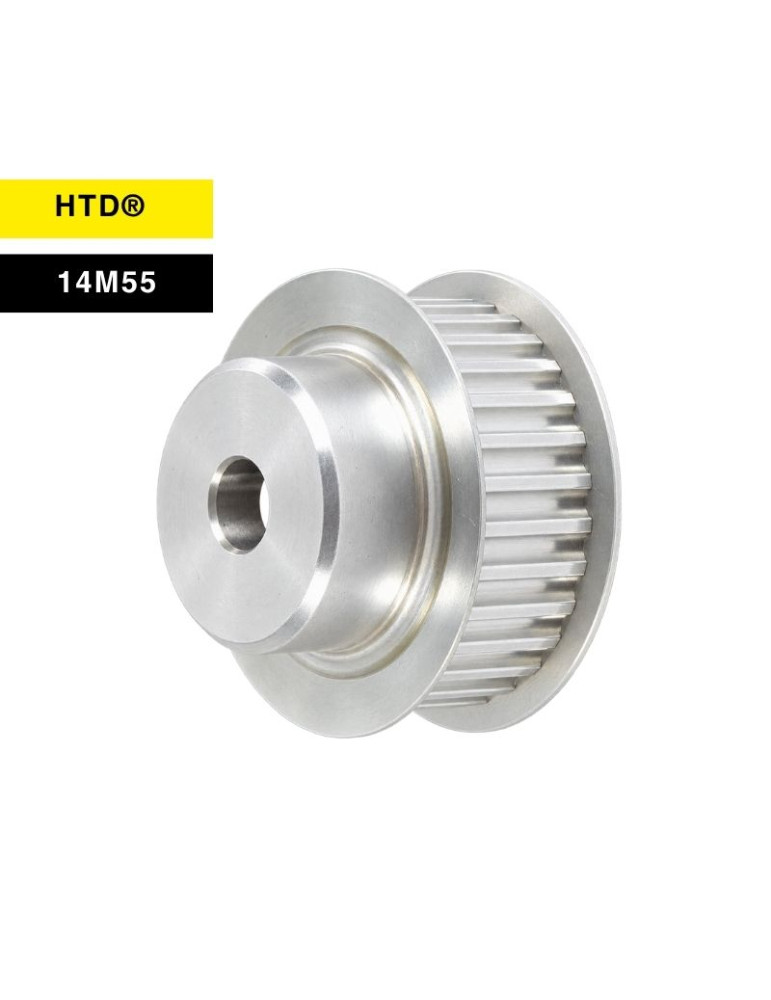

HTD® 14M55 pilot-bore pulley

Description

The HTD® 14M55 timing pulley matches a 14M-profile synchronous belt with a nominal width of 55 mm and a 14 mm pitch.

Comes in 28 to 216 tooth versions, some made to order.

Confirm tooth count, flanged or unflanged execution and installation dimensions before finishing the bore.

Product Details
40-14M55F
2 Items

Specific References

  • 8054652086860
  • DOM-poulie-htd-14m55
16 people are viewing this right now
DOM
40-14M55F
2 Items
€83.61
Tax excluded
order: 200
Material: Acier
CHI-Pièce: Poulie
CHI-Version poulie: HTD
CHI-type1: 14M-55F
CHI-type3: 14M
Type: 40-14M55F
Teeth: 40
Execution: 1F
Dp: 178,25
De: 175,49
Df flange: 188
Dm: 120
CHI-Di: -
CHI-F: 70
CHI-L: 85
d: 24
N° flange: 162
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 2 item(s) left in Stock!
PULLEYS,  HTD® timing pulleys with pilot bore,  HTD® 14M Pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

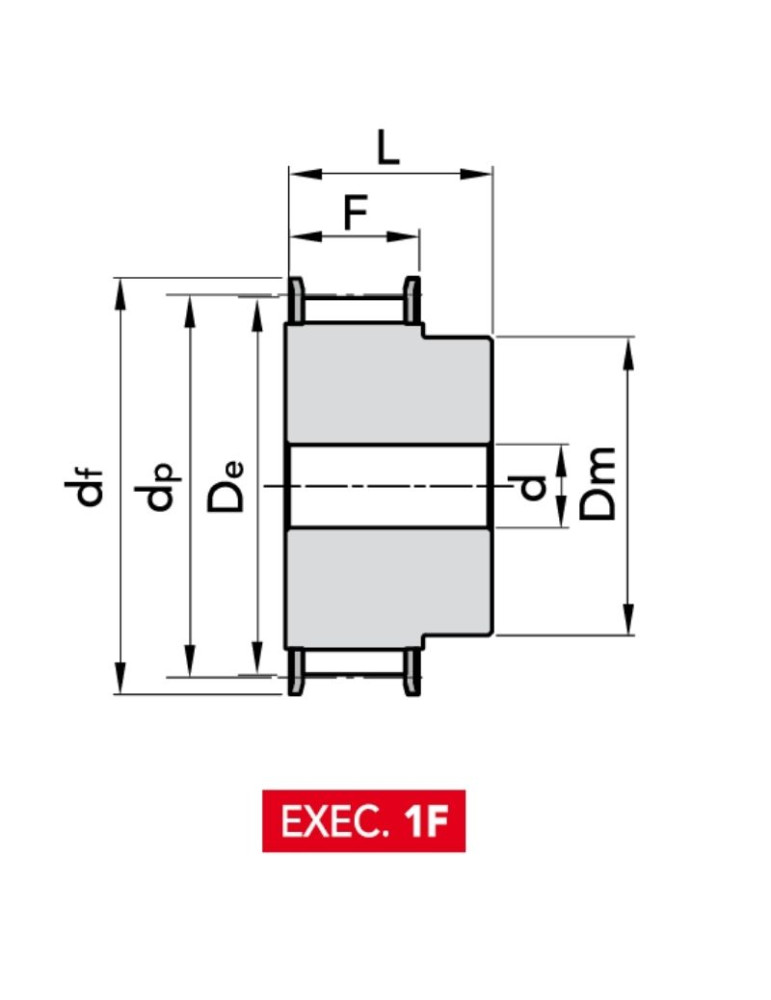

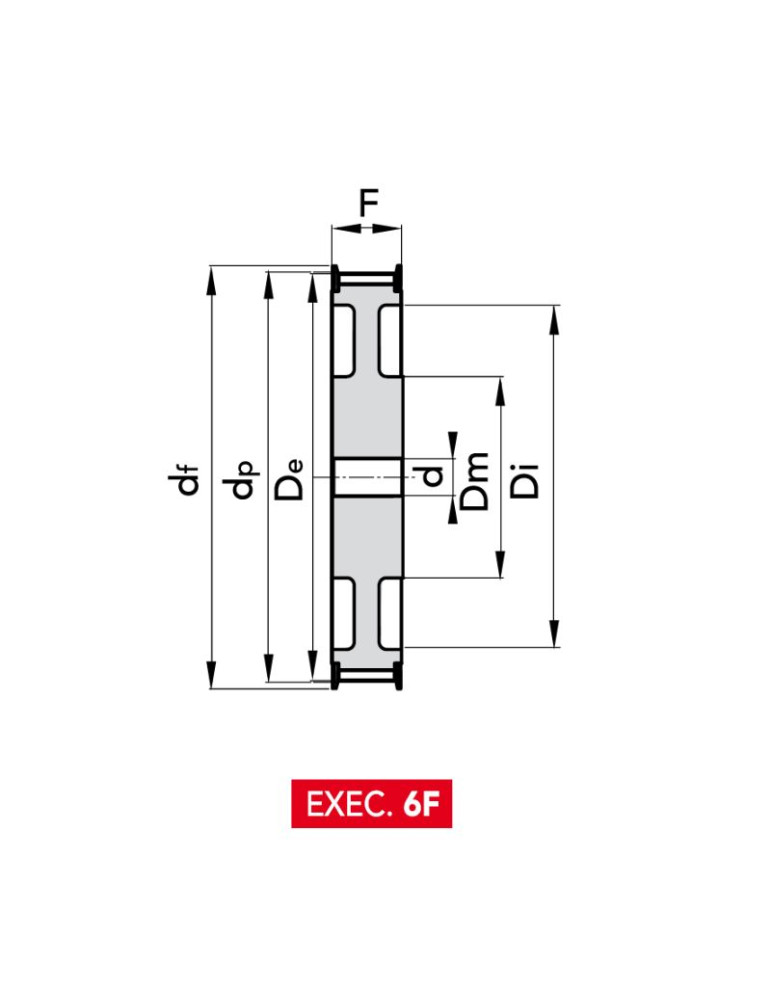

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
28-14M55F 193 28 28-14M55F 1F 124,78 122,12 128 100 24 Acier 153
€22.37
6.32 kg
29-14M55F 194 29 29-14M55F 1F 129,23 126,57 138 100 24 Acier 154
€22.37
6.852 kg
30-14M55F 195 30 30-14M55F 1F 133,69 130,99 138 100 24 Acier 154
€0.00
7.239 kg
32-14M55F 196 32 32-14M55F 1F 142,6 139,88 154 100 24 Acier 160
€83.61
8.299 kg
34-14M55F 197 34 34-14M55F 1F 151,52 148,79 160 100 24 Acier 166
€0.00
9.353 kg
36-14M55F 198 36 36-14M55F 1F 160,43 157,68 168 100 24 Acier 168
€83.61
10.395 kg
38-14M55F 199 38 38-14M55F 1F 169,34 166,6 183 120 24 Acier 172
€0.00
12.134 kg
40-14M55F 200 40 40-14M55F 1F 178,25 175,49 188 120 24 Acier 162
€83.61
14.2 kg
44-14M55F 201 44 44-14M55F 1F 196,08 193,28 211 120 24 Acier 175
€0.00
16.12 kg
48-14M55F 202 48 48-14M55F 6F 213,9 211,11 226 135 24 fonte 180
€0.00
13.6 kg
56-14M55F 203 56 56-14M55F 6F 249,55 246,76 256 135 28 fonte 182
€0.00
15.78 kg
64-14M55F 204 64 64-14M55F 6F 285,21 282,41 296 135 28 fonte 184
€0.00
19.208 kg
72-14M55 205 72 72-14M55 5 320,86 318,06 - 135 28 fonte -
€0.00
18.41 kg
80-14M55 206 80 80-14M55 5 356,51 353,71 - 135 28 fonte -
€0.00
21.048 kg
90-14M55 207 90 90-14M55 5 401,07 398,28 - 135 28 fonte -
€0.00
23.064 kg
112-14M55 208 112 112-14M55 5 499,11 496,32 - 135 28 fonte -
€83.61
29.871 kg
144-14M55 209 144 144-14M55 5 641,71 638,92 - 135 28 fonte -
€0.00
38.5 kg
168-14M55 210 168 168-14M55 5 748,66 745,87 - 135 28 fonte -
€0.00
48.5 kg
192-14M55 211 192 192-14M55 5 855,62 852,82 - 135 28 fonte -
€0.00
50 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
