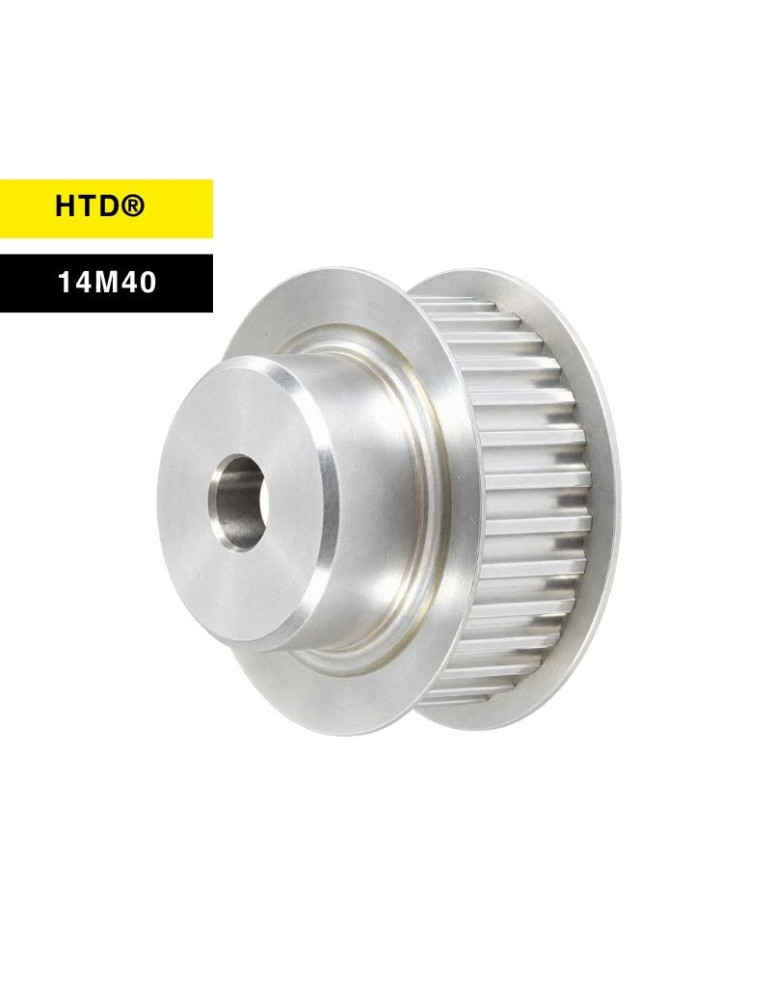

HTD® 14M40 pilot-bore pulley
  • New
HTD® 14M40 pilot-bore pulley

HTD® 14M40 pilot-bore pulley

Description

The HTD® 14M40 timing pulley matches a 14M-profile synchronous belt with a nominal width of 40 mm and a 14 mm pitch.

Comes in 28 to 216 tooth versions, some made to order.

Choose the tooth count and check the bore to be machined along with your mounting dimensions.

Product Details
28-14M40F
3 Items

Specific References

  • 8054652086600
  • DOM-poulie-htd-14M40
17 people are viewing this right now
DOM
28-14M40F
3 Items
€36.14
Tax excluded
order: 177
Material: Acier
CHI-Pièce: Poulie
CHI-Version poulie: HTD
CHI-type1: 14M-40F
CHI-type3: 14M
Type: 28-14M40F
Teeth: 28
Execution: 1F
Dp: 124,78
De: 122,12
Df flange: 128
Dm: 100
CHI-Di: -
CHI-F: 54
CHI-L: 69
d: 24
N° flange: 153
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 3 item(s) left in Stock!
PULLEYS,  HTD® timing pulleys with pilot bore,  HTD® 14M Pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
28-14M40F 177 28 28-14M40F 1F 124,78 122,12 128 100 24 Acier 153
€36.14
5.1 kg
29-14M40F 178 29 29-14M40F 1F 129,23 126,57 138 100 24 Acier 154
€0.00
5.501 kg
30-14M40F 179 30 30-14M40F 1F 133,69 130,99 138 100 24 Acier 154
€0.00
5.812 kg
32-14M40F 180 32 32-14M40F 1F 142,6 139,88 154 100 24 Acier 160
€0.00
6.658 kg
34-14M40F 181 34 34-14M40F 1F 151,52 148,79 160 100 24 Acier 166
€36.14
7.43 kg
36-14M40F 182 36 36-14M40F 1F 160,43 157,68 168 100 24 Acier 168
€0.00
8.25 kg
38-14M40F 183 38 38-14M40F 1F 169,34 166,6 183 120 24 Acier 172
€36.14
9.675 kg
40-14M40F 184 40 40-14M40F 1F 178,25 175,49 188 120 24 Acier 162
€83.61
10.585 kg
44-14M40F 185 44 44-14M40F 1F 196,08 193,28 211 120 24 Acier 175
€102.58
12.817 kg
48-14M40F 186 48 48-14M40F 2F 213,9 211,11 226 135 24 fonte 180
€0.00
12.079 kg
56-14M40F 187 56 56-14M40F 2F 249,55 246,76 256 135 28 fonte 182
€0.00
13.57 kg
64-14M40F 188 64 64-14M40F 2F 285,21 282,41 296 135 28 fonte 184
€0.00
16.299 kg
72-14M40 189 72 72-14M40 4 320,86 318,06 - 135 28 fonte -
€0.00
15.885 kg
80-14M40 190 80 80-14M40 4 356,51 353,71 - 135 28 fonte -
€0.00
17.672 kg
90-14M40 191 90 90-14M40 4 401,07 398,28 - 135 28 fonte -
€0.00
18.74 kg
112-14M40 192 112 112-14M40 4 499,11 496,32 - 135 28 fonte -
€0.00
23.747 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
