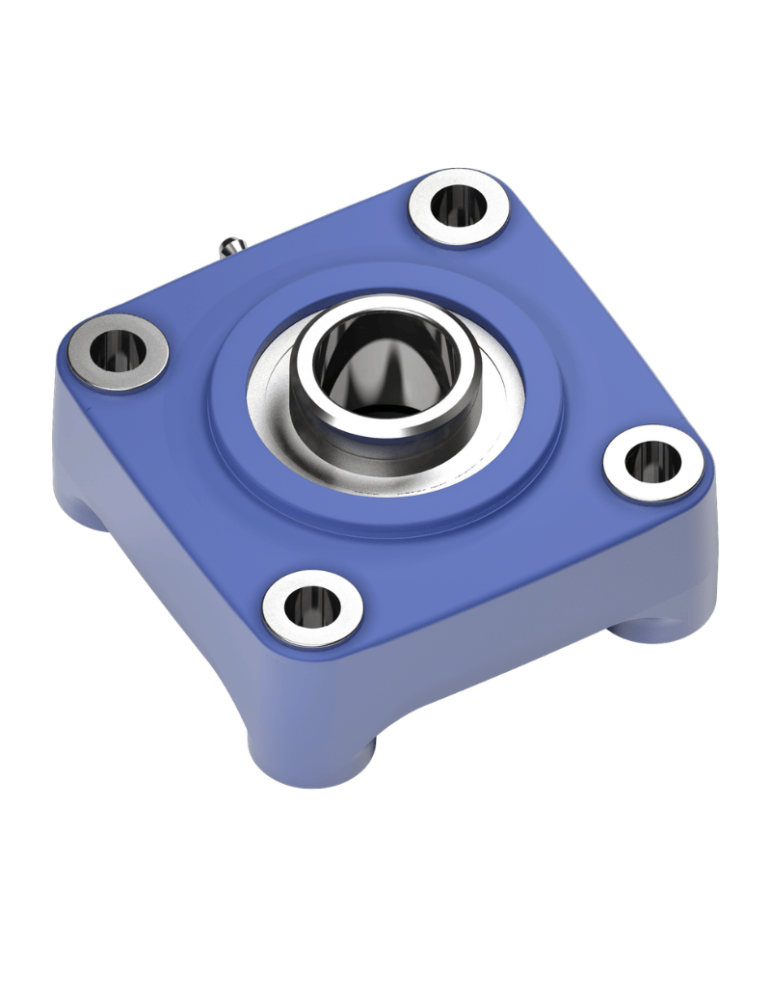

UCF / CX Solid Square Applique Bearing
UCF / CX Solid Square Applique Bearing

UCF / CX Solid Square Applique Bearing

Description

Thermoplastic bearing with waterproof holding, with posterior joint Hoodless (the covers can be ordered separately here). These are bearings with full flanges (flange made with full surface to guarantee impeccable hygiene).

Tier with screw fixation or eccentric ring.

Eccentric chromium steel ring bearing; nickel-plated brass greaser; Fastening hole reinforcement loops and AISI 304 stainless steel washers; NBR rubber seals; Polypropylene cover Gray Color RAL 7042, Blue RAL 5015, Orange RAL 2004, Red RAL 3000.

Available in standard bearing or long Life bearings (lubrication until the end of the service life).

Features

The protective cover can be controlled separately as an accessory. Mounting with shoulder trees. Reduced contact surface, for maximum hygiene. Maximum alignment error of 2.5 ° shaft.

On demand

Versions with reinforced polypropylene flanges and antibacterial protection; protective hoods in different colors and with custom brand; Seal in Viton.

Details of the plan

1) outer body of the RAL 5005 blue polyamide support reinforced with glass fibers.

2) Posterior seal with waterproof rubber NBR for rotating trees.

3) Chrome or Stainless Steel Steel Bearing AISI 440.

3B) Chrome steel bearing.

4) Stainless steel mounting hole reinforcement loops AISI 304.

5) UNI 6592 support washer AISI 304 stainless steel.

6) Straight lubricatizer with 1/8 gas thread AISI 303 stainless steel (absent in Long Life rolling versions).

NB: The protective cover can be ordered separately as an accessory; In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.

The dimensions of the bearing are in accordance with ISO 3228. Maximum alignment error of the 2.5 ° shaft.

For any other information, contact our technical and commercial service.

Bearings and components manufactured in Italy.

Check out our lubrication and maintenance tips on our blog.

For mounting the bearings or covers, Check out our online technical documentation.

Product Details
88692
2026-09-18

Specific References

  • PAL-UCFCXSOLID
Attachments

PALIERS UCF CX SOLID

Download (1.04MB)
23 people are viewing this right now
DOM
88692
€146.06
Tax excluded
order: 1
Series: UCF 205 CX S
Diam. Tree (mm): 25
Colors: bleu
Bearing type: Standard
E (mm): 70
A (mm): 99,5
S (mm): 10,5
PAL-G (mm): 22
PAL-I (mm): 17,4
PAL-Z (mm): 37
PAL-U (mm): 47
PAL-T (mm): 49,5
PAL-Charge roulement C (N): 14000
PAL-Charge roulement C0 (N): 7800
PAL-Charge support (N): 17000
Material: ACIER AU CHROME
Type of fixation: par vis
PAL-F (mm): 15
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
BEARING SUPPORTS,  Square bearings,  Full flanged bearings,  FOOD INDUSTRY RANGE,  Full flange self-readable bearings

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Diam. Tree (mm) Series Material Bearing type Type of fixation Colors A (mm) E (mm) S (mm) Unit price Weight Avail. Buy
88692 1 25 UCF 205 CX S ACIER AU CHROME Standard par vis bleu 99,5 70 10,5
€146.06
0.496 kg
88693 2 30 UCF 205 CX S ACIER AU CHROME Standard par vis bleu 113 83 10,5
€151.21
0.693 kg
89495 3 25 UCF 205 CX S ACIER AU CHROME Long Life par vis bleu 99,5 70 10,5
€146.06
0.496 kg
89496 4 30 UCF 205 CX S ACIER AU CHROME Long Life par vis bleu 113 83 10,5
€151.21
0.693 kg
88696 5 25 UCF 205 CX S ACIER AU CHROME Standard par vis bleu 99,5 70 10,5
€149.36
0.525 kg
88697 6 30 UCF 205 CX S ACIER AU CHROME Standard par vis bleu 113 83 10,5
€155.92
0.748 kg
89497 7 25 UCF 205 CX S ACIER AU CHROME Long Life par vis bleu 99,5 70 10,5
€149.36
0.525 kg
89498 8 30 UCF 205 CX S ACIER AU CHROME Long Life par vis bleu 113 83 10,5
€155.92
0.748 kg
88694 9 25 UCF 205 CX S INOX AISI 440 Standard par bague excentrique bleu 99,5 70 10,5
€187.41
0.496 kg
88695 10 30 UCF 205 CX S INOX AISI 440 Standard par bague excentrique bleu 113 83 10,5
€208.27
0.693 kg
89499 11 25 UCF 205 CX S INOX AISI 440 Long Life par bague excentrique bleu 99,5 70 10,5
€187.41
0.496 kg
89500 12 30 UCF 205 CX S INOX AISI 440 Long Life par bague excentrique bleu 113 83 10,5
€208.27
0.693 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
