Description

Grub screws shaft locking - Without protection cover The covers can be ordered separately here.

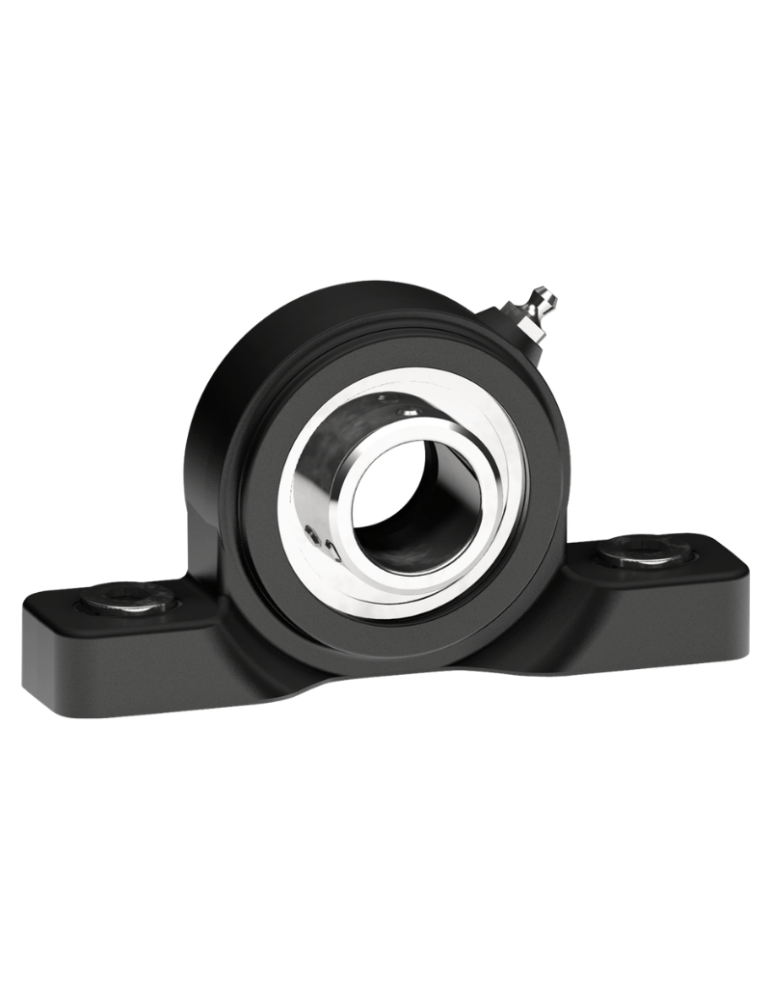

Self-aligning bearings with Solid body: completely closed surface to guarantee the max hygiene.

Standard bearings or Long Life bearings: life long lubrication.

MATERIALS

Housing is made out of PA + glass fiber in black, white or blue Ral 5005 colours; bearing with grub screws shaft locking in chrome steel or stainless steel; bearing with eccentric collar shaft locking in chrome steel; greaser made out of nickel plated brass; reinforcement bushings, washers and safety ring made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of polypropylene grey Ral 7042, blue Ral 5015, orange Ral 2004 or red Ral 3000 colour.

FEATURES

The protection cover can be ordered separately as an accessory. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°.

ON REQUEST

Versions with body in polypropylene + glass fiber and antibacterial additive; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets..

DETAILS

1) Housing made out of black, white or blue Ral 5005 colour polyamide reinforced with glass fibers.

2) Back gasket made out of NBR rubber for turning shaft seal.

3) Safety ring in stainless steel AISI 304.

4) Chrome steel or stainless steel bearing AISI 440.

4B) Chrome steel bearing.

5) UNI 6592 support washer made out of stainless steel AISI 304.

6) Spacer for fixing reinforcement made out of stainless steel AISI 304.

7) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing)

NOTE: The protection cover can be ordered separately as an accessory; in the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.

Support dimensions respect ISO 3228 set of rules.

Maximum shaft alignment error 2,5°.

For further information please contact our technical office or sales department.

Product Details
84080

Specific References

  • PAL-UCP-CX
Attachments

PALIERS UCP CX

Download (645.52KB)
24 people are viewing this right now
DOM
84080
€41.57
Tax excluded
order: 1
Series: UCP 204 CX
Bearing material: ACIER AU CHROME
Colors: noir
Bearing type: Standard
E (mm): 96
A (mm): 130
S (mm): 13
PAL-G (mm): 20
PAL-I (mm): 18
PAL-Z (mm): 36
PAL-Charge roulement C (N): 12800
PAL-Charge roulement C0 (N): 6600
PAL-Charge support (N): 5750
Type of fixation: vis
PAL-F (mm): 10
PAL-B (mm): 65,5
PAL-H (mm): 33,5
Diam. Tree (mm): 20
PAL-W (mm): 30
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
BEARING SUPPORTS,  Classic pillow blocks,  Pillow Blocks

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order Diam. Tree (mm) Series Bearing material Bearing type Type of fixation Colors A (mm) E (mm) S (mm) Unit price Weight Avail. Buy
84080 1 20 UCP 204 CX ACIER AU CHROME Standard vis noir 130 96 13 0.31 kg
83688 2 25 UCP 205 CX ACIER AU CHROME Standard vis noir 140 106 13 0.39 kg
83689 3 30 UCP 206 CX ACIER AU CHROME Standard vis noir 163 121 13 0.47 kg
83690 4 35 UCP 207 CX ACIER AU CHROME Standard vis noir 168 126 — 0.55 kg
85451 5 40 UCP 208 CX ACIER AU CHROME Standard vis noir 185 136 — 0.67 kg
84774 6 20 UCP 204 CX ACIER AU CHROME Standard vis blanc 130 96 — 0.31 kg
84775 7 25 UCP 205 CX ACIER AU CHROME Standard vis blanc 140 106 — 0.39 kg
84776 8 30 UCP 206 CX ACIER AU CHROME Standard vis blanc 163 121 — 0.47 kg
84777 9 35 UCP 207 CX ACIER AU CHROME Standard vis blanc 168 126 — 0.55 kg
85452 10 40 UCP 208 CX ACIER AU CHROME Standard vis blanc 185 136 — 0.67 kg
87753 11 20 UCP 204 CX ACIER AU CHROME Standard vis bleu 130 96 — 0.31 kg
87754 12 25 UCP 205 CX ACIER AU CHROME Standard vis bleu 140 106 — 0.39 kg
87755 13 30 UCP 206 CX ACIER AU CHROME Standard vis bleu 163 121 — 0.47 kg
87756 14 35 UCP 207 CX ACIER AU CHROME Standard vis bleu 168 126 — 0.55 kg
87757 15 40 UCP 208 CX ACIER AU CHROME Standard vis bleu 185 136 — 0.67 kg
90145 16 20 UCP 204 CX ACIER AU CHROME Long Life vis noir 130 96 — 0.6 kg
90146 17 25 UCP 205 CX ACIER AU CHROME Long Life vis noir 140 106 — 0.6 kg
88673 18 30 UCP 206 CX ACIER AU CHROME Long Life vis noir 163 121 — 0.44 kg
90147 19 35 UCP 207 CX ACIER AU CHROME Long Life vis noir 168 126 — 0.6 kg
90148 20 40 UCP 208 CX ACIER AU CHROME Long Life vis noir 185 136 — 0.6 kg
90149 21 20 UCP 204 CX ACIER AU CHROME Long Life vis blanc 130 96 — 0.6 kg
90150 22 25 UCP 205 CX ACIER AU CHROME Long Life vis blanc 140 106 — 0.6 kg
90151 23 30 UCP 206 CX ACIER AU CHROME Long Life vis blanc 163 121 — 0.6 kg
90152 24 35 UCP 207 CX ACIER AU CHROME Long Life vis blanc 168 126 — 0.6 kg
90153 25 40 UCP 208 CX ACIER AU CHROME Long Life vis blanc 185 136 — 0.6 kg
90154 26 20 UCP 204 CX ACIER AU CHROME Long Life vis bleu 130 96 — 0.6 kg
90155 27 25 UCP 205 CX ACIER AU CHROME Long Life vis bleu 140 106 — 0.6 kg
90156 28 30 UCP 206 CX ACIER AU CHROME Long Life vis bleu 163 121 — 0.6 kg
90157 29 35 UCP 207 CX ACIER AU CHROME Long Life vis bleu 168 126 — 0.6 kg
90158 30 40 UCP 208 CX ACIER AU CHROME Long Life vis bleu 185 136 — 0.6 kg
88574 31 20 UCP 204 CX ACIER AU CHROME Standard bague exc. noir 130 96 — 0.365 kg
88575 32 25 UCP 205 CX ACIER AU CHROME Standard bague exc. noir 140 106 — 0.445 kg
88576 33 30 UCP 206 CX ACIER AU CHROME Standard bague exc. noir 163 121 — 0.525 kg
88577 34 35 UCP 207 CX ACIER AU CHROME Standard bague exc. noir 168 126 — 0.605 kg
88578 35 40 UCP 208 CX ACIER AU CHROME Standard bague exc. noir 185 136 — 0.725 kg
88579 36 20 UCP 204 CX ACIER AU CHROME Standard bague exc. blanc 130 96 — 0.365 kg
88580 37 25 UCP 205 CX ACIER AU CHROME Standard bague exc. blanc 140 106 — 0.445 kg
88581 38 30 UCP 206 CX ACIER AU CHROME Standard bague exc. blanc 163 121 — 0.525 kg
88582 39 35 UCP 207 CX ACIER AU CHROME Standard bague exc. blanc 168 126 — 0.605 kg
88583 40 40 UCP 208 CX ACIER AU CHROME Standard bague exc. blanc 185 136 — 0.725 kg
88584 41 20 UCP 204 CX ACIER AU CHROME Standard bague exc. bleu 130 96 — 0.365 kg
88585 42 25 UCP 205 CX ACIER AU CHROME Standard bague exc. bleu 140 106 — 0.445 kg
88586 43 30 UCP 206 CX ACIER AU CHROME Standard bague exc. bleu 163 121 — 0.525 kg
88587 44 35 UCP 207 CX ACIER AU CHROME Standard bague exc. bleu 168 126 — 0.605 kg
88588 45 40 UCP 208 CX ACIER AU CHROME Standard bague exc. bleu 185 136 — 0.725 kg
90159 46 20 UCP 204 CX ACIER AU CHROME Long Life bague exc. noir 130 96 — 0.6 kg
90160 47 25 UCP 205 CX ACIER AU CHROME Long Life bague exc. noir 140 106 — 0.6 kg
90161 48 30 UCP 206 CX ACIER AU CHROME Long Life bague exc. noir 163 121 — 0.6 kg
90162 49 35 UCP 207 CX ACIER AU CHROME Long Life bague exc. noir 168 126 — 0.6 kg
90163 50 40 UCP 208 CX ACIER AU CHROME Long Life bague exc. noir 185 136 — 0.6 kg
90164 51 20 UCP 204 CX ACIER AU CHROME Long Life bague exc. blanc 130 96 — 0.6 kg
90165 52 25 UCP 205 CX ACIER AU CHROME Long Life bague exc. blanc 140 106 — 0.6 kg
90166 53 30 UCP 206 CX ACIER AU CHROME Long Life bague exc. blanc 163 121 — 0.6 kg
90167 54 35 UCP 207 CX ACIER AU CHROME Long Life bague exc. blanc 168 126 — 0.6 kg
90168 55 40 UCP 208 CX ACIER AU CHROME Long Life bague exc. blanc 185 136 — 0.6 kg
90169 56 20 UCP 204 CX ACIER AU CHROME Long Life bague exc. bleu 130 96 — 0.6 kg
90170 57 25 UCP 205 CX ACIER AU CHROME Long Life bague exc. bleu 140 106 — 0.6 kg
90171 58 30 UCP 206 CX ACIER AU CHROME Long Life bague exc. bleu 163 121 — 0.6 kg
90172 59 35 UCP 207 CX ACIER AU CHROME Long Life bague exc. bleu 168 126 — 0.6 kg
90173 60 40 UCP 208 CX ACIER AU CHROME Long Life bague exc. bleu 185 136 — 0.6 kg
84081 61 20 UCP 204 CX INOX 304 Standard vis noir 130 96 — 0.31 kg
83702 62 25 UCP 205 CX INOX 304 Standard vis noir 140 106 — 0.39 kg
83703 63 30 UCP 206 CX INOX 304 Standard vis noir 163 121 — 0.47 kg
83704 64 35 UCP 207 CX INOX 304 Standard vis noir 168 126 — 0.55 kg
85453 65 40 UCP 208 CX INOX 304 Standard vis noir 185 136 — 0.64 kg
84778 66 20 UCP 204 CX INOX 304 Standard vis blanc 130 96 — 0.31 kg
84779 67 25 UCP 205 CX INOX 304 Standard vis blanc 140 106 — 0.39 kg
84780 68 30 UCP 206 CX INOX 304 Standard vis blanc 163 121 — 0.47 kg
84781 69 35 UCP 207 CX INOX 304 Standard vis blanc 168 126 — 0.55 kg
85454 70 40 UCP 208 CX INOX 304 Standard vis blanc 185 136 — 0.64 kg
87762 71 20 UCP 204 CX INOX 304 Standard vis bleu 130 96 — 0.31 kg
87763 72 25 UCP 205 CX INOX 304 Standard vis bleu 140 106 — 0.39 kg
87764 73 30 UCP 206 CX INOX 304 Standard vis bleu 163 121 — 0.47 kg
87765 74 35 UCP 207 CX INOX 304 Standard vis bleu 168 126 — 0.55 kg
87766 75 40 UCP 208 CX INOX 304 Standard vis bleu 185 136 — 0.64 kg
85324 76 20 UCP 204 CX INOX 304 Long Life vis noir 130 96 — 0.192 kg
84238 77 25 UCP 205 CX INOX 304 Long Life vis noir 140 106 — 0.251 kg
90174 78 30 UCP 206 CX INOX 304 Long Life vis noir 163 121 — 0.6 kg
86699 79 35 UCP 207 CX INOX 304 Long Life vis noir 168 126 — 0.585 kg
90175 80 40 UCP 208 CX INOX 304 Long Life vis noir 185 136 — 0.6 kg
85840 81 20 UCP 204 CX INOX 304 Long Life vis blanc 130 96 — 0.25 kg
86179 82 25 UCP 205 CX INOX 304 Long Life vis blanc 140 106 — 0.305 kg
87526 83 30 UCP 206 CX INOX 304 Long Life vis blanc 163 121 — 0.6 kg
90176 84 35 UCP 207 CX INOX 304 Long Life vis blanc 168 126 — 0.6 kg
90177 85 40 UCP 208 CX INOX 304 Long Life vis blanc 185 136 — 0.6 kg
88393 86 20 UCP 204 CX INOX 304 Long Life vis bleu 130 96 — 0.25 kg
88880 87 25 UCP 205 CX INOX 304 Long Life vis bleu 140 106 — 0.39 kg
90178 88 30 UCP 206 CX INOX 304 Long Life vis bleu 163 121 — 0.6 kg
90179 89 35 UCP 207 CX INOX 304 Long Life vis bleu 168 126 — 0.6 kg
90180 90 40 UCP 208 CX INOX 304 Long Life vis bleu 185 136 — 0.6 kg
