CONVEYOR COMPONENTS
Profile for product guides
Description
Product Details
Attachments
Profile in polyethylene HD color black or blue Ral 5005.
CHARACTERISTICS
Min. radius of curvature: 200 mm.

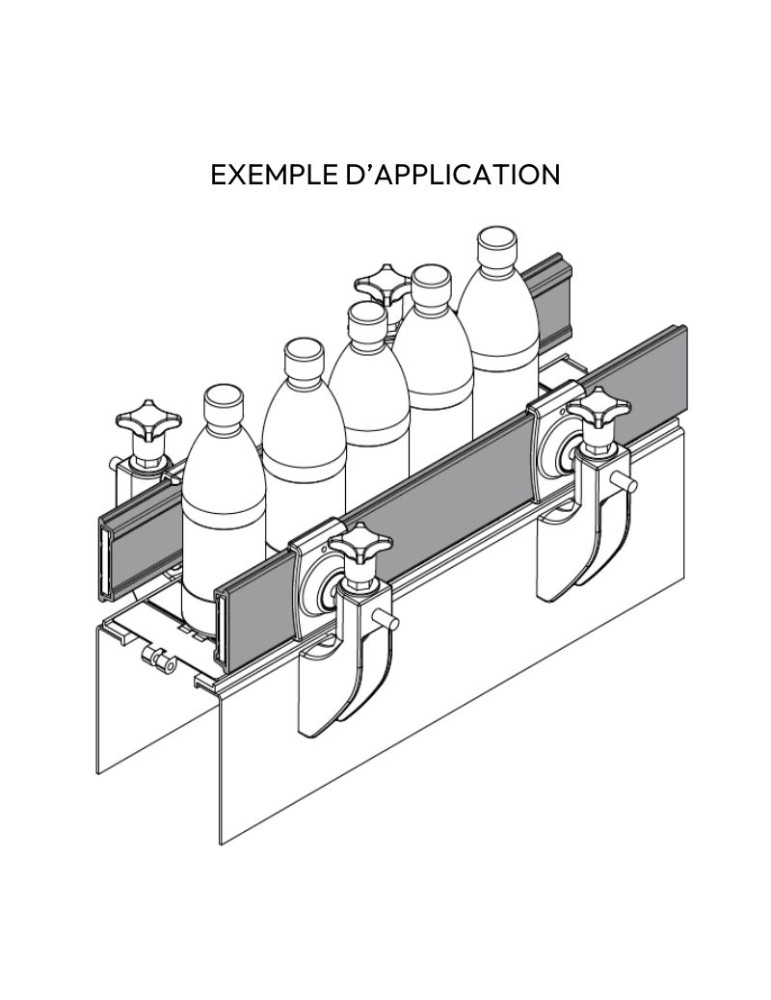

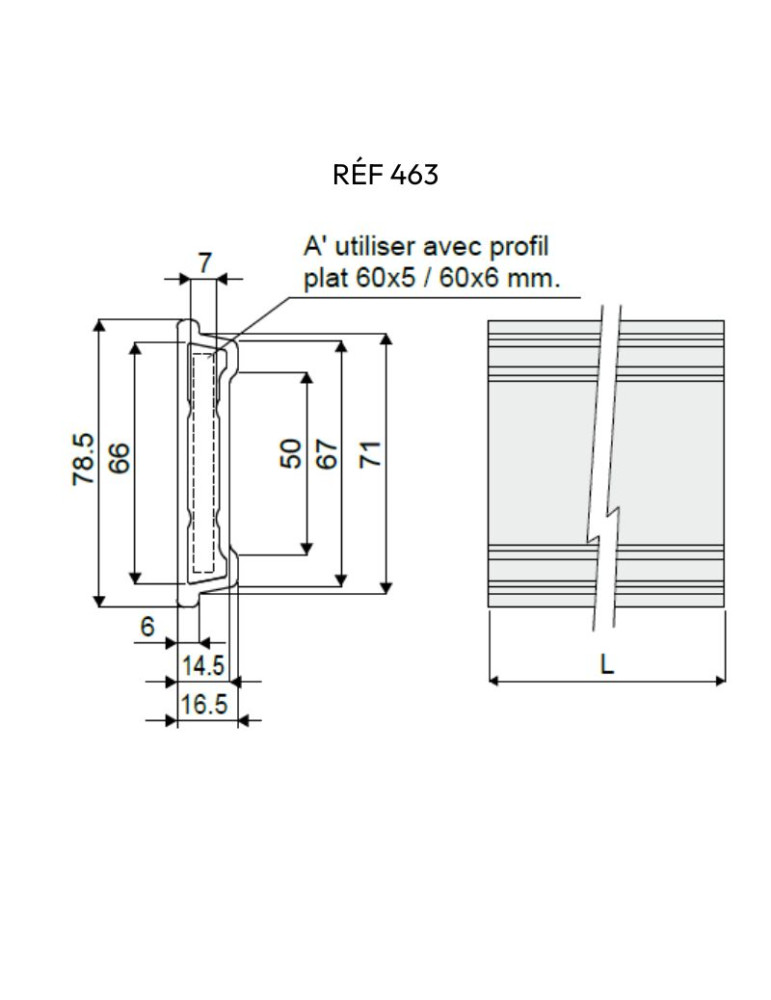

- Ref. 463 : height 78.5 mm - to be assembled with the vices Ref. 427, 434 and with the vice Ref. 511

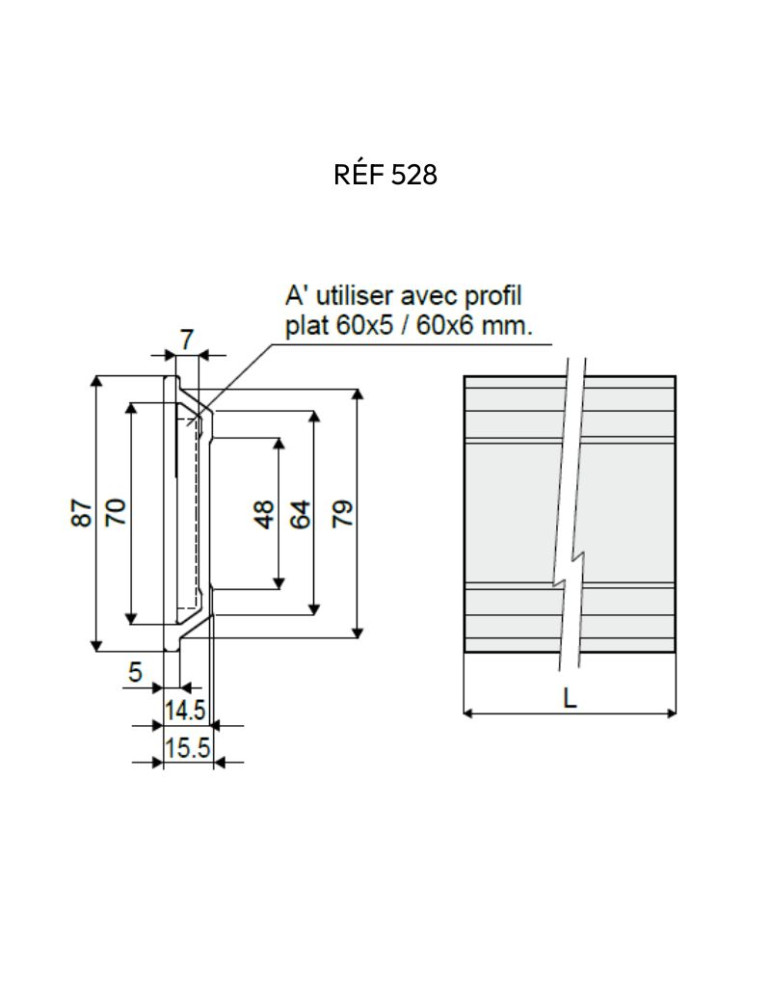

- Ref 528 : height 87 mm - to be assembled with the vices Ref. 531.
Sold in 3 meters bar.
Attention, extra delivery on this product range due to off-standard dimensions.
463/85552
Specific References
- CC-463-528
Choose product attributes:
Product is available
Product available on plateform
*Prix HT hors frais d’envoi
| Ref. | order | Bar | Type | Dimensions | Colors | Unit price | Weight | Avail. | Buy |
|---|---|---|---|---|---|---|---|---|---|
| 463/85552 | 11 | 3 M | Type 1 | 78.5x16.5 | Noir | 1.44 kg |
|
||
| 463/87563 | 13 | 3 M | Type 1 | 78.5x16.5 | Bleu Ral 5005 | 1.44 kg |
|
||
| 528/87565 | 15 | 3 M | Type 2 | 87x15.5 | Noir | 1.59 kg |
|
||
| 528/87567 | 17 | 3 M | Type 2 | 87x15.5 | Bleu Ral 5005 | 1.59 kg |
|
||
|
Total:
0,0
All prices with tax excluded.
Tax rate: 20,0%. |
|||||||||
Product is available Product available on plateform
