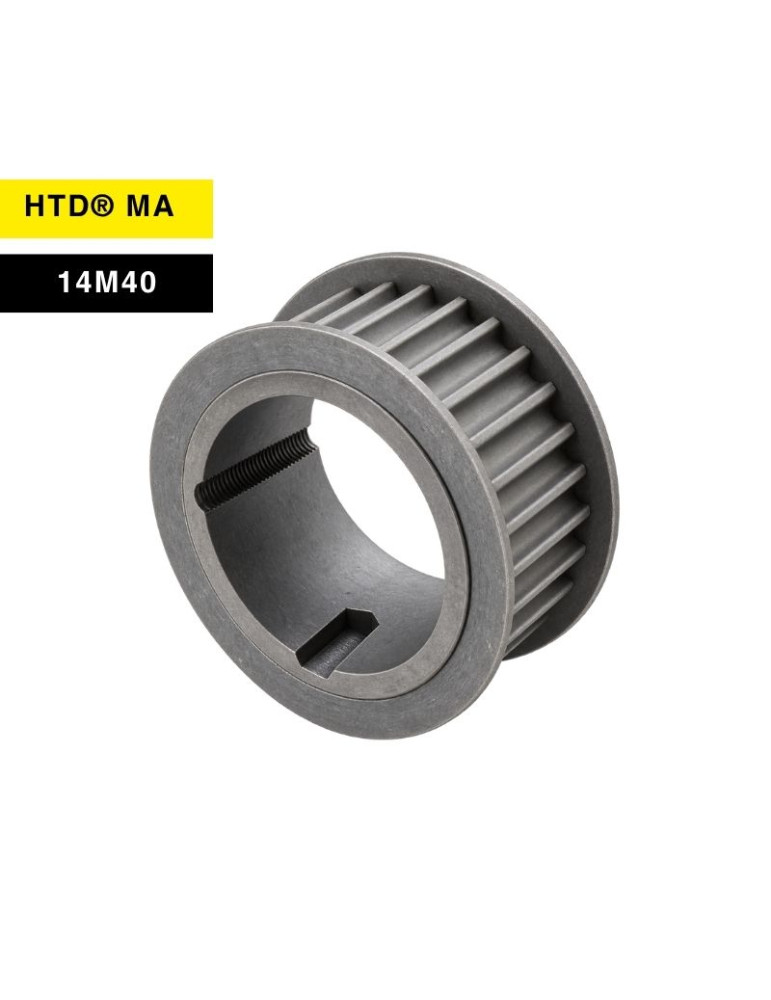

HTD® 14M40 pilot-bore pulley
  • New
HTD® 14M40 pilot-bore pulley

HTD® 14M40 pilot-bore pulley

Description

The HTD® 14M40 timing pulley matches a 14M-profile synchronous belt with a nominal width of 40 mm and a 14 mm pitch.

Comes in 28 to 216 tooth versions, some made to order.

Choose the tooth count and check the bore to be machined along with your mounting dimensions.

Product Details
32-14M40MA
20 Items

Specific References

  • 8054652088369
  • DOM-poulie-MA-14m40
20 people are viewing this right now
DOM
32-14M40MA
20 Items
€0.00
Tax excluded
order: 983
Material: Acier
CHI-Pièce: Poulie
CHI-Version poulie: 14M-40
CHI-type3: 32-14M40
Teeth: 32
Execution: 3F
Dp: 142,6
De: 139,88
Df flange: 154
Dm: -
CHI-Di: 108
CHI-F: 54
N° flange: 160
CHI-Flasque: oui
CHI-M: 6
CHI-Moyeu amovible: MA
CHI-S: 32
CHI-FORO MAX: 50
CHI-BUSS.: 2012
Quantity
Add to Wishlist
Add to Compare

Hurry up! Only 20 item(s) left in Stock!
PULLEYS,  HTD® Pulleys with Removable Hub,  HTD® 14M Timing Pulleys with pilot-bore

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Execution Dp De Df flange Dm Material N° flange Unit price Weight Avail. Buy
28-14M40MA 980 28 3F 124,78 122,12 128 - Acier 153
€30.67
2.287 kg
29-14M40MA 981 29 3F 129,23 126,57 138 - Acier 154
€33.86
0 kg
30-14M40MA 982 30 3F 133,69 139,99 138 - Acier 154
€0.00
2.9 kg
32-14M40MA 983 32 3F 142,6 139,88 154 - Acier 160
€0.00
3.45 kg
34-14M40MA 984 34 3F 151,52 148,79 160 - Acier 166
€53.56
4.138 kg
36-14M40MA 985 36 3F 160,43 157,68 168 - Acier 168
€0.00
4.863 kg
38-14M40MA 986 38 3F 169,34 166,6 183 - Acier 172
€0.00
5.71 kg
40-14M40MA 987 40 3F 178,25 175,49 188 - Acier 162
€78.51
7.75 kg
42-14M40MA 988 42 3F 187,16 184,37 200 - Acier SP
€0.00
7.5 kg
44-14M40MA 989 44 3F 196,08 193,28 211 - Acier 175
€79.08
7.788 kg
48-14M40MA 990 48 3F 213,9 211,11 226 - Acier 180
€79.08
9.947 kg
56-14M40MA 991 56 3F 249,55 246,76 256 - Acier 182
€0.00
13.4 kg
72-14M40MA 992 72 11 320,86 318,06 - 170 fonte -
€0.00
13.682 kg
80-14M40MA 993 80 12 356,51 353,71 - 170 fonte -
€350.64
16 kg
90-14M40MA 994 90 12 401,7 398,28 - 170 fonte -
€353.29
18 kg
112-14M40MA 995 112 12 499,11 496,32 - 170 fonte -
€0.00
22 kg
144-14M40MA 996 144 12 641,71 638,92 - 170 fonte -
€461.62
32 kg
168-14M40MA 997 168 12 748,66 745,87 - 170 fonte -
€0.00
36.5 kg
192-14M40MA 998 192 12 855,62 852,82 - 170 fonte -
€0.00
46.5 kg
216-14M40MA 999 216 12 962,57 959,76 - 170 fonte -
€1,014.08
63.4 kg
264-14M40MA 1000 264 13 1176,47 1173,66 - 230 fonte -
€0.00
91 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
