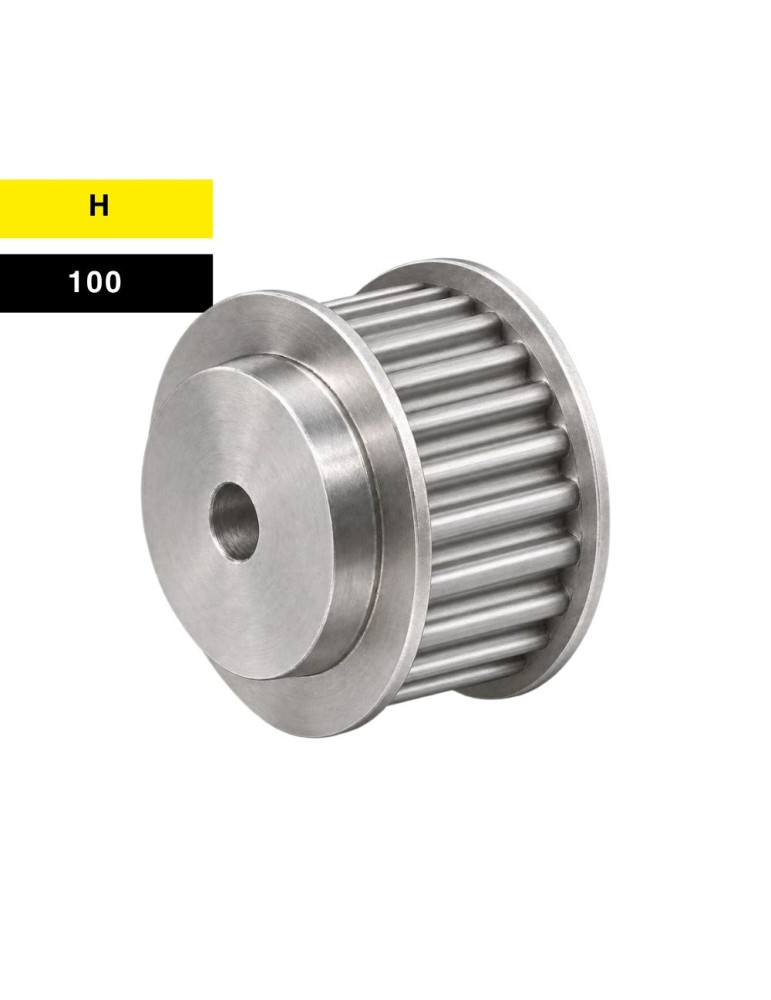

H100 timing pulley
  • New
H100 timing pulley

H100 timing pulley

Description

The H100 timing pulley is designed for a H-profile synchronous belt with 1 in nominal width and 12.7 mm pitch.

Comes in 14 to 120 tooth versions.

Select the tooth count for the required drive ratio, then confirm diameter, finished bore and available shaft space.

Product Details
20H100F
7 Items

Specific References

  • 8054652094292
  • DOM-poulie-h100
19 people are viewing this right now
DOM
20H100F
7 Items
€6.79
Tax excluded
order: 407
Material: Acier
CHI-Pièce: Poulie
CHI-type1: 0H100
CHI-type3: -
Type: 20H100
Teeth: 20

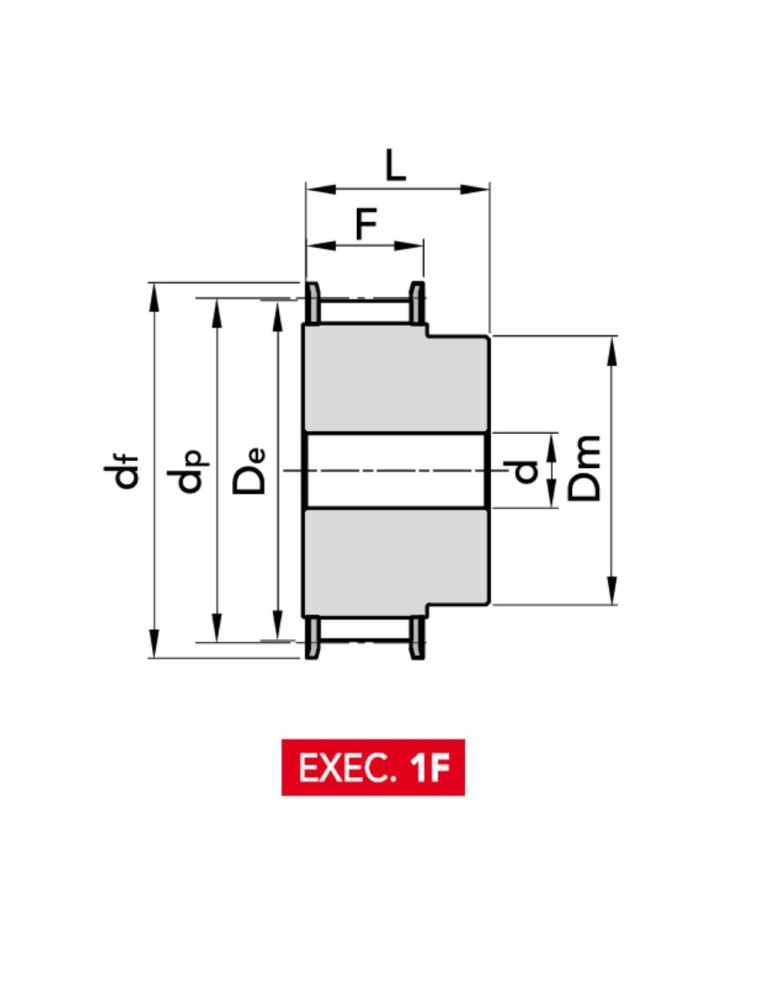

Execution: 1F
Dp: 80,85
De: 79,48
Df flange: 87
Dm: 62
CHI-Di: -
CHI-F: 31,8
CHI-L: 45
d: 14
N° flange: 76
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare
Last items in stock

Hurry up! Only 7 item(s) left in Stock!
PULLEYS,  Timing pulleys with pilot bore,  H-Type Pulleys

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

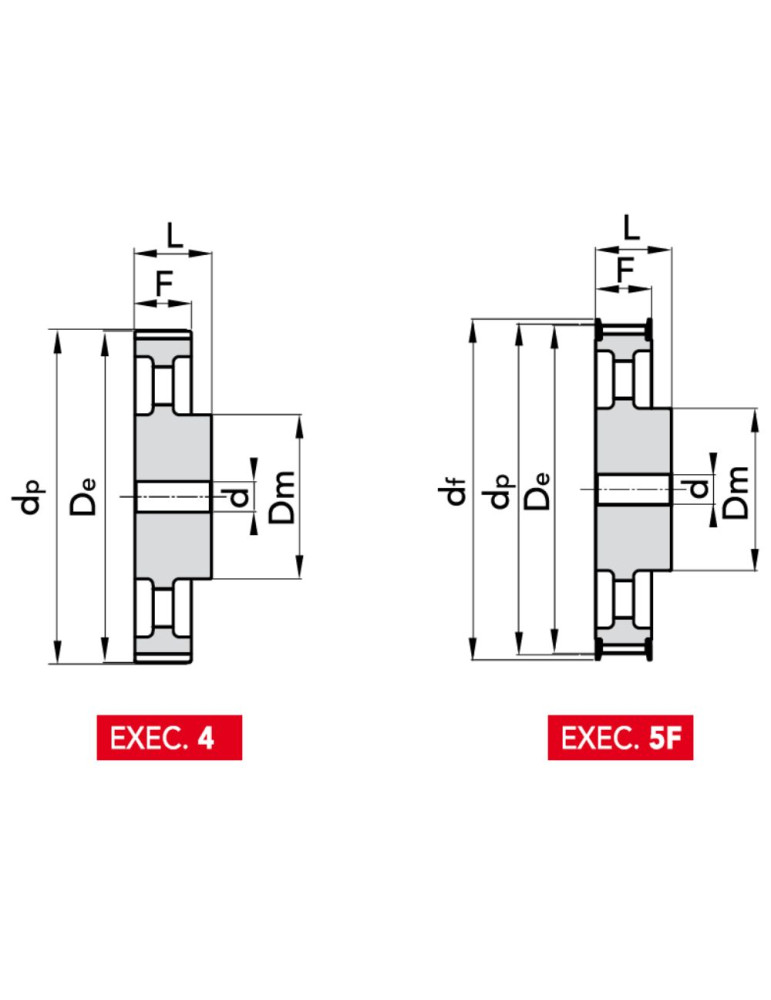

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
14H100F 401 14 14H100 1F 56,59 55,22 64 40 - Acier 59
€6.46
0.685 kg
15H100F 402 15 15H100 1F 60,64 59,27 66,5 45 - Acier 60
€19.31
0.81 kg
16H100F 403 16 16H100 1F 64,67 63,31 70 45 - Acier 61
€15.57
0.892 kg
17H100F 404 17 17H100 1F 68,72 67,35 75 45 - Acier 62
€8.26
0.997 kg
18H100F 405 18 18H100 1F 72,77 71,39 79 55 - Acier 63
€12.24
1.181 kg
19H100F 406 19 19H100 1F 76,81 75,44 82,5 60 14 Acier 64
€19.31
1.284 kg
20H100F 407 20 20H100 1F 80,85 79,48 87 62 14 Acier 76
€6.79
1.428 kg
21H100F 408 21 21H100 1F 84,89 83,52 91 65 14 Acier 66
€12.41
1.58 kg
22H100F 409 22 22H100 1F 88,93 87,56 94 68 14 Acier 67
€12.75
1.73 kg
23H100F 410 23 23H100 1F 92,98 91,61 97 72 14 Acier 68
€11.15
1.92 kg
24H100F 411 24 24H100 1F 97,03 95,65 102 72 14 Acier 70
€19.31
2.066 kg
25H100F 412 25 25H100 1F 101,06 99,69 106 72 14 Acier 71
€0.00
2.212 kg
26H100F 413 26 26H100 1F 105,11 103,73 112 80 14 Acier 72
€18.26
2.468 kg
27H100F 414 27 27H100 1F 109,15 107,78 115 80 14 Acier 74
€0.00
2.641 kg
28H100F 415 28 28H100 1F 113,18 111,82 120 80 14 Acier 75
€19.31
2.807 kg
29H100F 416 29 29H100 1F 117,23 115,86 120 80 14 Acier 75
€0.00
2.97 kg
30H100F 417 30 30H100 1F 121,29 119,9 128 80 14 Acier 78
€29.95
3.174 kg
32H100F 418 32 32H100 1F 129,3 127,99 135 80 14 Acier 80
€16.66
3.566 kg
33H100F 419 33 33H100 1F 133,4 132,03 142 80 14 Acier 81
€0.00
3.774 kg
34H100F 420 34 34H100 1F 137,45 136,07 142 80 14 Acier 81
€0.00
4.011 kg
35H100F 421 35 35H100 1F 141,49 140,12 150 80 14 Acier 85
€41.00
4.193 kg
36H100F 422 36 36H100 1F 145,54 144,16 150 80 14 Acier 85
€11.36
4.401 kg
38H100F 423 38 38H100 1F 153,62 152,24 158 80 14 Acier 86
€0.00
4.858 kg
40H100F 424 40 40H100 1F 161,7 160,33 168 80 14 Acier 90
€49.88
5.349 kg
42H100F 425 42 42H100 1F 169,79 168,41 180 80 14 Acier 94
€47.77
5.9 kg
44H100F 426 44 44H100 5F 177,88 176,5 184 80 14 fonte 95
€37.20
3.883 kg
45H100F 427 45 45H100 5F 181,91 180,54 192 80 14 fonte 96
€0.00
3.879 kg
48H100F 428 48 48H100 5F 194,03 192,67 200 90 14 fonte 100
€0.00
4.421 kg
50H100 429 50 50H100 4 202,13 200,75 - 90 19 fonte -
€37.20
4.335 kg
52H100 430 52 52H100 4 210,21 208,84 - 90 19 fonte -
€0.00
4.74 kg
58H100 431 58 58H100 4 234,47 233,09 - 90 19 fonte -
€0.00
4.187 kg
60H100 432 60 60H100 4 242,55 241,18 - 120 19 fonte -
€0.00
6.484 kg
70H100 433 70 70H100 4 282,98 281,61 - 120 19 fonte -
€0.00
8.14 kg
72H100 434 72 72H100 4 291,06 289,69 - 120 19 fonte -
€56.64
8.315 kg
84H100 435 84 84H100 4 339,57 338,2 - 120 19 fonte -
€0.00
8.171 kg
96H100 436 96 96H100 4 388,09 386,71 - 120 19 fonte -
€0.00
10.591 kg
120H100 437 120 120H100 4 485,12 483,73 - 120 19 fonte -
€0.00
12.681 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
