Description

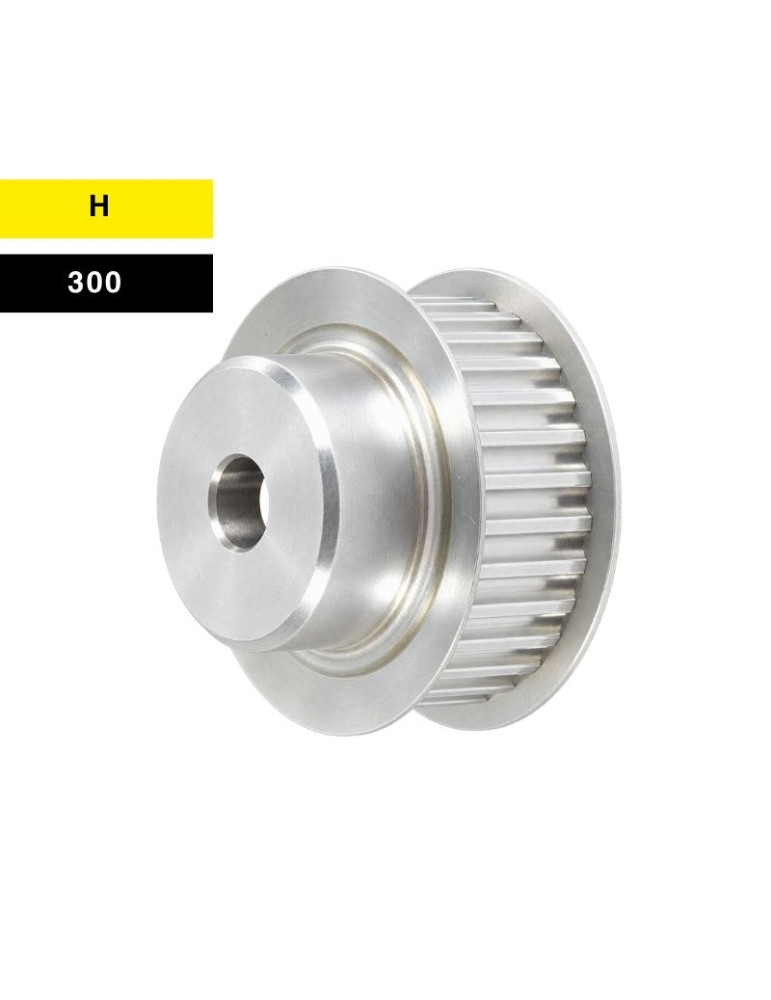

The H300 timing pulley is designed for a H-profile synchronous belt with 3 in nominal width and 12.7 mm pitch.

Comes in 14 to 120 tooth versions.

Before ordering, match the selected teeth to your belt and check pitch diameter, final bore machining and mounting dimensions.

Product Details

Reference 120H300

Specific References

ean13 8054652096968
MPN poulie-dentee-h300

17 people are viewing this right now

€432.67

Tax excluded

order: 544

Material: fonte

CHI-Pièce: Poulie

CHI-type1: 0H300

CHI-type3: -

Type: 120H300

Teeth: 120

Execution: 4

Dp: 485,12

De: 483,73

Df flange: -

Dm: 120

CHI-Di: -

CHI-F: 85,7

CHI-L: 100

d: 28

N° flange: -

CHI-Flasque: non

Quantity

Add to Wishlist

Add to Compare

Sorry, no items left.

Categories: PULLEYS, Timing pulleys with pilot bore, H-Type Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
14H300F	512	14	14H300	1F	56,59	55,22	64	42	-	acier	59	€13.69	1.63 kg	Sum.: Sum.:
15H300F	513	15	15H300	1F	60,64	59,27	66,5	45	-	acier	60	€15.42	1.89 kg	Sum.: Sum.:
16H300F	514	16	16H300	1F	64,67	63,31	70	45	-	acier	61	€17.29	2.133 kg	Sum.: Sum.:
17H300F	515	17	17H300	1F	68,72	67,35	75	45	-	acier	62	€17.91	2.41 kg	Sum.: Sum.:
18H300F	516	18	18H300	1F	72,77	71,39	79	55	-	acier	63	€19.69	2.773 kg	Sum.: Sum.:
19H300F	517	19	19H300	1F	76,81	75,44	82,5	60	-	acier	64	€22.03	3.125 kg	Sum.: Sum.:
20H300F	518	20	20H300	1F	80,85	79,48	87	62	-	acier	76	€24.20	3.47 kg	Sum.: Sum.:
21H300F	519	21	21H300	1F	84,89	83,52	91	65	-	acier	66	€26.71	3.645 kg	Sum.: Sum.:
22H300F	520	22	22H300	1F	88,93	87,56	94	68	-	acier	67	€27.53	4.224 kg	Sum.: Sum.:
23H300F	521	23	23H300	1F	92,98	91,61	97	72	-	acier	68	€30.11	4.628 kg	Sum.: Sum.:
24H300F	522	24	24H300	1F	97,03	95,65	102	72	-	acier	70	€33.15	5.03 kg	Sum.: Sum.:
25H300F	523	25	25H300	1F	101,06	99,69	106	72	-	acier	71	€36.05	5.432 kg	Sum.: Sum.:
26H300F	524	26	26H300	1F	105,11	103,73	112	80	-	acier	72	€39.44	5.975 kg	Sum.: Sum.:
27H300F	525	27	27H300	1F	109,15	107,78	115	80	-	acier	74	€40.23	5.971 kg	Sum.: Sum.:
28H300F	526	28	28H300	1F	113,18	111,82	120	80	-	acier	75	€43.45	6.889 kg	Sum.: Sum.:
30H300F	527	30	30H300	1F	121,29	119,9	128	80	-	acier	78	€50.12	7.85 kg	Sum.: Sum.:
32H300F	528	32	32H300	1F	129,3	127,99	135	80	-	acier	80	€56.41	8.868 kg	Sum.: Sum.:
33H300F	529	33	33H300	1F	133,4	132,03	142	80	-	acier	81	€58.87	9.425 kg	Sum.: Sum.:
34H300F	530	34	34H300	1F	137,45	136,07	142	80	-	acier	81	€62.03	9.956 kg	Sum.: Sum.:
35H300F	531	35	35H300	1F	141,49	140,12	150	80	-	acier	85	€66.86	10.586 kg	Sum.: Sum.:
36H300F	532	36	36H300	1F	145,54	144,16	150	80	-	acier	85	€67.09	11.155 kg	Sum.: Sum.:
38H300F	533	38	38H300	1F	153,62	152,24	158	80	-	acier	86	€74.76	12.382 kg	Sum.: Sum.:
40H300F	534	40	40H300	1F	161,7	160,33	168	80	-	acier	90	€82.22	13.723 kg	Sum.: Sum.:
42H300F	535	42	42H300	1F	169,79	168,41	180	80	-	acier	94	€88.07	15.108 kg	Sum.: Sum.:
44H300	536	44	44H300	4	177,88	176,5	-	80	24	fonte	-	€124.47	7.63 kg	Sum.: Sum.:
48H300	537	48	48H300	4	194,03	192,67	-	90	24	fonte	-	€145.04	9.593 kg	Sum.: Sum.:
50H300	538	50	50H300	4	202,13	200,75	-	90	24	fonte	-	€134.71	9.712 kg	Sum.: Sum.:
58H300	539	58	58H300	4	234,47	233,09	-	90	24	fonte	-	€167.10	11.432 kg	Sum.: Sum.:
60H300	540	60	60H300	4	242,55	241,18	-	120	24	fonte	-	€188.17	14.915 kg	Sum.: Sum.:
72H300	541	72	72H300	4	291,06	289,69	-	120	28	fonte	-	€228.70	15.35 kg	Sum.: Sum.:
84H300	542	84	84H300	4	339,57	338,2	-	120	28	fonte	-	€272.50	20.761 kg	Sum.: Sum.:
96H300	543	96	96H300	4	388,09	386,71	-	120	28	fonte	-	€316.80	21.158 kg	Sum.: Sum.:
120H300	544	120	120H300	4	485,12	483,73	-	120	28	fonte	-	€432.67	25.667 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
