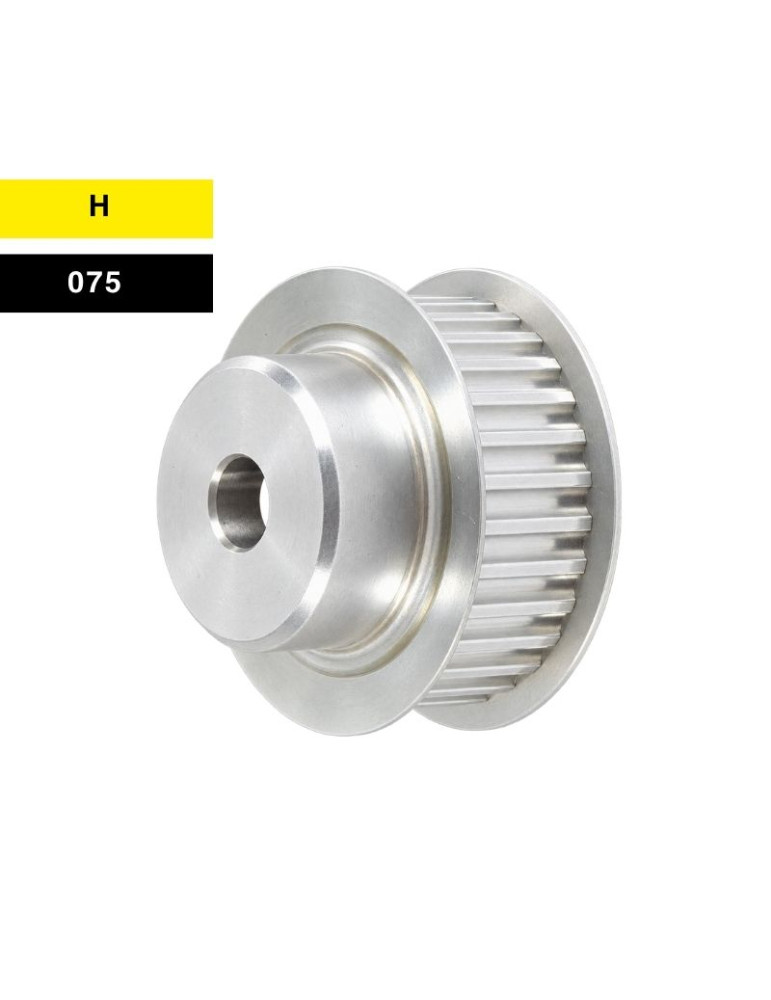

H075 timing pulley

Description

The H075 timing pulley is designed for a H-profile synchronous belt with 0.75 in nominal width and 12.7 mm pitch.

Comes in 14 to 50 tooth versions.

Select the tooth count for the required drive ratio, then confirm diameter, finished bore and available shaft space.

Product Details

Reference 14H075F

In stock 29 Items

Specific References

ean13 8054652093967
MPN poulie-dentee-h075

15 people are viewing this right now

€6.41

Tax excluded

order: 374

Material: acier

CHI-Pièce: Poulie

CHI-type1: 4H075

CHI-type3: -

Type: 14H075

Teeth: 14

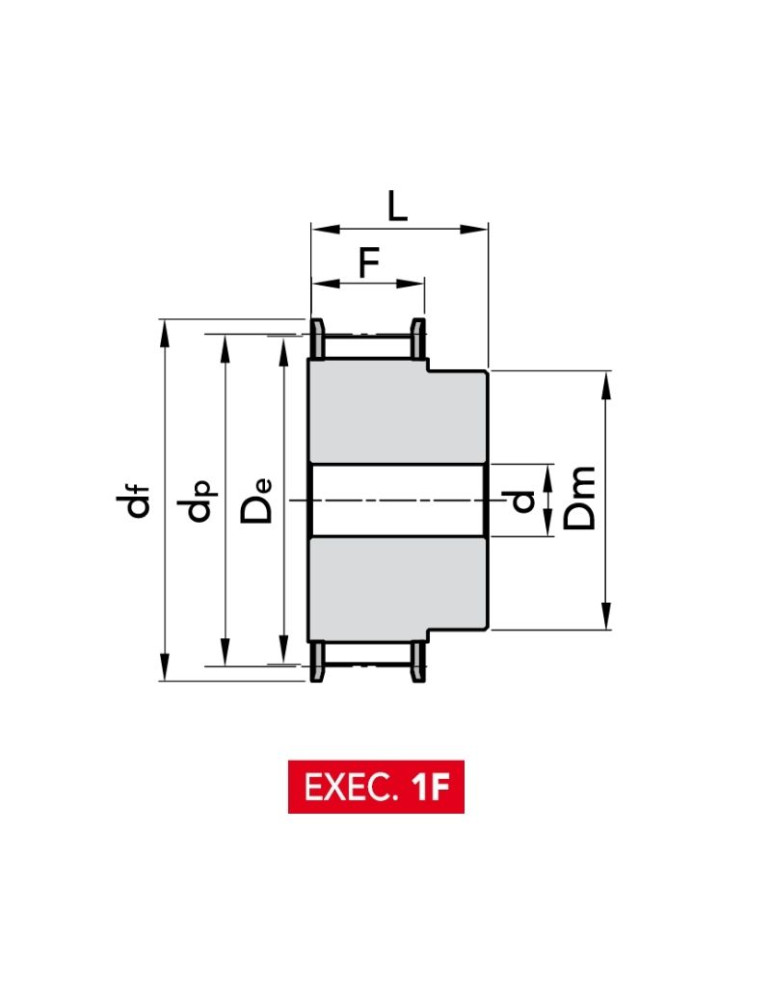

Execution: 1F

Dp: 56,59

De: 55,22

Df flange: 64

Dm: 40

CHI-Di: -

CHI-F: 26,4

CHI-L: 40

d: -

N° flange: 59

CHI-Flasque: oui

Quantity

Add to Wishlist

Add to Compare

Hurry up! Only 29 item(s) left in Stock!

Categories: PULLEYS, Timing pulleys with pilot bore, H-Type Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
14H075F	374	14	14H075	1F	56,59	55,22	64	40	-	acier	59	€6.41	0.594 kg	Sum.: Sum.:
15H075F	375	15	15H075	1F	60,64	59,27	66,5	45	-	acier	60	€7.17	0.703 kg	Sum.: Sum.:
16H075F	376	16	16H075	1F	64,67	63,31	70	45	-	acier	61	€7.96	0.777 kg	Sum.: Sum.:
17H075F	377	17	17H075	1F	68,72	67,35	75	45	-	acier	62	€8.22	0.864 kg	Sum.: Sum.:
18H075F	378	18	18H075	1F	72,77	71,39	79	55	-	acier	63	€9.07	1.029 kg	Sum.: Sum.:
19H075F	379	19	19H075	1F	76,81	75,44	82,5	60	11	acier	64	€10.30	1.14 kg	Sum.: Sum.:
20H075F	380	20	20H075	1F	80,85	79,48	87	62	11	acier	76	€11.12	1.267 kg	Sum.: Sum.:
21H075F	381	21	21H075	1F	84,89	83,52	91	65	11	acier	66	€12.29	1.429 kg	Sum.: Sum.:
22H075F	382	22	22H075	1F	88,93	87,56	94	68	11	acier	67	€12.64	1.538 kg	Sum.: Sum.:
23H075F	383	23	23H075	1F	92,98	91,61	97	72	11	acier	68	€13.64	1.695 kg	Sum.: Sum.:
24H075F	384	24	24H075	1F	97,03	95,65	102	72	11	acier	70	€14.92	1.821 kg	Sum.: Sum.:
25H075F	385	25	25H075	1F	101,06	99,69	106	72	11	acier	71	€16.24	1.941 kg	Sum.: Sum.:
26H075F	386	26	26H075	1F	105,11	103,73	112	80	11	acier	72	€17.73	2.187 kg	Sum.: Sum.:
27H075F	387	27	27H075	1F	109,15	107,78	115	80	11	acier	74	€18.02	2.312 kg	Sum.: Sum.:
28H075F	388	28	28H075	1F	113,18	111,82	120	80	11	acier	75	€19.37	2.466 kg	Sum.: Sum.:
30H075F	389	30	30H075	1F	121,29	119,9	128	80	11	acier	78	€22.09	2.753 kg	Sum.: Sum.:
32H075F	390	32	32H075	1F	129,3	127,99	135	80	11	acier	80	€24.81	3.072 kg	Sum.: Sum.:
33H075F	391	33	33H075	1F	133,4	132,03	142	80	11	acier	81	€26.42	3.244 kg	Sum.: Sum.:
34H075F	392	34	34H075	1F	137,45	136,07	142	80	11	acier	81	€27.77	3.395 kg	Sum.: Sum.:
35H075F	393	35	35H075	1F	141,49	140,12	150	80	11	acier	85	€30.31	3.614 kg	Sum.: Sum.:
36H075F	394	36	36H075	1F	145,54	144,16	150	80	11	acier	85	€31.89	3.764 kg	Sum.: Sum.:
38H075F	395	38	38H075	1F	153,62	152,24	158	80	11	acier	86	€35.23	4.139 kg	Sum.: Sum.:
40H075F	396	40	40H075	1F	161,7	160,33	168	80	11	acier	90	€39.82	4.59 kg	Sum.: Sum.:
42H075F	397	42	42H075	1F	169,79	168,41	184	80	11	acier	94	€42.16	5.006 kg	Sum.: Sum.:

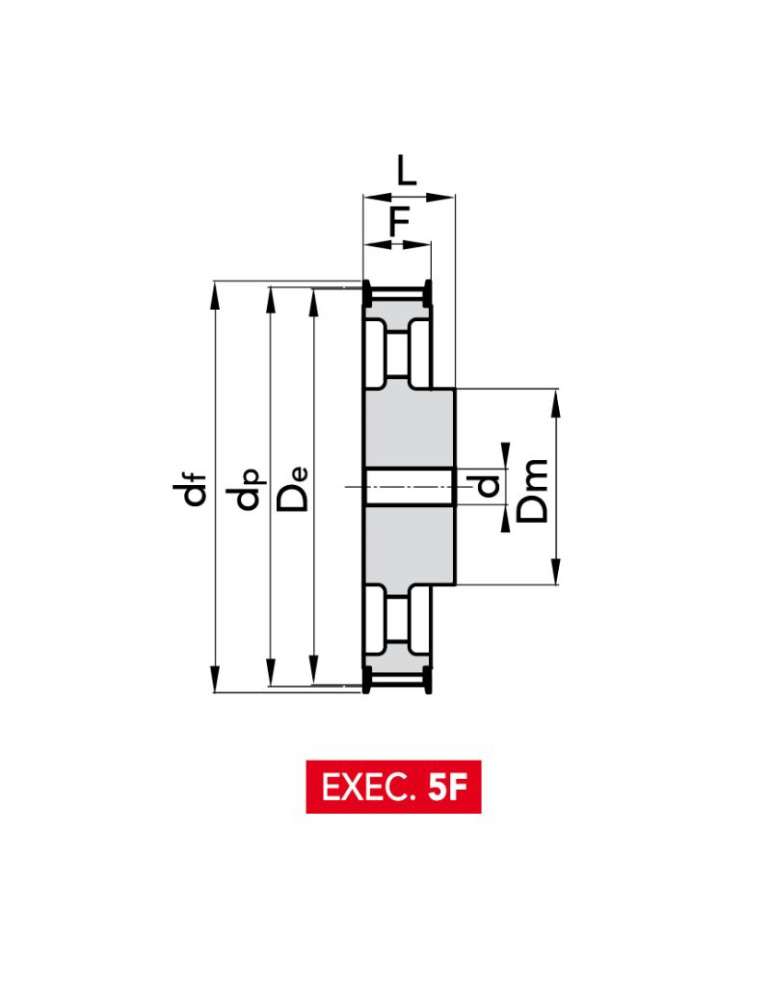

44H075F	398	44	44H075	5F	177,8	176,5	184	80	14	fonte	95	€53.58	3.42 kg	Sum.: Sum.:
48H075F	399	48	48H075	5F	194,03	192,67	200	90	14	fonte	100	€66.48	4.122 kg	Sum.: Sum.:

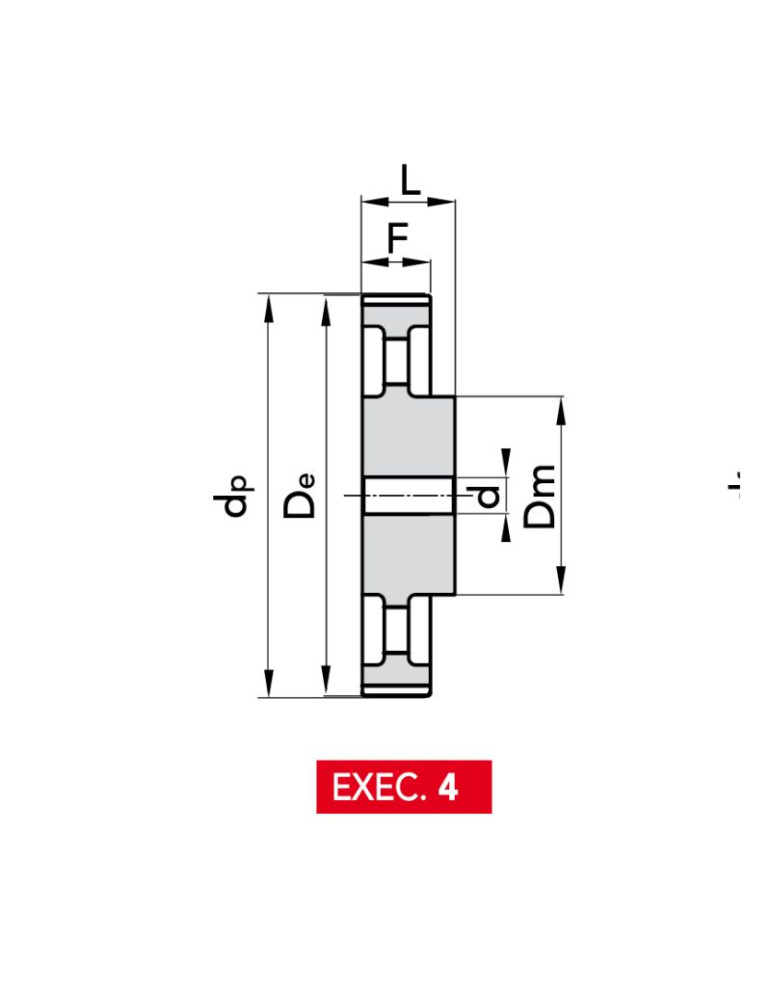

50H075	400	50	50H075	4	202,13	200,75	-	90	14	fonte	-	€63.52	3.25 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
