Description

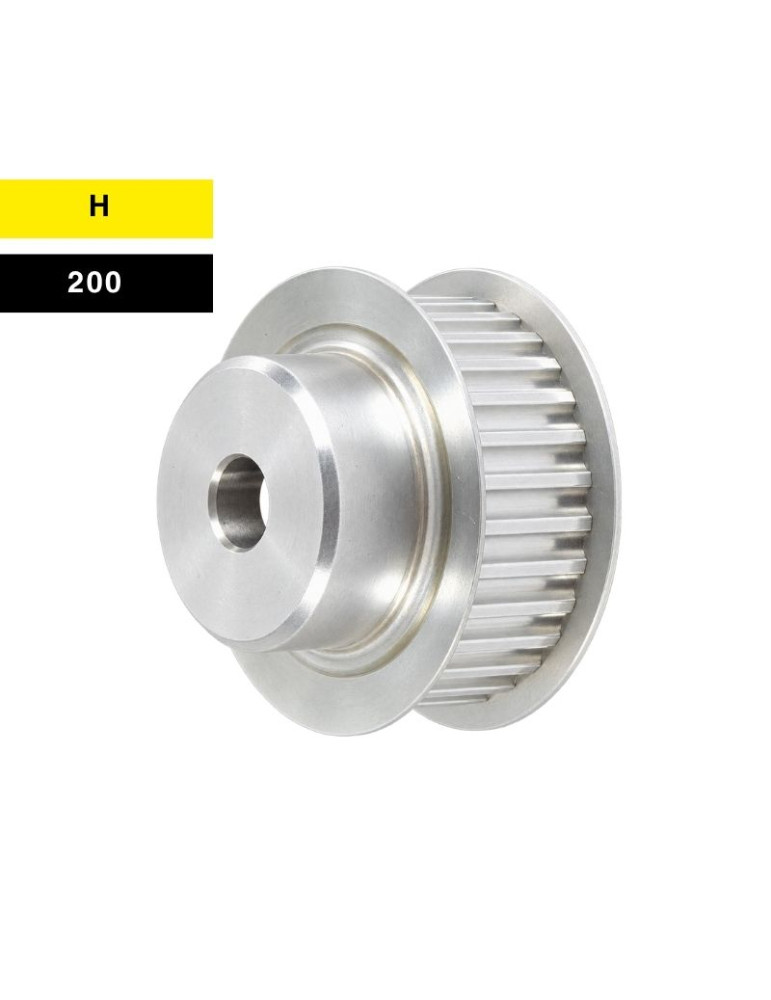

The H200 timing pulley is designed for a H-profile synchronous belt with 2 in nominal width and 12.7 mm pitch.

Comes in 14 to 120 tooth versions.

Select the tooth count for the required drive ratio, then confirm diameter, finished bore and available shaft space.

Product Details

Reference 30H200F

In stock 1 Items

Specific References

ean13 8054652096005
MPN poulie-dentee-h200

20 people are viewing this right now

€35.99

Tax excluded

order: 491

Material: acier

CHI-Pièce: Poulie

CHI-type1: 0H200

CHI-type3: -

Type: 30H200

Teeth: 30

Execution: 1F

Dp: 121,29

De: 119,9

Df flange: 128

Dm: 80

CHI-Di: -

CHI-F: 58,7

CHI-L: 70

d: -

N° flange: 78

CHI-Flasque: oui

Quantity

Add to Wishlist

Add to Compare

Last items in stock

Hurry up! Only 1 item(s) left in Stock!

Categories: PULLEYS, Timing pulleys with pilot bore, H-Type Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
14H200F	475	14	14H200	1F	56,59	55,22	64	40	-	acier	59	€10.07	1.125 kg	Sum.: Sum.:
15H200F	476	15	15H200	1F	60,64	59,27	66,5	45	-	acier	60	€11.18	1.318 kg	Sum.: Sum.:
16H200F	477	16	16H200	1F	64,67	63,31	70	45	-	acier	61	€12.58	1.484 kg	Sum.: Sum.:
17H200F	478	17	17H200	1F	68,72	67,35	75	45	-	acier	62	€13.02	1.672 kg	Sum.: Sum.:
18H200F	479	18	18H200	1F	72,77	71,39	79	55	-	acier	63	€14.40	1.929 kg	Sum.: Sum.:
19H200F	480	19	19H200	1F	76,81	75,44	82,5	60	-	acier	64	€16.12	2.177 kg	Sum.: Sum.:
20H200F	481	20	20H200	1F	80,85	79,48	87	62	-	acier	76	€17.59	2.427 kg	Sum.: Sum.:
21H200F	482	21	21H200	1F	84,89	83,52	91	65	-	acier	66	€19.49	2.68 kg	Sum.: Sum.:
22H200F	483	22	22H200	1F	88,93	87,56	94	68	-	acier	67	€19.98	2.94 kg	Sum.: Sum.:
23H200F	484	23	23H200	1F	92,98	91,61	97	72	-	acier	68	€21.86	3.079 kg	Sum.: Sum.:
24H200F	485	24	24H200	1F	97,03	95,65	102	72	-	acier	70	€23.99	3.49 kg	Sum.: Sum.:
25H200F	486	25	25H200	1F	101,06	99,69	106	72	-	acier	71	€26.04	3.774 kg	Sum.: Sum.:
26H200F	487	26	26H200	1F	105,11	103,73	112	80	-	acier	72	€28.47	4.162 kg	Sum.: Sum.:
27H200F	488	27	27H200	1F	109,15	107,78	115	80	-	acier	74	€29.06	4.45 kg	Sum.: Sum.:
28H200F	489	28	28H200	1F	113,18	111,82	120	80	-	acier	75	€31.31	4.776 kg	Sum.: Sum.:
29H200F	490	29	29H200	1F	117,23	115,86	120	80	-	acier	75	€33.65	4.919 kg	Sum.: Sum.:
30H200F	491	30	30H200	1F	121,29	119,9	128	80	-	acier	78	€35.99	5.447 kg	Sum.: Sum.:
32H200F	492	32	32H200	1F	129,3	127,99	135	80	-	acier	80	€40.67	1 kg	Sum.: Sum.:
33H200F	493	33	33H200	1F	133,4	132,03	142	80	-	acier	81	€42.40	6.52 kg	Sum.: Sum.:
34H200F	494	34	34H200	1F	137,45	136,07	142	80	-	acier	81	€44.62	6.877 kg	Sum.: Sum.:
35H200F	495	35	35H200	1F	141,49	140,12	150	80	-	acier	85	€48.02	7.333 kg	Sum.: Sum.:
36H200F	496	36	36H200	1F	145,54	144,16	150	80	-	acier	85	€48.40	7.703 kg	Sum.: Sum.:
38H200F	497	38	38H200	1F	153,62	152,24	158	80	-	acier	86	€54.07	8.555 kg	Sum.: Sum.:
40H200F	498	40	40H200	1F	161,7	160,33	168	80	-	acier	90	€60.54	9.454 kg	Sum.: Sum.:
42H200F	499	42	42H200	1F	169,79	168,41	180	80	-	acier	94	€63.70	10.61 kg	Sum.: Sum.:
44H200F	500	44	44H200	5F	177,88	176,5	184	80	19	fonte	95	€91.29	5.882 kg	Sum.: Sum.:
45H200F	501	45	45H200	5F	181,91	180,54	192	80	19	fonte	96	€95.12	6.213 kg	Sum.: Sum.:
48H200F	502	48	48H200	5F	194,03	192,67	200	90	24	fonte	100	€109.14	7.052 kg	Sum.: Sum.:
50H200	503	50	50H200	4	202,13	200,75	-	90	24	fonte	-	€96.82	6.688 kg	Sum.: Sum.:
52H200	504	52	52H200	4	210,21	208,84	-	90	24	fonte	-	€101.24	6.948 kg	Sum.: Sum.:
58H200	505	58	58H200	4	234,47	233,09	-	90	24	fonte	-	€118.18	6.534 kg	Sum.: Sum.:
60H200	506	60	60H200	4	242,55	241,18	-	120	24	fonte	-	€138.49	9.469 kg	Sum.: Sum.:
70H200	507	70	70H200	4	282,98	281,61	-	120	28	fonte	-	€163.48	10.808 kg	Sum.: Sum.:
72H200	508	72	72H200	4	291,06	289,69	-	120	28	fonte	-	€168.07	10.713 kg	Sum.: Sum.:
84H200	509	84	84H200	4	339,57	338,2	-	120	28	fonte	-	€199.44	14.76 kg	Sum.: Sum.:
96H200	510	96	96H200	4	388,09	386,71	-	120	28	fonte	-	€235.19	14.83 kg	Sum.: Sum.:
120H200	511	120	120H200	4	485,12	483,73	-	120	28	fonte	-	€317.35	21.46 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
