Description

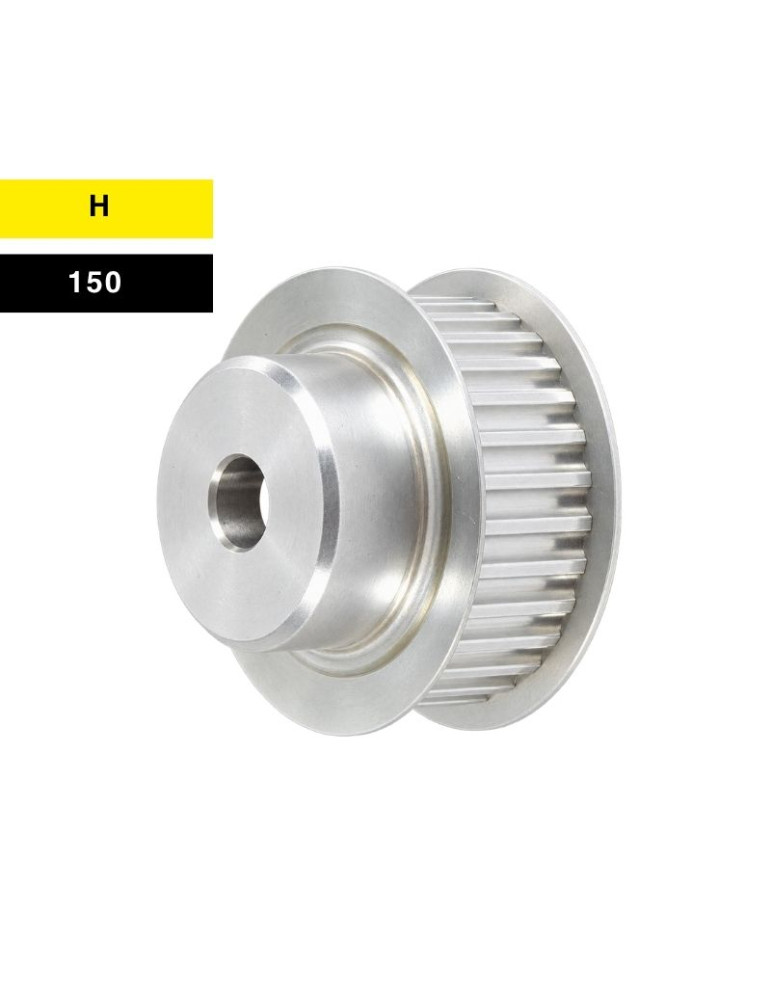

The H150 timing pulley is designed for a H-profile synchronous belt with 1.5 in nominal width and 12.7 mm pitch.

Comes in 14 to 120 tooth versions.

Before ordering, match the selected teeth to your belt and check pitch diameter, final bore machining and mounting dimensions.

Product Details

Reference 14H150F

In stock 8 Items

Specific References

ean13 8054652095046
MPN poulie-dentee-h150

20 people are viewing this right now

€8.51

Tax excluded

order: 438

Material: acier

CHI-Pièce: Poulie

CHI-type1: 4H150

CHI-type3: -

Type: 14H150

Teeth: 14

Execution: 1F

Dp: 56,59

De: 55,22

Df flange: 64

Dm: 42

CHI-Di: -

CHI-F: 46

CHI-L: 58

d: -

N° flange: 59

CHI-Flasque: oui

Quantity

Add to Wishlist

Add to Compare

Last items in stock

Hurry up! Only 8 item(s) left in Stock!

Categories: PULLEYS, Timing pulleys with pilot bore, H-Type Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
14H150F	438	14	14H150	1F	56,59	55,22	64	42	-	acier	59	€8.51	0.95 kg	Sum.: Sum.:
15H150F	439	15	15H150	1F	60,64	59,27	66,5	45	-	acier	60	€9.57	0.97 kg	Sum.: Sum.:
16H150F	440	16	16H150	1F	64,67	63,31	70	45	-	acier	61	€10.68	1.05 kg	Sum.: Sum.:
17H150F	441	17	17H150	1F	68,72	67,35	75	45	-	acier	62	€11.06	1.262 kg	Sum.: Sum.:
18H150F	442	18	18H150	1F	72,77	71,39	79	55	-	acier	63	€12.23	1.577 kg	Sum.: Sum.:
19H150F	443	19	19H150	1F	76,81	75,44	82,5	60	-	acier	64	€13.64	1.77 kg	Sum.: Sum.:
20H150F	444	20	20H150	1F	80,85	79,48	87	62	-	acier	76	€14.92	1.975 kg	Sum.: Sum.:
21H150F	445	21	21H150	1F	84,89	83,52	91	65	-	acier	66	€16.53	2.181 kg	Sum.: Sum.:
22H150F	446	22	22H150	1F	88,93	87,56	94	68	-	acier	67	€16.97	2.397 kg	Sum.: Sum.:
23H150F	447	23	23H150	1F	92,98	91,61	97	72	-	acier	68	€18.52	2.635 kg	Sum.: Sum.:
24H150F	448	24	24H150	1F	97,03	95,65	102	72	-	acier	70	€20.31	2.939 kg	Sum.: Sum.:
25H150F	449	25	25H150	1F	101,06	99,69	106	72	-	acier	71	€22.09	3.065 kg	Sum.: Sum.:
26H150F	450	26	26H150	1F	105,11	103,73	112	80	-	acier	72	€24.20	3.382 kg	Sum.: Sum.:
27H150F	451	27	27H150	1F	109,15	107,78	115	80	-	acier	74	€24.49	3.618 kg	Sum.: Sum.:
28H150F	452	28	28H150	1F	113,18	111,82	120	80	-	acier	75	€26.42	3.852 kg	Sum.: Sum.:
29H150F	453	29	29H150	1F	117,23	115,86	120	80	-	acier	75	€28.38	4.152 kg	Sum.: Sum.:
30H150F	454	30	30H150	1F	121,29	119,9	128	80	-	acier	78	€30.31	4.39 kg	Sum.: Sum.:
32H150F	455	32	32H150	1F	129,3	127,99	135	80	-	acier	80	€34.26	4.957 kg	Sum.: Sum.:
33H150F	456	33	33H150	1F	133,4	132,03	142	80	-	acier	81	€35.67	5.22 kg	Sum.: Sum.:
34H150F	457	34	34H150	1F	137,45	136,07	142	80	-	acier	81	€37.60	5.529 kg	Sum.: Sum.:
35H150F	458	35	35H150	1F	141,49	140,12	150	80	-	acier	85	€40.91	5.87 kg	Sum.: Sum.:
36H150F	459	36	36H150	1F	145,54	144,16	150	80	-	acier	85	€41.23	6.141 kg	Sum.: Sum.:
38H150F	460	38	38H150	1F	153,62	152,24	158	80	-	acier	86	€46.11	6.816 kg	Sum.: Sum.:
40H150F	461	40	40H150	1F	161,7	160,33	168	80	-	acier	90	€51.47	7.563 kg	Sum.: Sum.:
42H150F	462	42	42H150	1F	169,79	168,41	180	80	-	acier	94	€55.74	8.329 kg	Sum.: Sum.:
44H150F	463	44	44H150	5F	177,88	176,5	184	80	19	fonte	95	€76.66	4.865 kg	Sum.: Sum.:
45H150F	464	45	45H150	5F	181,91	180,54	192	80	19	fonte	96	€84.44	4.813 kg	Sum.: Sum.:
48H150F	465	48	48H150	5F	194,03	192,67	200	90	19	fonte	100	€90.35	5.858 kg	Sum.: Sum.:
50H150	466	50	50H150	4	202,13	200,75	-	90	19	fonte	-	€82.10	6.12 kg	Sum.: Sum.:
52H150	467	52	52H150	4	210,21	208,84	-	90	19	fonte	-	€85.64	6.746 kg	Sum.: Sum.:
58H150	468	58	58H150	4	234,47	233,09	-	90	19	fonte	-	€98.75	5.87 kg	Sum.: Sum.:
60H150	469	60	60H150	4	242,55	241,18	-	120	19	fonte	-	€115.96	8.86 kg	Sum.: Sum.:
70H150	470	70	70H150	4	282,98	281,61	-	120	24	fonte	-	€136.97	9.519 kg	Sum.: Sum.:
72H150	471	72	72H150	4	291,06	289,69	-	120	24	fonte	-	€140.57	10.125 kg	Sum.: Sum.:
84H150	472	84	84H150	4	339,57	338,2	-	120	24	fonte	-	€163.65	11.751 kg	Sum.: Sum.:
96H150	473	96	96H150	4	388,09	386,71	-	120	24	fonte	-	€190.28	14.82 kg	Sum.: Sum.:
120H150	474	120	120H150	4	485,12	483,73	-	120	24	fonte	-	€250.32	16.023 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
