CONVEYOR COMPONENTS
Guide rail clamp
Description
Product Details
Attachments

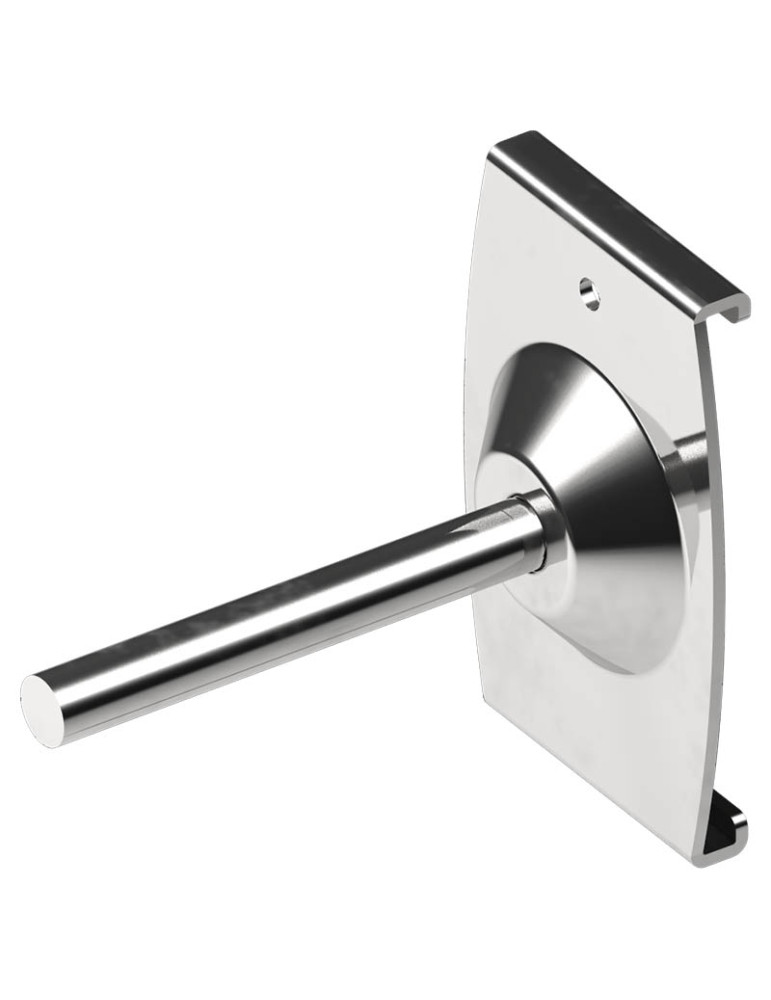

Clamp, threaded pin, washer and nut in stainless steel AISI 304, with or without pin.

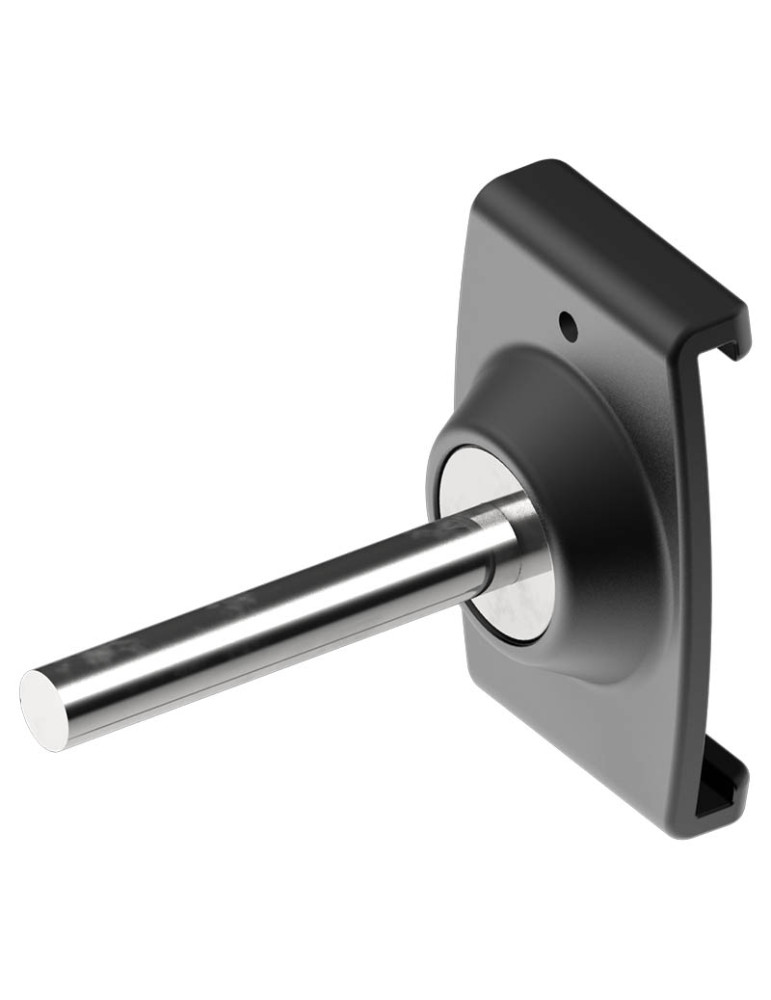

In stainless steel 304 (ref. 531 and 427) or in reinforced polyamide (ref. 434).
Threaded pin, washer and nut in stainless steel :

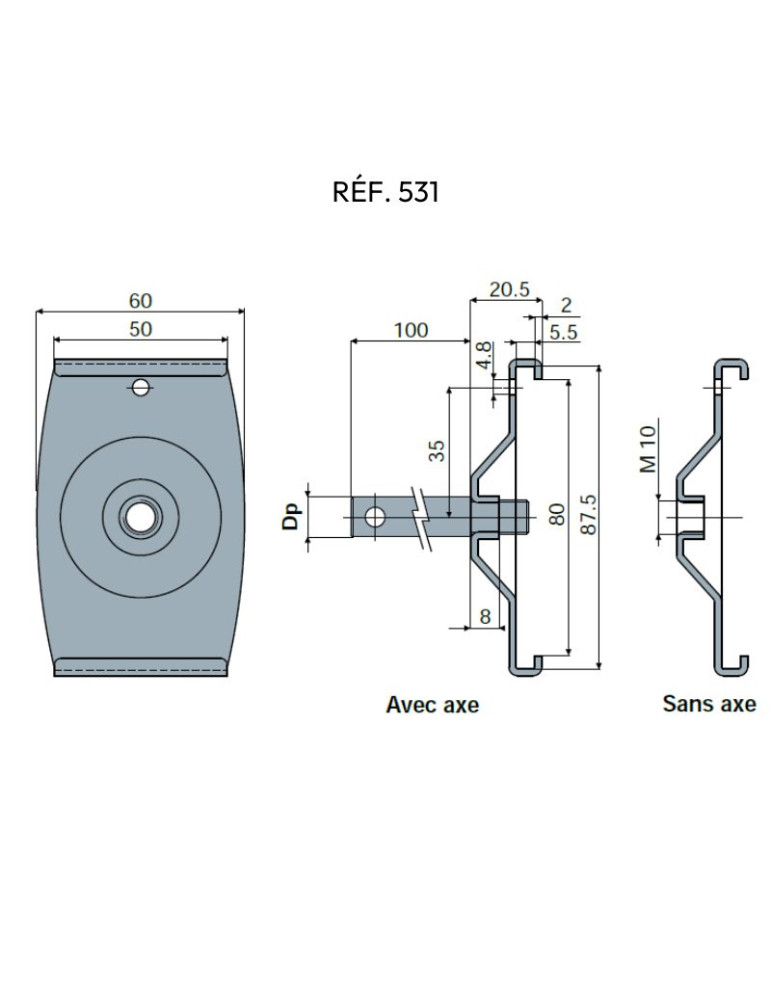

- Part 531 to be used with side guide Part. 528.

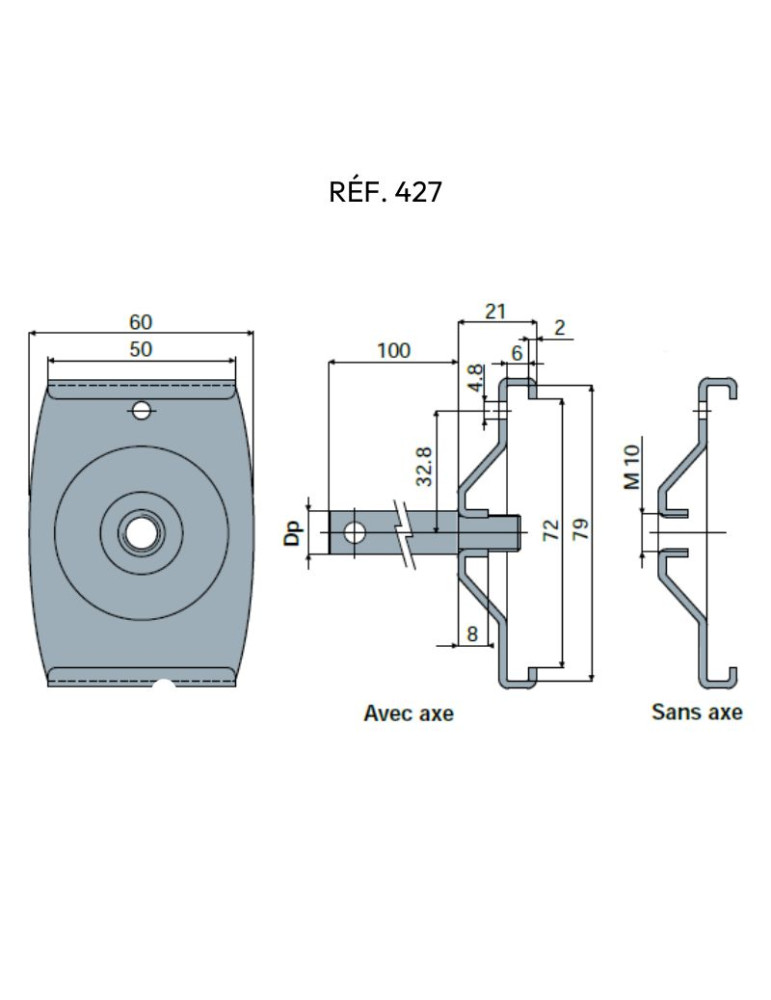

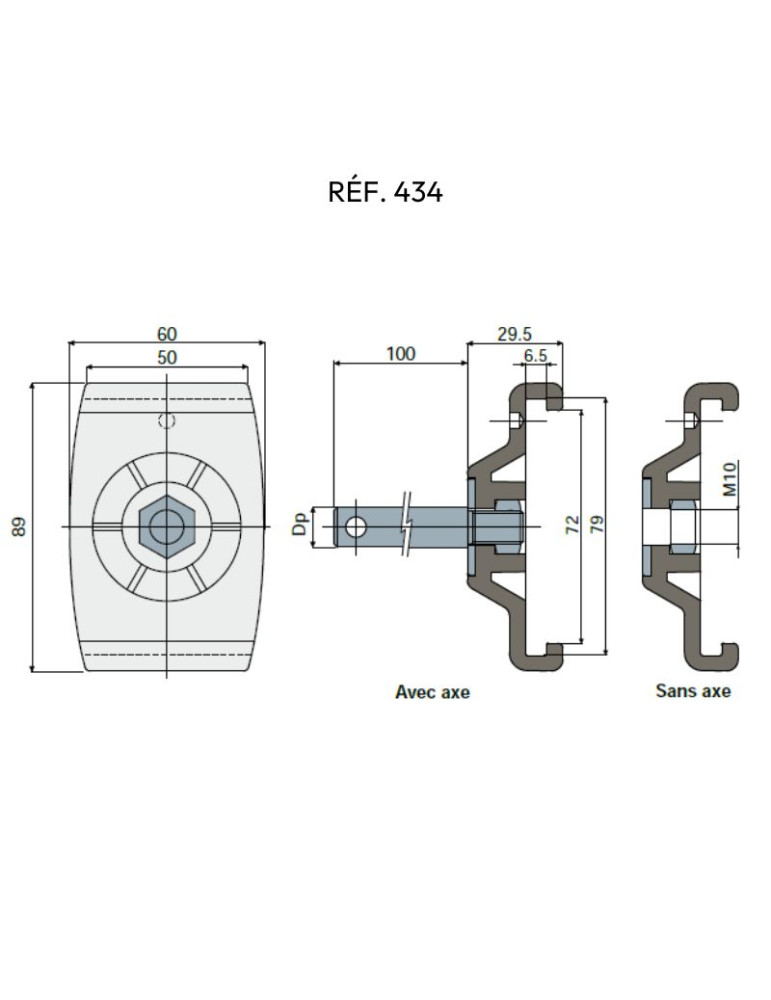

- Part 427 & 434 to be used with side guides Part. 425, 426, 463

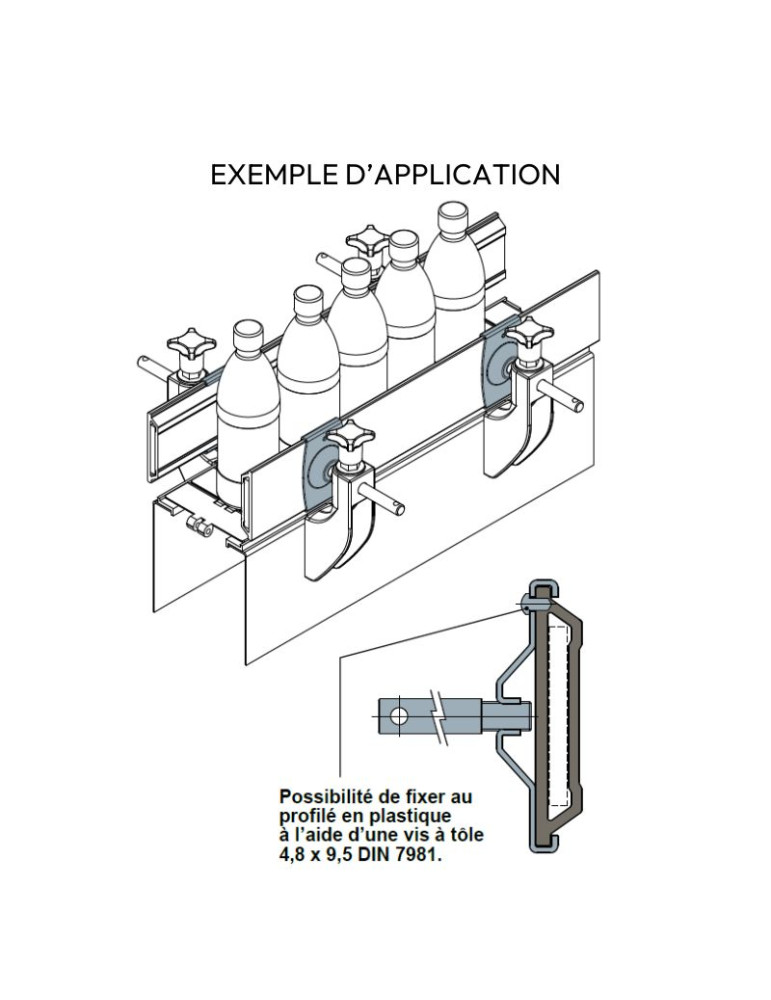

Possibility to attach to the plastic profile using a plate screw 4,8 x 9,5 DIN 7981.
ON REQUEST
Assembling of: Pins, washers and nuts.
434/85100
2026-10-24
Specific References
- CC-etau427-531-434
Choose product attributes:
Immediate stock
Platform stock *Prix HT hors frais d’envoi
| Ref. | order | Material | Type | Dimensions | Dp Diameter axis (mm) | Compatible | Unit price | Weight | Avail. | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| 531/87758 | 1 | Inox 304 | Avec axe | 87,5X20,5 | 12 | 528 |
€29.26
|
0.205 kg |
|
|
| 531/87759 | 2 | Inox 304 | Avec axe | 87,5X20,5 | 14 | 528 |
€30.75
|
0.251 kg |
|
|
| 531/87760 | 3 | Inox 304 | Avec axe | 87,5X20,5 | 16 | 528 |
€31.90
|
0.297 kg |
|
|
| 531/87761 | 4 | Inox 304 | Sans axe | 87,5X20,5 | — | 528 |
€20.52
|
0.103 kg |
|
|
| 427/85097 | 5 | Inox 304 | Avec axe | 79X21 | 12 | 425 /426 / 463 |
€19.80
|
0.18 kg |
|
|
| 427/85098 | 6 | Inox 304 | Avec axe | 79X21 | 14 | 425 /426 / 463 |
€21.29
|
0.22 kg |
|
|
| 427/85099 | 7 | Inox 304 | Avec axe | 79X21 | 16 | 425 /426 / 463 |
€22.44
|
0.26 kg |
|
|
| 427/85009 | 8 | Inox 304 | Sans axe | 79X21 | — | 425 /426 / 463 |
€11.07
|
0.09 kg |
|
|
| 434/85093 | 9 | Polyamide renforcé | Avec axe | 79X29,5 | 12 | 425 /426 / 463 |
€12.17
|
0.18 kg |
|
|
| 434/85094 | 10 | Polyamide renforcé | Avec axe | 79X29,5 | 14 | 425 /426 / 463 |
€13.66
|
0.21 kg |
|
|
| 434/85095 | 11 | Polyamide renforcé | Avec axe | 79X29,5 | 16 | 425 /426 / 463 |
€14.81
|
0.24 kg |
|
|
| 434/85100 | 12 | Polyamide renforcé | Sans axe | 79X29,5 | — | 425 /426 / 463 |
€3.43
|
0.09 kg |
|
|
|
Total:
0,0
All prices with tax excluded.
Tax rate: 20,0%. |
||||||||||
