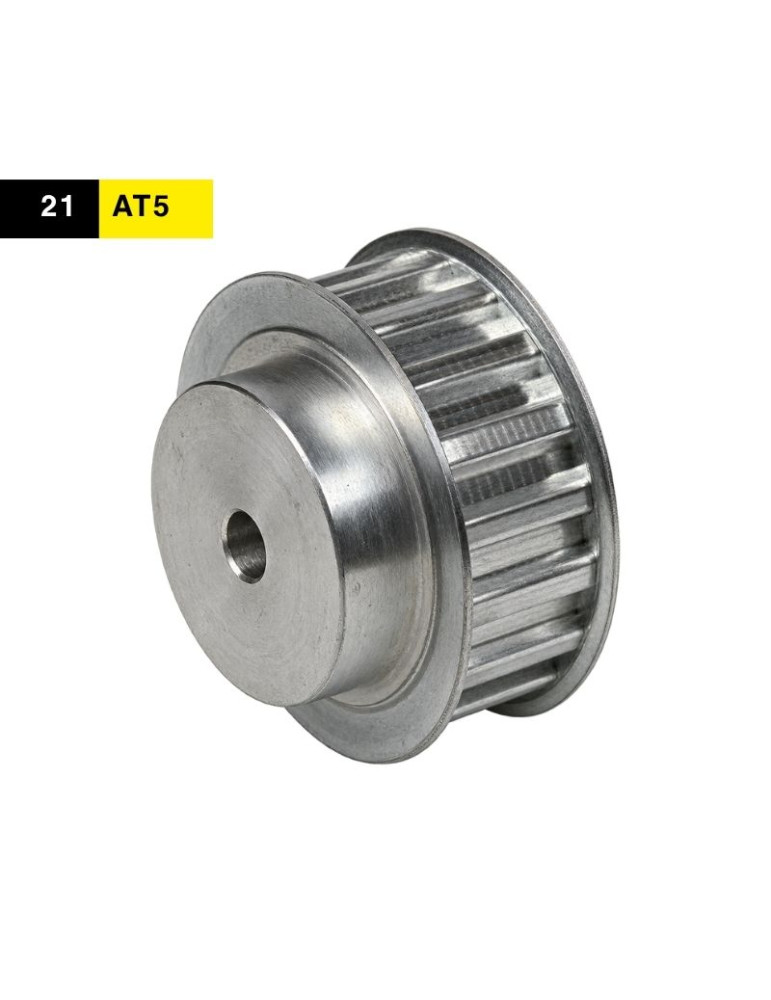

21AT5 Timing Pulley

Description

The 21AT5 timing pulley for 10 mm wide belts is designed for synchronous drives using AT5-profile timing belts.

Its 5 mm pitch must match the pitch of the mating belt. Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 12 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive.

Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number. Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: AT5 profile; 5 mm pitch; 10 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 42, 44, 48, 60 teeth.

Product Details

Reference 21AT5-32F

In stock 4 Items

Specific References

ean13 8054652100993
MPN poulie-pas-metrique-21at5

21 people are viewing this right now

€5.91

Tax excluded

order: 775

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: AT

CHI-type3: AT5

Type: 21 CT 5 Z 32

Teeth: 32

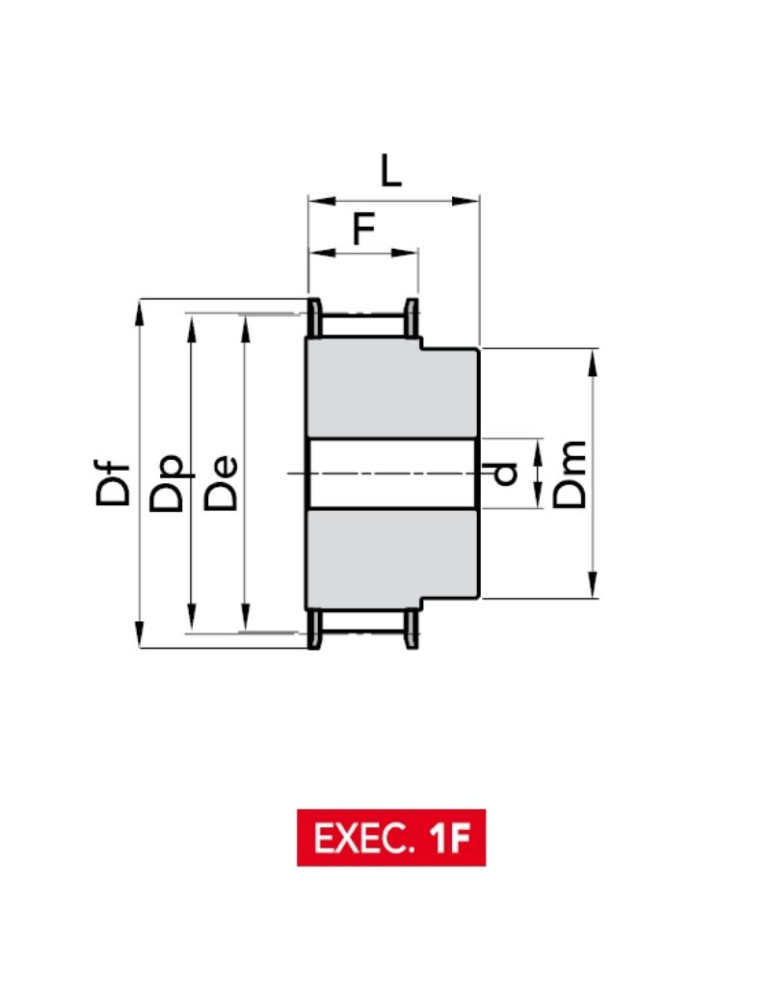

Execution: 1F

Dp: 50,94

De: 49,7

Df flange: 54

Dm: 38

CHI-Di: -

CHI-F: 15

CHI-L: 21

d: 8

N° flange: 18

CHI-Flasque: oui

Belt width (mm): 10

Quantity

Add to Wishlist

Add to Compare

Last items in stock

Hurry up! Only 4 item(s) left in Stock!

Categories: PULLEYS, Metric timing pulleys, Metric AT-pulley, AT5 Metric Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

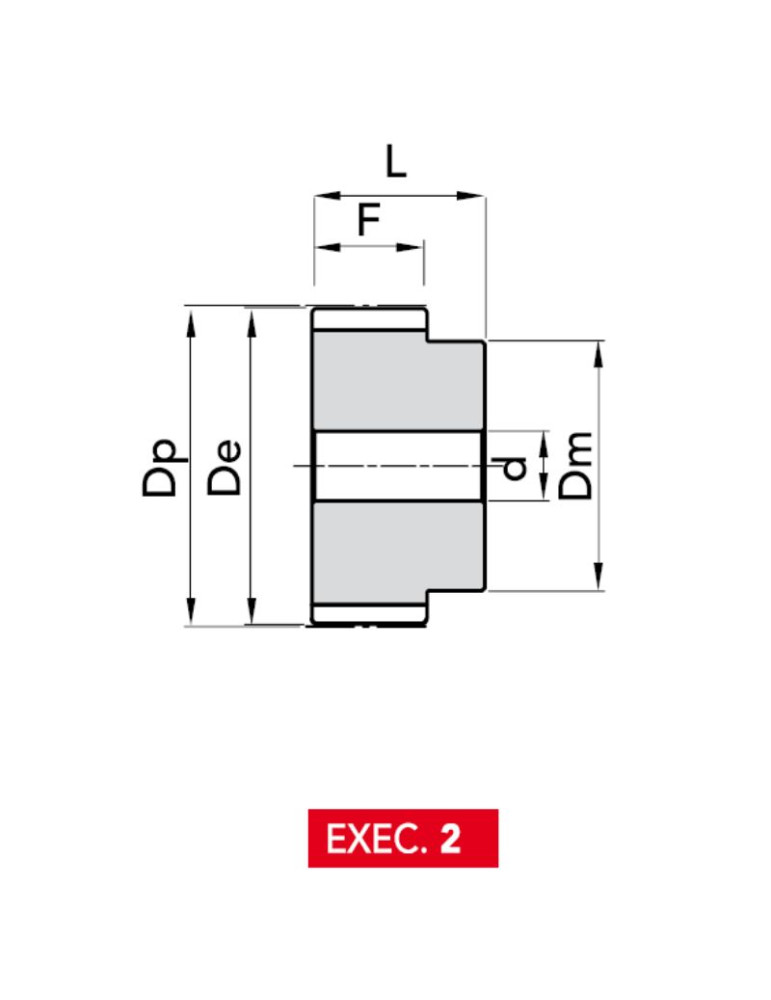

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
21AT5-12F	761	12	21 CT 5 Z 12	1F	19,1	17,85	23	11	-	aluminium	1	€2.66	0.013 kg	Sum.: Sum.:
21AT5-14F	762	14	21 CT 5 Z 14	1F	22,29	21,05	25	13	-	aluminium	2	€2.84	0.018 kg	Sum.: Sum.:
21AT5-15F	763	15	21 CT 5 Z 15	1F	23,88	22,65	28	16	6	aluminium	4	€3.07	0.02 kg	Sum.: Sum.:
21AT5-16F	764	16	21 CT 5 Z 16	1F	25,47	24,2	32	18	6	aluminium	5	€3.22	0.026 kg	Sum.: Sum.:
21AT5-18F	765	18	21 CT 5 Z 18	1F	28,65	27,4	32	20	6	aluminium	6	€3.34	0.03 kg	Sum.: Sum.:
21AT5-19F	766	19	21 CT 5 Z 19	1F	30,25	29	36	22	6	aluminium	8	€3.51	0.037 kg	Sum.: Sum.:
21AT5-20F	767	20	21 CT 5 Z 20	1F	31,83	30,6	36	23	6	aluminium	8	€3.66	0.038 kg	Sum.: Sum.:
21AT5-22F	768	22	21 CT 5 Z 22	1F	35,02	33,85	38	24	6	aluminium	9	€3.95	0.045 kg	Sum.: Sum.:
21AT5-24F	769	24	21 CT 5 Z 24	1F	38,21	37	42	26	6	aluminium	13	€4.18	0.056 kg	Sum.: Sum.:
21AT5-25F	770	25	21 CT 5 Z 25	1F	39,8	38,6	44	26	6	aluminium	12	€4.56	0.06 kg	Sum.: Sum.:
21AT5-26F	771	26	21 CT 5 Z 26	1F	41,39	40,2	44	26	6	aluminium	12	€4.74	0.062 kg	Sum.: Sum.:
21AT5-27F	772	27	21 CT 5 Z 27	1F	42,98	41,8	48	30	8	aluminium	11	€4.68	0.068 kg	Sum.: Sum.:
21AT5-28F	773	28	21 CT 5 Z 28	1F	44,58	43,35	48	32	8	aluminium	11	€5.06	0.074 kg	Sum.: Sum.:
21AT5-30F	774	30	21 CT 5 Z 30	1F	47,76	46,55	51	34	8	aluminium	16	€5.44	0.085 kg	Sum.: Sum.:
21AT5-32F	775	32	21 CT 5 Z 32	1F	50,94	49,7	54	38	8	aluminium	18	€5.91	0.098 kg	Sum.: Sum.:
21AT5-36F	776	36	21 CT 5 Z 36	1F	57,31	56,05	64	38	8	aluminium	23	€7.02	0.125 kg	Sum.: Sum.:
21AT5-40F	777	40	21 CT 5 Z 40	1F	63,66	62,45	66,5	40	8	aluminium	24	€7.96	0.147 kg	Sum.: Sum.:
21AT5-42F	778	42	21 CT 5 Z 42	1F	66,86	65,6	70	40	8	aluminium	26	€8.57	0.16 kg	Sum.: Sum.:
21AT5-44	779	44	21 CT 5 Z 44	2	70,05	68,8	-	45	8	aluminium	-	€8.46	0.17 kg	Sum.: Sum.:
21AT5-48	780	48	21 CT 5 Z 48	2	76,42	75,15	-	50	8	aluminium	-	€9.63	0.204 kg	Sum.: Sum.:
21AT5-60	781	60	21 CT 5 Z 60	2	95,52	94,25	-	65	8	aluminium	-	€14.45	0.326 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
