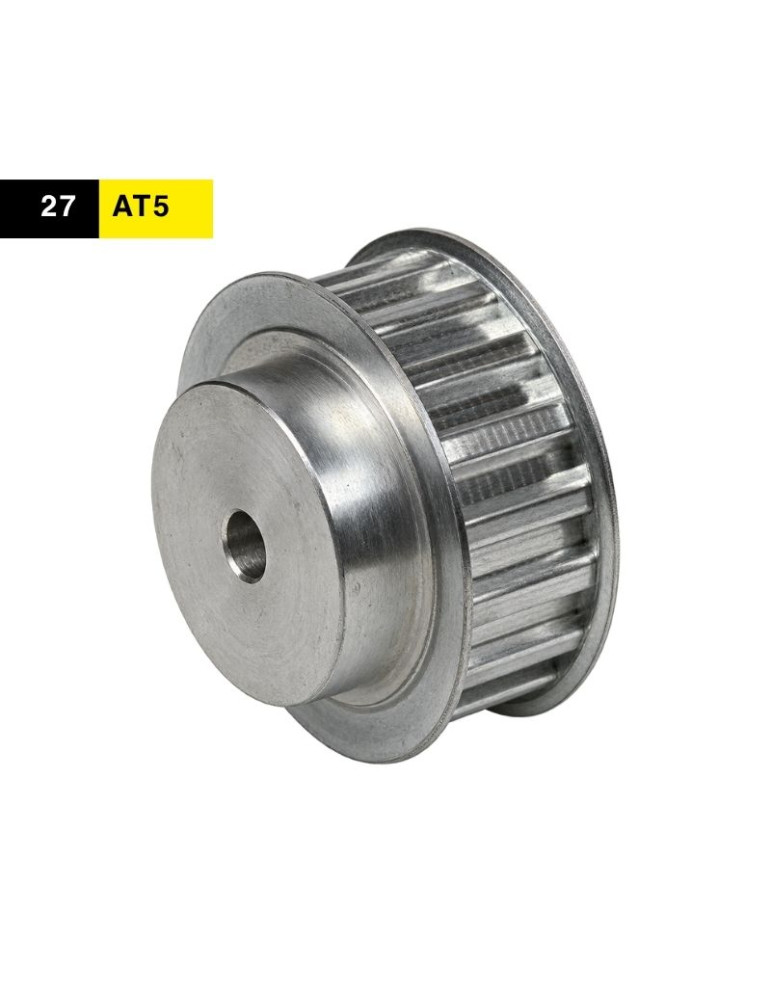

27AT5 Timing Pulley

Description

The 27AT5 timing pulley for 16 mm wide belts is designed for synchronous drives using AT5-profile timing belts. Its 5 mm pitch must match the pitch of the mating belt.

Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 12 to 60 teeth across the part numbers listed in the catalogue.

The tooth count determines the transmission ratio together with the other pulley in the drive.

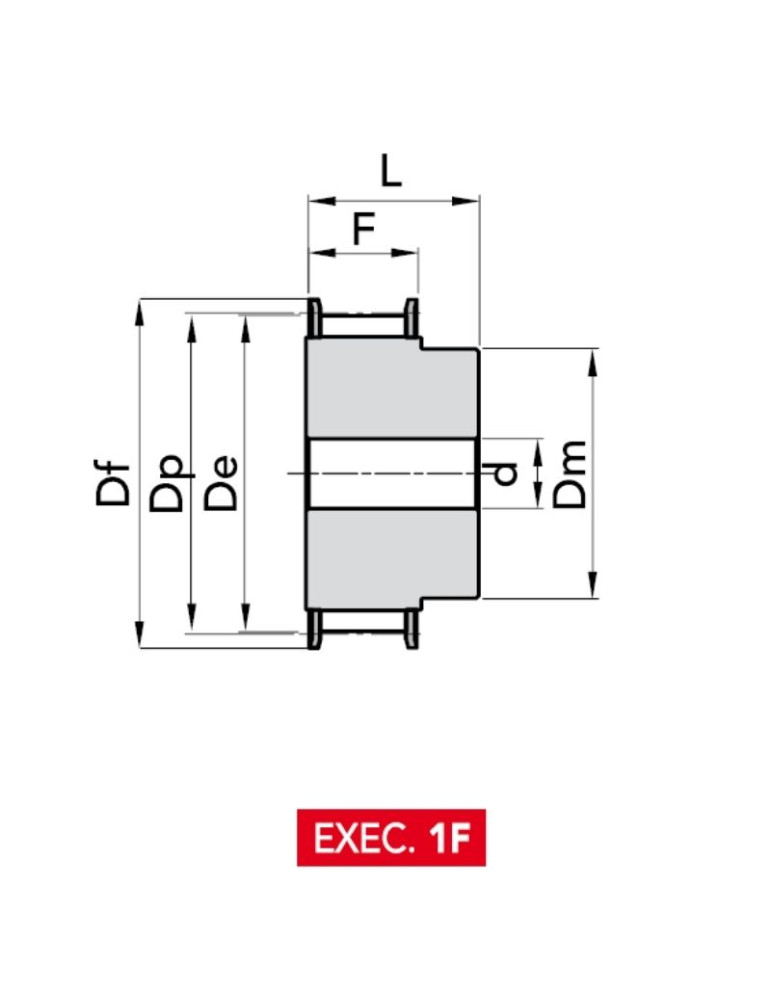

Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number. Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: AT5 profile; 5 mm pitch; 16 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 42, 44, 48, 60 teeth.

Product Details

Reference 27AT5-22F

In stock 13 Items

Specific References

ean13 8054652101136
MPN poulie-27at5

18 people are viewing this right now

€4.56

Tax excluded

order: 789

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: AT

CHI-type3: AT5

Type: 27 CT 5 Z 22

Teeth: 22

Execution: 1F

Dp: 35,02

De: 33,85

Df flange: 38

Dm: 24

CHI-Di: -

CHI-F: 21

CHI-L: 27

d: 6

N° flange: 9

CHI-Flasque: oui

Belt width (mm): 16

Quantity

Add to Wishlist

Add to Compare

Hurry up! Only 13 item(s) left in Stock!

Categories: PULLEYS, Metric timing pulleys, Metric AT-pulley, AT5 Metric Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
27AT5-12F	782	12	27 CT 5 Z 12	1F	19,1	17,85	23	11	-	aluminium	1	€3.01	0.016 kg	Sum.: Sum.:
27AT5-14F	783	14	27 CT 5 Z 14	1F	22,29	21,05	25	13	-	aluminium	2	€3.22	0.023 kg	Sum.: Sum.:
27AT5-15F	784	15	27 CT 5 Z 15	1F	23,88	22,65	28	16	6	aluminium	4	€3.45	0.027 kg	Sum.: Sum.:
27AT5-16F	785	16	27 CT 5 Z 16	1F	25,47	24,2	32	18	6	aluminium	5	€3.66	0.033 kg	Sum.: Sum.:
27AT5-18F	786	18	27 CT 5 Z 18	1F	28,65	27,4	32	20	6	aluminium	6	€3.77	0.04 kg	Sum.: Sum.:
27AT5-19F	787	19	27 CT 5 Z 19	1F	30,25	29	36	22	6	aluminium	8	€4.01	0.046 kg	Sum.: Sum.:
27AT5-20F	788	20	27 CT 5 Z 20	1F	31,83	30,6	36	23	6	aluminium	8	€4.18	0.05 kg	Sum.: Sum.:
27AT5-22F	789	22	27 CT 5 Z 22	1F	35,02	33,85	38	24	6	aluminium	9	€4.56	0.06 kg	Sum.: Sum.:
27AT5-24F	790	24	27 CT 5 Z 24	1F	38,21	37	42	26	6	aluminium	13	€4.74	0.072 kg	Sum.: Sum.:
27AT5-25F	791	25	27 CT 5 Z 25	1F	39,8	38,6	44	26	6	aluminium	12	€5.12	0.078 kg	Sum.: Sum.:
27AT5-26F	792	26	27 CT 5 Z 26	1F	41,39	40,2	44	26	6	aluminium	12	€5.50	0.082 kg	Sum.: Sum.:
27AT5-27F	793	27	27 CT 5 Z 27	1F	42,98	41,8	48	30	8	aluminium	11	€5.50	0.09 kg	Sum.: Sum.:
27AT5-28F	794	28	27 CT 5 Z 28	1F	44,58	43,35	48	32	8	aluminium	11	€5.91	0.095 kg	Sum.: Sum.:
27AT5-30F	795	30	27 CT 5 Z 30	1F	47,76	46,55	51	34	8	aluminium	16	€6.29	0.11 kg	Sum.: Sum.:
27AT5-32F	796	32	27 CT 5 Z 32	1F	50,94	49,7	54	38	8	aluminium	18	€7.02	0.126 kg	Sum.: Sum.:
27AT5-36F	797	36	27 CT 5 Z 36	1F	57,31	56,05	64	38	8	aluminium	23	€8.34	0.165 kg	Sum.: Sum.:
27AT5-40F	798	40	27 CT 5 Z 40	1F	63,66	62,45	66,5	40	8	aluminium	24	€9.39	0.195 kg	Sum.: Sum.:
27AT5-42F	799	42	27 CT 5 Z 42	1F	66,86	65,6	70	40	8	aluminium	26	€10.18	0.212 kg	Sum.: Sum.:

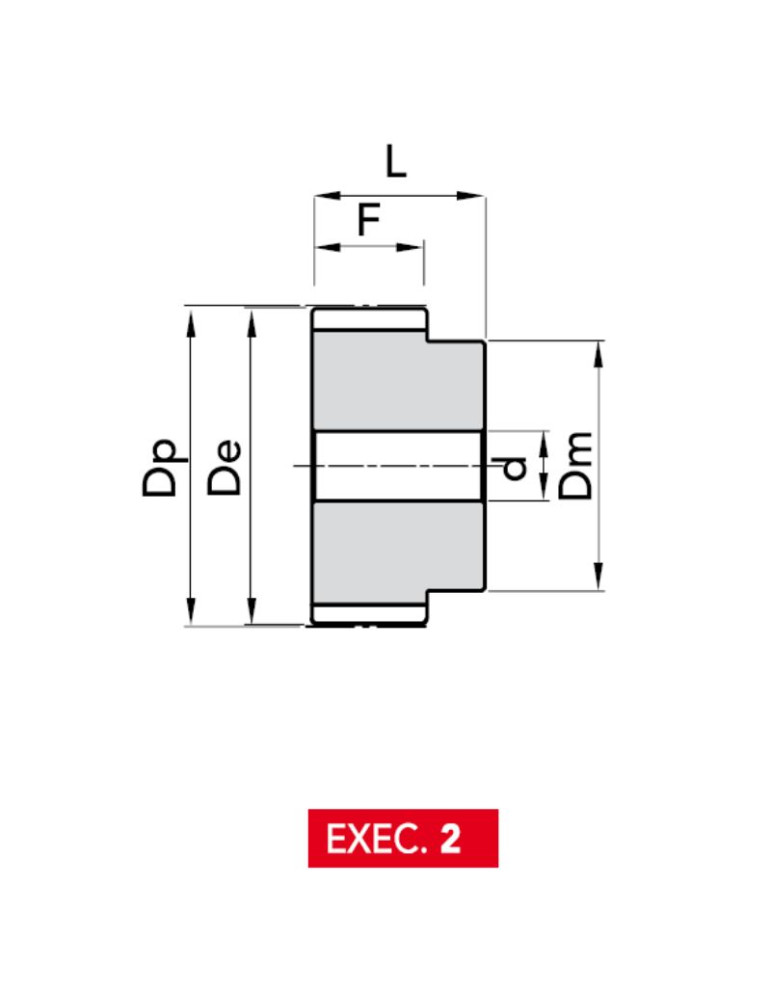

27AT5-44	800	44	27 CT 5 Z 44	2	70,05	68,8	-	45	8	aluminium	-	€10.36	0.226 kg	Sum.: Sum.:
27AT5-48	801	48	27 CT 5 Z 48	2	76,42	75,15	-	50	8	aluminium	-	€11.73	0.27 kg	Sum.: Sum.:
27AT5-60	802	60	27 CT 5 Z 60	2	95,52	94,25	-	65	8	aluminium	-	€17.59	0.435 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
