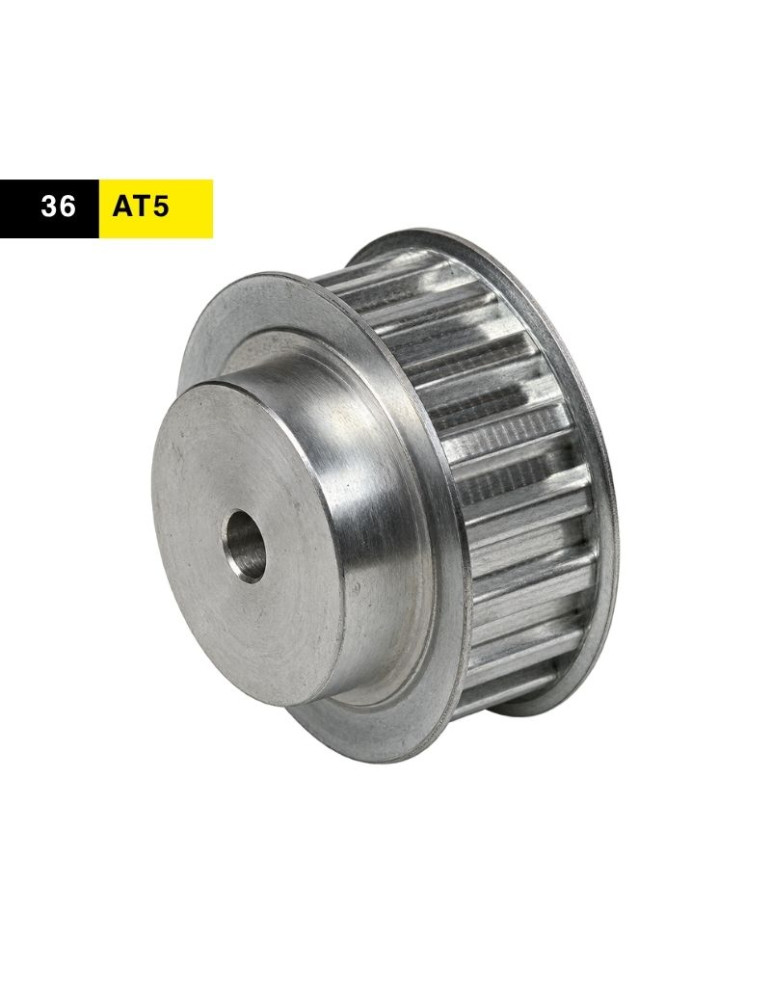

36AT5 Timing Pulley

Description

The 36AT5 timing pulley for 25 mm wide belts is designed for synchronous drives using AT5-profile timing belts.

Its 5 mm pitch must match the pitch of the mating belt. Manufactured from 6082-T6 aluminium to EN 573, this range offers several tooth counts, from 12 to 60 teeth across the part numbers listed in the catalogue. The tooth count determines the transmission ratio together with the other pulley in the drive. Pitch and outside diameters, hub dimensions, bore and flange configuration vary by part number.

Check these dimensions and the specified belt width against the relevant drawing before selecting the model.

Specifications: AT5 profile; 5 mm pitch; 25 mm belt width; 6082-T6 aluminium to EN 573.

Available tooth counts: 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 26, 27, 28, 30, 32, 36, 40, 42, 44, 48, 60 teeth.

Product Details

Reference 36AT5-12F

Specific References

ean13 8054652101273
MPN poulie-36at5

23 people are viewing this right now

€3.51

Tax excluded

order: 803

Material: aluminium

CHI-Pièce: Poulie

CHI-type1: AT

CHI-type3: AT5

Type: 36 CT 5 Z 12

Teeth: 12

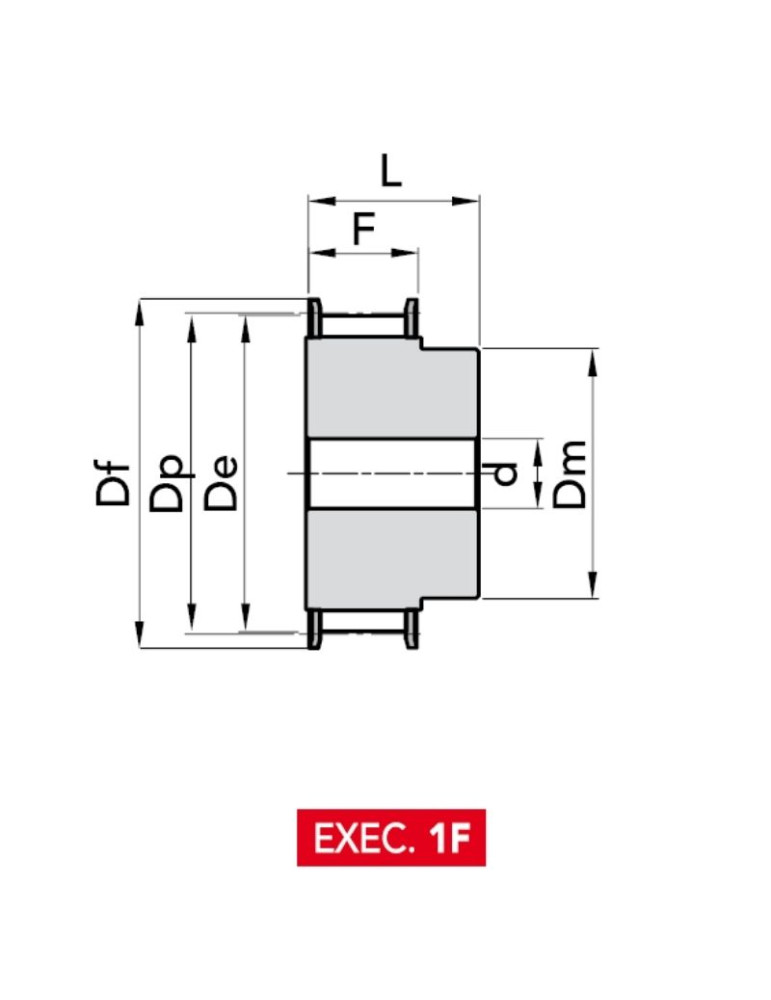

Execution: 1F

Dp: 19,1

De: 17,85

Df flange: 23

Dm: 11

CHI-Di: -

CHI-F: 30

CHI-L: 36

d: -

N° flange: 1

CHI-Flasque: oui

Belt width (mm): 25

Quantity

Add to Wishlist

Add to Compare

Sorry, no items left.

Categories: PULLEYS, Metric timing pulleys, Metric AT-pulley, AT5 Metric Pulleys

Choose product attributes:

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
36AT5-12F	803	12	36 CT 5 Z 12	1F	19,1	17,85	23	11	-	aluminium	1	€3.51	0.022 kg	Sum.: Sum.:
36AT5-14F	804	14	36 CT 5 Z 14	1F	22,29	21,05	25	13	-	aluminium	2	€3.77	0.03 kg	Sum.: Sum.:
36AT5-15F	805	15	36 CT 5 Z 15	1F	23,88	22,65	28	16	6	aluminium	4	€4.07	0.036 kg	Sum.: Sum.:
36AT5-16F	806	16	36 CT 5 Z 16	1F	25,47	24,2	32	18	6	aluminium	5	€4.24	0.043 kg	Sum.: Sum.:
36AT5-18F	807	18	36 CT 5 Z 18	1F	28,65	27,4	32	20	6	aluminium	6	€4.45	0.052 kg	Sum.: Sum.:
36AT5-19F	808	19	36 CT 5 Z 19	1F	30,25	29	36	22	6	aluminium	8	€4.68	0.06 kg	Sum.: Sum.:
36AT5-20F	809	20	36 CT 5 Z 20	1F	31,83	30,6	36	23	6	aluminium	8	€4.89	0.068 kg	Sum.: Sum.:
36AT5-22F	810	22	36 CT 5 Z 22	1F	35,02	33,85	38	24	6	aluminium	9	€5.38	0.08 kg	Sum.: Sum.:
36AT5-24F	811	24	36 CT 5 Z 24	1F	38,21	37	42	26	6	aluminium	13	€5.79	0.095 kg	Sum.: Sum.:
36AT5-25F	812	25	36 CT 5 Z 25	1F	39,8	38,6	44	26	6	aluminium	12	€6.17	0.104 kg	Sum.: Sum.:
36AT5-26F	813	26	36 CT 5 Z 26	1F	41,39	40,2	44	26	6	aluminium	12	€6.73	0.11 kg	Sum.: Sum.:
36AT5-27F	814	27	36 CT 5 Z 27	1F	42,98	41,8	48	30	8	aluminium	11	€6.73	0.12 kg	Sum.: Sum.:
36AT5-28F	815	28	36 CT 5 Z 28	1F	44,58	43,35	48	32	8	aluminium	11	€7.34	0.125 kg	Sum.: Sum.:
36AT5-30F	816	30	36 CT 5 Z 30	1F	47,76	46,55	51	34	8	aluminium	16	€7.78	0.147 kg	Sum.: Sum.:
36AT5-32F	817	32	36 CT 5 Z 32	1F	50,94	49,7	54	38	8	aluminium	18	€8.63	0.17 kg	Sum.: Sum.:
36AT5-36F	818	36	36 CT 5 Z 36	1F	57,31	56,05	64	38	8	aluminium	23	€10.36	0.218 kg	Sum.: Sum.:
36AT5-40F	819	40	36 CT 5 Z 40	1F	63,66	62,45	66,5	40	8	aluminium	24	€11.73	0.264 kg	Sum.: Sum.:
36AT5-42F	820	42	36 CT 5 Z 42	1F	66,86	65,6	70	40	8	aluminium	26	€12.64	0.29 kg	Sum.: Sum.:

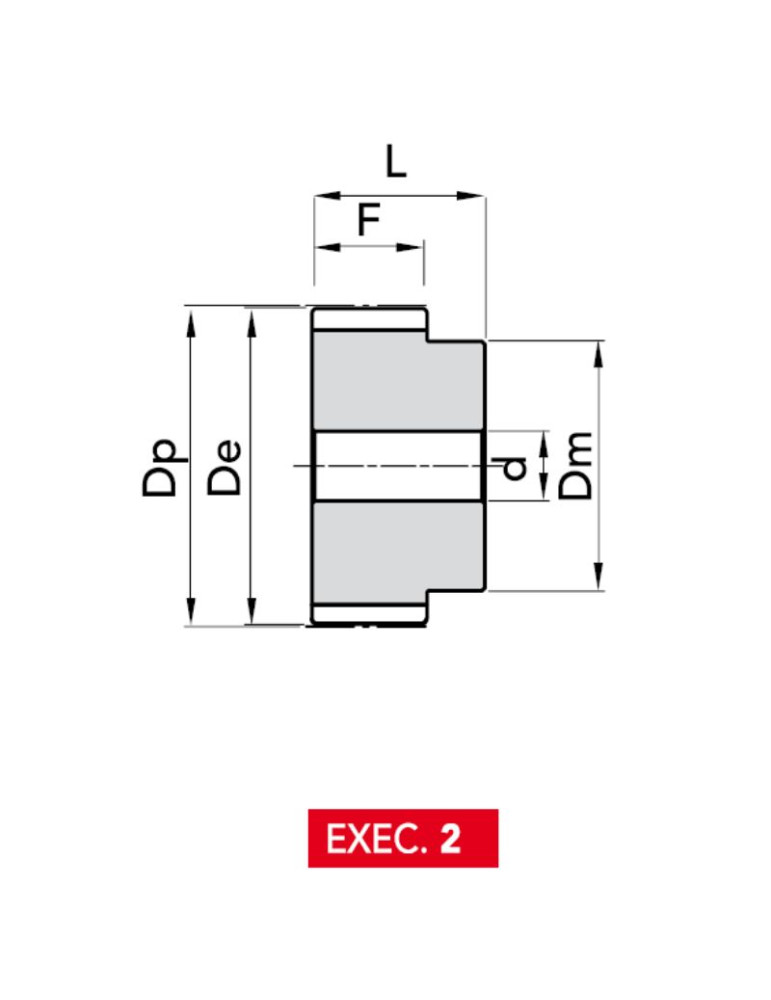

36AT5-44	821	44	36 CT 5 Z 44	2	70,05	68,8	-	45	8	aluminium	-	€13.25	0.319 kg	Sum.: Sum.:
36AT5-48	822	48	36 CT 5 Z 48	2	76,42	75,15	-	50	8	aluminium	-	€15.07	0.374 kg	Sum.: Sum.:
36AT5-60	823	60	36 CT 5 Z 60	2	95,52	94,25	-	65	8	aluminium	-	€22.53	0.6 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
