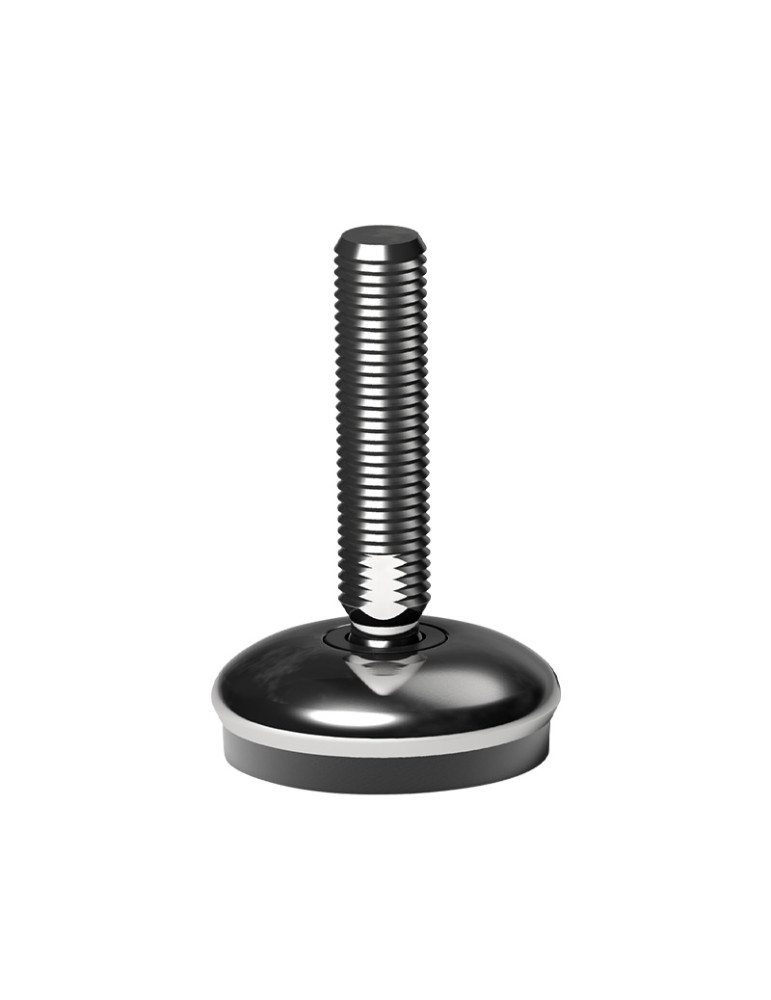

Stainless steel articulated foot Ø 75
Stainless steel articulated foot Ø 75

Stainless steel articulated foot Ø 75

Description

Stainless steel disinfectable feet 304

Diameter 75 mm

Feet for the support of conveyors and machines

Composition

Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti slippery PVC 68 shore black color.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Anti slip: white color.

• Assembly of: nuts • washers.

Feet of machines and components made in Italy.

Product Details
107/83524
0 Items

Specific References

  • PIED-107
Attachments

PIEDS 107

Download (434.28KB)
15 people are viewing this right now
DOM
107/83524
0 Items
€23.75
Tax excluded
order: 143
ød: M16x2
A (mm): 103
H (mm): 60
Static load max/unit (kg): 1900
Material: Inox 304
Key (mm): 13
Colors: black
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Articulated feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

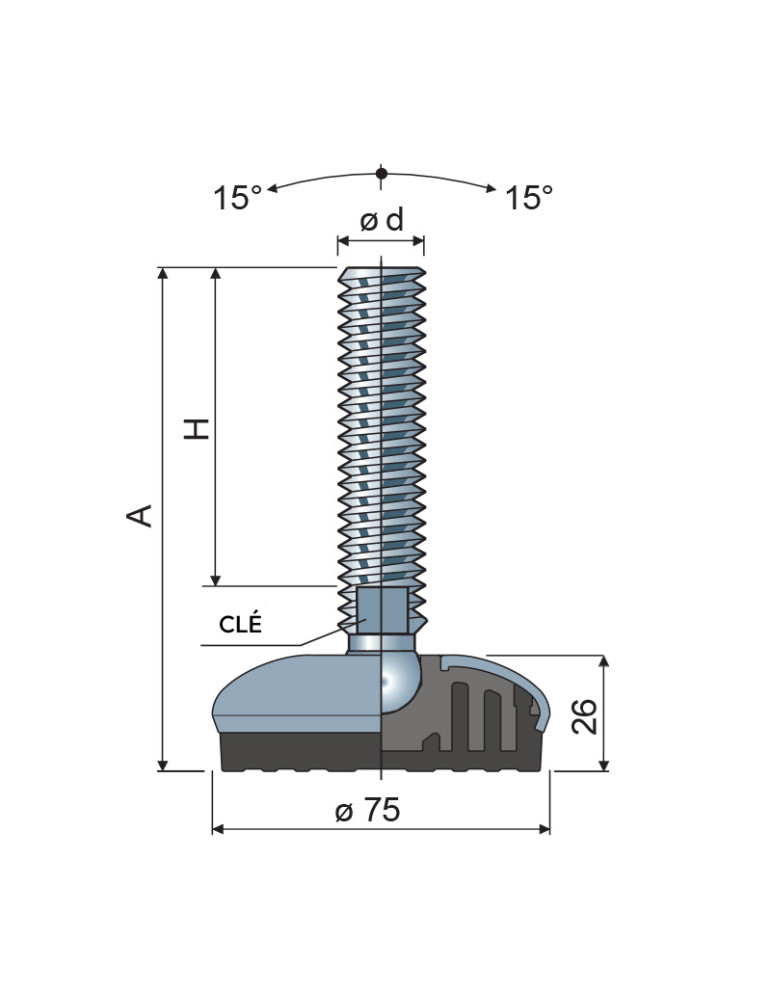

Ref. order ød Material A (mm) H (mm) Key (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
107/83524 143 M16x2 Inox 304 103 60 13 black 1900 0.235 kg
107/83525 144 M16x2 Inox 304 133 90 13 black 1900 0.266 kg
107/83526 145 M16x2 Inox 304 148 105 13 black 1900 0.283 kg
107/83527 146 M16x2 Inox 304 168 125 13 black 1900 0.309 kg
107/83528 147 M16x2 Inox 304 198 155 13 black 1900 0.347 kg
107/83529 148 M16x2 Inox 304 208 165 13 black 1900 0.364 kg
107/83530 149 M16x2 Inox 304 248 205 13 black 1900 0.418 kg
107/88856 150 M20x2,5 Inox 304 207 161 17 — 2300 0.503 kg
107/83531 151 M20x2,5 Inox 304 132 86 17 black 2100 0.356 kg
107/83532 152 M20x2,5 Inox 304 162 116 17 black 2100 0.414 kg
107/83533 153 M20x2,5 Inox 304 187 141 17 black 2100 0.464 kg
107/83534 154 M20x2,5 Inox 304 244 198 17 black 2100 0.582 kg
107/83535 155 M24x3 Inox 304 142 96 19 black 2300 0.503 kg
107/83536 156 M24x3 Inox 304 168 122 19 black 2300 0.568 kg
107/83537 157 M24x3 Inox 304 198 152 19 black 2300 0.669 kg
107/83538 158 M24x3 Inox 304 228 182 19 black 2300 0.755 kg
107/83539 159 M24x3 Inox 304 346 300 19 black 2300 1.106 kg
107/86221 160 M30x3,5 Inox 304 190 144 24 — 2500 0.784 kg
