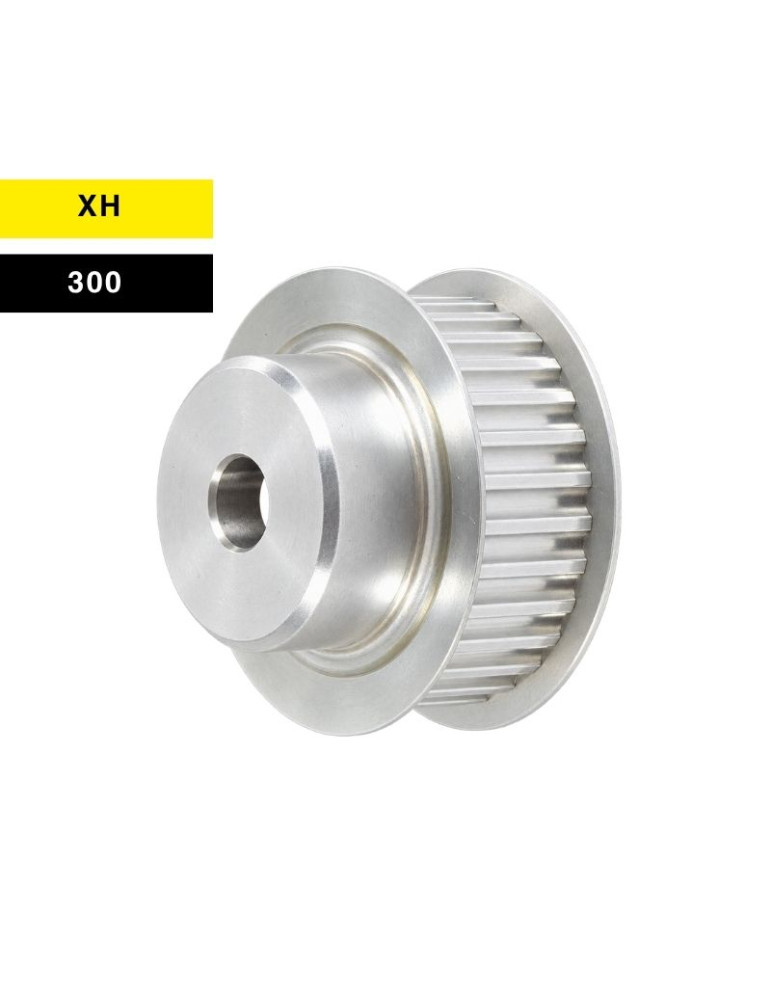

XH300 timing pulley

Description

The XH300 timing pulley is designed for a XH-profile synchronous belt with 3 in nominal width and 22.22 mm pitch.

Comes in 18 to 34 tooth versions.

Before ordering, match the selected teeth to your belt and check pitch diameter, final bore machining and mounting dimensions.

Product Details
18XH300F

Specific References

  • 8054652097507
  • poulie-dentee-xh300
22 people are viewing this right now
DOM
18XH300F
€62.41
Tax excluded
order: 558
Material: acier
CHI-Pièce: Poulie
CHI-type1: 8XH300
CHI-type3: -
Type: 18XH300
Teeth: 18

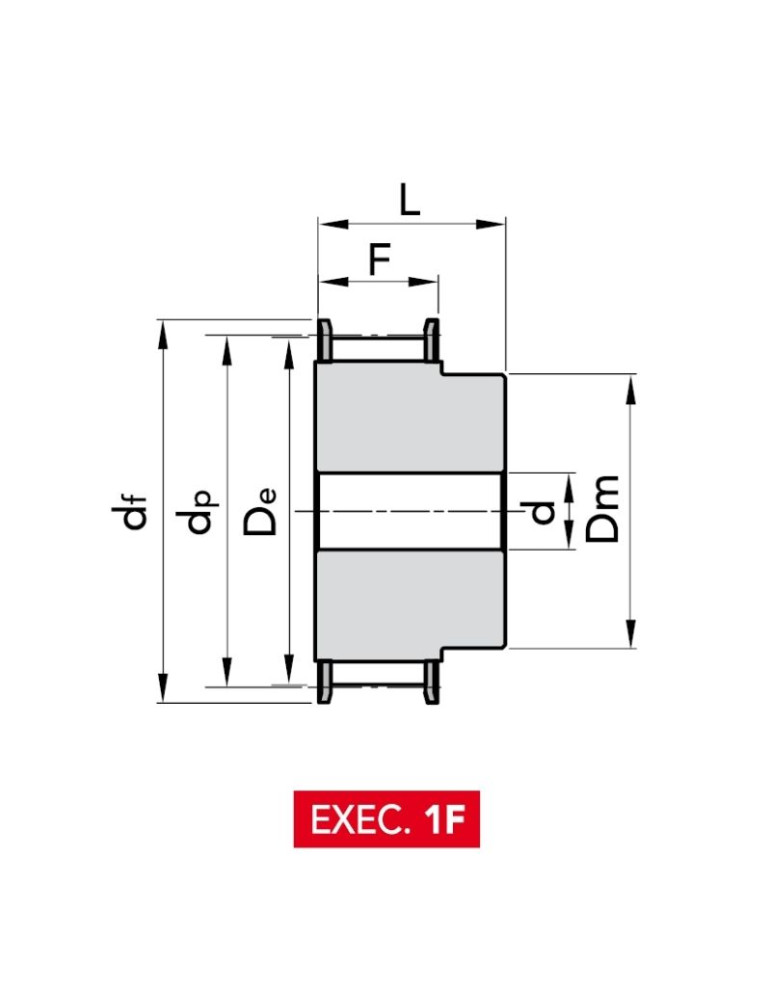

Execution: 1F
Dp: 127,34
De: 124,55
Df flange: 140
Dm: 100
CHI-Di: -
CHI-F: 90,5
CHI-L: 110
d: 28
N° flange: 155
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
PULLEYS,  Timing pulleys with pilot bore,  XH-Type Pulleys

Choose product attributes:

 Immediate stock
 Weekly stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
18XH300F 558 18 18XH300 1F 127,34 124,55 140 100 28 acier 155
€62.41
8.5 kg
19XH300F 559 19 19XH300 1F 134,41 131,62 146 100 28 acier 156
€72.33
9.44 kg
20XH300F 560 20 20XH300 1F 141,49 138,69 155 100 28 acier 157
€82.28
10.349 kg
21XH300F 561 21 21XH300 1F 148,56 145,77 160 110 28 acier 158
€82.63
11.774 kg
22XH300F 562 22 22XH300 1F 155,64 152,84 170 110 28 acier 159
€93.51
12.915 kg
24XH300F 563 24 24XH300 1F 169,79 166,99 184 120 28 acier 161
€106.16
15.579 kg
25XH300F 564 25 25XH300 1F 176,86 174,07 188 120 28 acier 162
€118.33
16.963 kg
26XH300F 565 26 26XH300 1F 183,93 181,14 198 120 28 acier 163
€130.12
18.355 kg
27XH300F 566 27 27XH300 1F 191,01 188,22 205 120 28 acier 164
€141.33
19.631 kg
28XH300F 567 28 28XH300 1F 198,09 195,29 212 150 28 acier 165
€146.71
22.09 kg
30XH300F 568 30 30XH300 1F 212,23 209,44 227 150 28 acier 167
€170.91
25.189 kg
32XH300F 569 32 32XH300 1F 226,38 223,59 240 150 28 acier 169
€192.44
28.389 kg
34XH300F 570 34 34XH300 1F 240,53 237,74 256 150 28 acier 170
€218.92
34 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
