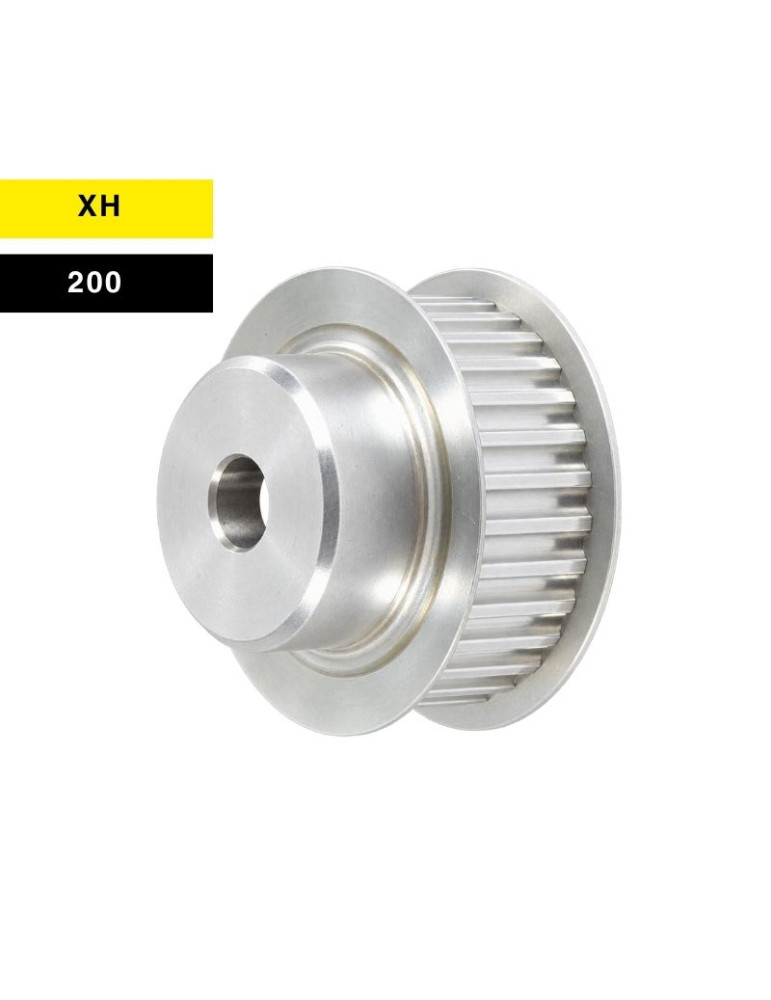

XH200 timing pulley

Description

The XH200 timing pulley is designed for a XH-profile synchronous belt with 2 in nominal width and 22.22 mm pitch.

Comes in 18 to 34 tooth versions.

Select the tooth count for the required drive ratio, then confirm diameter, finished bore and available shaft space.

Reference 18XH200F

Specific References

18 people are viewing this right now

€46.23

Tax excluded

order: 545

Material: acier

CHI-Pièce: Poulie

CHI-type1: 8XH200

CHI-type3: -

Type: 18XH200

Teeth: 18

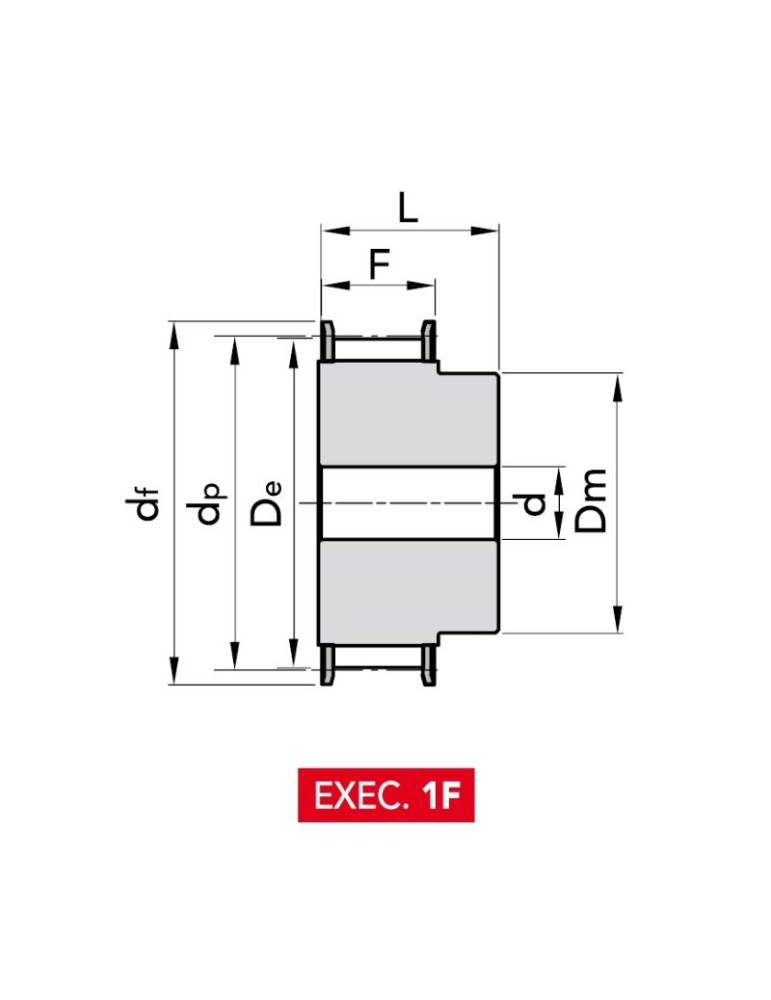

Execution: 1F

Dp: 127,34

De: 124,55

Df flange: 140

Dm: 100

CHI-Di: -

CHI-F: 65

CHI-L: 80

d: 24

N° flange: 155

CHI-Flasque: oui

Quantity

Sorry, no items left.

Categories: PULLEYS, Timing pulleys with pilot bore, XH-Type Pulleys

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
18XH200F	545	18	18XH200	1F	127,34	124,55	140	100	24	acier	155	€46.23	6.302 kg	Sum.: Sum.:
19XH200F	546	19	19XH200	1F	134,41	131,62	146	100	24	acier	156	€51.03	6.95 kg	Sum.: Sum.:
20XH200F	547	20	20XH200	1F	141,49	138,69	155	100	24	acier	157	€58.26	7.7 kg	Sum.: Sum.:
21XH200F	548	21	21XH200	1F	148,56	145,77	160	110	24	acier	158	€59.92	8.657 kg	Sum.: Sum.:
22XH200F	549	22	22XH200	1F	155,64	152,84	170	110	24	acier	159	€67.27	9.48 kg	Sum.: Sum.:
24XH200F	550	24	24XH200	1F	169,79	166,99	184	120	24	acier	161	€77.89	11.415 kg	Sum.: Sum.:
25XH200F	551	25	25XH200	1F	176,86	174,07	188	120	24	acier	162	€84.68	12.363 kg	Sum.: Sum.:
26XH200F	552	26	26XH200	1F	183,93	181,14	198	120	24	acier	163	€94.63	13.87 kg	Sum.: Sum.:
27XH200F	553	27	27XH200	1F	191,01	188,22	205	120	24	acier	164	€102.09	14.394 kg	Sum.: Sum.:
28XH200F	554	28	28XH200	1F	198,09	195,29	212	120	24	acier	165	€106.97	15.44 kg	Sum.: Sum.:
30XH200F	555	30	30XH200	1F	212,23	209,44	227	120	24	acier	167	€123.13	17.732 kg	Sum.: Sum.:
32XH200F	556	32	32XH200	1F	226,38	223,59	240	120	24	acier	169	€141.53	20.236 kg	Sum.: Sum.:
34XH200F	557	34	34XH200	1F	240,53	237,74	256	120	24	acier	170	€164.62	22.662 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
