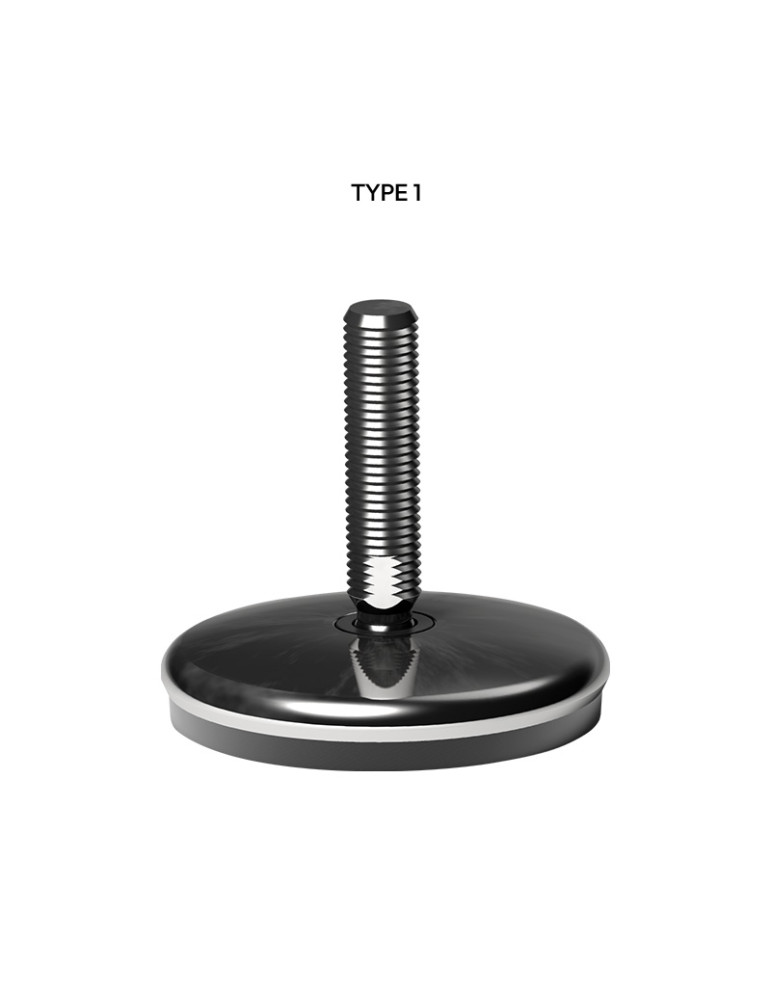

Stainless steel Articulated foot Ø 120 angle +/- 5°
Stainless steel Articulated foot Ø 120 angle +/- 5°

Stainless steel Articulated foot Ø 120 angle +/- 5°

Description

Stainless steel feet 304

Diameter 120 mm

Type 1 = angle of +/- 5 °

Feet for the support of conveyors and machines

Composition

Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti slippery PVC 68 shore black color.

Features

The moldering anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Anti slip: white color.

• Assembly of: ICROUS • Washers

Feet of machines and components made in Italy.

Product Details
109/83558
0 Items

Specific References

  • PIED-109
Attachments

PIEDS 109

Download (418.71KB)
25 people are viewing this right now
DOM
109/83558
0 Items
€34.05
Tax excluded
order: 221
ød: M16x2
A (mm): 103
H (mm): 60
Static load max/unit (kg): 2500
Material: Inox 304
Key (mm): 13
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Articulated feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order ød Material A (mm) H (mm) Key (mm) Static load max/unit (kg) Unit price Weight Avail. Buy
109/83558 221 M16x2 Inox 304 103 60 13 2500 0.442 kg
109/83559 222 M16x2 Inox 304 133 90 13 2500 0.48 kg
109/83560 223 M16x2 Inox 304 148 105 13 2500 0.497 kg
109/83561 224 M16x2 Inox 304 168 125 13 2500 0.643 kg
109/83562 225 M16x2 Inox 304 198 155 13 2500 0.561 kg
109/83563 226 M16x2 Inox 304 208 165 13 2500 0.578 kg
109/83564 227 M16x2 Inox 304 248 205 13 2500 0.83 kg
109/83565 228 M20x2,5 Inox 304 132 86 17 2700 0.568 kg
109/83566 229 M20x2,5 Inox 304 162 116 17 2700 0.626 kg
109/83567 230 M20x2,5 Inox 304 187 141 17 2700 0.676 kg
109/88859 231 M20x2,5 Inox 304 207 161 17 2700 0.715 kg
109/83568 232 M20x2,5 Inox 304 244 198 17 2700 0.794 kg
109/83569 233 M24x3 Inox 304 142 96 19 2900 0.699 kg
109/83570 234 M24x3 Inox 304 168 122 19 2900 0.764 kg
109/83571 235 M24x3 Inox 304 198 152 19 2900 0.865 kg
109/83572 236 M24x3 Inox 304 228 182 19 2900 0.951 kg
109/83573 237 M24x3 Inox 304 346 300 19 3100 1.302 kg
109/86218 238 M30x3,5 Inox 304 191 144 24 3100 0.98 kg
