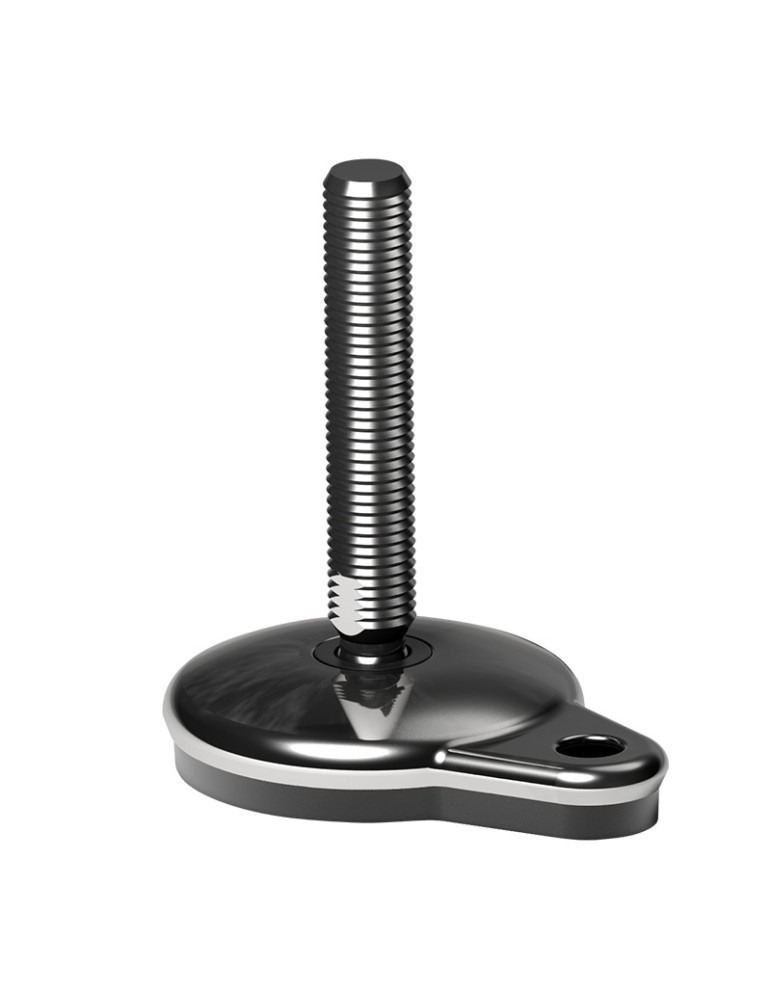

Stainless steel articulated foot 95x130
Stainless steel articulated foot 95x130

Stainless steel articulated foot 95x130

Description

Disinfectable hinged foot with remote stainless steel fixation 304

Dimension 95x130

Feet for the support of conveyors and machines

Stainless steel

Reinforced polyamide interior; external coating in AISI 304 stainless steel; Soft PVC anti-slip 68 shore black color.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Anti-slip: white color.

• Assembly of: nuts • washers.

Feet of machines and components made in Italy.

Product Details
111/83762

Specific References

  • PIED-111
Attachments

PIEDS 111

Download (503.44KB)
24 people are viewing this right now
DOM
111/83762
€35.58
Tax excluded
order: 299

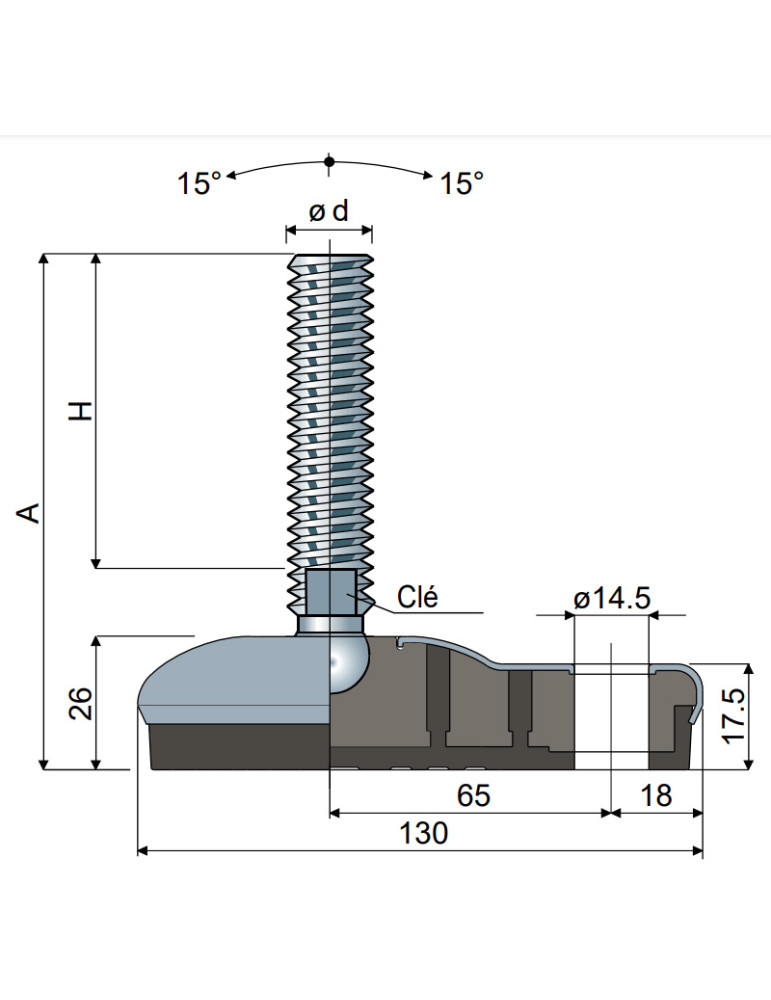

ød: M16x2
A (mm): 103
H (mm): 60
Static load max/unit (kg): 2200
Material: Inox 304
Key (mm): 13
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Articulated feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order ød Material A (mm) H (mm) Key (mm) Static load max/unit (kg) Unit price Weight Avail. Buy
111/83762 299 M16x2 Inox 304 103 60 13 2200 0.384 kg
111/83763 300 M16x2 Inox 304 133 90 13 2200 0.422 kg
111/83764 301 M16x2 Inox 304 148 105 13 2200 0.439 kg
111/83765 302 M16x2 Inox 304 168 125 13 2200 0.465 kg
111/83766 303 M16x2 Inox 304 198 155 13 2200 0.503 kg
111/83767 304 M16x2 Inox 304 208 165 13 2200 0.52 kg
111/83768 305 M16x2 Inox 304 248 205 13 2200 0.772 kg
111/88858 306 M20x2,5 Inox 304 209 161 17 2400 0.657 kg
111/83769 307 M20x2,5 Inox 304 134 86 17 2400 0.51 kg
111/83770 308 M20x2,5 Inox 304 164 116 17 2400 0.568 kg
111/83771 309 M20x2,5 Inox 304 189 141 17 2400 0.618 kg
111/83772 310 M20x2,5 Inox 304 246 198 17 2400 0.736 kg
111/83773 311 M24x3 Inox 304 143 96 19 2600 0.641 kg
111/83774 312 M24x3 Inox 304 169 122 19 2600 0.706 kg
111/83775 313 M24x3 Inox 304 199 152 19 2600 0.807 kg
111/83776 314 M24x3 Inox 304 229 182 19 2600 0.893 kg
111/83777 315 M24x3 Inox 304 347 300 19 2600 1.244 kg
111/86219 316 M30x3,5 Inox 304 188 144 24 2800 0.922 kg
