CONVEYOR COMPONENTS

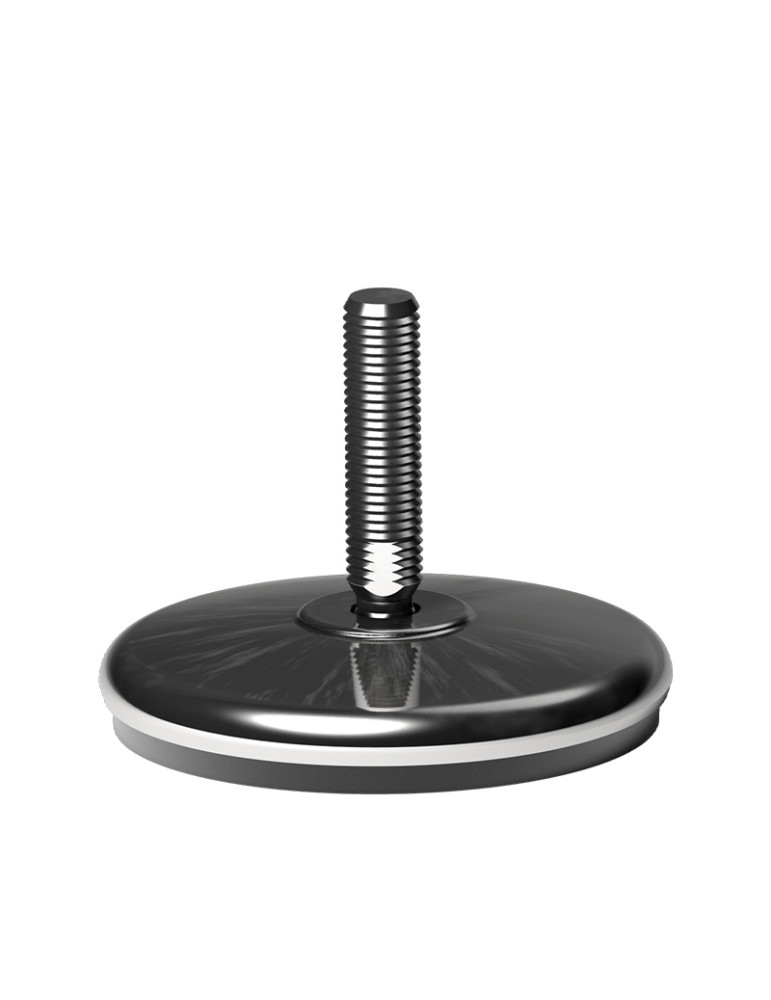

Stainless steel Articulated foot Ø 150
Description
Product Details
Attachments
Disinfectable articulated feet (steel stem and base)
Diameter 150 mm
Materials
Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti-slip in flexible PVC 68 shore black color.
Features
The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot
On demand
• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.
• Anti-slip: white color.
• Assembly of: nuts • washers.
Feet of machines and components made in Italy.
125/86006
Specific References
- PIED-125
Choose product attributes:
Product is available
Product available on plateform
*Prix HT hors frais d’envoi

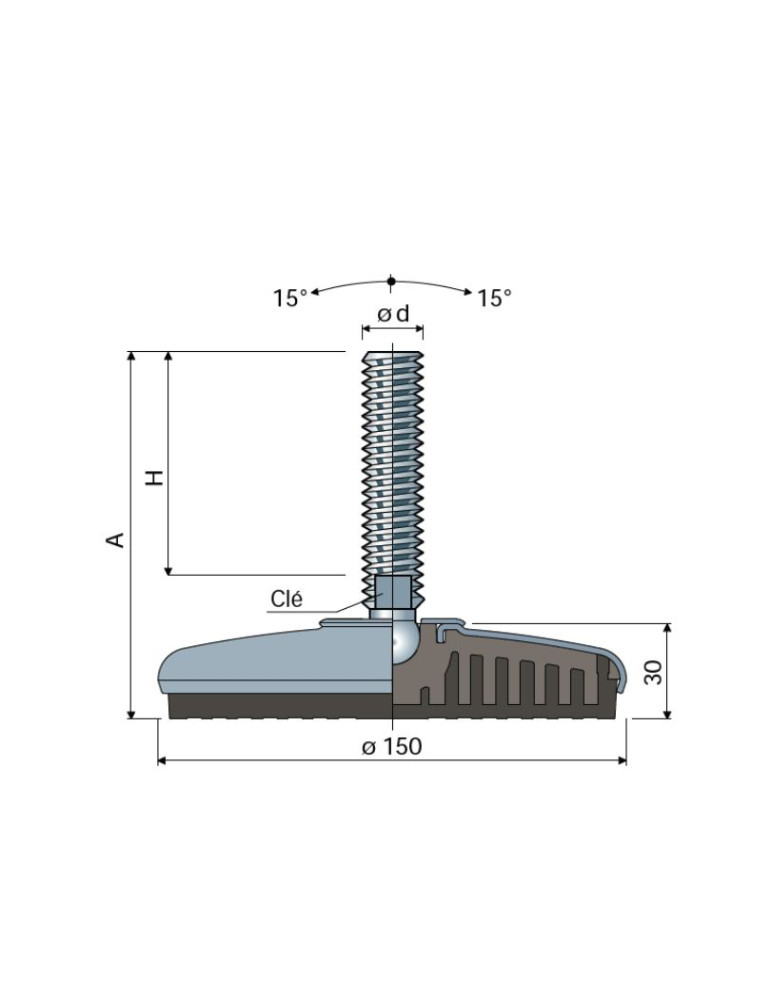

| Ref. | order | ød | A (mm) | H (mm) | Key (mm) | Static load max/unit (kg) | Unit price | Weight | Avail. | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| 125/86006 | 1 | M20x2,5 | 137 | 86 | 17 | 3300 | 0.989 kg |
|
||
| 125/86007 | 2 | M20x2,5 | 167 | 116 | 17 | 3300 | 1.049 kg |
|
||
| 125/86008 | 3 | M20x2,5 | 192 | 141 | 17 | 3300 | 1.099 kg |
|
||
| 125/88860 | 4 | M20x2,5 | 212 | 161 | 17 | 3300 | 1.139 kg |
|
||
| 125/86009 | 5 | M20x2,5 | 249 | 198 | 17 | 3300 | 1.219 kg |
|
||
| 125/86011 | 6 | M24x3 | 147 | 96 | 19 | 3500 | 1.119 kg |
|
||
| 125/86012 | 7 | M24x3 | 173 | 122 | 19 | 3500 | 1.189 kg |
|
||
| 125/86013 | 8 | M24x3 | 203 | 152 | 19 | 3500 | 1.289 kg |
|
||
| 125/86014 | 9 | M24x3 | 233 | 182 | 19 | 3500 | 1.379 kg |
|
||
| 125/86015 | 10 | M24x3 | 351 | 300 | 19 | 3500 | 1.729 kg |
|
||
| 125/86020 | 11 | M30x3,5 | 195 | 144 | 24 | 3800 | 1.409 kg |
|
||
|
Total:
0,0
All prices with tax excluded.
Tax rate: 20,0%. |
||||||||||
